add cc.tween #3660
add cc.tween #3660
Conversation
干嘛不叫 tween,避免和 animation 以及将来可能的 animator 混淆。
另外 run 建议叫做 start,因为通常还需要有 stop,start 和 stop 比较好对应。 |
还有一种更简单的 tween 实现方式是,只给用户返回一个进度值( 0~1 ),由用户自行对那个值进行计算。如
curve 可以暴露到编辑器中在属性检查器里进行设置。也可以传入 ease 函数。如果省略,则默认是 linear。 |
cocos2d/actions/animate.js
Outdated
* @param {Object} props - {scale: 2, position: cc.v3(100, 100, 100)} | ||
* @param {Object} opts | ||
*/ | ||
to (duration, props, opts) { |
There was a problem hiding this comment.
Choose a reason for hiding this comment
The reason will be displayed to describe this comment to others. Learn more.
props 放在 duration 前面不是更好看吗?
There was a problem hiding this comment.
Choose a reason for hiding this comment
The reason will be displayed to describe this comment to others. Learn more.
所有 action 都是以 duration 开始的
cocos2d/actions/animate.js
Outdated
* @param {*} props - {scale: 2, position: cc.v3(100, 100, 100)} | ||
* @param {*} opts | ||
*/ | ||
by (duration, props, opts) { |
There was a problem hiding this comment.
Choose a reason for hiding this comment
The reason will be displayed to describe this comment to others. Learn more.
支持乘法的话,也应该支持加法才对,要不然就都不要支持。
There was a problem hiding this comment.
Choose a reason for hiding this comment
The reason will be displayed to describe this comment to others. Learn more.
by 的意思是 props 里指定的值是相对于 target 初始值来计算的,没有乘法加法的区分
比如 vec3 会用 vec3.add,而 quat 则应该用 quat.mul,更奇葩的就应该自己定义 progress 了
There was a problem hiding this comment.
Choose a reason for hiding this comment
The reason will be displayed to describe this comment to others. Learn more.
这就有点 hack 了吧…… 这样的规则很难一眼看出来。而且如果我想要放大一倍的话,vec3 是需要乘法而不是加法的。

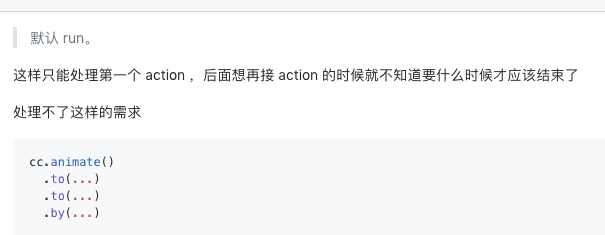

这样只能处理第一个 action ,后面想再接 action 的时候就不知道要什么时候才应该结束了 处理不了这样的需求 cc.animate()
.to(...)
.to(...)
.by(...)
这个需求添加一个 action 或者用户自己实现就可以了,而且现在已经有提供了很方便的自定义方法了,你可以自定义 easing 或者 progress 方法
这个工程就太大了 |
@pandamicro |
这个没问题吧?所有 action 都应该是在 update 和 lateUpdate 之间触发的。所以不可能在用户的代码定义时就生效,而是异步的(等待半帧)
感觉 by 的含义还是要再澄清下。否则用户想要做加法的话,第一直觉就是调用 add ……,容易混淆。
|
默认 run 的话,那如果我要 init 时创建一个 tween 缓存住,并不想现在就运行,而是每次 click 时再去执行这个 tween 要怎么做?
有点道理 |
所以才建议实现和 AnimationState 一样的 API。通常 tweening 都是支持 pause/play 什么的。 |
我也赞同把 add 改为 then,但是这样就不需要 add 和 mul 了,核心 API 就:to, by, then |
cocos2d/actions/animate.js
Outdated
} | ||
|
||
this._originProps = props; | ||
this.initWithDuration(duration); |
There was a problem hiding this comment.
Choose a reason for hiding this comment
The reason will be displayed to describe this comment to others. Learn more.
indent issue
cocos2d/actions/animate.js
Outdated
}; | ||
|
||
// action constructors | ||
let constructors = { |
There was a problem hiding this comment.
Choose a reason for hiding this comment
The reason will be displayed to describe this comment to others. Learn more.
为什么需要把这些 constructors 也放到 cc.Animate 下面?
There was a problem hiding this comment.
Choose a reason for hiding this comment
The reason will be displayed to describe this comment to others. Learn more.
这些本来就不应该放到 cc 下的,cc 下的东西太多了,希望能把 cc.moveTo 等都干掉放到这下面来访问
|
||
cc.Easing = module.exports = Easing; | ||
cc.easing = module.exports = easing; |
There was a problem hiding this comment.
Choose a reason for hiding this comment
The reason will be displayed to describe this comment to others. Learn more.
这个修改要在 deprecated 里面做兼容
cocos2d/actions/animate.js
Outdated
else { | ||
prop.start = value.clone(); | ||
prop.current = value.clone(); | ||
prop.end = relative ? (value.add || value.mul).call(value, prop.value) : prop.value; |
There was a problem hiding this comment.
Choose a reason for hiding this comment
The reason will be displayed to describe this comment to others. Learn more.
这个地方的处理感觉有点随意啊,对 props 的兼容性可能会有问题,另外,value.add 和 mul 也可能都不存在
There was a problem hiding this comment.
Choose a reason for hiding this comment
The reason will be displayed to describe this comment to others. Learn more.
ctor 里有检测类型啦!
if (!isNumber && (!value.lerp || (!value.add && !value.mul) || !value.clone)) {
cc.warn(`Can not animate ${name} property, because it do not have [lerp, (add|mul), clone] function.`);
continue;
}
另外,能不能展示一下 sequence 和 repeat 在 Animate 下的使用 |
还有反向的结合,比如用户用 var action = cc.sequence(moveTo, cc.animate(...)) 这样的用法有没有什么限制? |
用户自己的 prop,怎么区分要加还是要乘?比如就一个 number 的话。 |
没看到其他 tween 还有分 add 和 mul 的
cc.animate()
.to(...)
.by(...)
.repeat(5) 这里 to 和 by 会组合成一个 sequence,repeat 会对这个 sequence repeat 5 次
cc.animate 创建的是 Animate 类,不是 action,你这里应该这样使用 cc.animate() |
所以反向在 cc.sequence,cc.repeat 等 API 中,无法使用 cc.Animate 是吗? |
其它根本就不支持 by,只有一个 to,所以就没区分了…… |
这个 add 和 mul 函数的使用还是很奇怪,要么就都是 add 对应 lerp,什么情况下需要 mul ? |
视觉上主要是缩放的时候(缩小到 0.5 倍)、修改透明度的时候(透明度变成原先的 0.5)。 |
quat 就没有 add 这个函数,只有 mul,还有 mat,如果要做一个四元数的相对旋转,就要用 mul 来计算
原来 action 可以支持的,cc.animate 都可以使用,最不济就是用 .then 来串联原来的 action |
嗯,我不是很纠结 by/mul/add,都可以的。 |
这个 PR 后续还需要更新吗?如果需要的话,麻烦补充一下文档和范例! |
会更新,暂时没时间 |
cocos2d/actions/tween.js
Outdated
} | ||
|
||
this._originProps = props; | ||
this.initWithDuration(duration); |
There was a problem hiding this comment.
Choose a reason for hiding this comment
The reason will be displayed to describe this comment to others. Learn more.
indent issue
cocos2d/actions/tween.js
Outdated
* !#en | ||
* Provide a simple and flexible way to create action | ||
* !#zh | ||
* 提供了一个简单灵活的方法来创建 action |
There was a problem hiding this comment.
Choose a reason for hiding this comment
The reason will be displayed to describe this comment to others. Learn more.
文档强调啊一下 tween 的使用场景,比如是否可以和 cc.sequence, cc.spawn 混用,是否支持 .easing 接口,是否支持用户自定义属性等。
cocos2d/actions/tween.js
Outdated
* @method get | ||
* @return Action | ||
*/ | ||
Tween.prototype.get = function () { |
There was a problem hiding this comment.
Choose a reason for hiding this comment
The reason will be displayed to describe this comment to others. Learn more.
这个 API 在什么时候有用?感觉完全不需要啊
There was a problem hiding this comment.
Choose a reason for hiding this comment
The reason will be displayed to describe this comment to others. Learn more.
内部需要,可以把 api 注释去掉并改为内部方法
There was a problem hiding this comment.
Choose a reason for hiding this comment
The reason will be displayed to describe this comment to others. Learn more.
没看到哪里有用到
There was a problem hiding this comment.
Choose a reason for hiding this comment
The reason will be displayed to describe this comment to others. Learn more.
搜一下 this._get
* .by(1, {scale: 3, position: cc.v3(200, 200, 200)}, {easing: 'sineOutIn'}) | ||
* .run(cc.find('Canvas/cocos')); | ||
*/ | ||
function Tween (target) { |
There was a problem hiding this comment.
Choose a reason for hiding this comment
The reason will be displayed to describe this comment to others. Learn more.
如果 run 的时候必须传递 target,那么在构造的时候传递 target 的意义是什么?
There was a problem hiding this comment.
Choose a reason for hiding this comment
The reason will be displayed to describe this comment to others. Learn more.
run 改为 start/stop 了,start 也不需要传 target 了
cocos2d/actions/tween.js
Outdated
ReverseTime: cc.ReverseTime, | ||
}; | ||
|
||
Object.assign(Tween, actions, otherActions, constructors); |
There was a problem hiding this comment.
Choose a reason for hiding this comment
The reason will be displayed to describe this comment to others. Learn more.
为啥除了 prototype 还要放到类静态成员里面?
There was a problem hiding this comment.
Choose a reason for hiding this comment
The reason will be displayed to describe this comment to others. Learn more.
这些本来就不应该放到 cc 下的,cc 下的东西太多了,希望能把 cc.moveTo 等都干掉放到这下面来访问
看到了这条,之前这个类叫 cc.Animate,是可以的,现在叫 Tween 不太合适,把这些都放在 cc.Action 下面就可以了,或者单独创立一个命名空间:cc.actions。另外,为了调整命名空间的话,应该在各个类声明的位置修改,同时给原始的 cc.moveTo 之类的接口添加 deprecation 说明
There was a problem hiding this comment.
Choose a reason for hiding this comment
The reason will be displayed to describe this comment to others. Learn more.
是的,现在放到 Tween 下不合适了,可以改为放到 cc.Action 下,以后再改吧
There was a problem hiding this comment.
Choose a reason for hiding this comment
The reason will be displayed to describe this comment to others. Learn more.
一气改好啊,合进去万一有人用又蛋疼
There was a problem hiding this comment.
Choose a reason for hiding this comment
The reason will be displayed to describe this comment to others. Learn more.
或者你把这个快捷方式删除
There was a problem hiding this comment.
Choose a reason for hiding this comment
The reason will be displayed to describe this comment to others. Learn more.
哦,看到你去掉了

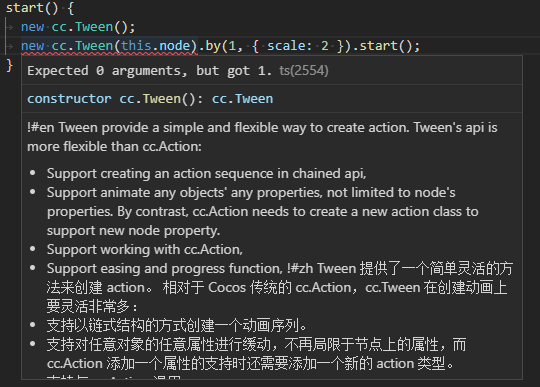

@2youyou2 I think Typescript types needs some updates Also a comprehensive documentation would be really lovely, since I don't completely understand everything that this allows me to do. If Typings would be in place it would be easier to figure out 👍 |
@Ronsku you need to write: |
Changes:
Use Cases
