TeleDrive

TeleDrive 2.0 is Now Available Here

Best performance. Low latency.

Enabling remote Driver-Controlled TeleOp over the internet for FIRST Tech Challenge teams.

Download our latest release for using TeleDrive with MacOS Big Sur.

Check out our slideshow for a detailed guide for how to implement TeleDrive onto your FTC robot

About TeleDrive

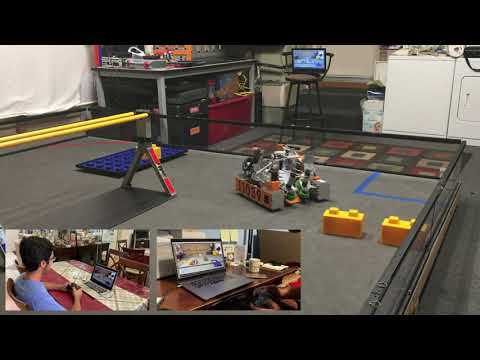

The COVID-19 pandemic left FIRST Tech Challenge competitions, scrimmages, and team driver practice in the dark. Because of local restrictions, many teams use online resources like Zoom to communicate and start preparing for the next season. However, there still isn't a solution to being able to practice driving the robot as well as coordinating competitions and scrimmages - all remotely... until now! TeleDrive is a simple, but powerful tool that allows teams to control their robot from the comfort of their homes. Using this, competitions can be run remotely and teams can drive their robot without having to worry about personal health and safety. Our program uses simple commands to bring low-latency and high-performance control, just as if controlling your robot on the field.

All of this is able to happen within 1/40 of a second, bringing the most performance with the least latency.

Wondering how we did it? Check out our blog post for more info: TeleDrive Blog Post

Installation, Setup, and Usage

Part 1: Integrate TeleDrive.java with your existing TeleOp programs

If you are planning on using TeleDrive in a LinearOpMode, you only need to download TeleDrive_LinearOpMode.java and add your code under the comment that says "CUSTOM CODE GOES HERE". Steps 1 through 6 in this section are only for using TeleDrive in an IterativeOpMode

1. Simply download TeleDrive.java, and copy it into your TeamCode folder
2. Change your TeleOp program(s) to extend the TeleDrive class
3. For each OpMode function (init, init_loop, start, loop, stop) in your TeleOp class, call super.func() at the beginning of that function. This is required, and not calling the method in the superclass would not allow TeleDrive to function properly. (Ex: in the loop() function, you must call super.loop() at the beginning)
4. Using your Driver Station phone, navigate to the "Program and Manage" menu, and find the local IP address of the Control Hub or Robot Controller phone
5. On line 303 in TeleDrive.java, replace the existing IP address with the IP address you found in Step 4
6. Optional: change the local port in TeleDrive.java at line 303 (default is 11039) Note: a port is an integer number.

Part 2: Setup the Host Computer (a computer that's in the same physical location as the robot) with TeleDrive_Host

1. On the Host Computer, download TeleDrive_Host.exe (for Windows) or TeleDrive_Host (for Mac)
2. Plug in a USB WiFi adapter to the Host Computer
3. Connect the secondary WiFi (WiFi 2) to the Control Hub or Robot Controller, and ensure that WiFi 1 is connected to your local router
4. Start the executable file by typing TeleDrive_Host.exe <Host Port> <Robot IP address> <Robot Port> (in Command Prompt on Windows) or ./TeleDrive_Host <Host Port> <Robot IP address> <Robot Port> (in Terminal on Mac).

Now, your host is ready to recieve commands from the Driver Controller(s).

Part 3: Setup Port Forwarding on the Host Computer's WiFi router

To allow the driver controller side to send commands to the host computer, you must allow port forwarding the WiFi router that the host computer is connected to. This is done by loging in to your WiFi router, locating the port forwarding options, enabling Port Forwarding, and setting the following:

• External Port: Pick a port that other users can connect to via the internet
• Local IP: Your Host Computer's local IP address (use ipconfig or ifconfig to find this)
• Local Port: This is the first port that you typed in the previous part (Ex: ./TeleDrive_Host 11039 "192.168.43.1" 12345 --> 11039)
• Protocol: UDP

Part 4: Setup the Driver Computer (a computer that is used to remotely control the robot) with TeleDrive_Driver

1. On the Host Computer, download TeleDrive_Driver.exe (for Windows) or TeleDrive_Driver (for Mac)
2. Plug in a USB gamepad (ex. Logitech F310). Make sure that the switch on the bottom of the gamepad is switched to "D" not "X"
3. Start the executable file by typing TeleDrive_Driver.exe <Public IPv4 address of Host Computer> <Host Port> (in Command Prompt on Windows) or ./TeleDrive_Driver <Public IPv4 address of Host Computer> <Host Port> (in Terminal on Mac).

You must use the public IPv4 address of the Host Computer, otherwise it would not work.

Install and Setup: Video Live Stream of Playing Field

Video live streaming is done using an industry leader in low latency live streaming: Parsec Gaming. The host computer for this application (the one connected to webcam and is streaming video) must be Windows. Client computers, however, can be either Windows or Mac.

Parsec Setup

To set up the Parsec on your computer, go to Parsec Downloads and click on your Operating System. Once it is done installing, create and verify an account and you are ready to stream or join a live stream!

Note: To start a live stream quickly, make the accounts that are on the Driver Computers as "Parsec friends" with the account of the Host Computer and you can easily accept them into your live stream.

Communication

Parsec, unfortunately, does not allow audio communication in its application. However, other reliable communication methods include Discord calls, phone calls, and more. Some services like Zoom may have more latency than others.

Common Errors

Port ____ is currently in use on your machine. Please try a different port.

This is most likely the only error you would encounter. In this case, you must change the the Host Port to another integer number as the Host computer is already using that port for another function. Make sure you change the port on both the Driver Controller side and the Host side when calling the .exe file

Nothing happens when I call all of the .exe files and the Robot Controller is running

Make sure to check if Port Forwarding is enabled on your WiFi router and that the ports and protocol are all correct (see Setup Port Forwarding on WiFi router). Another issue may be that the ports and IP addresses may be inconsistent (see Install and Setup: TeleDrive). You can also check if you have correctly entered in the ports as integer numbers.

Cannot host a Parsec server

Parsec servers only run on Windows computers, so if you are using a Mac, it wouldn't be allowed. Clients, on the other hand, can run on any operating system.

Gamepad Commands seem incorrect

Make sure to check that the switch on the bottom of the Driver's controllers are switched to "D" for "Dual".

The commands are being recieved on the host computer, but the robot is not moving

Make sure to click Start + A (or Start + B) just as you would if you were driving the robot in real-life.

TeleDrive is not working on MacOS Big Sur:

If you see the following stacktrace after updating to MacOS Big Sur:

Remote Drive is Starting...

Traceback (most recent call last):

File "site-packages/pyglet/__init__.py", line 334, in __getattr__

AttributeError: 'NoneType' object has no attribute 'get_joysticks'

• Please download the latest release of TeleDrive
• If Terminal does not allow you to run TeleDrive due to security restrictions, please allow TeleDrive to launch by going to System Preferences > Security and Privacy and clicking allow (at the bottom of the window) so that you can run TeleDrive.

Something else is wrong

If you've tried all the solutions listed above, and TeleDrive still doesn't work for you, please try to do the following:

• chmod +x TeleDrive
• Ensure the Terminal / Command Prompt has proper access to monitor input devices
• Restart Terminal / Command Prompt and / or your computer
• Send us an email at info@innov8rz.net and we will be happy to help!

Contributors

Developers

Avikam Chauhan

Mihir Chauhan

Testers

Mathew Joseph

Disclaimer:

The camera feed is handled through Parsec or Zoom or whichever service you choose to use. Our software does not connect to camera, it only sends the gamepad control commands over the internet.
