Incomplete UI for richdocuments (Collabora Office)

[mgoppold]

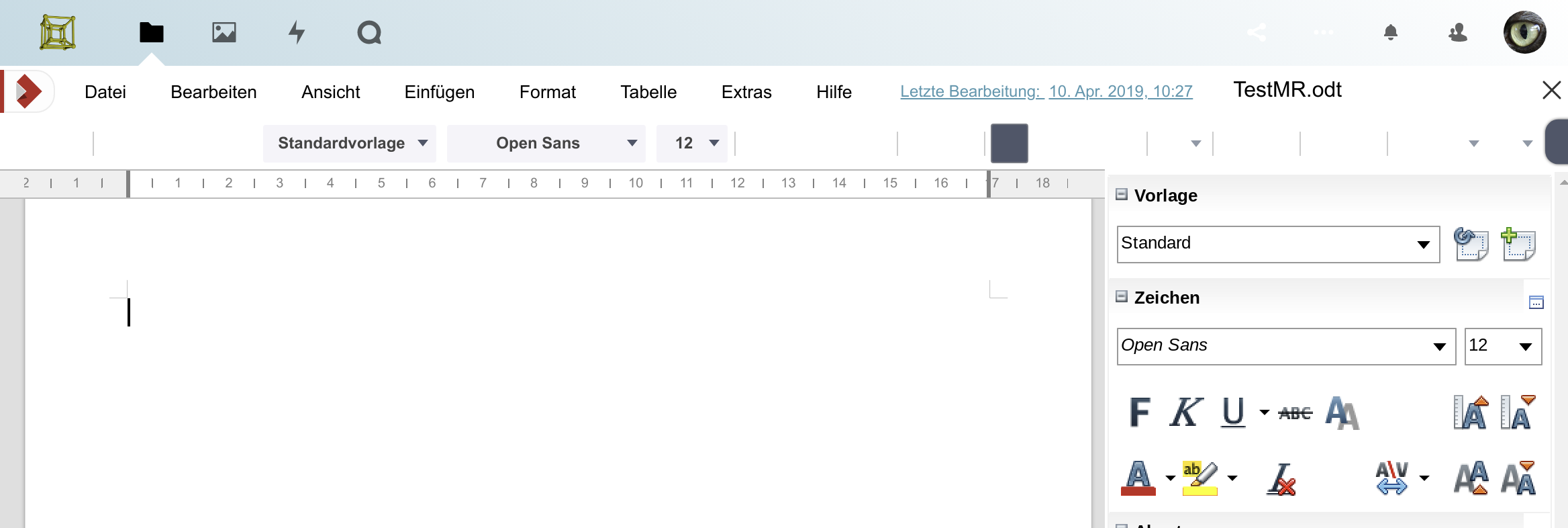

The UI is incomplete. The are no Icons / Buttons see screenshot

journalctl -u loolwsd -f:

Jun 09 21:29:33 mail2 loolwsd[21947]: wsd-21947-21967 2020-06-09 19:29:33.165559 [ websrv_poll ] WRN  FileServerRequestHandler: File not found: Invalid URI request: [/loleaflet/6144a6c/images/lc_decrementlevel_branding.svg].| wsd/FileServer.cpp:479
Jun 09 21:29:33 mail2 loolwsd[21947]: wsd-21947-21967 2020-06-09 19:29:33.174054 [ websrv_poll ] WRN  FileServerRequestHandler: File not found: Invalid URI request: [/loleaflet/6144a6c/images/lc_alignblock_branding.svg].| wsd/FileServer.cpp:479
Jun 09 21:29:33 mail2 loolwsd[21947]: wsd-21947-21967 2020-06-09 19:29:33.187947 [ websrv_poll ] WRN  FileServerRequestHandler: File not found: Invalid URI request: [/loleaflet/6144a6c/images/lc_alignleft_branding.svg].| wsd/FileServer.cpp:479
Jun 09 21:29:33 mail2 loolwsd[21947]: wsd-21947-21967 2020-06-09 19:29:33.189404 [ websrv_poll ] WRN  FileServerRequestHandler: File not found: Invalid URI request: [/loleaflet/6144a6c/images/lc_showannotations_branding.svg].| wsd/FileServer.cpp:479
Jun 09 21:29:58 mail2 loolwsd[21947]: wsd-21947-21967 2020-06-09 19:29:58.545229 [ websrv_poll ] WRN  FileServerRequestHandler: File not found: Invalid URI request: [/loleaflet/6144a6c/images/close-widget.svg].| wsd/FileServer.cpp:479

If I test the an Icon with curl I get:

curl https://collabora.server.tld/loleaflet/6144a6c/images/lc_about_branding.svg
<h1>Error: 404 - file not found!</h1><p>There seems to be a problem locating /loleaflet/6144a6c/images/lc_about_branding.svg</p><p>Please contact your system administrator.</p>

but without _branding:

curl https://collabora.server.tld/loleaflet/6144a6c/images/lc_about.svg
<svg height="32" width="32" xmlns="http://www.w3.org/2000/svg">...</svg>

Server details

Operating system:

openSUSE Leap 15.1

Web server:

apache2-2.4.33-lp151.8.12.1.x86_64

Nextcloud version:

18.0.5

Version of the richdocuments app

3.7.0

Version of Collabora Online

• LOOLWSD 4.2.3 (git hash: 6144a6c)
• LOKit Collabora Office 6.2-12 (git hash: 8dce0b1) "openSUSE Leap 15.1"

zypper se -r 1 -i -s
Repository-Daten werden geladen...
Installierte Pakete werden gelesen...

S  | Name                                         | Typ   | Version      | Arch   | Repository
---+----------------------------------------------+-------+--------------+--------+-----------
i+ | CODE-brand                                   | Paket | 4.2-23       | noarch | CODE
i  | collaboraoffice6.2                           | Paket | 6.2.10.12-12 | x86_64 | CODE
i+ | collaboraoffice6.2-dict-de                   | Paket | 6.2.10.12-12 | x86_64 | CODE
i  | collaboraoffice6.2-ure                       | Paket | 6.2.10.12-12 | x86_64 | CODE
i  | collaboraofficebasis6.2-calc                 | Paket | 6.2.10.12-12 | x86_64 | CODE
i  | collaboraofficebasis6.2-core                 | Paket | 6.2.10.12-12 | x86_64 | CODE
i+ | collaboraofficebasis6.2-de                   | Paket | 6.2.10.12-12 | x86_64 | CODE
i  | collaboraofficebasis6.2-draw                 | Paket | 6.2.10.12-12 | x86_64 | CODE
i  | collaboraofficebasis6.2-en-US                | Paket | 6.2.10.12-12 | x86_64 | CODE
i  | collaboraofficebasis6.2-extension-pdf-import | Paket | 6.2.10.12-12 | x86_64 | CODE
i  | collaboraofficebasis6.2-graphicfilter        | Paket | 6.2.10.12-12 | x86_64 | CODE
i  | collaboraofficebasis6.2-images               | Paket | 6.2.10.12-12 | x86_64 | CODE
i  | collaboraofficebasis6.2-impress              | Paket | 6.2.10.12-12 | x86_64 | CODE
i  | collaboraofficebasis6.2-ooofonts             | Paket | 6.2.10.12-12 | x86_64 | CODE
i  | collaboraofficebasis6.2-ooolinguistic        | Paket | 6.2.10.12-12 | x86_64 | CODE
i  | collaboraofficebasis6.2-writer               | Paket | 6.2.10.12-12 | x86_64 | CODE
i+ | loolwsd                                      | Paket | 4.2.3-3      | x86_64 | CODE

Workaround

new Rewrite in vhost Config:

  RewriteEngine On
  RewriteRule /loleaflet/(.*)/images/(.*)_branding.(.*) /loleaflet/$1/images/$2.$3 [R]

[timar]

Hi @mgoppold !

Thanks for the bug report. This bug is tracked in TDF Bugzilla: https://bugs.documentfoundation.org/show_bug.cgi?id=133496
I hope we can find out ASAP what's going on...
