Static Image is not cleared when change projection #13397

yonda-yonda · 2022-02-19T15:24:20Z

Describe the bug
Please watch this movie.

To Reproduce

Set Image Source, projection is EPSG:4326, extent is [0,0,10,10].
First, render with EPSG:3857. Displayed at the image at correct position.
Change map projection to EPSG:3413. At this time, center is [0, 0], zoom is 4 (Avoid including point of [lon, lat]=[10, 10] in screen).
The image remain in the center, should disappear.

Expected behavior
Image is cleared when prepare frame.

sample
I checked ol@v6.12.0.

import Map from 'ol/Map';
import {
  Image as ImageLayer,
  Tile as TileLayer
} from 'ol/layer';
import Static from 'ol/source/ImageStatic';
import View from 'ol/View';
import proj4 from 'proj4';
import {
  OSM,
} from 'ol/source';
import {
  getCenter,
} from 'ol/extent';
import {
  get as getProjection,
} from 'ol/proj';
import {
  register
} from 'ol/proj/proj4';
proj4.defs(
  'EPSG:3413',
  '+proj=stere +lat_0=90 +lat_ts=70 +lon_0=-45 +k=1 ' +
  '+x_0=0 +y_0=0 +datum=WGS84 +units=m +no_defs'
);
register(proj4);
const proj3413 = getProjection('EPSG:3413');
proj3413.setExtent([-4194304 * 10, -4194304 * 10, 4194304 * 10, 4194304 * 10]);

const layers = {};
layers['osm'] = new TileLayer({
  source: new OSM(),
});
layers['osm'].setProperties({
  name: "osm"
})

layers['static'] = new ImageLayer({
  source: new Static({
    url: 'https://openlayers.org/assets/theme/img/logo70.png',
    crossOrigin: '',
    projection: 'EPSG:4326',
    imageExtent: [0, 0, 10, 10],
    interpolate: true,
  })
})

const map = new Map({
  layers: [layers['osm'], layers['static']],
  target: 'map',
  view: new View({
    projection: 'EPSG:3857',
    center: [0, 0],
    zoom: 4,
  }),
});
const viewProjSelect = document.getElementById('view-projection');

function updateViewProjection() {
  const newProj = getProjection(viewProjSelect.value);
  const newProjExtent = newProj.getExtent();
  const newView = new View({
    projection: newProj,
    center: getCenter(newProjExtent || [0, 0, 0, 0]),
    zoom: 4,
    extent: newProjExtent || undefined,
  });
  map.setView(newView);
}
/**
 * Handle change event.
 */
viewProjSelect.onchange = function () {
  updateViewProjection();
};

updateViewProjection();

<!DOCTYPE html>
<html lang="en">
  <head>
    <meta charset="UTF-8">
    <title>Raster Reprojection</title>
    <!-- Pointer events polyfill for old browsers, see https://caniuse.com/#feat=pointer -->
    <script src="https://unpkg.com/elm-pep"></script>
    <!-- The lines below are only needed for old environments like Internet Explorer and Android 4.x -->
    <script src="https://cdn.polyfill.io/v3/polyfill.min.js?features=fetch,requestAnimationFrame,Element.prototype.classList,TextDecoder"></script>
    <script src="https://cdnjs.cloudflare.com/ajax/libs/core-js/3.18.3/minified.js"></script>
    <link rel="stylesheet" href="https://cdn.jsdelivr.net/gh/openlayers/openlayers.github.io@master/en/v6.8.1/css/ol.css" type="text/css">
    <style>
      .map {
        width: 100%;
        height:400px;
      }
      .form-inline label {
        justify-content: left;
      }
    </style>
  </head>
  <body>
    <div id="map" class="map"></div>
    <form class="form-inline">
      <label for="view-projection">View projection:</label>
      <select id="view-projection">
        <option value="EPSG:3857">Spherical Mercator (EPSG:3857)</option>
        <option value="EPSG:3413">NSIDC Polar Stereographic North (EPSG:3413)</option>
      </select>
    </form>
    <script src="test.js" type="module"></script>
  </body>
</html>

parcel test.html

yonda-yonda · 2022-03-19T06:17:56Z

Thanks @ahocevar for your care for #13459 .
I've been thinking about that test case, and realized that there are a few other problems with ImageStatic re-projection.

For example, in the case of source projection is EPSG:4326, view projection is EPSG:3995,

For some z, a part of the image is missing (See pictures below).
Extent crushed, ImageStatic is not displayed. When [140, 0, 150, 10] at EPSG:4326, extent transform to EPSG:3995 failed.

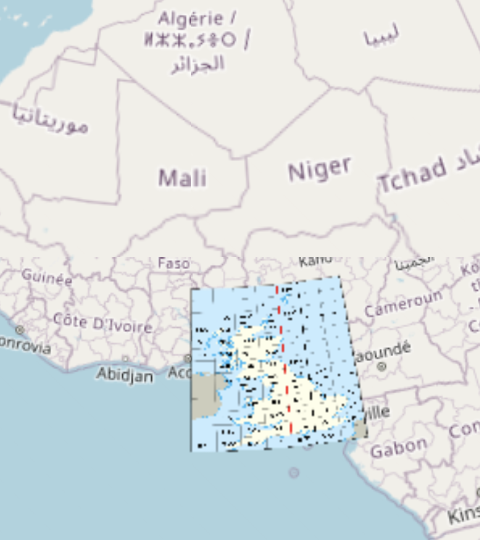

correct

missing part.

Projection is so difficult!!
I learned ImageStatic should be used without re-projection.
I've given up fixing ImageStatic, sorry.

Instead, I found a solution with TileImage, though it is limited to EPSG:4326. Look at the code below.

const layer = new TileLayer({
  source: new ImageWGS84({
    url: '~',
    crossOrigin: "Anonymous",
  }),
});

class ImageWGS84 extends TileImage {
  constructor(opt_options) {
    const options = opt_options || {};
    const tileSize = options.tileSize ? options.size : DEFAULT_TILE_SIZE;

    const gridExtent = [-180, -90, 180, 90];
    const tileGrid = new TileGrid({
      extent: gridExtent,
      tileSize: tileSize,
      resolutions: resolutionsFromExtent(gridExtent, opt_options.maxZoom, tileSize, 360 / tileSize),
    });

    const tileLoadFunction =
      (imageTile, coordString) => {
        const [z, x, y] = coordString.split(",").map(Number);

        const canvas = document.createElement("canvas");
        canvas.width = tileSize;
        canvas.height = tileSize;
        const context = canvas.getContext("2d");
        if (!context || !this._context) {
          imageTile.setState(TileState.ERROR);
          return;
        }

        const [leftTopLon, leftTopLat, size] = toLonLat(z, x, y);
        const [
          imageExtentLeft, imageExtentBottom, imageExtentRight, imageExtentTop
        ] = this._imageExtent;

        let [
          tileLeft, tileBottom, tileRight, tileTop
        ] = [
          leftTopLon, leftTopLat - size, leftTopLon + size, leftTopLat
        ];
        if (imageExtentLeft < -180 && 0 < tileRight) {
          tileLeft -= 360;
          tileRight -= 360;
        } else if (180 < imageExtentRight && tileLeft < 0) {
          tileLeft += 360;
          tileRight += 360;
        }

        if (!crossing([
            imageExtentLeft, imageExtentBottom, imageExtentRight, imageExtentTop
          ], [
            tileLeft, tileBottom, tileRight, tileTop
          ])) {
          imageTile.setState(TileState.EMPTY);
        }

        const sourcePerPixel = [(imageExtentRight - imageExtentLeft) / this._context.canvas.width, (imageExtentTop - imageExtentBottom) / this._context.canvas.height];
        const tilePerPixel = [(tileRight - tileLeft) / tileSize, (tileTop - tileBottom) / tileSize];
        const leftBottom = [Math.max(tileLeft, imageExtentLeft), Math.max(imageExtentBottom, tileBottom)];
        const rightTop = [Math.min(tileRight, imageExtentRight), Math.min(imageExtentTop, tileTop)];
        const tileRect = [
          Math.round((leftBottom[0] - tileLeft) / tilePerPixel[0]), Math.round((tileTop - rightTop[1]) / tilePerPixel[1]),
          Math.round((rightTop[0] - tileLeft) / tilePerPixel[0]), Math.round((tileTop - leftBottom[1]) / tilePerPixel[1])
        ];
        const sourceRect = [
          Math.round((leftBottom[0] - imageExtentLeft) / sourcePerPixel[0]), Math.round((imageExtentTop - rightTop[1]) / sourcePerPixel[1]),
          Math.round((rightTop[0] - imageExtentLeft) / sourcePerPixel[0]), Math.round((imageExtentTop - leftBottom[1]) / sourcePerPixel[1])
        ];
        const sourceRectSize = [sourceRect[2] - sourceRect[0], sourceRect[3] - sourceRect[1]];
        const tileRectSize = [tileRect[2] - tileRect[0], tileRect[3] - tileRect[1]];

        if (Math.min(...sourceRectSize, ...tileRectSize) <= 0) {
          imageTile.setState(TileState.EMPTY);
          return
        }

        const tempCanvas = document.createElement("canvas");
        tempCanvas.width = sourceRectSize[0];
        tempCanvas.height = sourceRectSize[1];
        const tempContext = tempCanvas.getContext("2d");
        if (tempContext) {
          tempContext.clearRect(0, 0, sourceRectSize[0], sourceRectSize[1]);
          tempContext.putImageData(this._context.getImageData(sourceRect[0], sourceRect[1], sourceRectSize[0], sourceRectSize[1]), 0, 0);
          context.drawImage(tempCanvas, 0, 0, sourceRectSize[0], sourceRectSize[1], tileRect[0], tileRect[1], tileRectSize[0], tileRectSize[1]);
        }

        imageTile.getImage().src =
          canvas.toDataURL();

      };

    let interpolate =
      options.imageSmoothing !== undefined ? options.imageSmoothing : true;
    if (options.interpolate !== undefined) {
      interpolate = options.interpolate;
    }
    super({
      state: options.url ? SourceState.LOADING : SourceState.UNDEFINED,
      attributions: options.attributions,
      cacheSize: options.cacheSize,
      crossOrigin: options.crossOrigin,
      interpolate: interpolate,
      opaque: options.opaque,
      projection: "EPSG:4326",
      reprojectionErrorThreshold: options.reprojectionErrorThreshold,
      tileGrid: tileGrid,
      tileLoadFunction,
      tilePixelRatio: options.tilePixelRatio,
      url: "{z},{x},{y}",
      wrapX: options.wrapX !== undefined ? options.wrapX : true,
      transition: options.transition,
      attributionsCollapsible: options.attributionsCollapsible,
    });
    this._imageExtent = [Infinity, Infinity, -Infinity, -Infinity];
    if (Array.isArray(options.imageExtent) && options.imageExtent.length > 3) {
      this._imageExtent = options.imageExtent;
    }
    if (
      this._imageExtent[0] < -360 || 360 < this._imageExtent[0] ||
      this._imageExtent[1] < -90 || 90 < this._imageExtent[1] ||
      this._imageExtent[2] < -360 || 360 < this._imageExtent[2] ||
      this._imageExtent[3] < -90 || 90 < this._imageExtent[3] ||
      this._imageExtent[2] <= this._imageExtent[0] ||
      this._imageExtent[0] - this._imageExtent[2] > 360
    ) throw new Error("invalid extent.");

    let rad = 0;
    if (options.rotate) {
      rad = options.rotate;
      this._imageExtent = rotateExtent(this._imageExtent, rad)
    }

    const canvas = document.createElement("canvas");
    const context = canvas.getContext("2d");

    if (!context) return;
    context.imageSmoothingEnabled = interpolate !== undefined ? interpolate : true;
    this._context = context;

    const image = new Image();
    image.crossOrigin = options.crossOrigin;

    image.addEventListener("load", () => {
      const rotatedCoordinates = rotateExtent([0, 0, image.width, image.height], rad);
      const rotatedWidth = rotatedCoordinates[2] - rotatedCoordinates[0];
      const rotatedHeight = rotatedCoordinates[3] - rotatedCoordinates[1];
      this._context.canvas.width = rotatedWidth;
      this._context.canvas.height = rotatedHeight;

      context.save();
      context.translate(rotatedWidth / 2, rotatedHeight / 2);
      context.rotate(-rad);
      this._context.drawImage(image, -(image.width / 2), -(image.height / 2));
      context.restore();
      this.setState(SourceState.READY);
    });
    image.addEventListener("error", () => {
      this.setState(SourceState.ERROR);
    });

    image.src = options.url;
  }
}

function rotateExtent(extent, rad) {
  const center = [(extent[2] - extent[0]) / 2 + extent[0], (extent[3] - extent[1]) / 2 + extent[1]];
  const leftTop = [
    (extent[0] - center[0]) * Math.cos(rad) - (extent[3] - center[1]) * Math.sin(rad),
    (extent[0] - center[0]) * Math.sin(rad) + (extent[3] - center[1]) * Math.cos(rad),
  ];
  const leftBottom = [
    (extent[0] - center[0]) * Math.cos(rad) - (extent[1] - center[1]) * Math.sin(rad),
    (extent[0] - center[0]) * Math.sin(rad) + (extent[1] - center[1]) * Math.cos(rad),
  ];
  const rightBottom = [
    (extent[2] - center[0]) * Math.cos(rad) - (extent[1] - center[1]) * Math.sin(rad),
    (extent[2] - center[0]) * Math.sin(rad) + (extent[1] - center[1]) * Math.cos(rad),
  ];
  const rightTop = [
    (extent[2] - center[0]) * Math.cos(rad) - (extent[3] - center[1]) * Math.sin(rad),
    (extent[2] - center[0]) * Math.sin(rad) + (extent[3] - center[1]) * Math.cos(rad),
  ];

  return [
    Math.min(leftTop[0], leftBottom[0], rightBottom[0], rightTop[0]) + center[0],
    Math.min(leftTop[1], leftBottom[1], rightBottom[1], rightTop[1]) + center[1],
    Math.max(leftTop[0], leftBottom[0], rightBottom[0], rightTop[0]) + center[0],
    Math.max(leftTop[1], leftBottom[1], rightBottom[1], rightTop[1]) + center[1],
  ];
}

function resolutionsFromExtent(
  extent,
  opt_maxZoom,
  opt_tileSize,
  opt_maxResolution
) {
  const maxZoom = opt_maxZoom !== undefined ? opt_maxZoom : DEFAULT_MAX_ZOOM;

  const height = getHeight(extent);
  const width = getWidth(extent);

  const tileSize = toSize(
    opt_tileSize !== undefined ? opt_tileSize : DEFAULT_TILE_SIZE
  );
  const maxResolution =
    opt_maxResolution > 0 ?
    opt_maxResolution :
    Math.max(width / tileSize[0], height / tileSize[1]);

  const length = maxZoom + 1;
  const resolutions = new Array(length);
  for (let z = 0; z < length; ++z) {
    resolutions[z] = maxResolution / Math.pow(2, z + 1);
  }
  return resolutions;
}
function toLonLat(z, x, y) {
  const size = 180 / (2 ** z);
  const lon = -180 + x * size;
  const lat = 90 - y * size;
  return [lon, lat, size]
}
function crossing(extentLeft, extentRight) {
  return Math.max(extentLeft[0], extentRight[0]) <= Math.min(extentLeft[2], extentRight[2]) && Math.max(extentLeft[1], extentRight[1]) <= Math.min(extentLeft[3], extentRight[3])
}

yonda-yonda added the bug label Feb 19, 2022

yonda-yonda mentioned this issue Feb 19, 2022

Clear image when source's image is not ready #13398

Merged

ahocevar closed this as completed in #13398 Feb 21, 2022

imagoiq mentioned this issue Mar 9, 2022

V6.13.0 regression - Color-manipulation example flickering with #13398 fix #13459

Closed

ahocevar mentioned this issue Mar 9, 2022

Revert image transition regression #13460

Merged

Provide feedback

Saved searches

Use saved searches to filter your results more quickly

Static Image is not cleared when change projection #13397

Static Image is not cleared when change projection #13397

yonda-yonda commented Feb 19, 2022

yonda-yonda commented Mar 19, 2022 •

edited

Static Image is not cleared when change projection #13397

Static Image is not cleared when change projection #13397

Comments

yonda-yonda commented Feb 19, 2022

yonda-yonda commented Mar 19, 2022 • edited

yonda-yonda commented Mar 19, 2022 •

edited
