Works only in galen version 2.2.0 or higher

Galen Extras

Galen Extras is a library for extending the Galen Specs Language with most common complex expressions, which allows you to have minimal code and maximum test coverage.

Here is a small example which describes all layouts of menu items on responsive website:

@import galen-extras/galen-extras-rules.gspec

@objects
    menu                #menu  .middle-wrapper
        item-*              ul li

@groups
    (menu_item, menu_items)     menu.item-*

= Menu items should adapt layout  =
    @on *
        | amount of visible &menu_items should be 4
        | every &menu_item has height ~ 64px
        | first &menu_item is inside menu 0px top left

    @on desktop, tablet
        | &menu_items are aligned horizontally next to each other with 0 to 5px margin

    @on mobile
        | &menu_items are rendered in 2 column table layout, with 0 to 4px vertical and 1px horizontal margin

Install

Just download the folder galen-extras to your specs folder in your test project and import it:

@import galen-extras/galen-extras-rules.gspec

# ...

You only need to import that one file. The galen-extras-rules.js is imported in it already.

Inspiration

If you want to see all these custom rules in action just look at examples.gspec file. It shows how different rules could be used effectively for testing a page on different breakpoints. Also you can play with this project and run galen tests for it:

galen test galen.test --htmlreport reports

Documentation

In this section you will find syntax explanation for all rules and examples.

Squared elements

Allows to check that element has equal width and height.

For multiple elements

Scope: Section

Syntax: %{objectPattern} should be squared

    | header_icon, menu_button should be squared
For single elements

Scope: Object

Syntax: squared

    header_icon:
        | squared

Almost squared elements

Same as squared rule but it allows an error rate of 10%

For multiple elements

Scope: Section

Syntax: %{objectPattern} should be almost squared

    | header_icon, menu_button should be almost squared
For single elements

Scope: Object

Syntax: almost squared

    header_icon:
        | almost squared

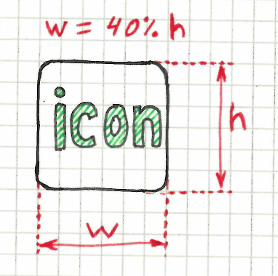

Width/Height Ratio

You can check the exact ratio of width/height in percentage

Multiple elements

Scope: Section

Syntax: %{itemPattern} should have %{ratio}% width/height ratio

    | login_button, cancel_button should have 140 % width/height ratio
Single elements

Scope: Object

Syntax: %{ratio}% width/height ratio

    login_button:
        | 140 % width/height ratio

Testing amount of objects

In Galen you can check the amount of objects using just the 2 lines of code:

    global:
        count any menu.item-* is 3

But it is not very human readable. By using the rule below you can express this validation in simple sentence

Scope: Section

Syntax: amount of %{visibilityType} %{objectPattern} should be %{amount}

where visibilityType can take any, visible or absent values

e.g. amount of any elements:

    | amount of any menu.item-* should be 5

e.g. testing only visible elements

    | amount of visible menu.item-* should be 5

Giving a range of expected values

    | amount of visible menu.item-* should be 4 to 7

or

    | amount of visible menu.item-* should be > 4

Alignment of multiple elements with zero margin

A very common situation when you have elements on the page aligned either vertically or horizontally.

Horizontal

Scope: Section

Syntax: %{objectPattern} are aligned horizontally next to each other

    | menu.item-* are aligned horizontally next to each other
Vertical

Scope: Section

Syntax: %{objectPattern} are aligned vertically above each other

    | menu.item-* are aligned vertically above each other

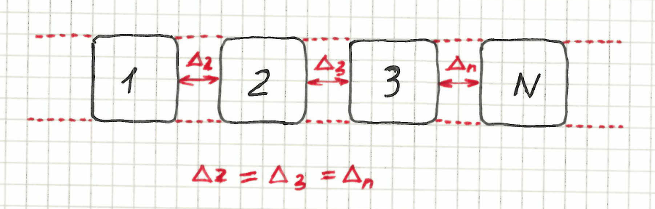

Alignment of multiple elements with equal distance

A very common situation when you have elements on the page aligned either vertically or horizontally. At the same time their margin might change depending on page width. The following rules will help you when you can't know the exact margin and you just want to check that it is consistent.

Horizontal

Scope: Section

Syntax: %{objectPattern} are aligned horizontally next to each other with equal distance

    | menu.item-* are aligned horizontally next to each other with equal distance

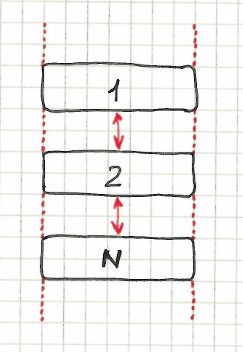

Vertical

Scope: Section

Syntax: %{objectPattern} are aligned vertically above each other with equal distance

    | menu.item-* are aligned vertically above each other with equal distance

Alignment of multiple elements with specific margin

Similar to the above statement but in this case you can declare a specific margin between elements

Horizontal

Scope: Section

Syntax: %{objectPattern} are aligned horizontally next to each other with %{margin} margin

    | menu.item-* are aligned horizontally next to each other with 5px margin
    | box-* are aligned horizontally next to each other with 25 to 30px margin
Vertical

Scope: Section

Syntax: %{objectPattern} are aligned vertically above each other with %{margin} margin

    | menu.item-* are aligned vertically above each other with 5px margin
    | box-* are aligned vertically above each other with 25 to 30px margin

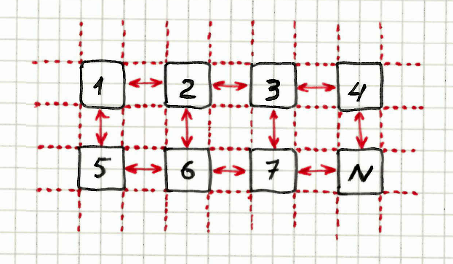

Table layout

Allows to check that a set of elements is displayed in simple table. You can define the amount of columns for this table layout.

Table layout with zero margin between cols and rows

Scope: Section

Syntax: %{itemPattern} are rendered in %{columns} column table layout

    | menu.item-* are rendered in 2 column table layout
Table layout with equal cols and rows margin

Scope: Section

Syntax: %{itemPattern} are rendered in %{columns} column table layout, with %{margin} margin

    | menu.item-* are rendered in 2 column table layout, with 0 to 5px margin
Table layout with different cols and rows margin

Scope: Section

Syntax: %{itemPattern} are rendered in %{columns} column table layout, with %{verticalMargin} vertical and %{horizontalMargin} horizontal margins

    | menu.item-* are rendered in 2 column table layout, with 0px vertical and 5px horizontal margins

Location of sides of multiple elements inside a container

The following statement checks that a set of elements is located inside specified container and that the first and last element have a specific margin from sides between the container sides.

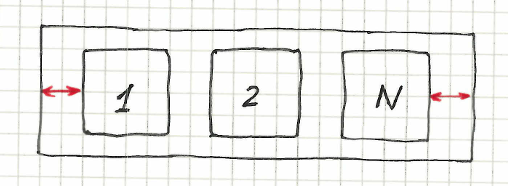

Horizontal zero margin

Syntax: %{objectPattern} sides are horizontally inside %{containerObject}

    | menu.item-* sides are horizontally inside menu

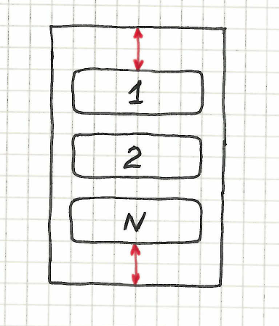

Vertical zero margin

Syntax: %{objectPattern} sides are vertically inside %{containerObject}

    | menu.item-* sides are vertically inside menu
Custom margin for both sides

Syntax: %{objectPattern} sides are inside %{containerObject} with %{margin} margin from %{sideAName} and %{sideBName}

where sideAName and sideBName can take the following values: left, right, top, bottom

####### Left and Right

    | menu.item-* sides are inside menu with > 0px margin from left and right

####### Top and Bottom

    | box-* sides are inside box_container with > 0px margin from top and bottom

Common Conditions

The following common conditions allow you to insert your own code block and invoke only if condition succeeds.

If all elements are visible

Scope: Any

Syntax: if all %{objectPattern} are visible

    | if all menu.item-* are visible
        menu.item-*:
            height 30px
If any of elements is visible:

Scope: Any

Syntax: if any of %{objectPattern} is visible

    | if any of menu.item-* is visible
        menu:
            height 50px
If none of elements are visible:

Scope: Any

Syntax: if none of %{objectPattern} are visible

    | if none of menu.item-* are visible
        main:
            below header 0px

Appearance of elements per breakpoints

Quite often you have elements of the website that are hidden on small devices and are only shown on large layouts. You can use the following statements to express that behaviour

Scope: Section

Syntax: %{objectPatterns} should be visible on %{tagsVisible} but absent on %{tagsAbsent}

    | twitter_button should be visible on desktop, laptop but absent on tablet, mobile

Component validations for multiple elements

Allows to specify a component check for a set of elements

Scope: Section

Syntax: test all %{objectPattern} with %{componentPath}

    | test all box-* with components/box.gspec

Applying generic checks for multiple elements in a single line

This is usefull when you have repetitive specs for different elements and you don't want to use forEach loops. Basically if you have forEach loop for one iterated object and one spec for it, you can do in a single statement using this rule.

Scope: Section

Syntax 1: every %{objectPattern} is %{spec}

Syntax 2: every %{objectPattern} has %{spec}

    | every menu.item-* is inside menu 0px top bottom
    | every menu.item-* has width 100px

Applying two specs for multiple elements in a single line

Similar to the above statement, this one allows to have two specs separated by word and

Scope: Section

Syntax 1: every %{objectPattern} is %{spec1} and has %{spec2}

Syntax 2: every %{objectPattern} has %{spec1} and is %{spec2}

Syntax 3: every %{objectPattern} has %{spec1} and has %{spec2}

Syntax 4: every %{objectPattern} is %{spec1} and is %{spec2}

    | every menu.item-* is inside menu 0px top bottom and has width 100px

Checking only first element from given expression

Often when working with set of elements you need to check only the first one or the last

Syntax 1: first %{objectPattern} is %{spec}

Syntax 2: first %{objectPattern} has %{spec}

    | first menu.item-* is inside menu 0px top bottom
    | first menu.item-* has width 100px

Checking only last element from given expression

Same as above, but this time it checks the last element

Syntax 1: last %{objectPattern} is %{spec}

Syntax 2: last %{objectPattern} has %{spec}

    | last menu.item-* is inside menu 0px top bottom
    | last menu.item-* has width 100px

Applying multiple checks for only first element from given expression

Allows to apply multiple specs to only first element

Syntax: first %{objectPattern}:

    | first menu.item-* :
        below header 10px
        inside main_container 0px top left

Applying multiple checks for only last element from given expression

Allows to apply multiple specs to only last element

Syntax: last %{objectPattern}:

    | last menu.item-* :
        below header 10px
        inside main_container 0px top left

License

Galen Extras lib is licensed under Apache License, Version 2.0
