c-ray

A portable, hackable, embeddable software path tracer.

Build Status justforfunnoreally.dev badge

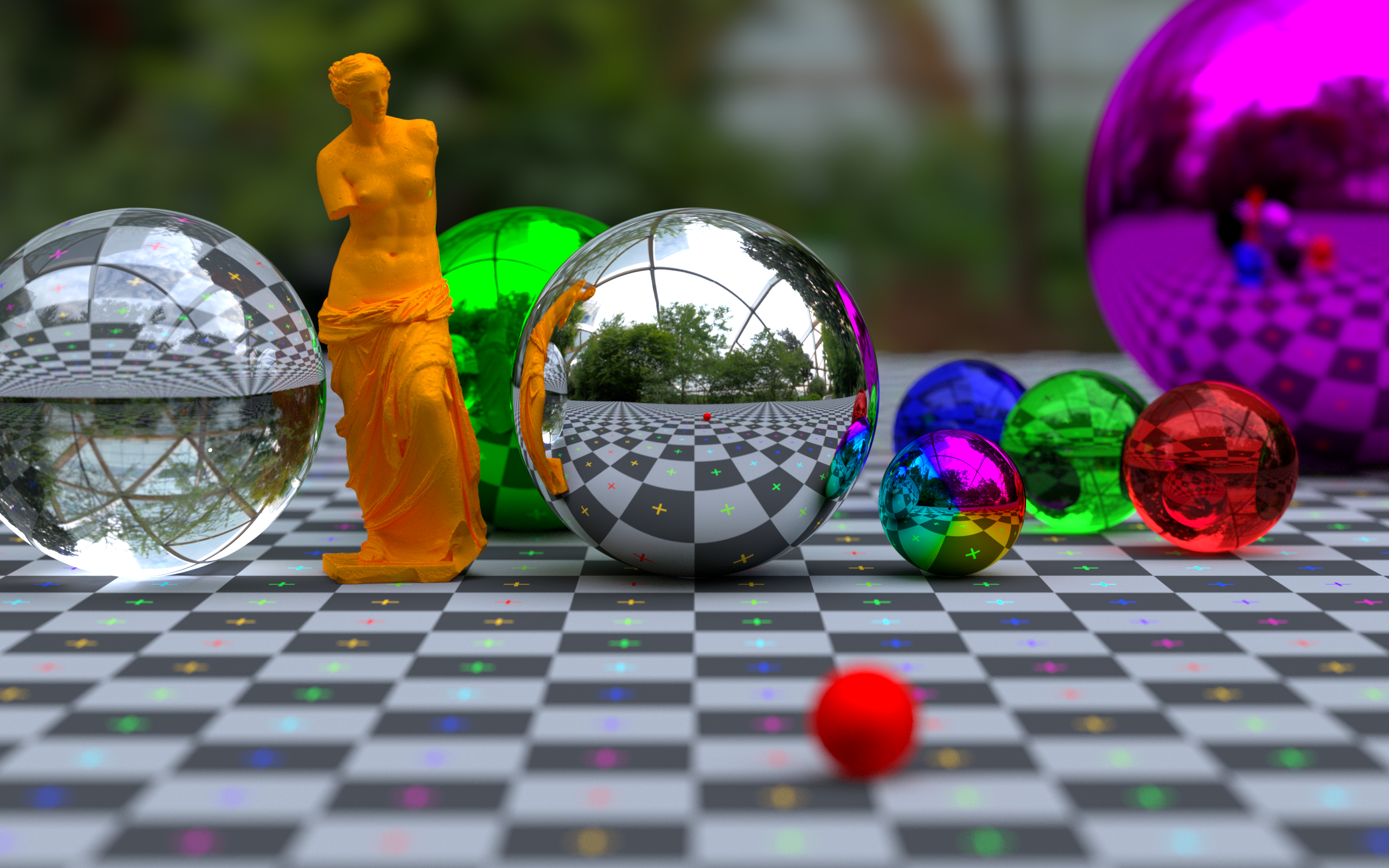

Example renders


(1000 samples, 1920x1080, 512 max bounces, 26min, scene by Scott Graham)


(256 samples, 2560x1440, 12 max bounces, 9min 37s, scene by MaTTeSr)


(512 samples, 2560x1600, 30 max bounces, 8min)

About

c-ray is a portable, hackable, offline CPU rendering engine built for learning. The core is in plain C99, with an emphasis on clarity and avoiding superfluous abstraction. Contributions are welcome. See the contributing section in the wiki for more details.

An incomplete list of features:

  • Cluster rendering support over TCP/IP
  • A C API
  • Python bindings
  • A Blender add-on
  • A node-graph material/shader system with 32+ node types, including a Principled BSDF approximation.
  • A performant BVH accelerator (by @madmann92)
  • A simple unidirectional Monte Carlo integrator with global illumination
  • Real-time render preview and state reporting using a callback mechanism
  • Simple thin-lens camera approximation with depth of field
  • Multithreading
  • Object instancing
  • HDR environment maps for realistic lighting
  • Triangles and spheres
  • Russian Roulette path optimization

Things I'm looking to implement:

  • More advanced light sampling
  • Better performance & lower memory consumption.
  • Proper physically based materials in place of the current ad-hoc implementations
  • More cool advanced techniques from research literature

Portability

c-ray has been verified to work on the following architectures

Usage

A basic driver program can be used to run c-ray standalone (see 'Stand-alone usage' below), but the easiest way to try out c-ray is to build and install the Blender add-on, and trying it out there:

  1. Check BLENDER_ROOT in lib.mk, make sure it points to the version of Blender you have installed
  2. make fullblsync will then compile the python bindings (cray_wrap.so), and install under BLENDER_ROOT as an add-on.
  3. Enable the c-ray add-on in Blender Preferences, and choose c-ray for Blender as your render engine.
  4. Report bugs or missing features (there are a lot!) by filing an issue here on GitHub

Dependencies

Compile time:

  • Standard C99 compiler with some fairly common libraries (libc, libm, pthreads)

Runtime:

  • CMake for the build system (Optional, a basic makefile is provided for *nix systems)
  • SDL2 (Optional, enabled if SDL2 was found at runtime)
  • Python3 (Optional, it's used for some utility scripts)

Tests

You can run the integrated test suite by invoking the test script like this: ./run-tests.sh This will compile c-ray with the correct flags, and then run each test individually in separate processes. If you want to run them in a shared process, do bin/c-ray --test You can also run a single suite ./run-tests.sh mathnode

Stand-alone usage

You can mostly ignore these instructions below if you're only interested in running c-ray as a Blender add-on.

Linux:

  1. (Optional) Install SDL2 (See installing SDL below)
  2. Run make to build the project
  3. If the plain Makefile doesn't work on your system, run cmake . and then try make again.
  4. Run binary. For example: bin/c-ray input/hdr.json. You can also pipe files into c-ray and it will read from there. This is useful for scripts that invoke c-ray. Example: cat input/scene.json | bin/c-ray Note: When reading the json from stdin, c-ray assumes that the asset path is ./. This can be specified with --asset-path

macOS:

  1. Follow Linux instructions, or you can try mkdir build && cd build && cmake -G Xcode ..

Windows:

  1. Install Build Tools for Visual Studio
  2. Optional: Download SDL2 Development libaries from here and extract: https://www.libsdl.org/download-2.0.php (https://www.libsdl.org/release/SDL2-devel-2.0.8-VC.zip)
  3. Open a Developer Command Prompt for VS 2019, navigate to where you cloned c-ray and set path to SDL2DIR (where you extracted the files to, should have a few folders like 'include' and 'lib'): set SDL2DIR=E:\sdl2\SDL2-devel-2.0.8-VC\SDL2-2.0.8
  4. Run cmake: cmake -G "Visual Studio 16 2019" .
  5. (Optional) Copy your SDL2.dll into bin\Release\ and bin\Debug\
  6. Build the generated solution: msbuild c-ray.sln /p:Configuration=Release
  7. Run: bin\Release\c-ray.exe input\scene.json or type input\scene.json | bin\Release\c-ray.exe

Usage

All the .json files in input/ are test scenes provided with c-ray, assets for those scenes are (mostly) bundled with the repository as well.

If you make a cool scene and have Python3 installed, you can bundle up the scene into a portable .zip file using the scripts/bundle.py script.

Credits

3rd party libraries included in this project include:

Contributors

  • Huge thanks to @madmann91 for the BVH accelerator and overall ~60% performance improvement

Please file an issue detailing any improvements you're planning on making. I openly welcome contributions!

You can also ping me on Discord: vkoskiv#3100
