Plot just one ROC curve in the binary case (#1040)

[VladSkripniuk]

Remove per-class ROC curves and micro- and macro- averaging in the case
of binary classification for estimators with predict_proba.

This PR fixes #1040 which reported that ROCAUC draws per-class curves in case if estimator has predict_proba. This is not consistent with behavior of ROCAUC when estimator only has decision_function and is not consistent with PrecisionRecallCurve which draws single curve in the case of binary classification.

I have made the following changes:

1. Changed ROCAUC to treat binary classifiers with predict_proba as binary problem, not multiclass.
2. Changed tests accordingly.

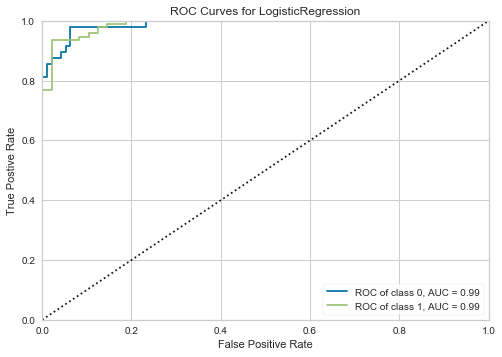

Sample Code and Plot

from sklearn.linear_model import LogisticRegression
X_train, X_test, y_train, y_test = train_test_split(X, y)
viz = ROCAUC(LogisticRegression())
viz.fit(X_train, y_train)
viz.score(X_test, y_test)
viz.show()

CHECKLIST

• Is the commit message formatted correctly?
• Have you noted the new functionality/bugfix in the release notes of the next release?

• Included a sample plot to visually illustrate your changes?
• Do all of your functions and methods have docstrings?
• Have you added/updated unit tests where appropriate?
• Have you updated the baseline images if necessary?
• Have you run the unit tests using pytest?
• Is your code style correct (are you using PEP8, pyflakes)?
• Have you documented your new feature/functionality in the docs?

• Have you built the docs using make html?

[lwgray]

@VladSkripniuk The ROC Curve Visualizer was built with multi-class cases in mind. If you don't want the micro and macro curves... you can turn them off.

[VladSkripniuk]

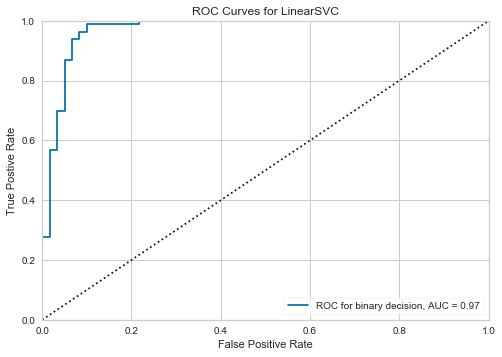

@lwgray my concern is that ROCAUC works differently for binary classifiers which have decision_function and predict_proba. For example, LinearSVC only has decision_function and ROCAUC produces single curve:

from sklearn.datasets import load_breast_cancer
from sklearn.model_selection import train_test_split
from sklearn.linear_model import LogisticRegression
from sklearn.svm import LinearSVC

from yellowbrick.classifier.prcurve import PrecisionRecallCurve
from yellowbrick.classifier.rocauc import ROCAUC

X_train, X_test, y_train, y_test = train_test_split(X, y)
viz = ROCAUC(LinearSVC(), micro=False, macro=False, per_class=False)
viz.fit(X_train, y_train)
viz.score(X_test, y_test)
viz.show()

LogisticRegression on the other hand has predict_proba and the piece of code above raises an exception, when LinearSVC is substituted with LogisticRegression:

YellowbrickValueError                     Traceback (most recent call last)
<ipython-input-25-e5a47d9cc874> in <module>()
     16 viz = ROCAUC(LogisticRegression(), micro=False, macro=False, per_class=False)
     17 viz.fit(X_train, y_train)
---> 18 viz.score(X_test, y_test)
     19 viz.show()

~/yb_devenv/yellowbrick/yellowbrick/classifier/rocauc.py in score(self, X, y)
    242             if not self.micro and not self.macro and not self.per_class:
    243                 raise YellowbrickValueError(
--> 244                     "no curves will be drawn; specify micro, macro, or per_class"
    245                 )
    246

YellowbrickValueError: no curves will be drawn; specify micro, macro, or per_class

So I have to change per_class to True to produce a plot:

from sklearn.datasets import load_breast_cancer
from sklearn.model_selection import train_test_split
from sklearn.linear_model import LogisticRegression
from sklearn.svm import LinearSVC

from yellowbrick.classifier.prcurve import PrecisionRecallCurve
from yellowbrick.classifier.rocauc import ROCAUC

X_train, X_test, y_train, y_test = train_test_split(X, y)
viz = ROCAUC(LogisticRegression(), micro=False, macro=False, per_class=True)
viz.fit(X_train, y_train)
viz.score(X_test, y_test)
viz.show()

For comparison, PrecisionRecallCurve works identically for LinearSVC and LogisticRegression:

from sklearn.datasets import load_breast_cancer
from sklearn.model_selection import train_test_split
from sklearn.linear_model import LogisticRegression
from sklearn.svm import LinearSVC

from yellowbrick.classifier.prcurve import PrecisionRecallCurve
from yellowbrick.classifier.rocauc import ROCAUC

X_train, X_test, y_train, y_test = train_test_split(X, y)

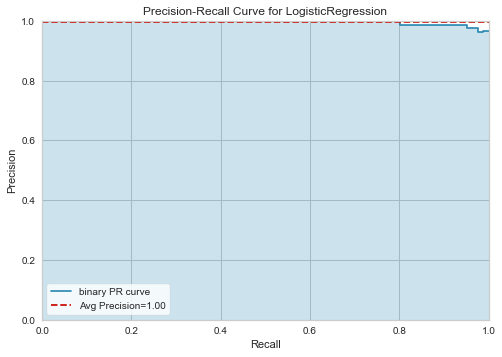

viz = PrecisionRecallCurve(LogisticRegression(), micro=False, macro=False, per_class=False)
viz.fit(X_train, y_train)
viz.score(X_test, y_test)
viz.show()

from sklearn.datasets import load_breast_cancer
from sklearn.model_selection import train_test_split
from sklearn.linear_model import LogisticRegression
from sklearn.svm import LinearSVC

from yellowbrick.classifier.prcurve import PrecisionRecallCurve
from yellowbrick.classifier.rocauc import ROCAUC

X_train, X_test, y_train, y_test = train_test_split(X, y)

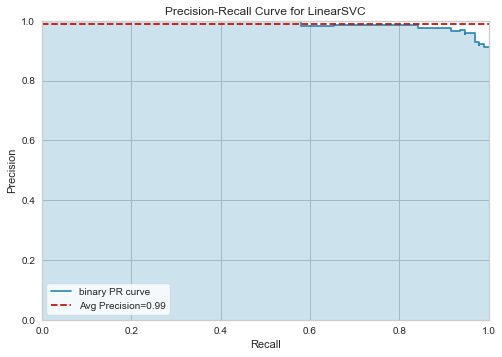

viz = PrecisionRecallCurve(LinearSVC(), micro=False, macro=False, per_class=False)
viz.fit(X_train, y_train)
viz.score(X_test, y_test)
viz.show()

[bbengfort]

Would prefer to use sklearn.utils.multiclass.type_of_target here just as a side note, but we'd also like the user to be able to specify if this is a true binary case or if per_class is actually valid.

[bbengfort]

@VladSkripniuk I've got to say, I was using ROCAUC with the binary case this weekend, and I was also finding the params thing annoying as well. @lwgray is right that we built this with the multiclass case in mind primarily, and we also have to be aware of the true binary vs (a v not a/b v not b) 2 class case. It would, however, be nice to make the logic a bit more robust.

I just took a look over the PR (not a full review, just a glance) - and was wondering why so many tests were removed? It looks like there is an interesting start to making the visualizer more robust though.

@lwgray are you reviewing this PR?

[lwgray]

@bbengfort I did start to review this PR and as we discussed a couple weeks back, I too was concerned about the removed tests and the overall robustness of this solution. I definitely could use your assistance if we are going to work this into a YB quality PR . We could table it for now and continue the conversation back on the original issue page #1040 and work on the other PRs @VladSkripniuk has posted

[rebeccabilbro]

Hi @VladSkripniuk and thanks for your PR! @bbengfort and I took a look this morning and we're going to go ahead and close this PR in favor of your newer solution in #1056. Stay tuned for a review on that PR in the next few days and thank you for your patience!
