How to send Snort IDS alert logs into Graylog

This guide describes how to send structured Snort IDS alert logs into Graylog.

A blog post with use-cases can be found on the Graylog Blog: Visualize and Correlate IDS Alerts with Open Source Tools

Configuring Snort

First, instruct Snort to write all alerts to the local syslog daemon:

# snort.conf
output alert_syslog: LOG_LOCAL5 LOG_ALERT

Next, configure the local syslog daemon to forward logs to Graylog. If you are using rsyslog, it would look like the following:

$template GRAYLOGRFC5424,"<%PRI%>%PROTOCOL-VERSION% %TIMESTAMP:::date-rfc3339% %HOSTNAME% %APP-NAME% %PROCID% %MSGID% %STRUCTURED-DATA% %msg%\n"

local5.alert @graylog.example.org:514;GRAYLOGRFC5424

Configuring Graylog

In Graylog, set up a UDP syslog input at the port and network interface you configured in rsyslog earlier and confirm that messages are arriving. For examples, you could enable ICMP IDS rules and ping a host you are monitoring with Snort to trigger an alert to arrive in Graylog.

You’ll notice that the alert information is not parsed by Graylog yet. We will set up a Graylog Processing Pipeline to identify snort logs and parse the alert into a message with extracted fields.

Below is the rule we are using:

rule "Extract Snort alert fields"
when
  has_field("message")
then
  let m = regex("let m = regex("^\\s?\\[(\\d+):(\\d+):(\\d+)\\] (.+?) \\[Classification: (.+?)\\] \\[Priority: (\\d+)] \\{(.+?)\\} ((?:\\d{1,3}\\.\\d{1,3}\\.\\d{1,3}\\.\\d{1,3})|(?:(?:[0-9a-fA-F]{1,4}:){7,7}[0-9a-fA-F]{1,4}|(?:[0-9a-fA-F]{1,4}:){1,7}:|(?:[0-9a-fA-F]{1,4}:){1,6}:[0-9a-fA-F]{1,4}|(?:[0-9a-fA-F]{1,4}:){1,5}(?::[0-9a-fA-F]{1,4}){1,2}|(?:[0-9a-fA-F]{1,4}:){1,4}(?::[0-9a-fA-F]{1,4}){1,3}|(?:[0-9a-fA-F]{1,4}:){1,3}(?::[0-9a-fA-F]{1,4}){1,4}|(?:[0-9a-fA-F]{1,4}:){1,2}(?::[0-9a-fA-F]{1,4}){1,5}|[0-9a-fA-F]{1,4}:(?:(?::[0-9a-fA-F]{1,4}){1,6})|:(?:(?::[0-9a-fA-F]{1,4}){1,7}|:)|fe80:(?::[0-9a-fA-F]{0,4}){0,4}%[0-9a-zA-Z]{1,}|::(?:ffff(?::0{1,4}){0,1}:){0,1}(?:(?:25[0-5]|(?:2[0-4]|1{0,1}[0-9]){0,1}[0-9])\\.){3,3}(?:25[0-5]|(?:2[0-4]|1{0,1}[0-9]){0,1}[0-9])|(?:[0-9a-fA-F]{1,4}:){1,4}:(?:(?:25[0-5]|(?:2[0-4]|1{0,1}[0-9]){0,1}[0-9])\\.){3,3}(?:25[0-5]|(?:2[0-4]|1{0,1}[0-9]){0,1}[0-9])))(:(\\d{1,5}))? -> ((?:\\d{1,3}\\.\\d{1,3}\\.\\d{1,3}\\.\\d{1,3})|(?:(?:[0-9a-fA-F]{1,4}:){7,7}[0-9a-fA-F]{1,4}|(?:[0-9a-fA-F]{1,4}:){1,7}:|(?:[0-9a-fA-F]{1,4}:){1,6}:[0-9a-fA-F]{1,4}|(?:[0-9a-fA-F]{1,4}:){1,5}(?::[0-9a-fA-F]{1,4}){1,2}|(?:[0-9a-fA-F]{1,4}:){1,4}(?::[0-9a-fA-F]{1,4}){1,3}|(?:[0-9a-fA-F]{1,4}:){1,3}(?::[0-9a-fA-F]{1,4}){1,4}|(?:[0-9a-fA-F]{1,4}:){1,2}(?::[0-9a-fA-F]{1,4}){1,5}|[0-9a-fA-F]{1,4}:(?:(?::[0-9a-fA-F]{1,4}){1,6})|:(?:(?::[0-9a-fA-F]{1,4}){1,7}|:)|fe80:(?::[0-9a-fA-F]{0,4}){0,4}%[0-9a-zA-Z]{1,}|::(?:ffff(?::0{1,4}){0,1}:){0,1}(?:(?:25[0-5]|(?:2[0-4]|1{0,1}[0-9]){0,1}[0-9])\\.){3,3}(?:25[0-5]|(?:2[0-4]|1{0,1}[0-9]){0,1}[0-9])|(?:[0-9a-fA-F]{1,4}:){1,4}:(?:(?:25[0-5]|(?:2[0-4]|1{0,1}[0-9]){0,1}[0-9])\\.){3,3}(?:25[0-5]|(?:2[0-4]|1{0,1}[0-9]){0,1}[0-9])))(:(\\d{1,5}))?\\R?", to_string($message.message));", to_string($message.message));

  set_field("snort_alert", true);

  set_field("generator_id", m["0"]);
  set_field("signature_id", m["1"]);
  set_field("signature_revision_id", m["2"]);

  set_field("description", m["3"]);
  set_field("classification", m["4"]);
  set_field("priority", to_long(m["5"]));
  set_field("protocol", m["6"]);

  set_field("src_addr", m["7"]);
  set_field("src_port", to_long(m["9"]));

  set_field("dst_addr", m["10"]);
  set_field("dst_port", to_long(m["12"]));
end

Then, connect this pipeline to a stream with the following rules to apply to all snort messages:

# Stream "Snort Alerts"

# Rule 1:
message must match regular expression ^\s?\[\d+:\d+:\d+].*

# Rule 2:
 application_name must match exactly snort

Result

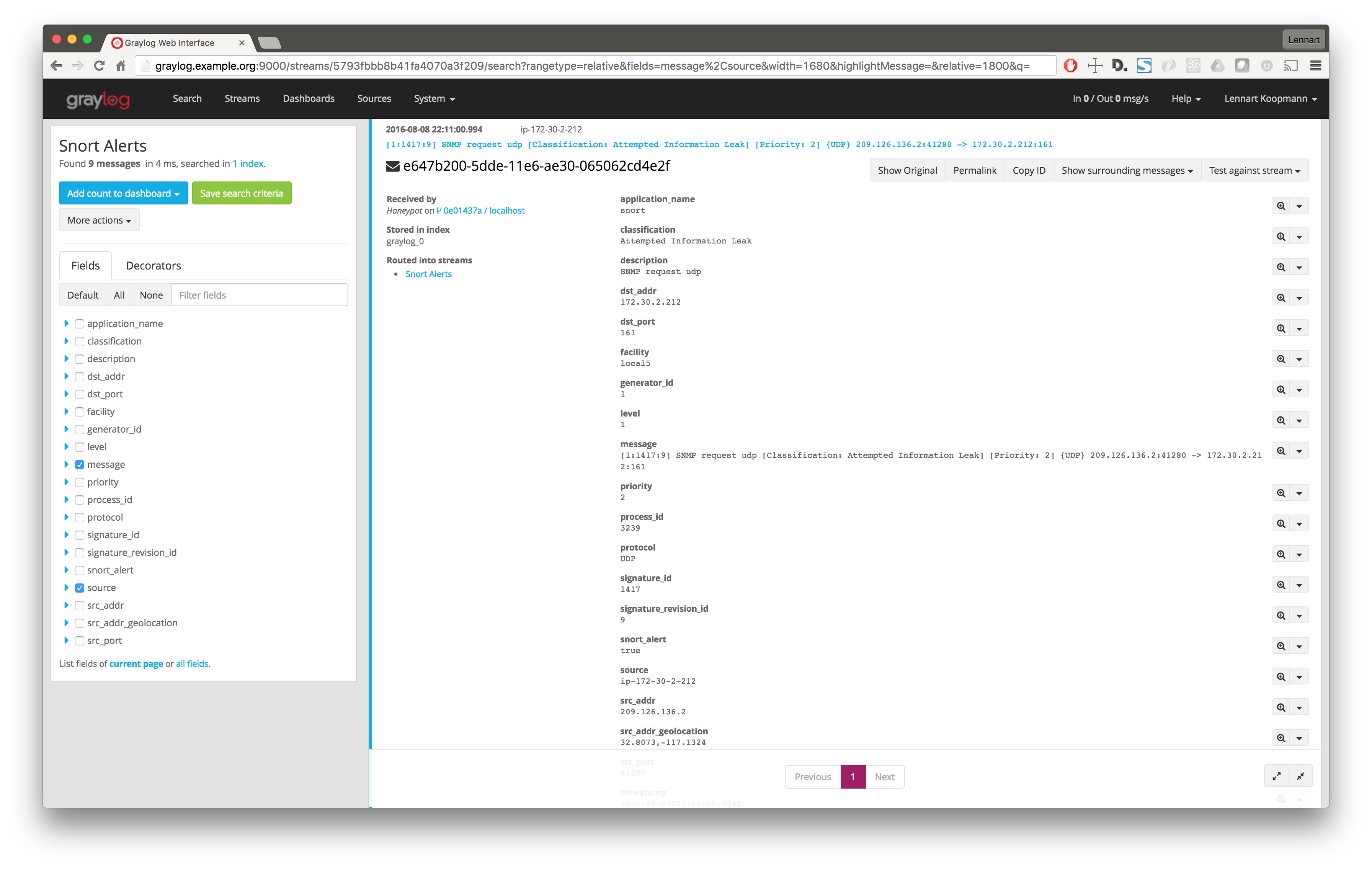

Now all Snort alerts should arrive in Graylog with nicely parsed and extracted fields:
