In this Code Pattern, we will demonstrate how to build predictive models in SageMaker and port the notebooks into IBM Cloud Pak for Data. We will run the SageMaker notebooks in Watson Studio canvas and generate predictions.
After completing this Code Pattern, you will understand how to :
- Pre-process & analysis of data
- Merge data to create consolidated files
- Generate use-cases from the consolidated files for building predictive models
- Build multiple predictive models using SageMaker and generate predictions
- Download the models from SageMaker and Import them into Watson Studio
- Run the notebooks in Watson Studio and generate predictions
- Write the predicted results to S3 bucket
- Monitor SageMaker models in Watson Open Scale
- Upload raw data from source to S3 bucket
- Pre-process & analyze the data
- Merge the data files to create consolidated date
- Ingest the data from S3 bucket into SageMaker
- Build multiple predictive models in SageMaker
- Download the SageMaker models and import them into Watson Studio
- Run the models in Watson Studio
- Write the results back to S3 bucket
- Install Cloud Pak for Data on RedHat OpenShift cluster on AWS
- Create an account with AWS
- Create an account with SageMaker
- Create a Notebook instance using SageMaker Notebook
- Create an account with IBM Cloud
- Create a Watson OpenScale instance using IBM Cloud and select internal database using manual setup option
- Clone this repository or
Download the repo as Zip
into your local system to access all the files.
-
IBM Cloud Pak for Data: Predict outcomes faster using a platform built with data fabric architecture. Collect, organize and analyze data, no matter where it resides.
-
Amazon SageMaker: Build, train, and deploy machine learning (ML) models for any use case with fully managed infrastructure, tools, and workflows.
-
Amazon S3: Amazon Simple Storage Service (Amazon S3) is an object storage service offering industry-leading scalability, data availability, security, and performance.
-
IBM Watson Studio: Analyze data using RStudio, Jupyter, and Python in a configured, collaborative environment that includes IBM value-adds, such as managed Spark.
-
IBM Watson Open Scale: Use IBM Watson OpenScale to analyze your AI with trust and transparency and understand how your AI models make decisions. Detect and mitigate bias and drift.
- Artificial Intelligence: Any system which can mimic cognitive functions that humans associate with the human mind, such as learning and problem solving.
- Data Science: Systems and scientific methods to analyze structured and unstructured data in order to extract knowledge and insights.
- Analytics: Analytics delivers the value of data for the enterprise.
- Python: Python is a programming language that lets you work more quickly and integrate your systems more effectively.
- Upload the raw data into S3 Buckets
- Build multiple notebooks in SageMaker
- Create projects in Watson Studio
- Download the SageMaker notebooks and import them into IBM Watson Studio
- Upload the SageMaker notebooks into Watson Studio project
- Run the notebooks in Watson Studio to generate predictions and endpoints
- Setup Watson Open Scale for monitoring SageMaker endpoints
- Monitor SageMaker endpoints using Watson Open Scale
Create an S3 bucket in AWS by refering to the AWS documentation.
- Click here to create a bucket
- Click on Create Bucket and enter a name for the bucket. (for example, 'Datasets')
- Enable the option
Block all public access
and then click onCreate bucket
button. - Select the files
COVID19BE_CASES_AGESEX.csv
andCOVID19BE_HOSP.csv
from the data folder and upload them into S3 bucket.
Login to the SageMaker console and click on Notebook instances under Notebook in the navigation pane.
Click on create notebook instance, select the Notebook instance type & IAM role as shown below. It will take a couple of minutes for the instance to be created. Be patient!
After the instance is created, click on open Jupyter. You can also open JupyterLab if needed.
Click on Upload
on the top right side to upload notebooks. Navigate to the notebooks section and download all the notebooks into your local file system. You can upload the notebooks in one go and run them in SageMaker.
Select the Kernel as conda_python3 when prompted and choose Set Kernel option.
When a notebook is executed, what is actually happening is that each code cell in the notebook is executed, in order, from top to bottom.
Each code cell is selectable and is preceded by a tag in the left margin. The tag
format is In [x]:
. Depending on the state of the notebook, the x
can be:
- A blank, this indicates that the cell has never been executed.
- A number, this number represents the relative order this code step was executed.
- A
*
, this indicates that the cell is currently executing.
There are several ways to execute the code cells in your notebook:
- One cell at a time.
- Select the cell, and then press the
Play
button in the toolbar.
- Select the cell, and then press the
- Batch mode, in sequential order.
- From the
Cell
menu bar, there are several options available. For example, you canRun All
cells in your notebook, or you canRun All Below
, that will start executing from the first cell under the currently selected cell, and then continue executing all cells that follow.
- From the
If you want to download the notebooks, select the notebook - click on File - Download as - Notebook(.ipynb) into your local file system.
Sign in to IBM Cloud Pak for Data console and then Click on the Navigation Menu and expend Projects and click All Projects. Then click on ‘New Project +’ to create new project by following below steps shown in images
Click on New Project and select an empty project per below.
Define the project by giving a Name and hit 'Create'.
Data Pre-processing
Navigate to the notebooks section and download the notebook Data-pre-processing.ipynb
into your local file system. This notebook built in SageMaker takes care of all the pre-processing activities like data analysis, merging data, missing values, feature engineering, usecases formation & more. The updated csv files are uploaded onto S3 bucket programmatically. Upload the notebook into Cloud Pak for Data environment using Watson Studio in the next step.
Time-Series Forecasting Models
Navigate to the notebooks section and download the notebooks WS-Flanders-Predict.ipynb
& WS-Belgium-Predict.ipynb
into your local file system. These notebooks built in SageMaker using Deep Neural networks takes care of building time-series forecasting models at the Region & Country levels. Upload the notebooks into Cloud Pak for Data environment using Watson Studio in the next step.
Risk Index Prediction
Navigate to the notebooks section and download the notebook Risk_Index_Prediction.ipynb
into your local file system. This notebook built using SageMaker Linear Learner (in-built module) takes care of building multi-class classification ML model for prediction risk index per region. Upload the notebook into Cloud Pak for Data environment using Watson Studio in the next step.
Log in to the project in Cloud Pak for Data and click on Assets
Click on New asset
Click on Code editors
Click on Jupyter notebook editor
Select From file
option - choose the default runtime (1vCPU & 2GB RAM) to run the notebook.
Click on Kernel
and choose Restart & Run All
option.
Repeat the above steps for uploading all the notebooks in this repository.
This is how we can build models in AWS SageMaker and port them into Cloud Pak for Data and run them in Watson Studio.
Note:- The home directory has to be changed in the SageMaker Notebooks after uploading them into Watson Studio. Save the model to home directory
cell will need home directory replaced to /home/wsuser/work
in cell numbers 37 to 41 for WS-Flanders-Predict.ipynb
notebook and cell numbers 36 to 40 for WS-Belgium-Predict.ipynb
notebook.

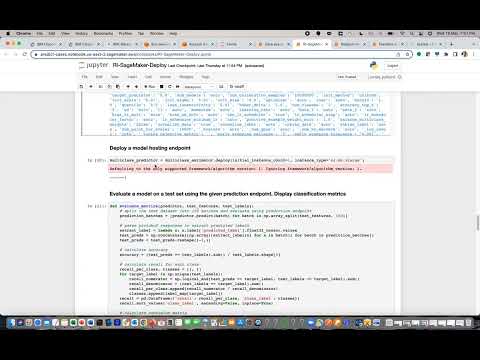

Deploy SageMaker model from Watson Studio & create endpoints
Navigate to the sagemaker-model-deploy section and download the notebook RI-SageMaker-Deploy-Wstudio.ipynb
into your local file system.
This notebook built in Watson Studio uses SageMaker inbuilt modules (Linear Learner) to create a multi-class classifier model for prediction risk index per region. The Watson Studio notebook deploys the model in SageMaker platform and creates two endpoints with different methodologies for real-time scoring. You can choose the first or the second endpoint for monitoring using Watson OpenScale. Upload the notebooks into Cloud Pak for Data environment using Watson Studio as shown in previous step.
This step requires IBM Cloud API Key. You can generate one by referring to this link.
This step requires Cloud Object Storage credentials. You can generate one by referring to this link. and follow the below steps.
Follow the steps to create a Cloud Object Storage instance Lite
plan and then create bucket per below.
We should copy the bucket name, API key and service id crn to be updated in the SageMaker-Monitor-OpenScale
notebook.
Setup the monitoring of SageMaker endpoint on Watson Open Scale
Navigate to the open-scale-model-monitor section and download the notebook SageMaker-Monitor-OpenScale.ipynb
into your local file system. You can upload the notebook into Watson studio as shown in step #5. This notebook built in Watson Studio uses Watson Open Scale for setup & monitor SageMaker endpoints. The metrics which will be evaluated are Fairness, Quality & Drift detection of SageMaker endpoints as per the thresholds set by the user. This will help to identify whether the SageMaker model requires retraining & eliminate bias in the scoring of the data to generate predictions.
Upload Drift detection model file into Watson Open Scale canvas
Navigate to the drift-model folder and download the file Drift-Detection-Model.ipynb
into your local file system. You can upload the notebook into Watson studio as shown in step #5. You need to update the credentials in Cell number 18 and the name of the SageMaker endpoint in cell number 19 and then run the notebook.
Run all the cells in the notebook (by clicking on Kernel - choose Restart & Run All
) & click on Download Drift detection model
option at the end of the notebook and download the tar.gz file into your local file system. A sample tar.gz file is available here.This needs to be uploaded into Watson Open Scale canvas as shown in the next step. The model has been built and trained on the Risk Index data to learn and highlight when there's a change in model performance.
Monitor SageMaker endpoints using Watson Open Scale for Fairness, Quality, Explainability & Drift detection
.
Please make sure you have created an instance of Watson OpenScale from IBM Cloud catalog and select internal database using manual setup option. You might be asked to sign in to access Watson OpenScale Dashboard.
Navigate to the Watson OpenScale Dashboard to view the different metrics like Fairness, Quality, Explainability, Drift etc on the SageMaker endpoint. The Fairness, Quality monitoring & Explainability metrics have been setup using the Watson Studio notebook from step 7.
Click on Linear Learner SageMaker model in Open Scale canvas which was imported into Watson Open Scale programmatically using the notebooks from steps 6 & 7.
Click on Actions
and choose Configure monitors
.
click on Drift
under Evaluations tab and upload the Drift model tar.gz file (which was downloaded in previous step) by clicking on the pencil icon next to Drift model - click next and upload the file (tar.gz) created in step number 7. You can also set Drift thresholds
& Sample size
as per your requirement.
You should see a message per below that configuration is saved.
Click on the option below to configure the metrics.
Set up the parameters for Fairness
per below.
Set up the parameters for Quality
per below.
You can view the Watson Open Scale monitor which has metrics like Fairness, Quality & Drift
set up for monitoring the model endpoints.
Explore the Explainability
feature per below.
Click on the second option in the left pane per below to view Explainability
metric.
Select the Deployed model
from the dropdown and hit Explain
on any transaction of your choice. In the below screenshot, first transaction is selected for Explainability.
In this screen, under Explain
tab, you will see the Feature Importance analyzed with LIME
technique. We will understand the significant variable influencing the outcome.
You can click on Inspect
to change the values on real-time and analyze the new predictions. This will help to identify the feature importance for different set of input values.
We are all set to monitor SageMaker endpoints on Watson Open Scale for Fairness, Quality & Drift metrics. We can observe that Fairness
metric is showing Green
because the threshold is set for 80% and the score is 100%. The threshold for Area under ROC
metric is 0.8 (80%) and the score is 0.83 (83%) which is why the Quality
metric is showing Green
. Explainability
metrics will identify the feature importance for the predicted outcomes which will be beneficial for analyzing the feature values influencing the outcome. Drift
metrics has been setup and will be triggered when the endpoint generates predictions on new data.
In this code pattern, we have learnt how to extract data from different sources, pre-process the data, generate two use-cases, build models in SageMaker notebooks using SageMaker in-built modules & open sourced modules. We have also learnt how to port SageMaker notebooks into Watson Studio to generate SageMaker endpoints. We have configured Watson Open Scale to setup & monitor SageMaker endpoints for Fairness, Quality, Explainability & Drift metrics. This is a good example to demonstrate how to integrate different services using IBM and AWS to build an end-to-end solution on Trusted AI.
This code pattern is licensed under the Apache License, Version 2. Separate third-party code objects invoked within this code pattern are licensed by their respective providers pursuant to their own separate licenses. Contributions are subject to the Developer Certificate of Origin, Version 1.1 and the Apache License, Version 2.
