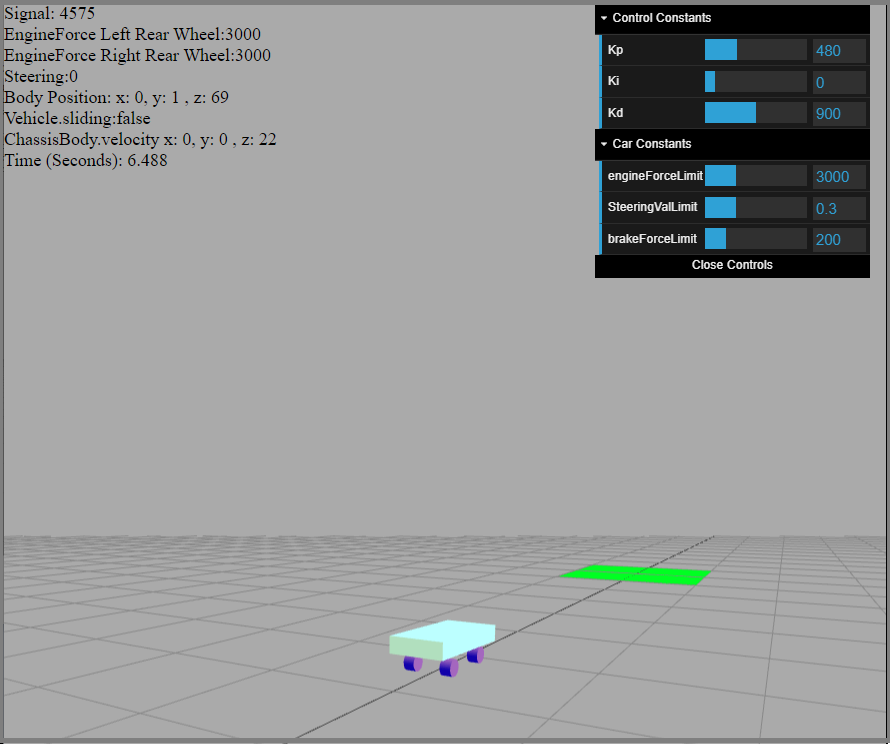

PID Controller Car Simulator (Demo)

> Go to Page Link

---

Build The project

Make sure you installed Node.js and Git before start.

Clone the project

git clone https://github.com/Javier747Belbruno/car-control-simulation.git

Change path to Project

cd car-control-simulation

Install dependencies

npm i

Build (Files to /dist)

npm run build

Run in Developer Mode (Changes on the fly)

npm run dev

Run in Developer Mode with Productions Files (Changes on the fly)

npm run serve

---

Controller Code.

const point = new CANNON.Vec3(0,0,100 ); // Objetive.

const constantsControl = {
  //Kp = Proptional Constant.
  Kp: 480,
//Kd = Derivative Constant.
  Kd: 900,
  //Ki = Integral Constant.
  Ki: 0
};
if(stateProgram==2){
const constFolder = gui.addFolder("Control Constants");
constFolder.add(constantsControl, "Kp", -200, 2000, 10)
constFolder.add(constantsControl, "Ki", -200, 2000, 10)
constFolder.add(constantsControl, "Kd", -200, 2000, 10)
constFolder.open();};

var P , I , D = 0;

var ek_1 = 0;
var dt = 1/60;
var int = 0;
var u = 0;

function PID_Controller(){
  var refZ = chassisBody.position.z;
  var pointZ = point.z;
  //err = Expected Output - Actual Output;
  var e = refZ - pointZ;

  //Proptional action
  P = constantsControl.Kp * e;
  //Differential action
  D = constantsControl.Kd * (e - ek_1) / dt;
  //Integral action
   I = constantsControl.Ki * int * dt;

  // u = Kp * err + (Ki * int * dt) + (Kd * der /dt) //Action
   u = P + I + D;

  //Apply to Car.
  EngineForceVal(u);

  //der  = err - err from previous loop; ( i.e. differential error)
  ek_1 = e;
  //int  = int from previous loop + err; ( i.e. integral error )
  int = int + e;
}

---

Button Configuration:

Key	Action
w	Accelerator
Space key	Brake
s	Reverse
a	Turn Left
d	Turn Right
Number 1 key	Chase Camera
Number 2 key	Chase Camera Side

---

How it works? Non-technical Explanation.

Cannon-es is a lightweight 3D physics engine written in JavaScript. All Objects, forces and interactions are simulated here (Cannon-es is Pure maths).

This world is invisible, so we need a library that can create a "skin" for those objects and makes them "visible".

That library is Three.js (JavaScript 3D Library).

Basically we need Lights, Camera and Meshes (Geometry+Material) for see an Scene on the Screen.

For bind that 3D object which have to be same shape and dimensions with the physic object.

We do something like this:

THREE.Scene.skinObject.position.set( CANNON.world.physicObject.position ); //Update all the time.

This way the "skin" follows the body and we can see on screen what is going on in the physics world.

---

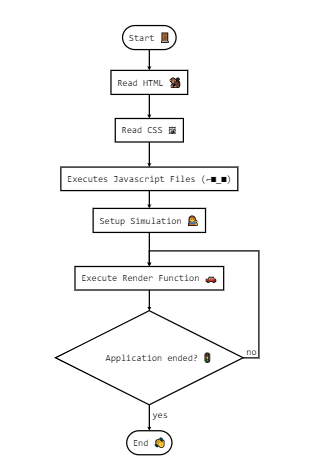

FlowChart

Somehow, this Javascript code works like an Arduino code is works on a microcontroller:

First Setup, then Render (Loop Function).

---

task list

• Start Menu.
• Free Drive.
• Simulation Changes on the fly (dat.gui).
• Corrections to PID formula.
• Create an HTML with all functionality inside (Typescript to Javascript legible).
• Create a follow path Car Simulation (Maybe is another project).

---

Credits

Technologies

• Typescript by Microsoft.

• Node.js by OpenJS Foundation.

• Three.js by Mr.doob.

• Cannon.js (Cannon-es) by Stefan Hedman, Poimandres Community and Marco Fugaro .

• Dat.gui by Google Data Arts Team.

• Vite.js by Evan You & Vite Contributors.

  Thanks for provide free open source software to the community making this possible.

Blogs and people that make life easier.

• Handling Multiple Key Presses at Once in Vanilla JavaScript (for Game Controllers) by Nicky Dover.
• How to Build a Multiplayer (.io) Web Game by Victor Zhou.
• Bruno Simon — Portfolio (case study) by Bruno Simon.
