PointRCNN

This is not the official implementation of PointRCNN. We add an image segmentation network to improve recall of point cloud segmentation. The 2-stage network is frustum pointNet. Any pull request is appreciated.

Introduction

A 3D object detector that takes point cloud and RGB image(optional) as input.

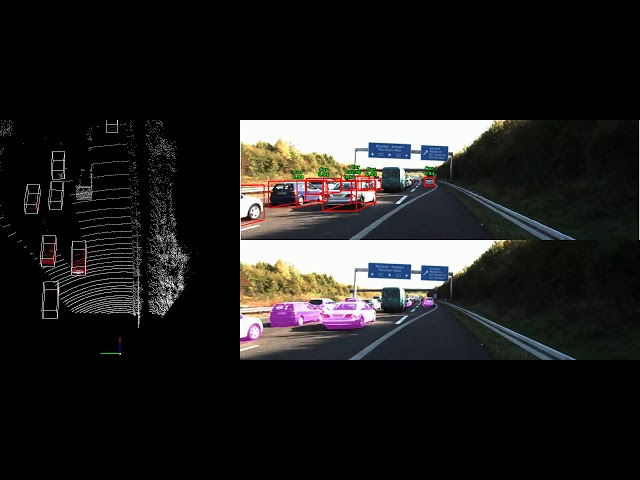

Results

Architecture

1. Perform foreground point segmentation on the whole point cloud
2. Output a 3D proposal box for every foreground point
3. Crop point cloud with proposal boxes and feed into the 2nd-stage classification and box refinement network

Usage

Dependencies

• python2.7
• tensorflow(1.10.0)
• shapely
• mayavi
• opencv-python
• Compile tensorflow operators for pointnet following to https://github.com/charlesq34/frustum-pointnets

Data Preparation

For trainning and validation, download KITTI 3d object detection dataset, and put the folders as

dataset/KITTI/object/
  training/
    calib/
    image_2/
    label_2/
    velodyne/

  testing/
    calib/
    image_2/
    velodyne/

For testing, download KITTI video sequence and calibration files, and put the folders as

2011_10_03/
  calib_cam_to_cam.txt
  calib_imu_to_velo.txt
  calib_velo_to_cam.txt
  image_02/
  velodyne_points/

[Optional] Scene Augmentation

Our implementation also supports using augmented scene point cloud for training RPN, please refer to the official implementation of PointRCNN. After generating the data, just put the aug_scene/ folder under dataset/KITTI/object. If you don't want to use it, just set use_aug_scene=False when using rpn_dataset.

Image segmentaion annotation

Our image segmentation network is DeelabV3+ official implementation. The senmantic segmentation annotation is obtained by the following steps:

• Pointcloud completion using ip_basic
• Project 3D points to image plane to get segmentation annotation Codes for finetuning can be founded at deeplab_kitti_object. Or you can just use your own image segmentation network.

Train

There are 3 sub-model to be trained.

Region Proposal Network

sh train_rpn.sh

Frustum Pointnet

Before training the 2-Stage Network, we need to save the output of RPN and Image Segmentaion Network to the disk first.

Image Segmentation Network

For now deeplabv3+ is used and finetune on KITTI 3D object dataset

Evaluate

Region Proposal Network

sh test_rpn.sh

This will save the output of RPN and Image segmentation network to ./rcnn_data_train for training the RCNN network.

Frustum Pointnet

test_frustum.sh

Test

End to end

sh test.sh

Evaluation

Point cloud segmentation

Method	Coverage	Recall	Precision
Point Only	89.7%	93.4%	82.2%
Point+Image	93.5%	97.0%	76.6%

Coverage means the percentage of object that have at least one point being detected.

Recall of RPN

Setting: IoU >= 0.5, 100 proposal

Method	3 Classes Recall	Car moderate	Pedastrian Moderate	Cyclist Moderate
Point+Image	89%	96%	77%	52%

AP on Val Set

Class	3D mAP(Easy, Moderate, Hard)	BEV mAP(Easy, Moderate, Hard)
Car	76.56 70.20 64.00	86.32 78.42 78.07
Pedestrain	70.23 63.09 55.77	73.34 65.86 57.94
Cyclist	76.89 50.91 50.28	78.27 59.00 51.63

Pretrained Models

Model	Link
RPN	log_rpn.zip
Image SegNet	log_rpn.zip
Frustum PointNet	log_frustum.zip

Reference

• Frustum PointNets for 3D Object Detection from RGB-D Data
• PointRCNN: 3D Object Proposal Generation and Detection from Point Cloud
