Which is an edge fanless AIOT Computing based on NXP i.MX8M-Plus processor
Designed to bring out the full capabilities of the i.MX8M-Plus SoC, PANZER-PLUS provides 4GB RAM and 16GB eMMC, 2 Gigabit Ethernet, RGMII, 2 USB 3.0 ports, 2 UARTs and 8 GPIOs. Display connectivity is supported with up to 4k resolution HDMI. Measuring just 155 x 110 x 35 mm size with metal enclosure, PANZER-PLUS also features optional WiFi 802.11ac and Bluetooth 5.x interfaces. PANZER-PLUS is offered with industrial temperature range of -20C to 70C.
Excellent connectivity, low cost and small size make PANZER-PLUS a modular solution for many applications such as AIOT Computing, IIoT gateway, robotic controller, and low power efficiency device. In addition, PANZER-PLUS incorporates numerous design innovations on its metal shell, such as easy disassembly and the addition of a dedicated shield for debugging/programming software. This feature allows you to perform development tasks without the need to dismantle the entire casing.

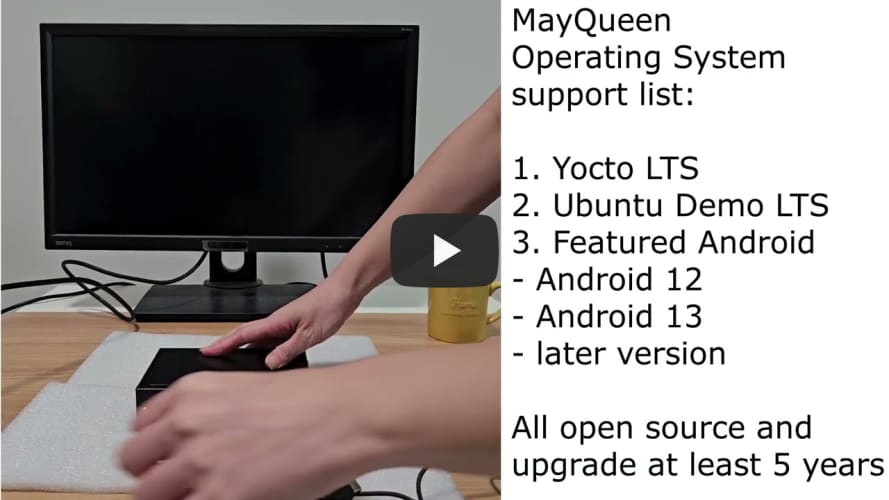

Software Support PANZER-PLUS is provided with a full BSP and ready-to-run images for the Linux/Android operating system. The PANZER-PLUS BSP includes Linux kernel up to 5.10, Yocto/Ubuntu/Android BSP and U-Boot boot-loader.
Because PANZER-PLUS has a NPU inside the CPU, so we implementing AI functions for Android and Linux OS such as TensorFlow-Lite, or OpenCV, etc..
| Fanless AIOT Computing | Description | BSP support | Instruction |
|---|---|---|---|
 |
PANZER-PLUS 3.5" ARM64 edge fanless AI Computing with NXP i.MX 8M Plus Datasheet |
Yocto LTS Ubuntu LTS Android |
Interfaces Yocto Zone Ubuntu Zone Android Zone |
| Specifications | |
|---|---|
| CPU | NXP i.MX8M Plus ARM Cortex-A53 1.8GHz Quad Cores |
| Memory | 4GB LPDDR4 |
| Storage | 16GB eMMC uSD slot |
| Neural Nework | 2.3 TOPS NPU |
| PMIC | NXP PCA9450 |
| Display | HDMI-TX |
| Audio | Headset connector |
| Network | 2x Gigabit Ethernet / RGMII WiFi module connector 4G module connector SIM slot |
| USB | 2x USB 3.0 host 1 x USB type-C (for download mode) |
| UART | 1x RS232/RS422/RS485 DB9 1x RS232/RS485 DB9 |
| General I/O | 8 x GPIO DB9 1 x power key |
| Debug | Special 2-wire connector |
| Supply Voltage | 12Volt terminal block connector |
| Dimensions | 155 x 110 x 35 (mm) |
| Temp. range | -20C to 70C |
| Optional | Add ($) with antenna / 1pc | |
|---|---|---|
| LTE module | Sierra Wireless EM7455 Fibocom NL668-EAU |
$55 |
| 5GNR module | SIMCOM SIM8262E-M2 (NEW) | $190 |
| WiFi/Bluetooth module | Broadcom AP6275SDSR WiFi6/BT5 Pre-certified Broadcom AP6275S WiFi6/BT5 Realtek RTL8822CS WiFi5/BT5 |
$60 $55 $50 |
| Debug Console | USB to TTL cable | $10 |
PANZER-PLUS is now available through direct sales (www.mayqueentech.com).
PANZER-PLUS is offered in a variety of configurations starting from $350 for 1pc order.
Detailed ordering and pricing information is available on sales contact window.
MayQueen Technologies is a leading designer and manufacturer of ARM based embedded computing products since 2015.
MayQueen Technologies products are used in digital signage, telecommunication, industrial PC, gaming, medical devices, aerospace and marine systems and countless other applications.
MayQueen Technologies offices are located in Sheffield, U.K. and Taiwan.
