README.md

Arduboy homemade package

Arduino IDE board package for Arduboy and homemade versions with the following advantages:

  • Single install
  • Includes all Arduboy libraries with support for alternate displays and wiring
  • Includes Arduboy optimized Arduino core with extra features and space savings
  • Cathy3K bootloader support

To install the package:

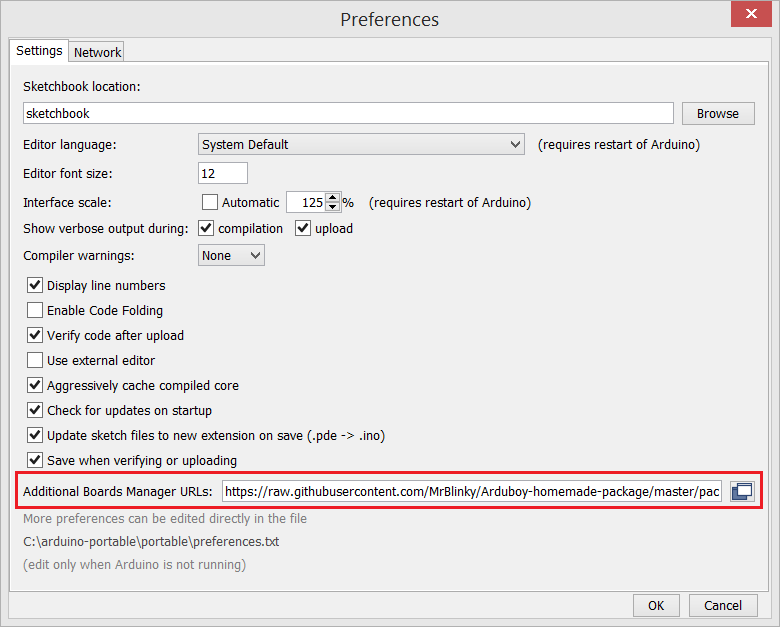

  • Start Arduino IDE and press CTRL + comma to select properties.
  • Copy and paste the URL below in Additional Boards Manager URLs: text box and click on OK
https://raw.githubusercontent.com/MrBlinky/Arduboy-homemade-package/master/package_arduboy_homemade_index.json

preferences After this:

  • Go to Tools > Boards > Board manager
  • In the text box type homemade or Arduboy homemade
  • Click on the Arduboy Homemade package and click the Install button.

You can now select Arduboy, Arduboy DevKit and Homemade Arduboy boards from the Tools menu.

menu

Libraries

This package contains all the currently available Arduboy libraries with changes for homemade Arduboys. If Arduboy libraries were installed manually, it is recommended to uninstall them.

Pin wiring table

Arduboy function Arduboy
Leonardo/Micro
DevelopmentKit ProMicro 5V
(standard wiring)
ProMicro 5V
(alternate wiring)
OLED CS 12 PORTD6 6 PORTD7 GND**** 1/TXO PORTD3*
OLED DC 4 PORTD4 4 PORTD4 4 PORTD4 4 PORTD4
OLED RST 6 PORTD7 12 PORTD6 6 PORTD7 2 PORTD1*
SPI SCK 15 PORTB1 15 PORTB1 15 PORTB 1 15 PORTB1
SPI MOSI 16 PORTB2 16 PORTB2 16 PORTB2 16 PORTB2
RGB LED RED 10 PORTB6 _ 10 PORTB6 10 PORTB6
RGB LED GREEN 11 PORTB7 _ - 3 PORTD0*
RGB LED BLUE 9 PORTB5 17 PORTB0 9 PORTB5 9 PORTB5
RxLED 17 PORTB0 _ 17 PORTB0 17 PORTB0
TxLED 30 PORTD5 _ 30 PORTD5 30 PORTD5
BUTTON UP A0 PORTF7 8 PORTB4 A0 PORTF7 A0 PORTF7
BUTTON RIGHT A1 PORTF6 5 PORTC6 A1 PORTF6 A1 PORTF6
BUTTON LEFT A2 PORTF5 9 PORTB5 A2 PORTF5 A2 PORTF5
BUTTON DOWN A3 PORTF4 10 PORTB6 A3 PORTF4 A3 PORTF4
BUTTON A (left) 7 PORTE6 A0 PORTF7 7 PORTE6 7 PORTE6
BUTTON B (right) 8 PORTB4 A1 PORTF6 8 PORTB4 8 PORTB4
SPEAKER PIN 1 5 PORTC6 A2 PORTF5 5 PORTC6 5 PORTC6
SPEAKER PIN 2 13 PORTC7 A3 PORTF4** GND 6 PORTD7*
----------------- ---------------------- ----------- ---------------------------------- ---------------------------------
CART_CS 0 PORTD2*** - - 0 PORTD2***
SPI MISO 14 PORTB3*** - - 14 PORTB3***

Numbers before the portnames are Arduino assigned pin numbers.

(*) Pro Micro alternate wiring pins:

  • PORTD3 OLED CS
  • PORTD1 OLED RST
  • PORTD7 SPEAKER 2
  • PORTD0 RGB LED GREEN

(**) speaker pin 2 output is connected to speaker pin 1 on DevKit hardware. To prevent the IO pins from possible damage, speaker pin 2 should NOT be configured as an output.

(***) Flash cart support:

  • 0 PORTD2 flash cart chip select
  • 14 PORTB3 flash cart data in (MISO)

(****) When using serial flash with the Pro Micro standard wiring, OLED_CS (chip select) cannot be grounded (always active). In this case a simple circuit with a general purpose PNP transistor and two resistors can be used to deactive OLED_CS while CART_CS is active.

TODO add schematic

(future) expansion connector

An expansion connector can be added to a modified or Homemade Arduboy in the form of a 12 pin male header with 0.1"pitch. which can be used for:

  • ICSP header for easy in circuit programming (updating bootloader)
  • flash cart slot
  • SD card adapter
  • infrared communications
  • multiplayer link
  • sensors

Expansion connector pinout

( (Homemade) Arduboy facing top - front view female pinheader)

12 11 10 9 8 7 6 5 4 3 2 1
TX RX SCL SDA NC KEY MISO MOSI CLK RST GND Vcc
TX*  - Serial Transmitter output
RX   - Serial Receiver input / Flash cart chip select
SCL* - I2C/TWI serial clock I/O
SDA* - I2C/TWI serial data I/O
NC   - Not connected (reserved for future use)
KEY  - Key pin. should be filled to block pin insertion (reverse insert protection)
MISO - SPI/ICSP Master Input, Slave Output
MOSI - SPI/ICSP Master Output, Slave Input
CLK  - SPI/ICSP clock
RST  - MCU/ICSP reset
GND  - Ground (0V)
Vcc  - 5V (~3.0V to ~4.1V on Arduboy)
(*) Not available when using Pro Micro with Alternate Wiring
