implement backpressure for enumerable/stream requests #2

the-mikedavis · 2021-04-06T00:39:49Z

Closes #1

Spear allows one to write events using Elixir Streams (t:Enumerable.t/0s). The final link in the chain which realizes the stream is the serialization of the data over the wire via Mint.HTTP.stream_request_body/3.

As detailed in #1, initially I was seeing append requests for infinite streams fail like so:

Stream.iterate(0, &(&1 + 1))
|> Stream.map(fn n -> Spear.Event.new("incremented", n) end)
|> Spear.append(conn, "InfiniteCounter", expect: :empty)
# =>
{:error,
 %Mint.HTTPError{
   module: Mint.HTTP2,
   reason: {:exceeds_window_size, :connection, 26}
 }}

This is a back-pressure mechanism which is meant to keep clients from writing events to an HTTP/2 server faster than the server can receive them: each stream in an HTTP/2 connection has a window of bytes it is allowed to send. If it exceeds this window, it must wait until the server sends a WINDOW_UPDATE frame allowing more bytes to be sent.

The strategy before this PR of naively appending iodata to the stream in a Enum.reduce_while/3 overloaded the connection window (stream 0). It's not really so much that we were writing events faster than the EventStore can handle (we were), but that we weren't listening for WINDOW_UPDATE frames at all and thus not respecting the backpressure mechanism.

Since mint is very low-level and doesn't handle this for you (because it's a process-less architecture), you need to write the mint client to conceptually come-up-for-air every once in a while when sending large payloads to wait for the server. That's what this PR does!

the-mikedavis · 2021-04-06T00:41:23Z

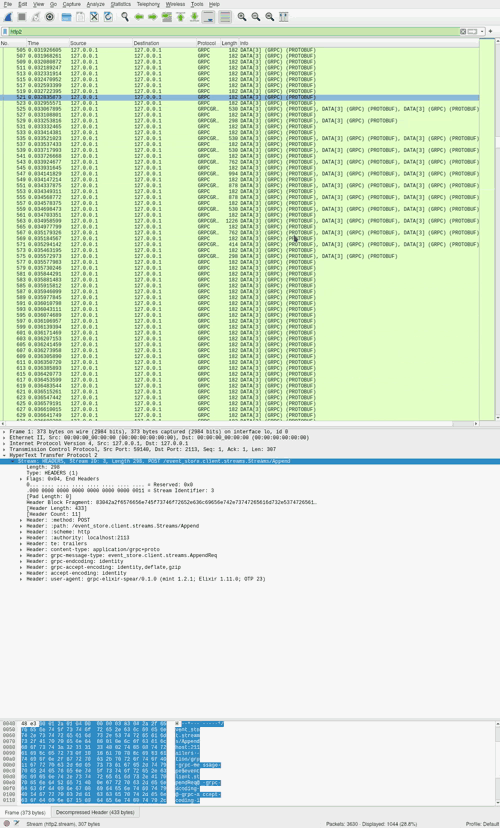

For a comparison of the wireshark screen-caps in #1 see this gif since all the DATA and WINDOW_UPDATE frames couldn't possibly fit on one page:

the-mikedavis · 2021-04-06T00:42:51Z

lib/spear.ex

+    with {:ok, %{status: 200, headers: headers} = response} <-
+           GenServer.call(conn, {:request, request}, Keyword.fetch!(opts, :timeout)),
+         {{"grpc-status", "0"}, _} <- {List.keyfind(headers, "grpc-status", 0), response} do
+      Spear.Writing.decode_append_response(
+        response[:data] || <<>>,
+        opts[:raw?]
+      )
+    else
+      {:error, reason} ->
+        {:error, reason}
+
+      # TODO this badly needs a refactor
+      {{"grpc-status", other_status}, response} ->
+        {:error,
+         {:grpc_failure,
+          code: other_status && String.to_integer(other_status),
+          message:
+            Enum.find_value(response.headers, fn {header, value} ->
+              header == "grpc-message" && value
+            end)}}


keep in mind spear is still super rough so I think it's acceptable (for now) to have a crappy bit of control flow like this sitting here

eventually this may be refactored out to Spear.Grpc or something to close over the details of the well-known headers we're reading

the-mikedavis · 2021-04-06T00:46:29Z

lib/spear/connection.ex

+    |> do_stage(:recv_responses, params)
+    |> do_stage(:check_window_size, params)


this is the flow-control mechanism I was describing

initially this block of code for recv_until_window_size_increase/3 was more complicated because I was trying to switch the conn into passive mode and then clean up by switching it back into active mode, but Mint.HTTP.set_mode/2 has a return signature of

set_mode(conn, :active | :passive) :: {:ok, conn()} | {:error, any()}

(or something like that), so even that had some tuple-handling to do

~~it's probably possible to refactor this function now into a with or two~~

the main point of doing this in this kind of control-flow style is that we can pass some values back through this conceptual pipeline by calling do_stage/3 with new arguments from a later stage

we do this in the :check_window_size stage so we can receive and block as many times as we need until the server has given us more bytes in our windows

I think this pipeline is more readable than any refactor we could attempt

the-mikedavis · 2021-04-06T00:47:56Z

lib/spear/connection.ex

+  defp do_stage({:error, state, reason}, _stage, _params), do: {:error, state, reason}
+
+  defp do_stage({:ok, state}, :recv_responses, {_current_window, _request_ref}) do
+    case receive_next_and_stream(state.conn) do


initially this was written with Mint.HTTP.recv/3, but that function didn't seem to be increasing the connection's window size, and it seemed to be consistently timing out

I looked at how recv/3 and Mint.HTTP.stream/2 are implemented and I can't see any reason why recv/3 would not adjust the connection window but /shrug receive/1+stream/2 just works

the-mikedavis · 2021-04-06T00:49:00Z

lib/spear/connection.ex

+  defp receive_next_and_stream(conn) do
+    # YARD allow customization of timeout?
+    receive do
+      message when Mint.HTTP.is_connection_message(conn, message) ->


this macro is why the mix.exs has a bump to requiring ~> 1.10: this macro depends on some of the guard improvements in 1.10.0

need to use this here so we only receive Mint.HTTP messages and not accidentally intercept genserver calls/casts

the-mikedavis · 2021-04-06T00:51:24Z

lib/spear/connection.ex

+  end
+
+  defp safe_get_request_window_size(conn, request_ref) do
+    if Map.has_key?(conn.ref_to_stream_id, request_ref) do


it appears as though Mint.HTTP.get_window_size/2 throws an argument when the request is not in the conn (which it may be if the EventStore cancels our request from the server-side)

this thing I'm doing here with conn.ref_to_stream_id is how Mint.HTTP.get_window_size/2 is implemented for the {:request, request_ref} input

kinda dirty to be searching a private field in a mint conn like this but /shrug didn't see anything in the public API to allow me to check if a request currently belongs to a conn

might be a good PR to mint

the-mikedavis · 2021-04-06T00:52:33Z

lib/spear.ex

-  streams, they are not practically able to do so. More immediately, HTTP2
-  allows server implementations to direct clients to a maximum window size of
-  bytes allowed to be sent in a single request. EventStore exerts a reasonably
-  large window size per connection and request on the client, disallowing
-  the writing of infinite streams. In cases where a client attempts to write
-  too many events, `append/4` may fail with the `Mint.HTTPError` depicted
-  above (though possible with different elements in the second and third
-  elements of the `:reason` tuple).


wrong wrong wrong

I didn't understand windows when I wrote this

the-mikedavis · 2021-04-06T13:33:07Z

ok so I think I'm gonna close this one because I think there's a great refactor to be done with Enumerable.reduce/3 and being able to (temporarily) suspend a stream

i.e. see this implementation in GenStage https://github.com/elixir-lang/gen_stage/blob/6cb08ee2e892b8aff0fcc57f45e05c8d02dddcb2/lib/gen_stage/streamer.ex#L11-L27

if we can store a continuation in state, we can probably remove the receive/1 which is pretty desirable: I don't like putting receive/1 in a GenServer!

the-mikedavis · 2021-04-06T13:36:11Z

currently the implementation in this PR suffers from a bug where it will hit the :window_update_timeout from the receive/1 for any messages larger than the window size

a better implementation will need to break down messages that are too large to be sent in one window into many DATA frames

the-mikedavis · 2021-04-06T20:26:55Z

closed in favor of #3

the-mikedavis added 3 commits April 5, 2021 19:23

require elixir 1.10

6168ce5

implement backpressure for request streams

68dcf2e

delete commented active/passive blocks

369e44f

the-mikedavis self-assigned this Apr 6, 2021

the-mikedavis commented Apr 6, 2021

View reviewed changes

the-mikedavis requested a review from a team April 6, 2021 00:58

the-mikedavis marked this pull request as draft April 6, 2021 13:34

the-mikedavis closed this Apr 6, 2021

the-mikedavis deleted the request-stream-back-pressure branch July 3, 2021 16:16
