Highly-available Front-end

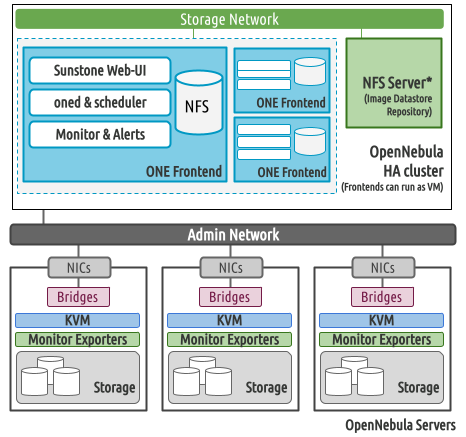

Architecture

In order to deploy the OpenNebula front-ends in a HA mode you'll need at least 3 (odd number of front-ends to reach consensus). For these servers you need to consider:

• The front-ends may run as virtual machines. You need to provision those directly from libvirt/QEMU or any other virtualization platform.
• The OpenNebula services will be reached through a Virtual IP (VIP). This IP will float to the active leader automatically.
• This configuration is compatible with any storage configuration shared or local
• The front-ends needs to share the image repository. You need to mount the NFS share, then include the mount point in the inventory file as described in the shared or local guides.

Ansible Role

The opennebula/server role is capable of managing multiple, clustered OpenNebula Front-end machines. Each such machine is simply added to the built-in Zone 0 of OpenNebula.

root@n1a1:~# onezone show 0
ZONE 0 INFORMATION
ID                : 0
NAME              : OpenNebula
STATE             : ENABLED


ZONE SERVERS
ID NAME            ENDPOINT
 0 n1a1            http://n1a1:2633/RPC2
 1 n1a2            http://n1a2:2633/RPC2
 2 n1a3            http://n1a3:2633/RPC2

HA & FEDERATION SYNC STATUS
ID NAME            STATE      TERM       INDEX      COMMIT     VOTE  FED_INDEX
 0 n1a1            leader     1          263        263        0     -1
 1 n1a2            follower   1          263        263        0     -1
 2 n1a3            follower   1          263        263        0     -1

ZONE TEMPLATE
ENDPOINT="http://localhost:2633/RPC2

Deployment

To deploy a cluster, it's enough to provide VIP configuration and multiple Front-end machines in the inventory file:

all:
  vars:
    one_vip: 10.2.50.86
    one_vip_cidr: 24
    one_vip_if: eth0

frontend:
  hosts:
    n1a1: { ansible_host: 10.2.50.10 }
    n1a2: { ansible_host: 10.2.50.11 }
    n1a3: { ansible_host: 10.2.50.12 }

Note

All one_vip* parameters are strictly required for HA mode to work, i.e. inside the Leader Front-end you will always find:

root@n1a1:~# ip address show eth0
2: eth0: <BROADCAST,MULTICAST,UP,LOWER_UP> mtu 1500 qdisc fq_codel state UP group default qlen 1000
    inet 10.2.50.10/24 brd 10.2.50.255 scope global eth0
       valid_lft forever preferred_lft forever
    inet 10.2.50.86/24 scope global secondary eth0
       valid_lft forever preferred_lft forever

Scaling

If you would like to deploy only a single Front-end, but still make it HA-ready, you can specify the force_ha parameter.

all:
  vars:
    force_ha: true

frontend:
  hosts:
    n1a1: { ansible_host: 10.2.50.10 }

Then later, when you decide you want true HA, you can simply increase the number of Front-end machines and re-run the automation:

frontend:
  hosts:
    n1a1: { ansible_host: 10.2.50.10 }
    n1a2: { ansible_host: 10.2.50.11 }
    n1a3: { ansible_host: 10.2.50.12 }

Note

Conversion from non-HA to HA is not implemented in this automation, please plan ahead!

Note

We support scaling UP only, as the reverse operation seems to be uncommon (you can still do it manually!).

RSYNC/SSH keys

It's important to mention that adding extra Front-end machines requires synchronization of the OpenNebula Database and /var/lib/one/{.one,.ssh}/ folders. All this happens automatically, but needs password-less login, so Ansible can utilize rsync/ssh to copy all required files from the Leader to new Followers (directly!). You can use ssh-agent or provision SSH keys yourself or use the ensure_keys_for parameter to generate them automatically:

all:
  vars:
    ansible_user: ubuntu
    ensure_keys_for: [ubuntu]
