MarkupWidgets docs 📖

The MarkupWidgets module is a packet of React components (widgets) that provides more tags for building web SubPages that the programmer can use as default but also customize the base component.

Go to widgets

Features

• 🎨 Fully customizable
• 🕹️ Interactive widgets
• 💼 Prop | wrap based content
• 😍 Nice designs
• 🏷️ Styles, IDs, etc...

Example SubPage:

Example screenshoots 🖼️

Example syntax 📟

Code of the screenshoots above...

<>
    <Tags.Title>
        Title
    </Tags.Title>
    <Tags.Paragraph>
        Lorem Ipsum es simplemente el texto de relleno de las imprentas y archivos de texto. Lorem Ipsum ha sido el texto de relleno estándar de las industrias desde el año 1500, cuando un impresor (N. del T. persona que se dedica a la imprenta) desconocido usó una galería de textos y los mezcló de tal manera que logró hacer un libro de textos especimen. No sólo sobrevivió 500 años, sino que tambien ingresó como texto de relleno en documentos electrónicos, quedando esencialmente igual al original. Fue popularizado en los 60s con la creación de las hojas Letraset, las cuales contenian pasajes de Lorem Ipsum, y más recientemente con software de autoedición, como por ejemplo Aldus SubPageMaker, el cual incluye versiones de Lorem Ipsum.
    </Tags.Paragraph>
    <Tags.Title2>
        Subtitle
    </Tags.Title2>
    <Tags.Code>
                                                                // Escaping collons
        <Cmd>git</Cmd> <Opt>commit</Opt> <Flag>-m</Flag> <Str>{'"This is a new commit"'}</Str> &gt; <Path>./text.txt</Path>
    </Tags.Code>
    <Tags.Title3>
        Subtitle
    </Tags.Title3>
    <Tags.Img img={testImg} alt="Alt text"/>
    <Tags.UList items={["Item 1", "Item 2", "Item 3", "Item 4"]} />
    <Tags.Callout label="custom" labelData={{text: "Secret", color: "#25AA88", style: ["font-weight: 500;", "filter: brightness(130%);"]}}>
        This is a custom callout block
    </Tags.Callout>
    <Tags.Callout  >
        This is a custom callout block
    </Tags.Callout>
    <Tags.Quote title="Quote title" text="This is a template text for a quote element as a text prop" />
    <Tags.Quote title="Quote title children">This is a template text for a quote element as a children</Tags.Quote>
    <Tags.Paragraph>
        Lorem Ipsum es simplemente el texto <Tags.Link href="google.com">Link text</Tags.Link> de relleno de las imprentas y archivos.
    </Tags.Paragraph>
</>

---

How to use the widgets?

Download the module 📥

Navigate to the path of the folder where you want to install the module and clone from the github

git clone https://github.com/PortiESP/MarkupWidgets.git

Import the module 🧩

Import the module from the file where you want to have access to the components, the module is structured in a way that the components can be imported in 3 diferent ways

• Import directly from the component file
• Import each component from the ./Tags.js
• Import the default object of the file ./Tags.js

// Import component directly
import Paragraph from "./MarkupWidgets/tags/Paragraph"
// Import each component separately
import {Title, Paragraph, Code, Callout} from "./MarkupWidgets/Tags"
// Import all components as an object
import Tags from "./MarkupWidgets/Tags"

Use the widgets 🖨️

Using the widgets in the return of a React component

import Tags from "./MarkupWidgets/Tags"
import {Code, Callout}

export default function MyComponent(){

    return (
        <>
            // Using the component from the default imported object
            <Tags.Paragraph>Example title</Tags.Paragraph>
            // Using the component from the specific export
            <Code>sudo chmod +x myScript.sh</Code>
        </>
    )
}

Wrapper & prop based widgets 💼

Most of the widget in the module are compatible with both, wrapper and prop based tags

Wrapper based tag

<Title>
    This is the title content
</Title>

Prop based tag

<Title text="This is the title content" />

If both options are used, the wrapper content will be priorized over the prop value

But other widget like the Img, UList, etc..., this ones only support props to handle their content

Styling the widgets

All the widgets support the style prop to handle the component style, anyways there are a few widgets that offer a bit more advanced features to style the diferent parts of the component

<Title style={myStyles}></Title>

FAQs

• How do is escape characters inside a component:

// The inner collons are parsed as part of a JS string and the interpolated in the JSX code
<> This is an {'"example"'} string </>

• How do I add a new line in my paragraph, code, callout, etc...:

// The code is parsed as normal text but the <br/> will be parsed as HTML
<Code>
const myArray = {
    elem1,  <br/>
    elem2,  <br/>
    elem3   <br/>
}
</Code>

---

Widgets list

• Title
• Paragraph
• Link
• Img
• Code
• UList
• Callout
• Quote
• Colors
• Hr
• italic/bold
• Button
• Toggle
• Block
• Url
• SubPage
• Section
• KbdKey

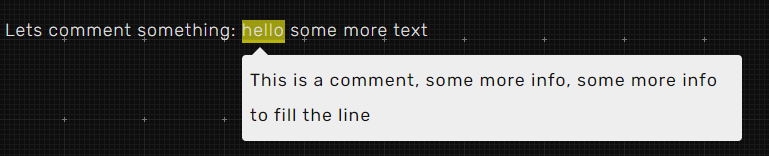

• Comment

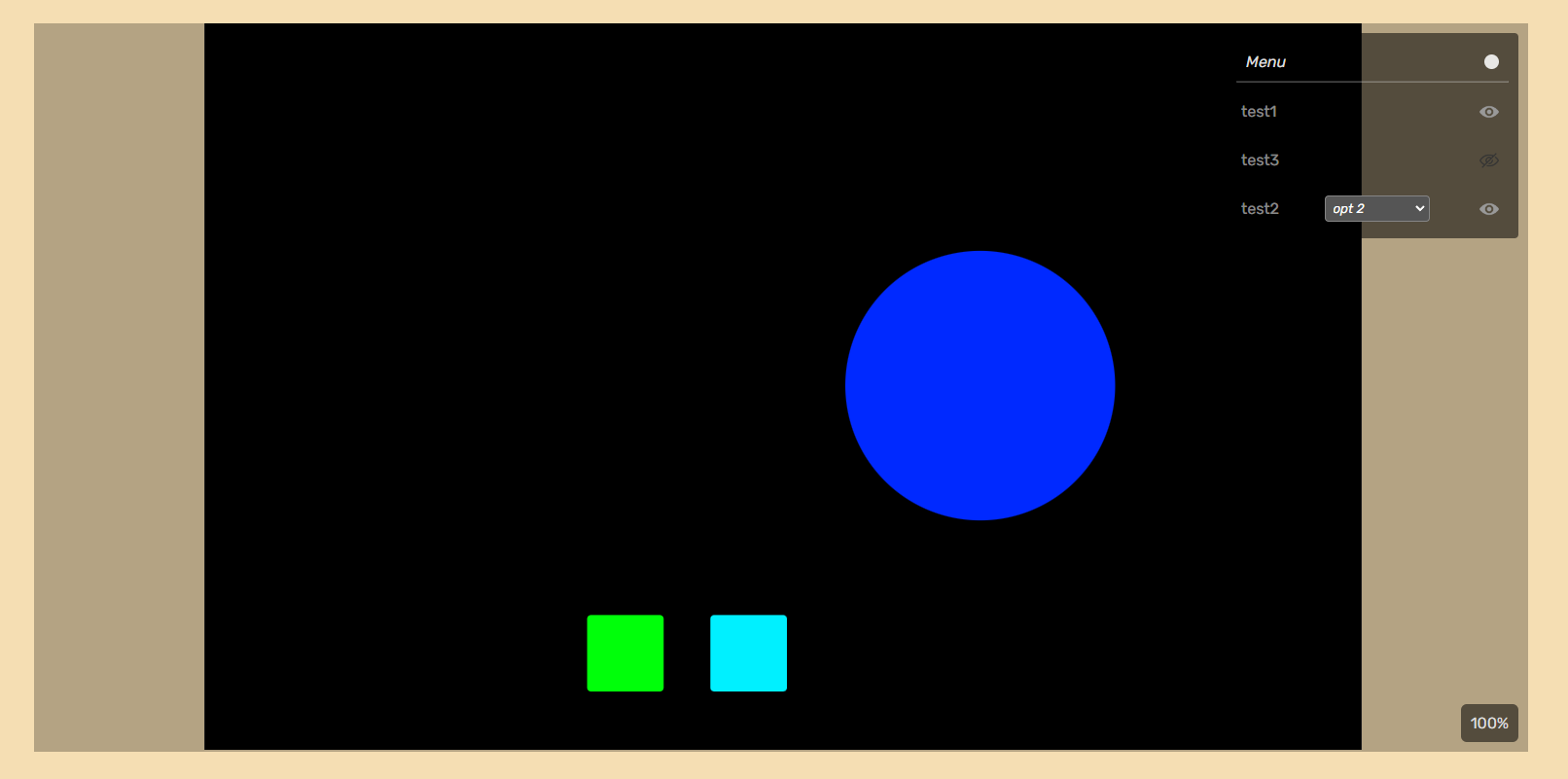

• MindMap

Title

There are 4 types of titles/headings: h1, h2, h3, h4 as Title1, Title2, ...

Props

• background - Add a background for the title
• text - Text content
• style - Styles object
• id - Add an ID attribute

<Tags.Title>
    Text template title
</Tags.Title>


<Tags.Title text="Text template title h1" />
<Tags.Title2 text="Text template title h2" background="#303030" />
<Tags.Title3 text="Text template title h3" />

H1

H2

H3

Go to widgets

Paragraph

Clasic paragraph to write text, also we can write special characters by adding them inside a JS string

Props

• text - Text content
• style - Styles object
• id - Add an ID attribute

<Tags.Paragraph>
    Lorem Ipsum es simplemente el texto de relleno de las imprentas y
    archivos de texto. Lorem {'"Ipsum"'} ha sido el texto de relleno estándar de
    las industrias desde el año 1500.
</Tags.Paragraph>


<Tags.Paragraph text="Text template title" />

Go to widgets

Link

The link widget is the same as the <a> tag but with its own styles

Props

• href - Target location of the link
• title - Add a title attribute to the tag
• target - Add target attribute to the tag
• dynamic - Flag for dynamic URLs on the same host
• text - Text content
• style - Styles object
• id - Add an ID attribute

Lorem Ipsum <Tags.Link href="www.example.com">Link text</Tags.Link> de relleno.

Go to widgets


Display an image, this component can be used in 3 diferent ways based on the props

• Passing an image object imported from a path
• Passing the image path, the image will fit the parent container
• Passing the image path and the height and width props

The image aspect-ratio will respected no matter the option used

Props

• src - Image object/path
• alt - Alt text
• title - Add a title attribute
• ratio - Aspect ratio of the image (default 16/9)
• hideCaption - Hides the caption text shown when clicking the image
• style - Styles object
• id - Add an ID attribute

import testImg from "./exampleImage.jpg"


<Tags.Img src={testImg} alt="Alt text"/>
<Tags.Img src="./images/image.jpg" alt="Alt text" ratio="1/2"/>
<Tags.Img src="./images/image.jpg" width="100px" height="50px" alt="Alt text"/>

<Tags.Img src={testImg} alt="Alt text" title="Title"/>
<Tags.Img src={testImg} alt="Alt text"/>

Go to widgets

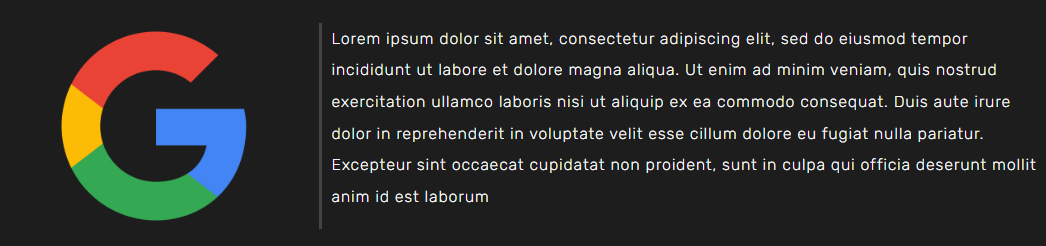

ImgTextAside

Display an image with an aside section for text or other tags

Use the ratio prop to adjust the image postion and size

Props

• src - Image object/path
• title - Add a the alt and title value
• ratio - Aspect ratio of the image (default 1/1)
• imgProportion - Porcetage of the block that will be reserved for the image
• separator - Adds a separation line between the img and the aside section
• style - Styles object
• id - Add an ID attribute

import testImg from "./exampleImage.jpg"

<Tags.ImgTextAside src={testImg} title="Alt text" ratio="1/2" imgProportion="30%"/>

Go to widgets

Code

The code widget provides a snippet of some piece of code, if you hover into the block an icon will appear at the bottom-right corner that you can click to copy the code to the clipboard, a copy message will appear when the button is clicked

There are also 3 decorative buttons at the top-right corder, this buttons are just decorative and dont have any action

Props

• inline - Flag for code string
• color - Color for the inline code
• caption - Add a caption text for the code snippet
• output - Add an nested div to print some kind of command output
• text - Text content
• style - Styles object
• id - Add an ID attribute

// Example from the first image
<Tags.Code>
    git commit -m "This is a new commit" ./text.txt
</Tags.Code>

// Example for second image
// This is how we parse special characters, new lines and tabs
<Tags.Code>{`
export default (<br/>
    {"<>"}                            <br/>
        {"  "}<Flag>comment</Flag>    <br/>
    {"</>"}                           <br/>
)
`}</Tags.Code>


// Example with text prop
<Tags.Code text="Text template title" />

There is also an alternative prop to use this component for writtring inline code

// Example from the second image
This is some content <Tags.Code inline>npm install react</Tags.Code> blablaba
This is some content <Tags.Code inline color="#ab124F">npm install react</Tags.Code> blablaba

To add a new line in your code just type
as the HTML tag

Both options allow custom styles with the style prop

Go to widgets

UList

This widget take an array as a prop to generate the list

Props

• items - Array of the item strings
• itemStyle - Style of the idividual items
• style - Styles object
• id - Add an ID attribute

<Tags.UList items={myItemList} />

Go to widgets

Callout

This widget creates a text block to spotlight some text, it also can take a label prop to show a small text at the top of the block (as show in the screenshoots)

This widget can take 3 styles:

• No label, only the text
• Predefined labels, The label value can the following values (warning, info, tip, danger) with predefined styles
• Custom label, The label with custon text & color, but also custom styles

Props

• label - Text shown at the top in an outter block
• labelData - Text, color, style (Data taken here only when label='custom')
• text - Text content
• style - Styles object
• id - Add an ID attribute

<Tags.Callout label="warning">
    This is a custom callout block
</Tags.Callout>


// Basic callout
<Tags.Callout text="This is a custom callout block"/>
// Callout with label
<Tags.Callout label="warning" text="This is a custom callout block"/>
// Callout with custom label with default styles
<Tags.Callout label="custom" text="Callout text" labelData={ text: "data", color="#ffffff" } />
// Callout with custom label with custom styles
<Tags.Callout label="custom" text="Callout text" labelData={ text: "Secret", color="#10A5FE", style: [ "background-color: red", "border-radius: 20px"] } />

Go to widgets

Quote

Props

• title Add a title attribute
• text - Text content
• style - Styles object
• color - Theme color of the box
• id - Add an ID attribute

Quote block, colors can be personalized with the style props

<Tags.Quote title="Quote title" color="#f5a206">
    This is a template text for a quote element as a text prop
</Tags.Qoute>


<Tags.Quote title="Quote title" text="This is a template text for a quote element as a text prop" />

Go to widgets

Colors

We can apply color styles to some piece of text by using the components of the ./tags/Colors.js, this file contains the color components to apply colors to the wrapped text

This file is not exported by the ./Tags.js file and it needs to be imported manualy

There are 3 types of color here based on their component name:

• Colors: Colors by name (Yellow, Blue, Red, etc...)(not all colors included)
• Color of context: Colors that represent the meaning of the text, (Str, Cmd, Opt, Flag)
• Custom color: Personalized color (Color)

Import module

// Import necesary colors
import {Blue, Red, Orange, Color, Flag} from "./MarkupWidgets/Tags/Colors"
// Import default component: `Color`
import MyColor from "./MarkupWidgets/Tags/Colors"

If you want to rename the components you can use the import as

import {
    Red as R,
    Blue as B,
    Green as G,
    Color as C,
    Flag as F
} from "./MarkupWidgets/Tags/Colors"

// Example
This is an <R>example</R> text to <F>try</F> the colors

// Nested
<Paragraph>
    This is an <R>example</R> text to <F>try</F> the colors
</Paragraph>

Remember that we have imported the component colors as its initial letter

If we use the Color component we can pass only the CSS color name or the prop color with the value

Lets colour the <C aquamarine>example</C> text
Lets colour the <C color="aquamarine">example</C> text
Lets colour the <C color="rgb(127, 255, 212)">example</C> text

Example of the colors usage in a code widget

Syntax of the screenshoot

Go to widgets

Hr

Creates a simple horizontal line to divide content, it can also take parameter small to create a shorter line

Props

• small - Make shorter line
• style - Styles object
• id - Add an ID attribute

<Hr />
<Hr small />

Go to widgets

Italic & Bold styles

To apply italic or bold styles to some text you can add it as you will do in HTML:

<Paragraph>
    This is an <i>italic</i> word
</Paragraph>

Go to widgets

Button

Adds custommizable button, with optional icon and easy-access styling props for the most common attributes, for more specific ones use the style prop

Text content can be passed as a wrapped child or by the text prop, if text is not passed as a wrapped child the prop text must be passed

Props

All of the props are optional

• text - Text content of the button
• icon - This props receives an image as an object from an import statement
• id - Add an ID attribute to the widget
• callback - Callback function triggered when the button is clicked
• href - URL to navigate when the button is clicked

Button

• borderRadius - Round the corners (px)
• background - Background style of the button

Icon

• iconScale - Multiplier of the icon size (%): Ex: 120%
• iconInvert - Invert the colors of the icon (0-100)
• iconBackground - Background of the icon

Text

• fontSize - Size of the text (px)
• color - Color of the text

Object styles

• style - Global styles of the widget, (styles not recommended here)
• styleButton - Style of the inner div, (button styles are recommentded here)
• styleIcon - Style of the icon image div
• styleText - Style of the text div
• styleHover - Style of the button when hover (css syntax)
• styleActive - Style of the button when active (css syntax)

// Import icon from path
import icon from "./myIcon.png"

<Tags.Button // Some example props
    text="Example"
    icon={icon}
    callback={myCallback}
    borderRadius="10px"
    iconScale="140%"
    iconInvert="100"
    styleActive="background: red;"
    styleButton={{padding: "30px"}}
/>

Go to widgets

Toggle

This widget can expand to show more content

Props

• title - The title is shown always, wont be hided
• background - Background of the container
• backgroundHover - Background of the header when hover
• arrowColor - Color of the toggle arrow
• arrowSize - size of the toggle arrow (use units)
• color - Color of the title text
• fontSize - Font size of the title (use units)
• style - Styles wrapper object
• id - Add an ID attribute

<Tags.Toggle title="Example toggle">

    <Tags.Callout label="info" >
        This is a custom callout block
    </Tags.Callout>
    <Tags.Paragraph>
    Lorem Ipsum es simplemente el texto <Tags.Link href="google.com" title="ggg">Link text</Tags.Link> de relleno de las imprentas y archivos.
    </Tags.Paragraph>
    <Tags.Quote title="Quote title children">This is a template text for a quote element as a children</Tags.Quote>

</Tags.Toggle>

Go to widgets

Block

This widget is really simple, it just wraps content in a box to diferenciate from the code around

Props

• background - Background of the block
• bulletColor - Item bullet color
• style - Styles object
• id - Add an ID attribute

 <Tags.Block>
    <Tags.UList items={["Item 1", "Item 2", "Item 3", "Item 4"]}/>
    <Tags.Img img="/example1.jpg" height="300px" width="500px" alt="Alt text" caption="Enviorement"/>
</Tags.Block>

Go to widgets

Url

This widget takes and url and a few information to create a card to make the URL stand out, this widgets will show a title, description, url and a screenshoot of the URL

Props

• src - URL we want to embed
• img - Image we want to show
• title - Title for the URL card
• description - Description of the URL content
• style - Styles object
• id - Add an ID attribute

<Tags.Url src="https://porti.dev/" title="My personal site" description="An online portfolio and blog where I show my skills"/>

Go to widgets

SubPage

This widget can hold content and display it as a popup on click event

Props

• title - Title for the SubPage card
• description - Description of the SubPage content
• style - Styles object
• id - Add an ID attribute
• small - Smmaller version of the widget without preview

<Tags.SubPage title="Test SubPage" description="Template description" small>
                <h1>gg</h1>
                <p>Lorem ipsum dolor sit amet, consectetur adipiscing elit, sed do eiusmod tempor incididunt ut labore et dolore magna aliqua. Ut enim ad minim veniam</p>
                <p>Lorem ipsum dolor sit amet, consectetur adipiscing elit, sed do eiusmod tempor incididunt ut labore et dolore magna aliqua. Ut enim ad minim veniam</p>
</Tags.SubPage>

Go to widgets

Section

This widget is just a section with styles and a preformated title

Props

• title - Add an h2 at the beggining of the section
• sticky - Make titles stick to the top of the viewport
• style - Styles object
• id - Add an ID attribute

<Tags.Section id="secction--example">
                <h1>gg</h1>
                <p>Lorem ipsum dolor sit amet, consectetur adipiscing elit, sed do eiusmod tempor incididunt ut labore et dolore magna aliqua. Ut enim ad minim veniam</p>
                <p>Lorem ipsum dolor sit amet, consectetur adipiscing elit, sed do eiusmod tempor incididunt ut labore et dolore magna aliqua. Ut enim ad minim veniam</p>
</Tags.Section>

Go to widgets

KbdKey

This widget adds a styled keyboard key as an inline tag

Props

• title - The key value as a props
• style - Styles object
• id - Add an ID attribute

    <Tags.KbdKey>WIN</Tags.KbdKey>
    <Tags.KbdKey title="WIN"/>

Go to widgets

Comment

This widget adds a comment for some text, the comment appears when we hover to pointer over the commented string

Props

• message - The key value as a props

    <p>Lets comment something: <Comment comment="This is a comment, some more info, some more info to fill the line">hello</Comment> some more text</p>

Go to widgets

MindMap

This widget displays a canvas to navigate over an SVG file, it also provides a menu where we can change the structure of the SVG to make an interactive canvas.

Features

• ZoomIn/ZoomOut with the mouse wheel
• Navigate by dragging with right-click
• The scale is shown as '%' at the bottom-right corner, click it to reset to 100%
• The menu can be hidden by clicking the header
• The menu provides 2 type of buttons toggle and chamber
  • The toggle allows to hide/show a list of HTML tags with an id in a list
  • The chamber does something similar but we can rotate between multiple views, only one shown at a time. This one can be also toggled

INFO

• The MinMap tag fits the parents box, so you should give a width and height to the parent of the MinMap tag
• Page scroll is blocked while hoveing the canvas
• Also remember that JSX uses the camelCase naming convention while some SVG attributes have dashes in its name, so you should replace all thoose names such as: stroke-width to strokeWidth

Props

• width - The max width of the SVG
• height - The max height of the SVG
• controls - The list of options that will be shown in the menu
• children (wrapped) - The SVG code without the svg tag, just the child

    const controls = [
        {   // Example of toggle type
            label: "test1",  // Label shown in the menu
            type: "toggle",  // Type of item [toggle|chamber]
            title: "test title",  // Hint shown while hovering over the item (optional)
            ids: ["Ellipse1", "Ellipse2"],  // List if IDs that will be affected by this item
            initial: true,  // The toggle will be activated by default (optional)
            controls: [{}]   // Recursive submenus (same structure as the main one)
        },
        {   // Simplified example of toggle type
            label: "test3",
            type: "toggle",
            ids: ["Ellipse1"]
        },
        {   // Example of chamber type
            label: "test2",
            type: "chamber",
            title: "chamber title",
            initial: true,  // The toggle will be activated by default (optional)
            idsGroups: [  // List of options show in the select
                {
                    label: "opt 1",  // Label of the option 1 (default)
                    ids: ["rect1", "rect2"],  // List if IDs that will be affected by this option
                    controls: [{}]  // Recursive submenus when this option is selected (same structure as the main one)
                },
                {
                    label: "opt 2",
                    ids: ["rect3", "rect4"]
                },
                {
                    label: "opt 3",
                    ids: ["rect5", "rect6"]
                },
            ]
        },
    ]

    // WRONG CODE
    <MindMap MindMap width={892} height={562} controls={controls}>
        <svg> {/* <--- DO NOT PALCE THIS TAG */}
            <rect width="892" height="562" fill="#F5F5F5"/>
            <rect width="892" height="562" fill="#F5F5F5"/>
            <rect width="892" height="562" fill="#F5F5F5"/>
        </svg> {/* <--- DO NOT PALCE THIS TAG */}
    </MindMap>

    // RIGHT CODE
    <MindMap MindMap width={892} height={562} controls={controls}>
            <rect width="892" height="562" fill="#F5F5F5"/>
            <rect width="892" height="562" fill="#F5F5F5"/>
            <rect width="892" height="562" fill="#F5F5F5"/>
    </MindMap>

View MindMap GIF

Go to widgets
