Openshift-Ansible-Domjudge

Setup Domjudge with Openshift Origin 3.11

Why DOMjudge + Openshift?

See my blog for full explanation.

Hardware Configuration

Having at least 5 hosts: 1 openshift master node, 1 openshift infra node with DNS, and 3 or more openshift compute nodes for judges. Use 1 of the computers listed above or any other computer that is connected to all hosts as the main system. The main system will be controlling all the hosts and setup their environment.

Prerequisites

1. Fedora/Centos/RHEL(Any Red Hat based distro with SELinux Enabled)
2. All hosts meet the requirements of Ansible
3. Ansible installed on your main system
4. SSH server enabled and accepting interactive challenge on all openshift hosts
5. All hosts connected via internet
6. All hosts have an user with the same username
7. git clone --recurse-submodules -j8 https://github.com/Superdanby/Openshift-Ansible-Domjudge.git

Configuration

DNS

Set DNS record for hosts in tasks/files/hosts_domjudge.

Ansible

1. In inventory:
   1. Set the user in the line: ansible_user='[username]'
   2. Set host mappings in inventory. Make sure the mappings are consistent with those of tasks/files/hosts_domjudge
   3. Make sure ansible_python_interpreter='[path to python3]' is present under [all:vars] if your distro uses python3 instead of python2
2. Create an ansible vault with ansible-vault create [path to vault file] and write pass: [password for the user on all hosts]

Openshift

1. In openshift_install_config/hosts.domjudge:
   1. Set host mappings in inventory. Make sure the mappings are consistent with those of inventory
   2. Change the line: openshift_pkg_version=-[3.11.1] to match the version number of the Openshift packages provided by your distro
      • On Fedora, you can check the version with dnf info origin
   3. If your hosts don't meet the minimum hardware requirements of Openshift, disable the corresponding checks in the end of the file with these options
2. Go to origin and git checkout release-3.11

Domjudge Configs for Openshift

• deploy_config:
  • domserver: set nodeName to the FQDN of 1 of the compute nodes, set the mariadb credentials
  • mariadb: set nodeName to the FQDN of 1 of the compute nodes, set the mariadb credentials, set persistent volume
  • judge-with-init: set JUDGEDAEMON_PASSWORD, set memory
  • judge-with-init-core-unbound: set JUDGEDAEMON_PASSWORD, set memory
• services:
  • set externalIPs to access your domjudge server.

Installation

Enable Ansible Access to All Hosts

1. Send ssh public key to all hosts: ./send-ssh-keys.sh

Environment Setup with Ansible

1. Ensure machine ID is different on all hosts: ansible-playbook -i inventory --ask-vault-pass --extra-vars '@[path to vault file]' tasks/01.change_mahcine_id.yml
2. Setup DNS: ansible-playbook -i inventory --ask-vault-pass --extra-vars '@[path to vault file]' tasks/02.setup_dns.yml
3. Set DNS IP for all hosts: ansible-playbook -i inventory --ask-vault-pass --extra-vars '@[path to vault file]' tasks/03.set_dns_lookup.yml
4. Set hostname for all hosts according to DNS records: ansible-playbook -i inventory --ask-vault-pass --extra-vars '@[path to vault file]' tasks/04.set_hostname.yml
5. Upgrade all hosts: ansible-playbook -i inventory --ask-vault-pass --extra-vars '@[path to vault file]' tasks/05.upgrade_all_packages.yml
6. Enable dnsmasq on master to prevent System Resolv occupying port 53: ansible-playbook -i inventory --ask-vault-pass --extra-vars '@[path to vault file]' tasks/06.enable_dnsmasq.yml
7. Reboot all hosts: ansible-playbook -i inventory --ask-vault-pass --extra-vars '@[path to vault file]' tasks/07.reboot.yml
   • If the main system is one of the cluster hosts, remember to exclude it from 07.reboot.yml and reboot it manually after the others finished their reboots. For instance, if the main system is on the DNS machine, change the command to ansible-playbook -i inventory --ask-vault-pass --extra-vars '@[path to vault file]' --extra-vars 'hosts=master:compute' tasks/07.reboot.yml
   • Rebooting all hosts ensures journactl works normally after a machine id change.
8. Stop dnsmasq on master node: ansible-playbook -i inventory --ask-vault-pass --extra-vars '@[path to vault file]' tasks/08.stop_dns.yml
   • Step 6 ~ 8 is intended to prevent System Resolv occupying port 53 on master node.

Install Openshift

1. Execute ansible-playbook -i openshift_install_config/hosts.domjudge origin/playbooks/prerequisites.yml
2. Execute ansible-playbook -i openshift_install_config/hosts.domjudge origin/playbooks/deploy_cluster.yml

Configuring and Using Openshift

On openshift master node:

1. Create a user: sudo htpasswd /etc/origin/master/htpasswd [username]
2. Give the user super powers: sudo oc adm policy add-cluster-role-to-user cluster-admin [username] --rolebinding-name=cluster-admins
3. Login to master node web console from [master FQDN/IP]:8443
4. Select Cluster Console on the upper left screen and login with the same credentials
5. In Administration > Projects, create a new project with domjudge as its name
6. Under the domjudge project:
   1. In Administration > Service Account, create a new service account and modify the name line to name: privrun
   2. Back in terminal, give privrun super powers: sudo oc adm policy add-scc-to-user privileged -z privrun -n domjudge
   3. In Builds > Image Streams, create Image Streams with the files of openshift_domjudge_config/image_stream
   4. In Builds > Build Configs, create Build Configs with the files of openshift_domjudge_config/build_config
   5. In Workloads > Deployment Configs, create Deployment Configs with the files in openshift_domjudge_config/deploy_config
   6. In Networking > Services, create Services with the files in openshift_domjudge_config/services
7. Select Application Console on the upper left screen, and selecr domjudge project
8. Adjust the pods to suit your needs by selecting the pod entries and click the up and down arrow on the right hand side

Domjudge Setup

1. Login from the external IP(s) set in openshift_domjudge_config/services/domserver.yaml to setup judgehost password

2. Well done! All components should be running now.

Add Nodes and Masters

Configuration

1. All hosts meet the prerequisites.
2. Add DNS record for new hosts in tasks/files/hosts_domjudge.

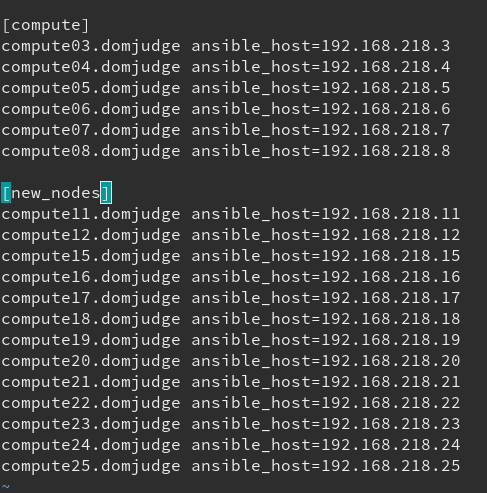

3. Add hosts ansible setup in inventory.

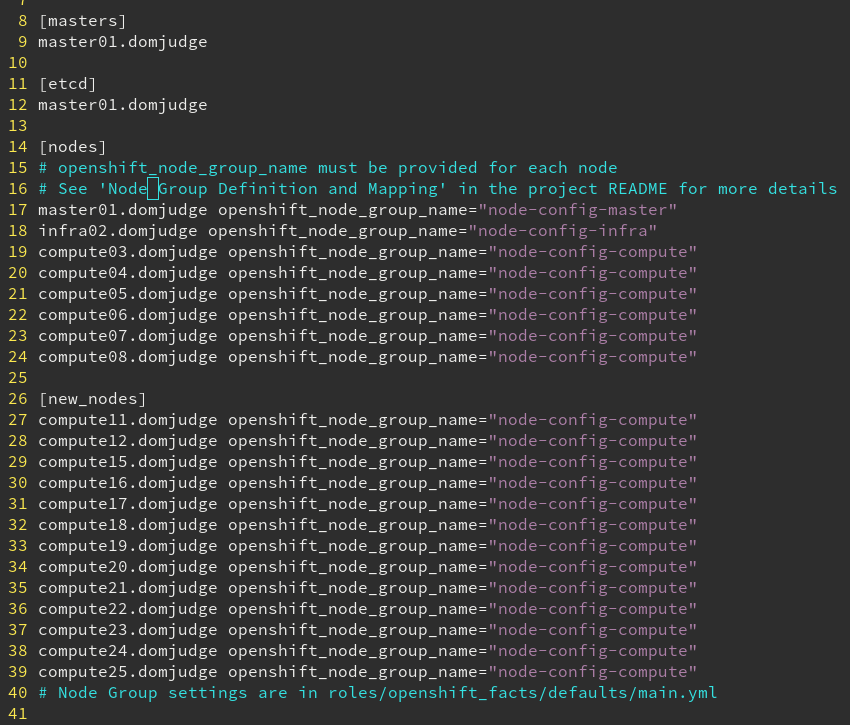

4. Add host mappings to Openshift configuration file in openshift_install_config/hosts.domjudge

Scale Up

1. Send ssh public key to all hosts: ./send-ssh-keys.sh
   1. Enter 2 to use the original ssh key pair
2. Run ansible-playbook -i inventory --ask-vault-pass --extra-vars '@[path to vault file]' --extra-vars 'hosts=new_nodes' tasks/add_nodes.yml
3. Run ansible-playbook -i inventory --ask-vault-pass --extra-vars '@[path to vault file]' --extra-vars 'hosts=new_masters' tasks/add_masters.yml
4. ansible-playbook -i openshift_install_config/hosts.domjudge origin/playbooks/openshift-node/scaleup.yml
5. ansible-playbook -i openshift_install_config/hosts.domjudge origin/playbooks/openshift-master/scaleup.yml

Issues

1. DNF upgrade may take significant amount of time. It may also fail in some cases. I would recommend to give it some time and re-run or even do it manually on failure.

Todo

1. Merge all openshift_domjudge_config files into 1 template
2. Better documentation for DEBUGGING
