SwiftUI App Intro Animation's - Walkthrough Page Animation's - OnBoarding Screen's - Login Page UI
https://www.youtube.com/watch?v=9Ztm5ePwY4k&list=TLGGql6YhFJnsjowMjA0MjAyMw
PageIntro.swift
import SwiftUI
/// Page Intro Model
struct PageIntro: Identifiable, Hashable {
var id: UUID = .init()
var introAssetImage: String
var title: String
var subTitle: String
var displaysAction: Bool = false
}
var pageIntros: [PageIntro] = [

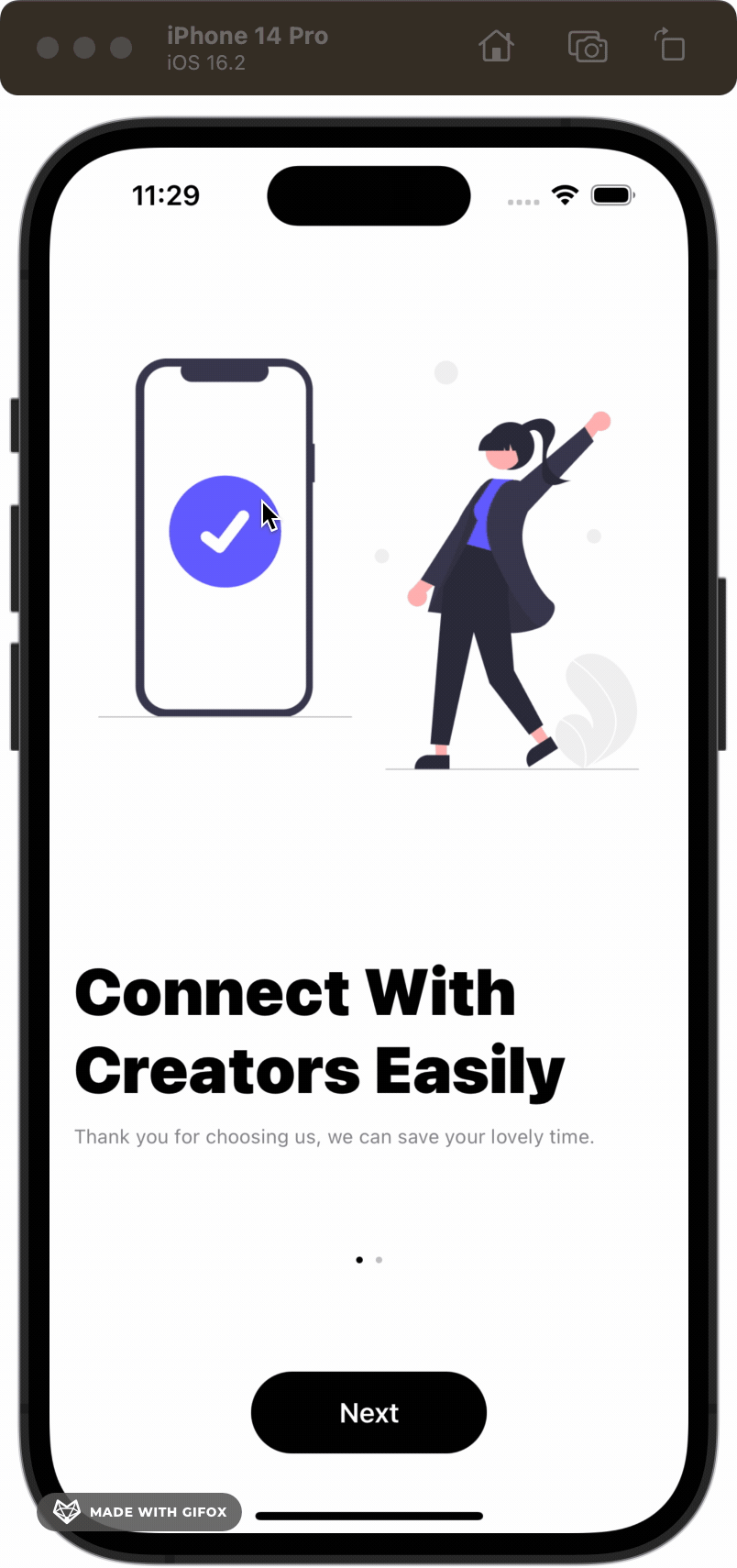

.init(introAssetImage: "Page 1", title: "Connect With\nCreators Easily", subTitle: "Thank you for choosing us, we can save your lovely time."),
.init(introAssetImage: "Page 2", title: "Get Inspiration\nFrom Creators", subTitle: "Find your favourite creator and get inspired by them."),
.init(introAssetImage: "Page 3", title: "Let's\nGet Started", subTitle: "To register for an account, kindly enter your details.", displaysAction: true),
]
CustomIndicatorView.swift
import SwiftUI
struct CustomIndicatorView: View {
/// View Properties
var totalPages: Int
var currentPage: Int
var activeTint: Color = .black
var inActiveTint: Color = .gray.opacity(0.5)
var body: some View {
HStack(spacing: 8) {
ForEach(0..<totalPages, id: \.self) {
Circle()
.fill(currentPage == $0 ? activeTint : inActiveTint)
.frame(width: 4, height: 4)
}
}
}
}
struct CustomIndicatorView_Previews: PreviewProvider {
static var previews: some View {
ContentView()
}
}
Home.swift
import SwiftUI
struct Home: View {
/// View Properties
@State private var activeIntro: PageIntro = pageIntros[0]
var body: some View {
GeometryReader {
let size = $0.size
IntroView(intro: $activeIntro, size: size)
}
.padding(15)
}
}
struct Home_Previews: PreviewProvider {
static var previews: some View {
ContentView()
}
}
/// Intro View
struct IntroView: View {
@Binding var intro: PageIntro
var size: CGSize
var body: some View {
VStack {
/// Image View
GeometryReader {
let size = $0.size
Image(intro.introAssetImage)
.resizable()
.aspectRatio(contentMode: .fit)
.padding(15)
.frame(width: size.width, height: size.height)
}
/// Title & Action's
VStack(alignment: .leading, spacing: 10) {
Spacer(minLength: 0)
Text(intro.title)
.font(.system(size: 40))
.fontWeight(.black)
Text(intro.subTitle)
.font(.caption)
.foregroundColor(.gray)
if !intro.displaysAction {
Group {
Spacer(minLength: 25)
/// Custom Indicator View
CustomIndicatorView(totalPages: filteredPages.count, currentPage: filteredPages.firstIndex(of: intro) ?? 0)
.frame(maxWidth: .infinity)
Spacer(minLength: 10)
Button {
changeIntro()
} label: {
Text("Next")
.fontWeight(.semibold)
.foregroundColor(.white)
.frame(width: size.width * 0.4)
.padding(.vertical, 15)
.background {
Capsule()
.fill(.black)
}
}
.frame(maxWidth: .infinity)
}
} else {
}
}
.frame(maxWidth: .infinity, alignment: .leading)
}
}
/// Updating Page Intro's
func changeIntro() {
if let index = pageIntros.firstIndex(of: intro), index != pageIntros.count - 1 {
intro = pageIntros[index + 1]
} else {
intro = pageIntros[pageIntros.count - 1]
}
}
var filteredPages: [PageIntro] {
return pageIntros.filter { !$0.displaysAction }
}
}
CustomTextField.swift
import SwiftUI
struct CustomTextField: View {
@Binding var text: String
var hint: String
var leadingIcon: Image
var isPassword: Bool = false
var body: some View {
HStack(spacing: -10) {
leadingIcon
.font(.callout)
.foregroundColor(.gray)
.frame(width: 40, alignment: .leading)
if isPassword {
SecureField(hint, text: $text)
} else {
TextField(hint, text: $text)
}
}
.padding(.horizontal, 15)
.padding(.vertical, 15)
.background {
RoundedRectangle(cornerRadius: 12, style: .continuous)
.fill(.gray.opacity(0.1))
}
}
}
Home.swift
import SwiftUI
struct Home: View {
/// View Properties
@State private var activeIntro: PageIntro = pageIntros[0]
@State private var emailID: String = ""
@State private var password: String = ""
var body: some View {
GeometryReader {
let size = $0.size
IntroView(intro: $activeIntro, size: size) {
/// User Login/Signup View
VStack(spacing: 10) {
/// Custom TextField
CustomTextField(text: $emailID, hint: "Email Address", leadingIcon: Image(systemName: "envelope"))
}
}
}
.padding(15)
}
}
struct Home_Previews: PreviewProvider {
static var previews: some View {
ContentView()
}
}
/// Intro View
struct IntroView<ActionView: View>: View {
@Binding var intro: PageIntro
var size: CGSize
var actionView: ActionView
init(intro: Binding<PageIntro>, size: CGSize, @ViewBuilder actionView: @escaping () -> ActionView) {
self._intro = intro
self.size = size
self.actionView = actionView()
}
var body: some View {
VStack {
/// Image View
GeometryReader {
let size = $0.size
Image(intro.introAssetImage)
.resizable()
.aspectRatio(contentMode: .fit)
.padding(15)
.frame(width: size.width, height: size.height)
}
/// Title & Action's
VStack(alignment: .leading, spacing: 10) {
Spacer(minLength: 0)
Text(intro.title)
.font(.system(size: 40))
.fontWeight(.black)
Text(intro.subTitle)
.font(.caption)
.foregroundColor(.gray)
if !intro.displaysAction {
Group {
Spacer(minLength: 25)
/// Custom Indicator View
CustomIndicatorView(totalPages: filteredPages.count, currentPage: filteredPages.firstIndex(of: intro) ?? 0)
.frame(maxWidth: .infinity)
Spacer(minLength: 10)
Button {
changeIntro()
} label: {
Text("Next")
.fontWeight(.semibold)
.foregroundColor(.white)
.frame(width: size.width * 0.4)
.padding(.vertical, 15)
.background {
Capsule()
.fill(.black)
}
}
.frame(maxWidth: .infinity)
}
} else {
actionView
}
}
.frame(maxWidth: .infinity, alignment: .leading)
}
}
/// Updating Page Intro's
func changeIntro() {
if let index = pageIntros.firstIndex(of: intro), index != pageIntros.count - 1 {
intro = pageIntros[index + 1]
} else {
intro = pageIntros[pageIntros.count - 1]
}
}
var filteredPages: [PageIntro] {
return pageIntros.filter { !$0.displaysAction }
}
}
Home.swift
struct Home: View {
/// View Properties
@State private var activeIntro: PageIntro = pageIntros[0]
@State private var emailID: String = ""
@State private var password: String = ""
var body: some View {
GeometryReader {
let size = $0.size
IntroView(intro: $activeIntro, size: size) {

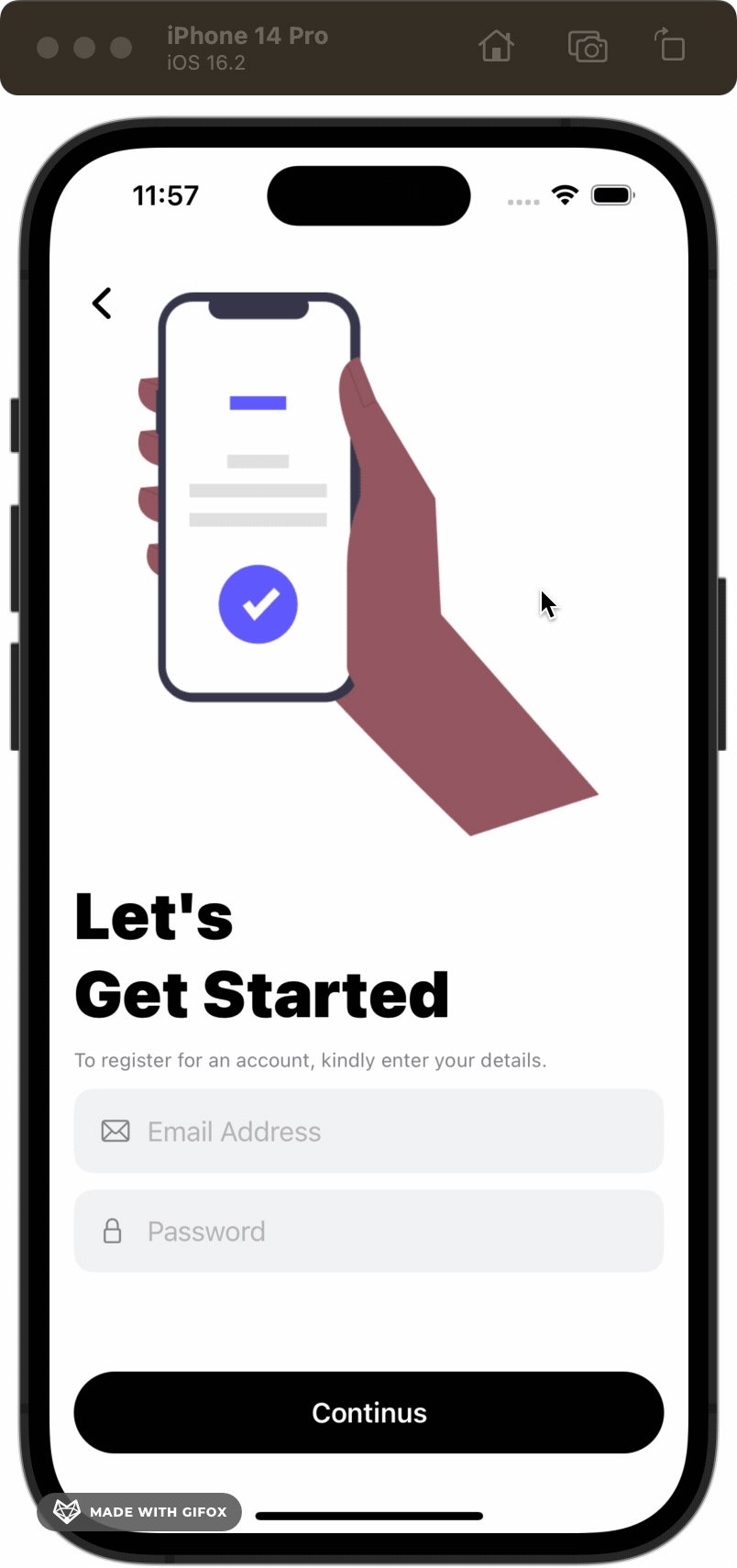

/// User Login/Signup View
VStack(spacing: 10) {
/// Custom TextField
CustomTextField(text: $emailID, hint: "Email Address", leadingIcon: Image(systemName: "envelope"))
CustomTextField(text: $emailID, hint: "Password", leadingIcon: Image(systemName: "lock"), isPassword: true)
Spacer(minLength: 10)
Button {
} label: {
Text("Continus")
.fontWeight(.semibold)
.foregroundColor(.white)
.padding(.vertical, 15)
.frame(maxWidth: .infinity)
.background {
Capsule()
.fill(.black)
}
}
}
}
}
.padding(15)
}
}
/// Back Button
.overlay(alignment: .topLeading) {
/// Hiding it for Very First Page, Since there is no previous page present
if intro != pageIntros.first {
Button {
changeIntro(true)
} label : {
Image(systemName: "chevron.left")
.font(.title2)
.fontWeight(.semibold)
.foregroundColor(.black)
.contentShape(Rectangle())
}
.padding(10)
}
}
}
/// Updating Page Intro's
func changeIntro(_ isPrevious: Bool = false) {
if let index = pageIntros.firstIndex(of: intro), (isPrevious ? index != 0 : index != pageIntros.count - 1) {
intro = isPrevious ? pageIntros[index - 1] : pageIntros[index + 1]
} else {
intro = isPrevious ? pageIntros[0] : pageIntros[pageIntros.count - 1]
}
}
/// Animation Properties
@State private var showView: Bool = false
var body: some View {
VStack {
/// Image View
GeometryReader {
let size = $0.size
Image(intro.introAssetImage)
.resizable()
.aspectRatio(contentMode: .fit)
.padding(15)
.frame(width: size.width, height: size.height)
}
/// Moving Up
.offset(y: showView ? 0 : -size.height / 2)
.opacity(showView ? 1 : 0)
/// Title & Action's
VStack(alignment: .leading, spacing: 10) {
Spacer(minLength: 0)
Text(intro.title)
.font(.system(size: 40))
.fontWeight(.black)
Text(intro.subTitle)
.font(.caption)
.foregroundColor(.gray)
if !intro.displaysAction {
Group {
Spacer(minLength: 25)
/// Custom Indicator View
CustomIndicatorView(totalPages: filteredPages.count, currentPage: filteredPages.firstIndex(of: intro) ?? 0)
.frame(maxWidth: .infinity)
Spacer(minLength: 10)
Button {
changeIntro()
} label: {
Text("Next")
.fontWeight(.semibold)
.foregroundColor(.white)
.frame(width: size.width * 0.4)
.padding(.vertical, 15)
.background {
Capsule()
.fill(.black)
}
}
.frame(maxWidth: .infinity)
}
} else {
actionView
}
}
.frame(maxWidth: .infinity, alignment: .leading)
/// Moving Down
.offset(y: showView ? 0 : size.height / 2)
.opacity(showView ? 1 : 0)
}
/// Back Button
.overlay(alignment: .topLeading) {
/// Hiding it for Very First Page, Since there is no previous page present
if intro != pageIntros.first {
Button {
changeIntro(true)
} label : {
Image(systemName: "chevron.left")
.font(.title2)
.fontWeight(.semibold)
.foregroundColor(.black)
.contentShape(Rectangle())
}
.padding(10)
}
}
.onAppear {
withAnimation(.spring(response: 0.8, dampingFraction: 0.8, blendDuration: 0).delay(0.1)) {
showView = true
}
}
}
Home.swift
/// Animation Properties
@State private var showView: Bool = false
@State private var hideWholeView: Bool = false
var body: some View {
VStack {
/// Image View
GeometryReader {
let size = $0.size
Image(intro.introAssetImage)
.resizable()
.aspectRatio(contentMode: .fit)
.padding(15)
.frame(width: size.width, height: size.height)
}
/// Moving Up
.offset(y: showView ? 0 : -size.height / 2)
.opacity(showView ? 1 : 0)
/// Title & Action's
VStack(alignment: .leading, spacing: 10) {
Spacer(minLength: 0)
Text(intro.title)
.font(.system(size: 40))
.fontWeight(.black)
Text(intro.subTitle)
.font(.caption)
.foregroundColor(.gray)
if !intro.displaysAction {
Group {
Spacer(minLength: 25)
/// Custom Indicator View
CustomIndicatorView(totalPages: filteredPages.count, currentPage: filteredPages.firstIndex(of: intro) ?? 0)
.frame(maxWidth: .infinity)
Spacer(minLength: 10)
Button {
changeIntro()
} label: {
Text("Next")
.fontWeight(.semibold)
.foregroundColor(.white)
.frame(width: size.width * 0.4)
.padding(.vertical, 15)
.background {
Capsule()
.fill(.black)
}
}
.frame(maxWidth: .infinity)
}
} else {
actionView
}
}
.frame(maxWidth: .infinity, alignment: .leading)
/// Moving Down
.offset(y: showView ? 0 : size.height / 2)
.opacity(showView ? 1 : 0)
}
.offset(y: hideWholeView ? size.height / 2 : 0)
.opacity(hideWholeView ? 0 : 1)
/// Back Button
.overlay(alignment: .topLeading) {
/// Hiding it for Very First Page, Since there is no previous page present
if intro != pageIntros.first {
Button {
changeIntro(true)
} label : {
Image(systemName: "chevron.left")
.font(.title2)
.fontWeight(.semibold)
.foregroundColor(.black)
.contentShape(Rectangle())
}
.padding(10)
}
}
.onAppear {
withAnimation(.spring(response: 0.8, dampingFraction: 0.8, blendDuration: 0).delay(0.1)) {
showView = true
}
}
}
/// Updating Page Intro's
func changeIntro(_ isPrevious: Bool = false) {
withAnimation(.spring(response: 0.8, dampingFraction: 0.8, blendDuration: 0)) {
hideWholeView = true
}
DispatchQueue.main.asyncAfter(deadline: .now() + 0.5) {
if let index = pageIntros.firstIndex(of: intro), (isPrevious ? index != 0 : index != pageIntros.count - 1) {
intro = isPrevious ? pageIntros[index - 1] : pageIntros[index + 1]
} else {
intro = isPrevious ? pageIntros[0] : pageIntros[pageIntros.count - 1]
}
/// Re-Animating as Split Page
hideWholeView = false
showView = false
withAnimation(.spring(response: 0.8, dampingFraction: 0.8, blendDuration: 0)) {
showView = true
}
}
}
/// Back Button
.overlay(alignment: .topLeading) {
/// Hiding it for Very First Page, Since there is no previous page present
if intro != pageIntros.first {
Button {
changeIntro(true)
} label : {
Image(systemName: "chevron.left")
.font(.title2)
.fontWeight(.semibold)
.foregroundColor(.black)
.contentShape(Rectangle())
}
.padding(10)
/// Animating Back Button
/// Comes From Top When Active
.offset(y: showView ? 0 : -200)
/// Hides by Going back to Top When In Active
.offset(y: hideWholeView ? -200 : 0)
}
We don't want to resize the view...
struct Home: View {
/// View Properties
@State private var activeIntro: PageIntro = pageIntros[0]
@State private var emailID: String = ""
@State private var password: String = ""
@State private var keyboardHeitght: CGFloat = 0
var body: some View {
GeometryReader {
let size = $0.size
IntroView(intro: $activeIntro, size: size) {
/// User Login/Signup View
VStack(spacing: 10) {
/// Custom TextField
CustomTextField(text: $emailID, hint: "Email Address", leadingIcon: Image(systemName: "envelope"))
CustomTextField(text: $password, hint: "Password", leadingIcon: Image(systemName: "lock"), isPassword: true)
Spacer(minLength: 10)
Button {
} label: {
Text("Continus")
.fontWeight(.semibold)
.foregroundColor(.white)
.padding(.vertical, 15)
.frame(maxWidth: .infinity)
.background {
Capsule()
.fill(.black)
}
}
}
}
}
.padding(15)
/// Manual Keyboard Push
.offset(y: -keyboardHeitght)
/// Disabling Native Keyboard Push
.ignoresSafeArea(.keyboard, edges: .all)
.onReceive(NotificationCenter.default.publisher(for: UIResponder.keyboardWillShowNotification)) { output in
if let info = output.userInfo, let height = (info[UIResponder.keyboardFrameEndUserInfoKey] as? NSValue)?.cgRectValue.height {
keyboardHeitght = height
}
}
.onReceive(NotificationCenter.default.publisher(for: UIResponder.keyboardDidHideNotification)) { _ in
keyboardHeitght = 0
}
.animation(.spring(response: 0.5, dampingFraction: 0.8, blendDuration: 0), value: keyboardHeitght)
}
