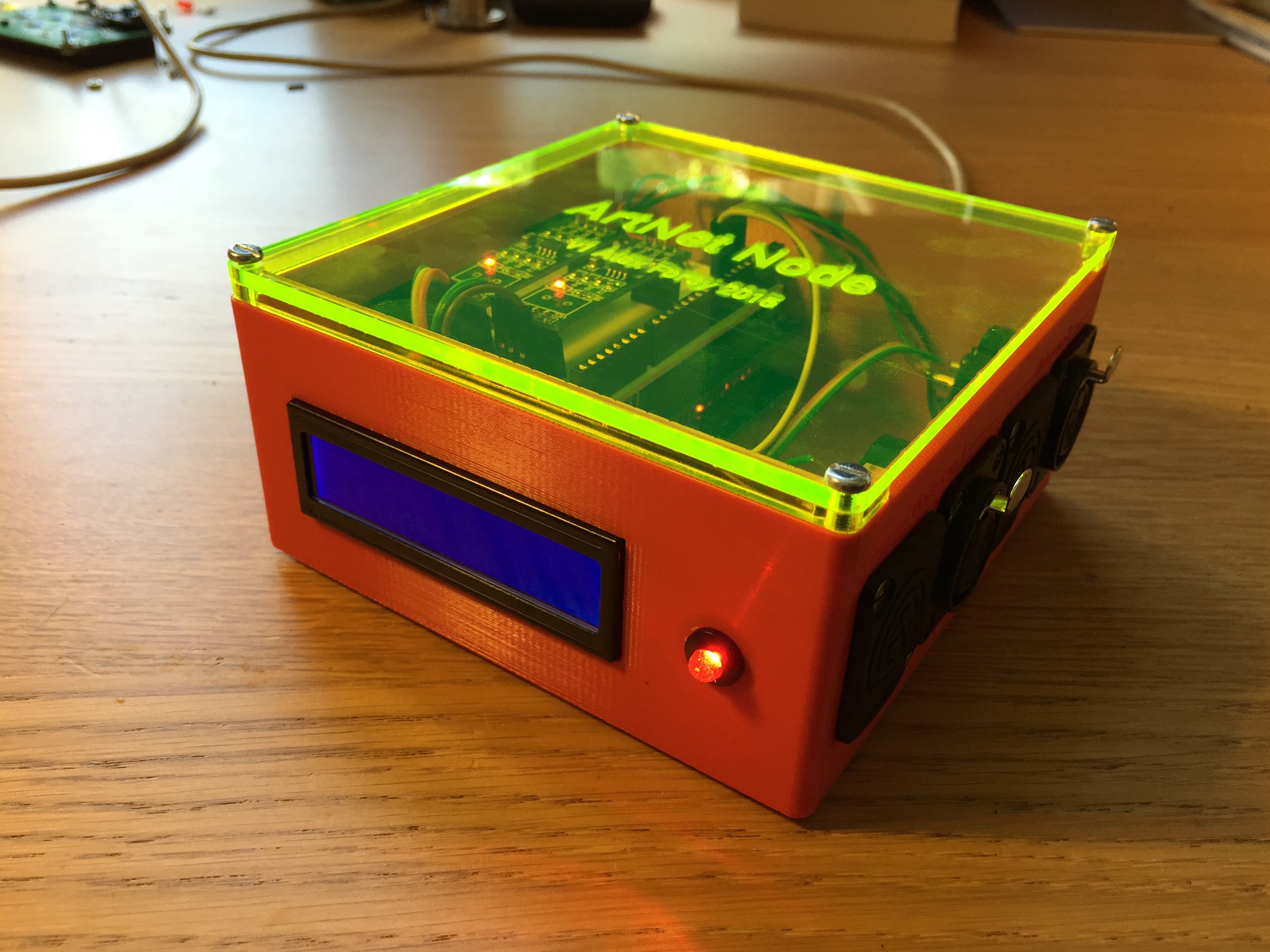

Arduino-based ArtNet Node v1

This is a device that converts an ArtNet signal to two universes of DMX. I've tested it as working fully with QLC+ and ETC Nomad on both universes, at standard frame rates.

Apologies for the state of the Fritzing file, I'll clean it up when I can be bothered. You need to use Arduino 0023 and the bundled libraries, because some registers were renamed after Arduino 1.0.

Features

  • Two Universe ArtNet to DMX
  • Option of both 5-pin and 3-pin output for both universes
  • LCD Screen displaying IP address (for now, IP address needs to be manually assigned)
  • RGB LED displaying online/offline state (detects being connected to network and receiving valid packets)
  • Small form-factor

Parts
