[SPARK-39146][CORE][SQL] Introduce local singleton for ObjectMapper that may be reused
#37999
Conversation
This file contains bidirectional Unicode text that may be interpreted or compiled differently than what appears below. To review, open the file in an editor that reveals hidden Unicode characters.
Learn more about bidirectional Unicode characters
|
Write a mirco-benchmark to test Jackson ObjectWriter read and write: def testReadJsonToMap(valuesPerIteration: Int): Unit = {
val input =
"""
|{"mergeDir":"/a/b/c/mergeDirName","attemptId":"appattempt_1648454518011_994053_000001"}
""".stripMargin
val benchmark = new Benchmark("Test read json to map",
valuesPerIteration, output = output)
benchmark.addCase("Test Multiple") { _: Int =>
for (_ <- 0L until valuesPerIteration) {
val mapper = new ObjectMapper()
mapper.registerModule(DefaultScalaModule)
mapper.readValue(input, classOf[mutable.HashMap[String, String]])
}
}
val mapper = new ObjectMapper()
mapper.registerModule(DefaultScalaModule)
benchmark.addCase("Test Single") { _: Int =>
for (_ <- 0L until valuesPerIteration) {
mapper.readValue(input, classOf[mutable.HashMap[String, String]])
}
}
benchmark.run()
}
def testWriteMapToJson(valuesPerIteration: Int): Unit = {
val map: mutable.HashMap[String, String] = new mutable.HashMap[String, String]()
map.put("mergeDir", "/a/b/c/mergeDirName")
map.put("attemptId", "yarn_appattempt_1648454518011_994053_000001")
val benchmark = new Benchmark("Test write map to json",
valuesPerIteration, output = output)
benchmark.addCase("Test Multiple") { _: Int =>
for (_ <- 0L until valuesPerIteration) {
val mapper = new ObjectMapper()
mapper.registerModule(DefaultScalaModule)
mapper.writeValueAsString(map)
}
}
val mapper = new ObjectMapper()
mapper.registerModule(DefaultScalaModule)
benchmark.addCase("Test Single") { _: Int =>
for (_ <- 0L until valuesPerIteration) {
mapper.writeValueAsString(map)
}
}
benchmark.run()
}
def testCreateObjectMapper(valuesPerIteration: Int): Unit = {
val benchmark = new Benchmark("Test create ObjectMapper",
valuesPerIteration, output = output)
benchmark.addCase("Test create ObjectMapper") { _: Int =>
for (_ <- 0L until valuesPerIteration) {
val mapper = new ObjectMapper()
mapper.registerModule(DefaultScalaModule)
}
}
benchmark.run()
}
override def runBenchmarkSuite(mainArgs: Array[String]): Unit = {
val valuesPerIteration = 10000
testCreateObjectMapper(valuesPerIteration = valuesPerIteration)
testWriteMapToJson(valuesPerIteration = valuesPerIteration)
testReadJsonToMap(valuesPerIteration = valuesPerIteration)
}and run this use GA: From the test results, we should use singleton Jackson ObjectMapper, because it seems expensive to new a ObjectMapper instance. |
LuciferYang
changed the title
JacksonUtils to use singleton Jackson ObjectMapper JacksonUtils to use singleton Jackson ObjectMapper
LuciferYang
changed the title
JacksonUtils to use singleton Jackson ObjectMapper JacksonUtils to use singleton Jackson ObjectMapper
|
My concern is that ObjectMapper, while thread-safe, is synchronized in some methods, IIRC. This could introduce contention for locks. Is the perf win really compelling? I wonder if we can reuse ObjectMapper inside classes where it matters for perf and not try to share one instance so widely. |
|
OK, let me add a multi thread comparison to check this |
|
In the serial r/w scenario, the benefits are obvious,
|
|
I write a multi thread test as follows: def testWriteMapToJson(valuesPerIteration: Int, threads: Int): Unit = {
val map = Map("intValue" -> 1,
"longValue" -> 2L,
"doubleValue" -> 3.0D,
"stringValue" -> "4",
"floatValue" -> 5.0F,
"booleanValue" -> true)
val benchmark = new Benchmark(s"Test $threads threads write map to json",
valuesPerIteration, output = output)
val multi = Array.fill(threads)({
val ret = new ObjectMapper()
ret.registerModule(DefaultScalaModule)
ret
})
benchmark.addCase("Test use multi mapper") { _: Int =>
val latch = new CountDownLatch(valuesPerIteration)
val executor = ThreadUtils.newDaemonFixedThreadPool(threads, "multi")
for (i <- 0 until valuesPerIteration) {
executor.submit(new Runnable {
override def run(): Unit = {
val idx = i % threads
multi(idx).writeValueAsString(map)
latch.countDown()
}
})
}
latch.await()
executor.shutdown()
}
val mapper = new ObjectMapper()
mapper.registerModule(DefaultScalaModule)
val singleton = Array.fill(threads)(mapper)
benchmark.addCase("Test use singleton mapper") { _: Int =>
val latch = new CountDownLatch(valuesPerIteration)
val executor = ThreadUtils.newDaemonFixedThreadPool(threads, "singleton")
for (i <- 0 until valuesPerIteration) {
executor.submit(new Runnable {
override def run(): Unit = {
val idx = i % threads
singleton(idx).writeValueAsString(map)
latch.countDown()
}
})
}
latch.await()
executor.shutdown()
}
benchmark.run()
}
def testReadJsonToMap(valuesPerIteration: Int, threads: Int): Unit = {
val input = {
val map = Map("intValue" -> 1,
"longValue" -> 2L,
"doubleValue" -> 3.0D,
"stringValue" -> "4",
"floatValue" -> 5.0F,
"booleanValue" -> true)
val mapper = new ObjectMapper()
mapper.registerModule(DefaultScalaModule)
mapper.writeValueAsString(map)
}
val benchmark = new Benchmark(s"Test $threads threads read json to map",
valuesPerIteration, output = output)
val multi = Array.fill(threads)({
val ret = new ObjectMapper()
ret.registerModule(DefaultScalaModule)
ret
})
benchmark.addCase("Test use multi mapper") { _: Int =>
val latch = new CountDownLatch(valuesPerIteration)
val executor = ThreadUtils.newDaemonFixedThreadPool(threads, "multi")
for (i <- 0 until valuesPerIteration) {
executor.submit(new Runnable {
override def run(): Unit = {
val idx = i % threads
multi(idx).readValue(input, classOf[mutable.HashMap[String, String]])
latch.countDown()
}
})
}
latch.await()
executor.shutdown()
}
val mapper = new ObjectMapper()
mapper.registerModule(DefaultScalaModule)
val singleton = Array.fill(threads)(mapper)
benchmark.addCase("Test use singleton mapper") { _: Int =>
val latch = new CountDownLatch(valuesPerIteration)
val executor = ThreadUtils.newDaemonFixedThreadPool(threads, "singleton")
for (i <- 0 until valuesPerIteration) {
executor.submit(new Runnable {
override def run(): Unit = {
val idx = i % threads
singleton(idx).readValue(input, classOf[mutable.HashMap[String, String]])
latch.countDown()
}
})
}
latch.await()
executor.shutdown()
}
benchmark.run()
}The result from GA as follows: and I use a bare metal server to test more threads, the test result as follows: |
|

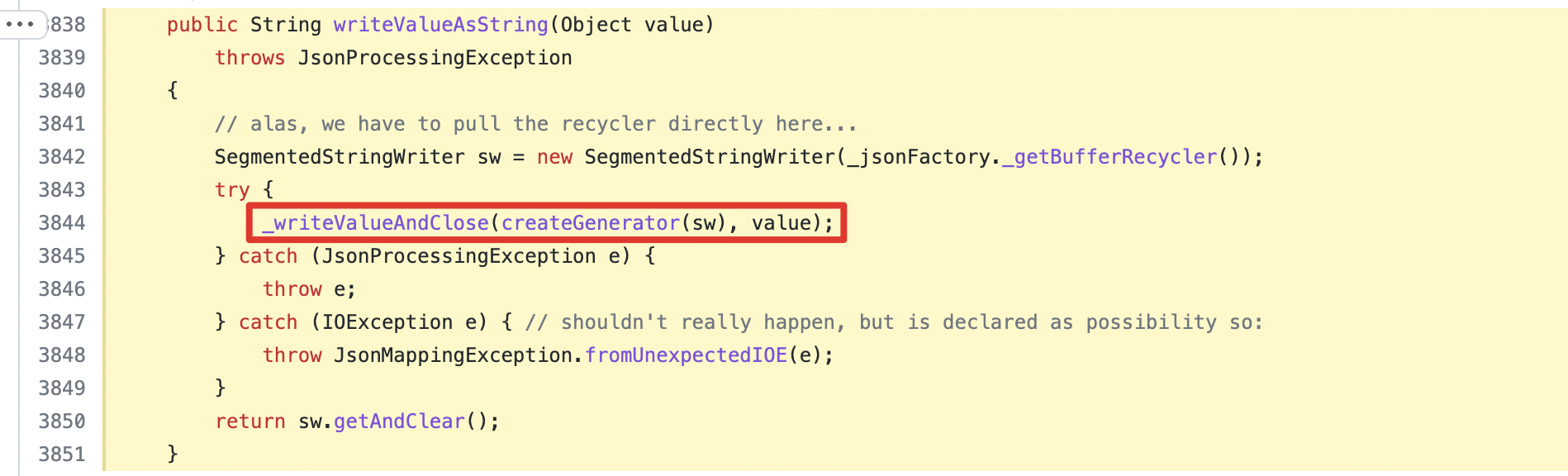

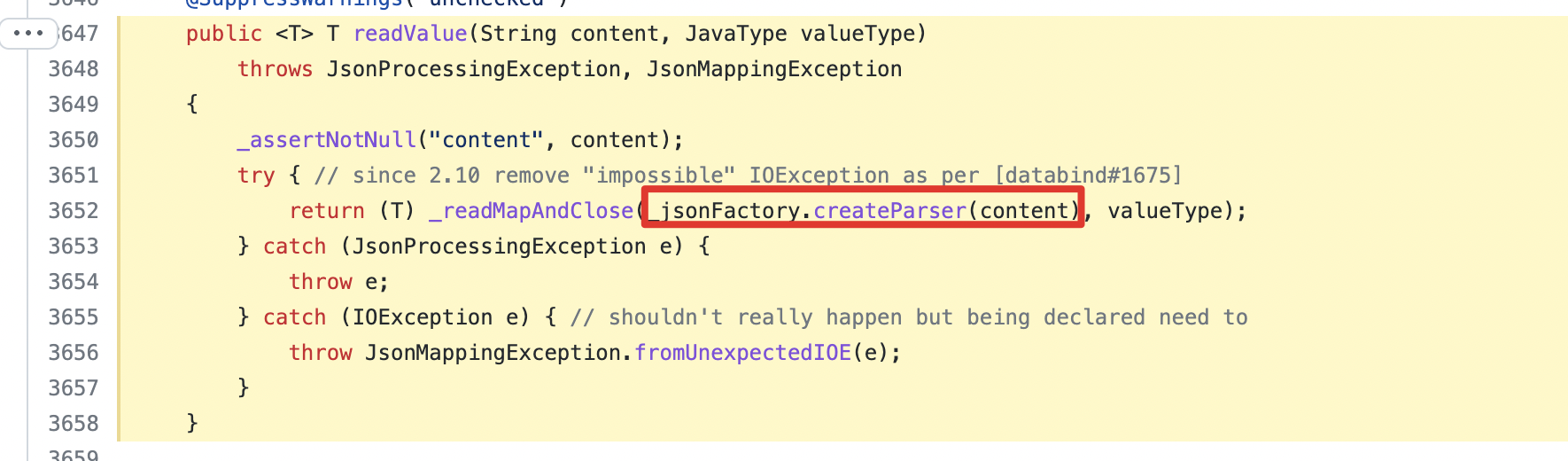

@srowen From the above test results, there is no significant performance difference between using global and local singletons. From a code perspective, thread safety should not be guaranteed by locks, it seems guaranteed by using a new
So there seems to be no problem with the global instance. |
|
To be clear I was saying it is already thread-safe but the issue could be lock contention. It may not be an issue in Spark, and/or fixed in Jackson, but I'm looking at posts like https://medium.com/feedzaitech/when-jackson-becomes-a-parallelism-bottleneck-f1440a50b429 I agree it doesn't look like there is evidence of contention here, so probably worth the perf improvement. |
|
FasterXML/jackson-core#349 (comment) FasterXML/jackson-core@67add8c#diff-190cbec71e87394830d19fa2fea51b3bc324aa5fe694fc036ef85d1ad39d528f It seems that Jackson 2.8.7 has fixed the problems mentioned in post. If we have doubts about similar issue, I can only make limited changes as you said |
According to this principle, |
|
I'm OK with the change. I guess I'd slightly prefer keeping the change more 'local' by having a singleton in each of the classes that need this. That minimizes the scope. I don't feel strongly about it. |
LuciferYang
changed the title
JacksonUtils to use singleton Jackson ObjectMapper JacksonUtils to use singleton Jackson ObjectMapper
srowen
reviewed
Sep 27, 2022
| @@ -39,11 +38,10 @@ import org.apache.spark.annotation.DeveloperApi | |||
| class ErrorClassesJsonReader(jsonFileURLs: Seq[URL]) { | |||
| assert(jsonFileURLs.nonEmpty) | |||
|
|
|||
| private lazy val mapper = Utils.withScalaModuleMapper | |||
There was a problem hiding this comment.
WOuldn't we want these in a companion object?
| * Return a new `ObjectMapper` with `ClassTagExtensions`. | ||
| * The mapper registers `DefaultScalaModule` by default. | ||
| */ | ||
| def withScalaModuleMapper: ObjectMapper with ClassTagExtensions = { |
There was a problem hiding this comment.
OK, don't know if we need to factor out a utility method just for this, I'd be OK inlining this in the ~3 places it is used.
There was a problem hiding this comment.
Yes, it seems a little redundant and has been removed
LuciferYang
changed the title
JacksonUtils to use singleton Jackson ObjectMapper ObjectMapper that may be reused
srowen
approved these changes
Sep 27, 2022
|
GA passed |
|
Merged to master |
|
thanks @srowen |
Sign up for free
to join this conversation on GitHub.
Already have an account?
Sign in to comment
Add this suggestion to a batch that can be applied as a single commit.
This suggestion is invalid because no changes were made to the code.
Suggestions cannot be applied while the pull request is closed.
Suggestions cannot be applied while viewing a subset of changes.
Only one suggestion per line can be applied in a batch.
Add this suggestion to a batch that can be applied as a single commit.
Applying suggestions on deleted lines is not supported.
You must change the existing code in this line in order to create a valid suggestion.
Outdated suggestions cannot be applied.
This suggestion has been applied or marked resolved.
Suggestions cannot be applied from pending reviews.
Suggestions cannot be applied on multi-line comments.
Suggestions cannot be applied while the pull request is queued to merge.
Suggestion cannot be applied right now. Please check back later.
What changes were proposed in this pull request?
This pr introduce local singletons for Jackson
ObjectMapperthat may be reused in Spark code to reduce the cost of repeatedly creatingObjectMapper.Why are the changes needed?
Minor performance improvement.
Does this PR introduce any user-facing change?
No.
How was this patch tested?
Pass GitHub Actions
