On-premises Active Directory Deployed in the Cloud (Azure)

This tutorial outlines the implementation of on-premises Active Directory within Azure Virtual Machines.

Environments and Technologies Used

• Microsoft Azure (Virtual Machines/Compute)
• Remote Desktop
• Active Directory Domain Services
• PowerShell

Operating Systems Used

• Windows Server 2022
• Windows 10 (21H2)

Deployment and Configuration Steps

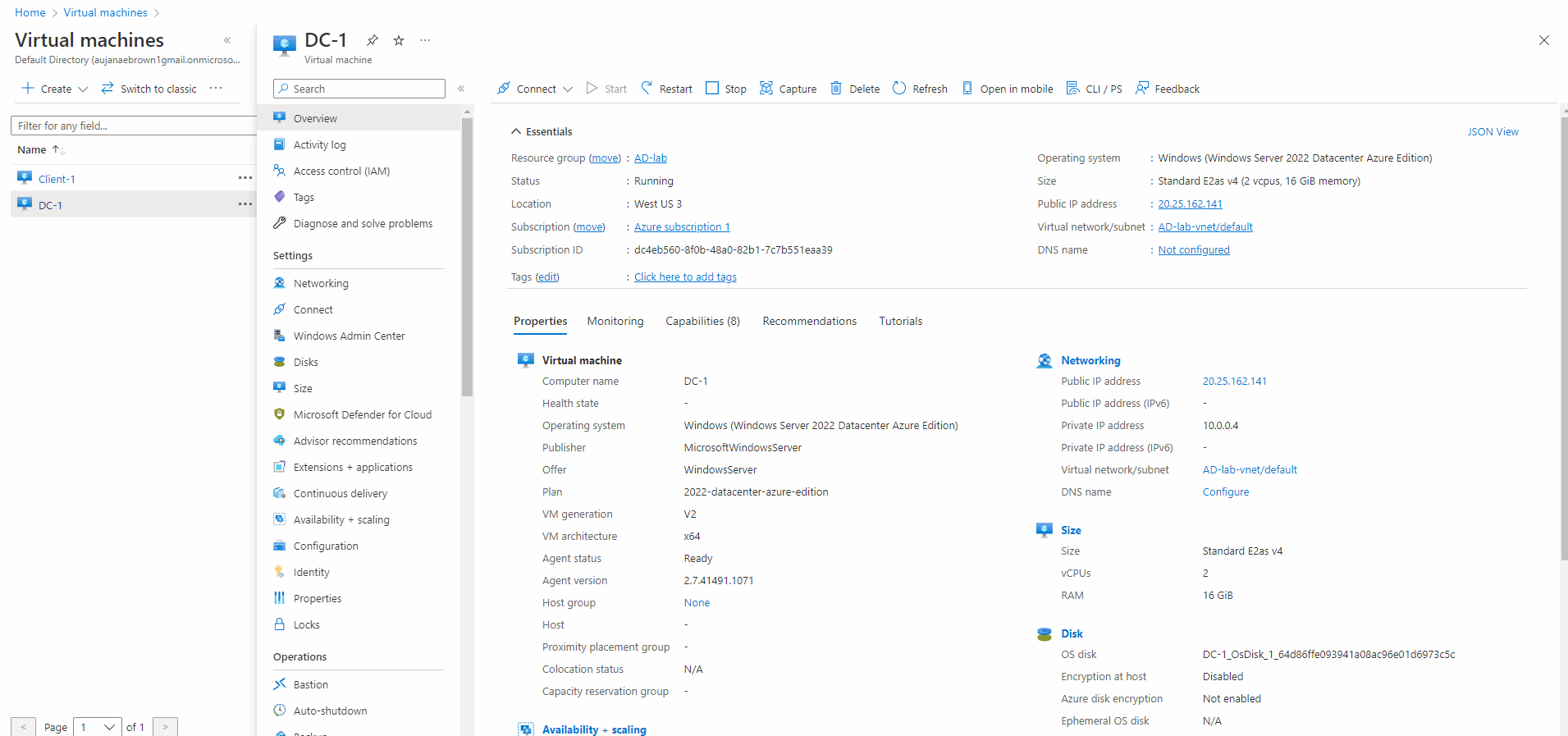

• I created the domain controller VM (windows server 2022) named DC-1
• Created a Client vm (windows 10) named Client-1
• Both VM's have the same resource group and Virtual network

• NIC is network interface

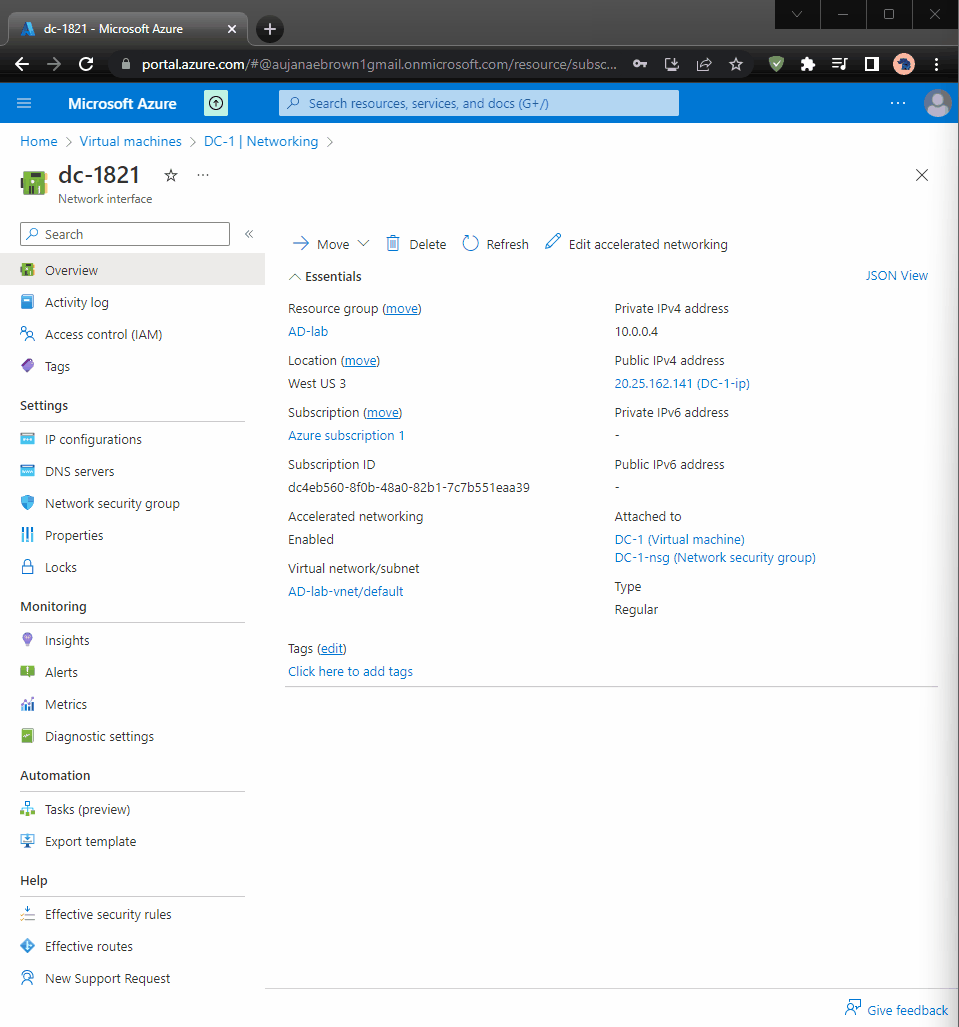

• Proceeded to DC-1 VM NIC then went to the IP configs to set the IP address to static
• Since its been set to static the IP adress will not change for DC-1

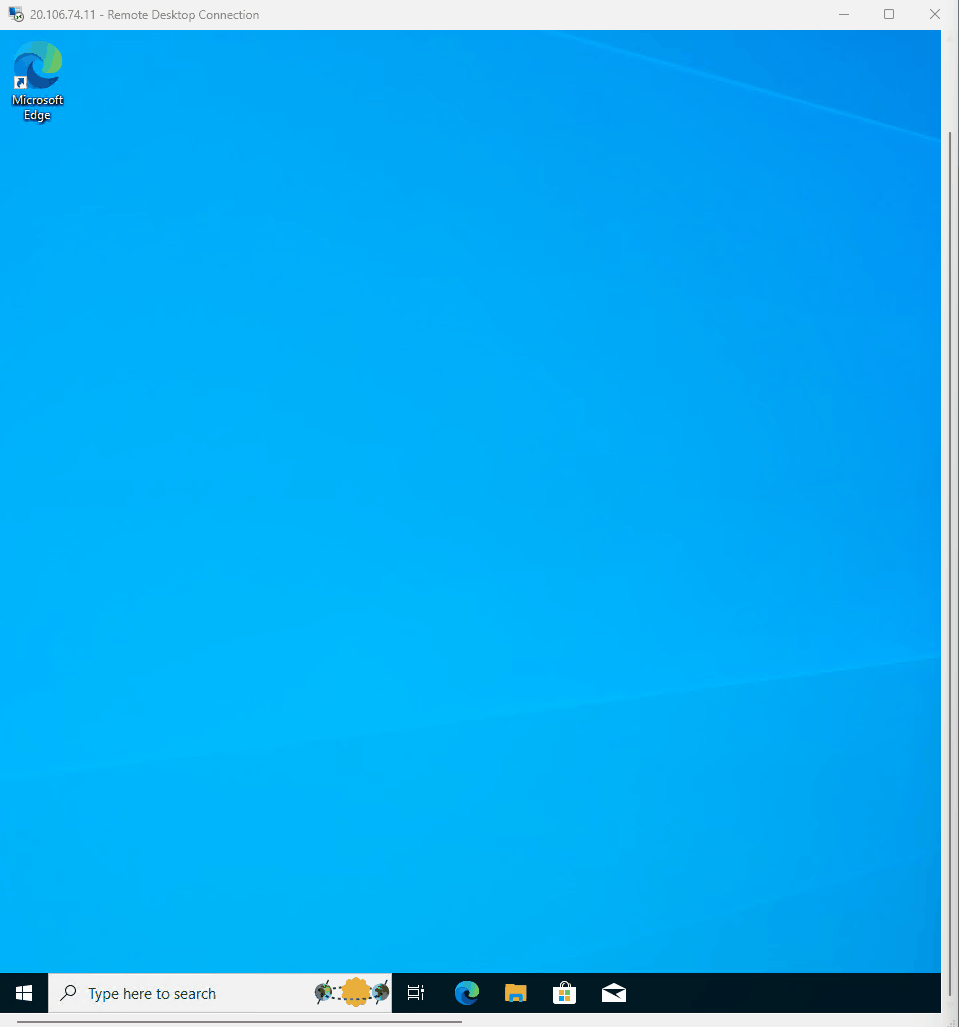

• Login to remote desktop with client-1 public IP address and my username and passoword.
• My username is labuser
• Copied DC-1 private IP address

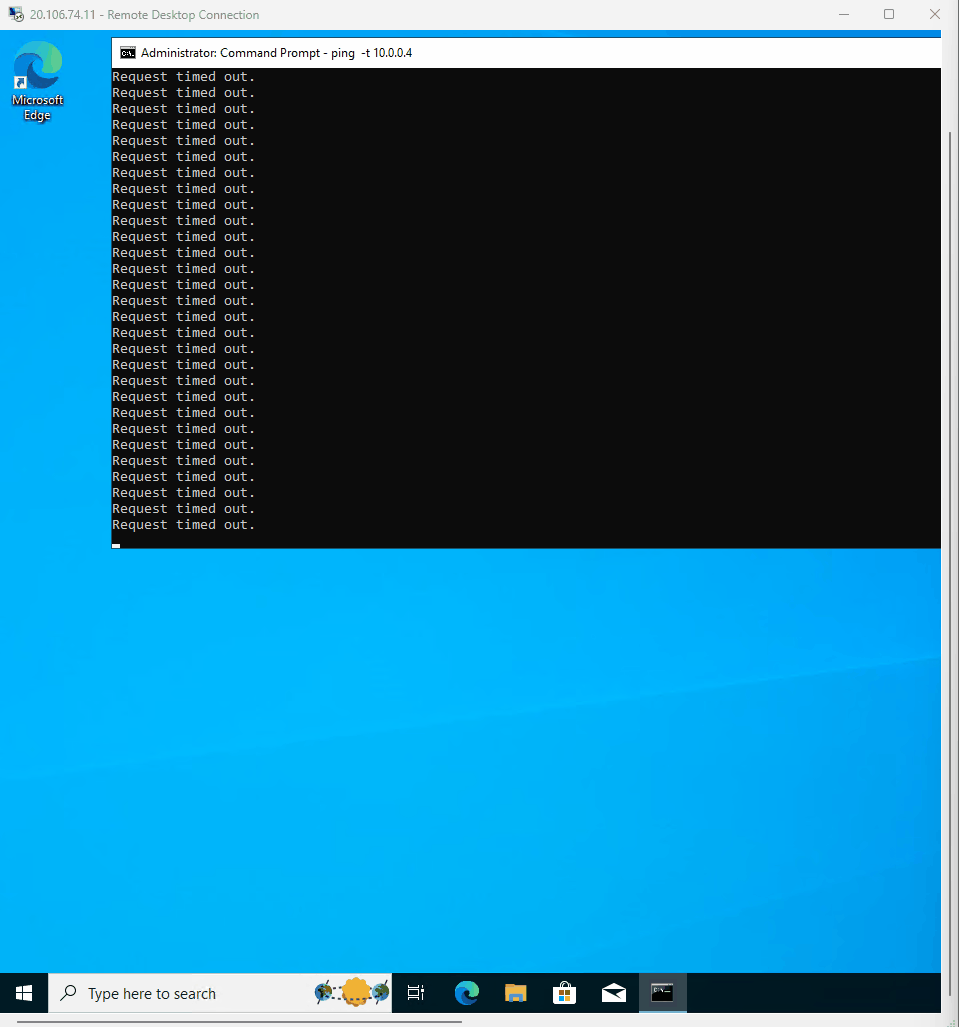

• Went to CMD in CLient-1 and ping -t DC-1 private ip adress. ping -t 10.0.0.4

• Login to DC-1 with it's public IP adress in remote desktop
• Then went to wf.msc which stands for firewall and network protection in windows security

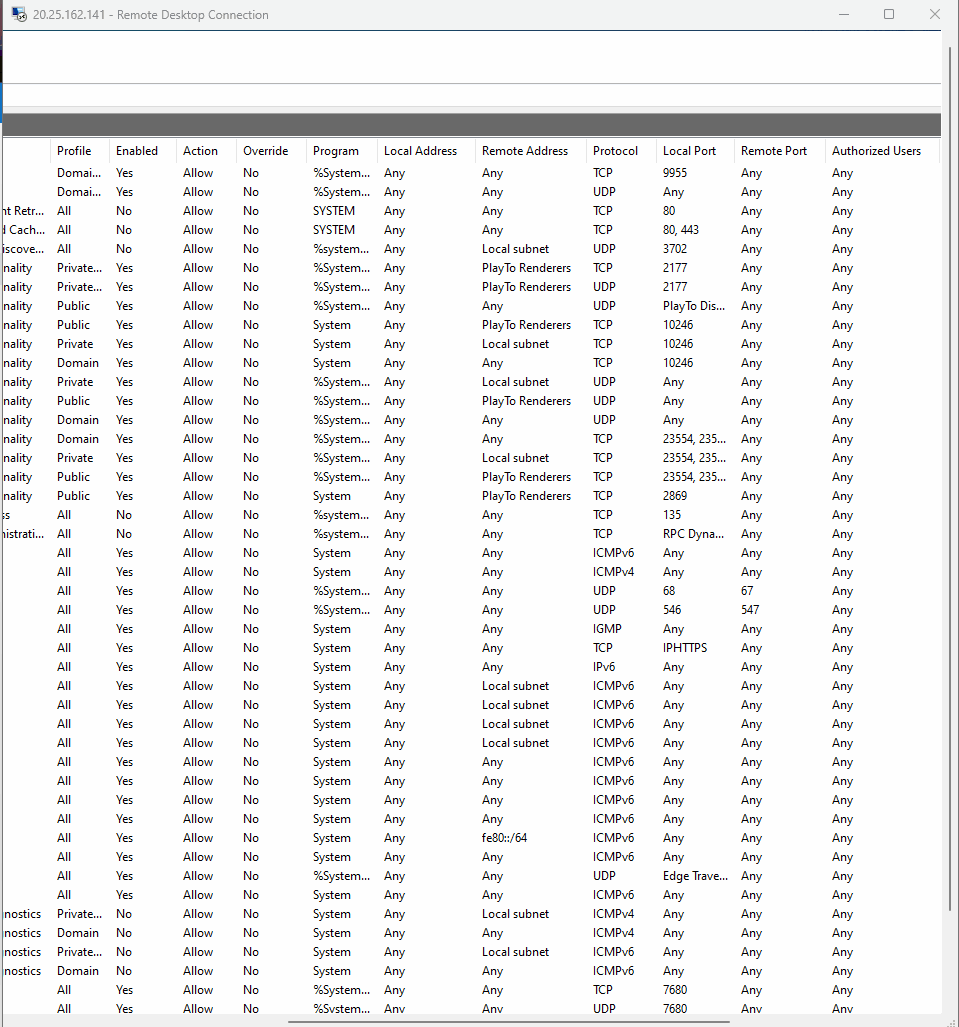

• Then went to inbound rules
• As you can see the the ping request is still time out in the CMD

• In inbound rules I enabled two ICMPv4 called Core networking Diagnostics- ICMP Echo Request in the DC-1 Vm

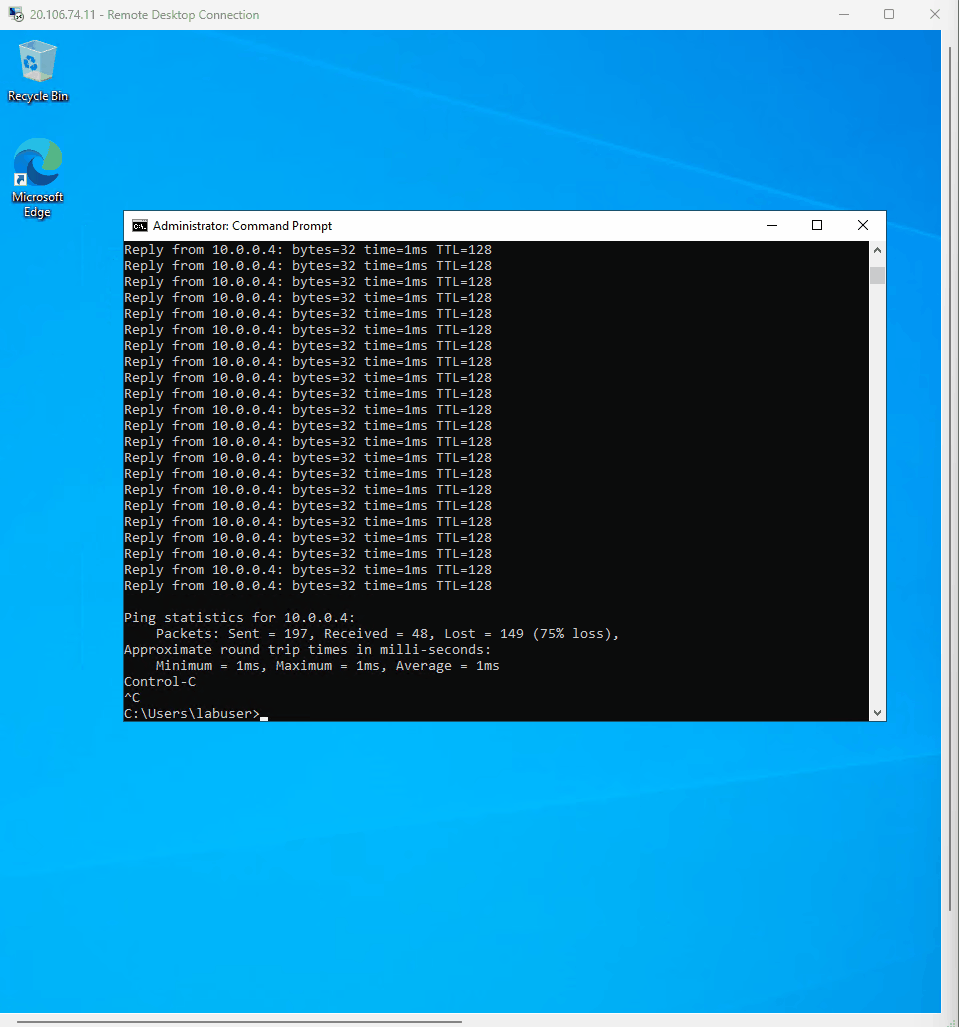

• Proceeded to check back at the CLient-1 VM to see the ping succeed
• I stop the ping from continuing by using ctrl-c

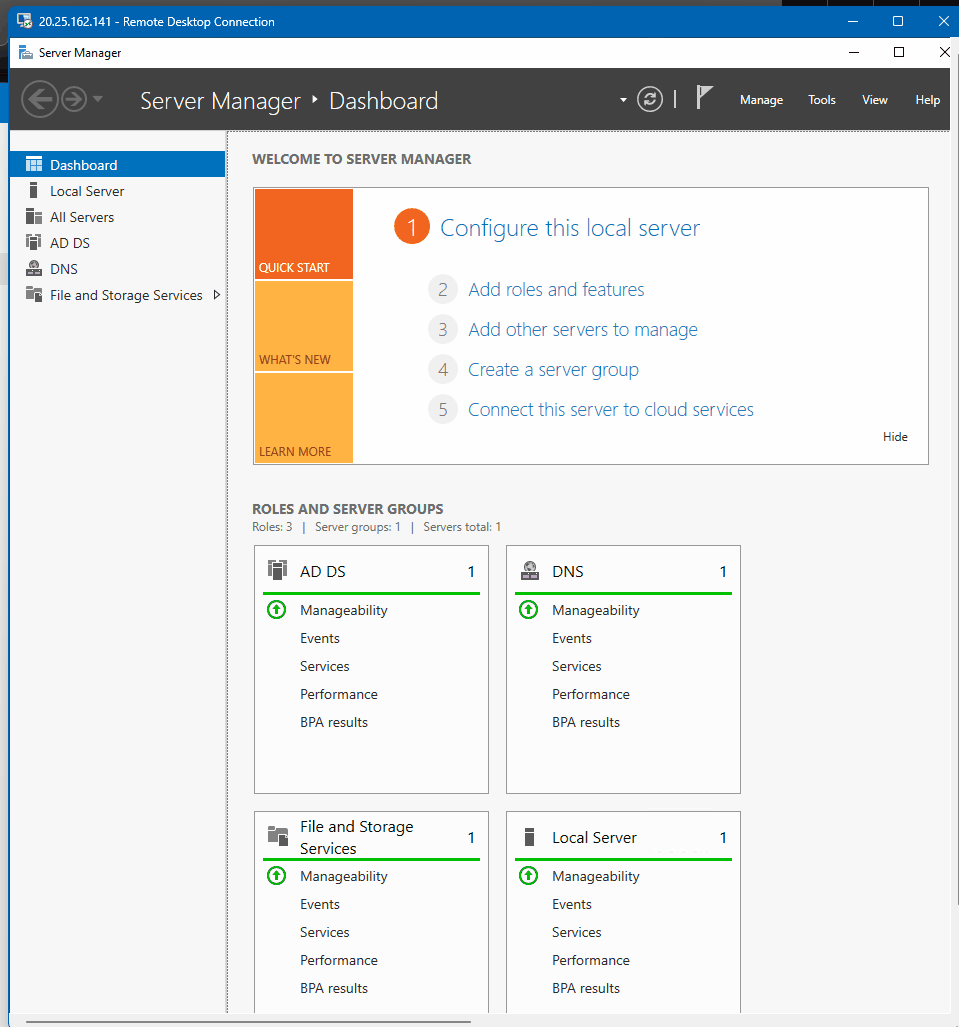

• Went back to DC-1 VM and in the server manager I click add roles and features

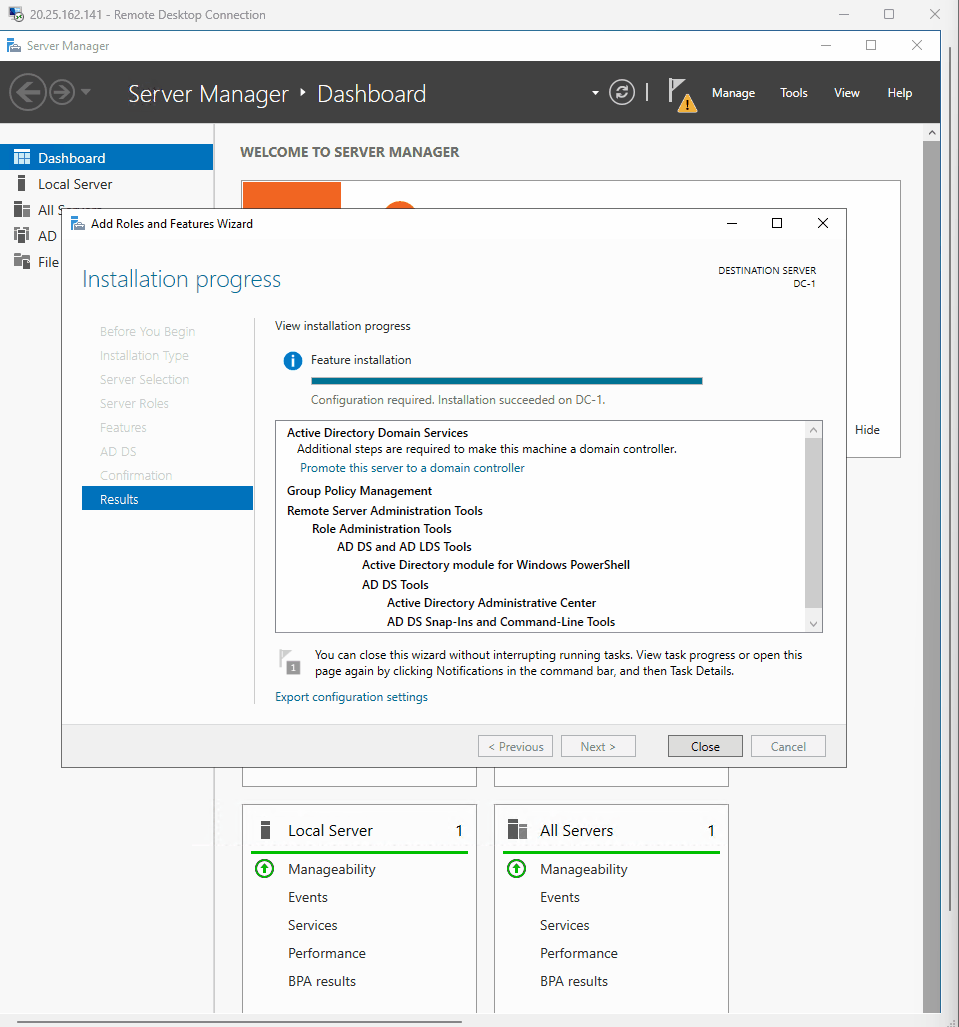

• Proceeded to install active directory domain services

• Click on promote this server to domain controller in server manger to finsih installing active directory
• Added a new forest and name my root domain mydomain.com
• Active directory is installed

• DC- 1 needed to restart since I install the active drectory domain services
• Login back into DC-1 with the public IP address

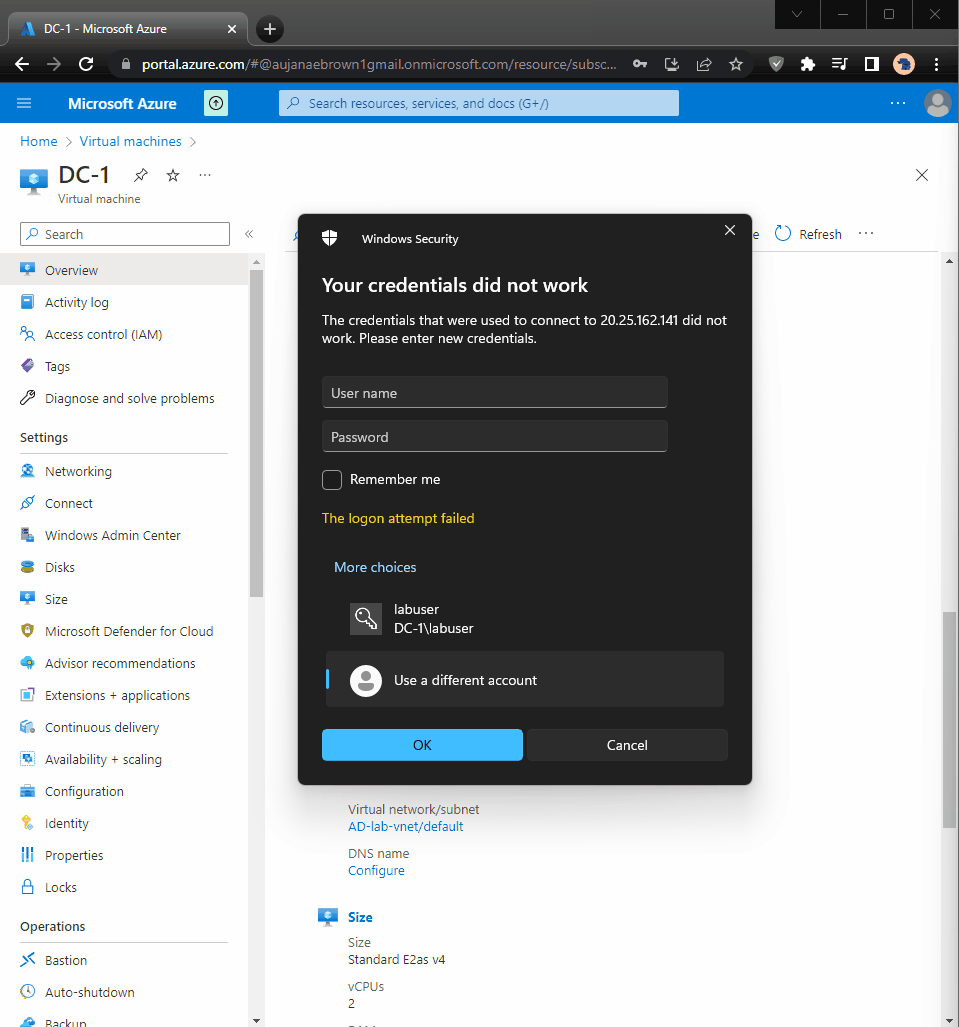

• I had to login with the context of the domain since DC-1 became a domain controller now
• Instead of logging in with labuser I now login with mydomain.com\labuser
• Proceeded to Active Directory Users and Computers and created an Organizational Unit called _EMPLOYEES AND _ADMINS
• In the _ADMINS section I proceeded to create a new USER named jessica doe with a username jessica_admin and a password for the made up name
• I also Unchecked user must change password at next login since it is just practice and then I click password never expires
• I now have a User in the _ADMINS section, but jessica_admin is not a admin yet
• To make jessica_admin an actual admin account I have to assign it to the domain admin group
• To do that I right click on jessica and went to properties and then member of
• I then added a domain admin group in member of
• I proceeded to type domain and check groups and then click on domain admin
• Made jessica doe a administrator

• I then logg off of DC-1
• Log back in to DC-1 with it's public IP address in remote deskop
• Login as mydomain.com\jessica_admin with the password I made for Jessica
• I proceeded to CMD to show which VM that I was in and I was in DC-1 and as jessica_admin as the user
• I then join Client-1 to the domain so I can login to any domain accounts

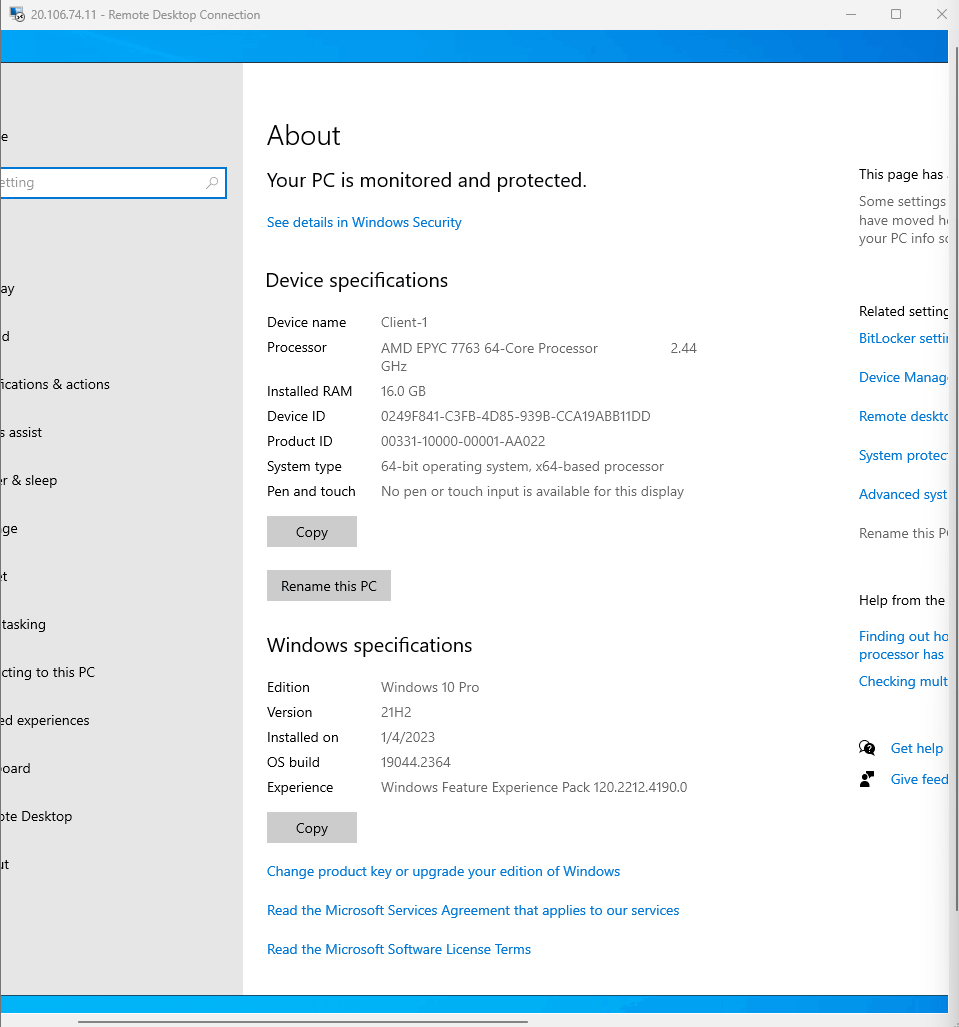

• Now in Client-1 VM I went to settings - systems- rename this pc
• Clicked on change and made CLient-1 to a member of domain.com and it did not work because it reached out to the DNS server to get whats the domain controller and I have not made one yet
• I then had to set my DNS server for Client-1 in Azure portal
• In Azuure portal I went to Clinet-1 VM. In Azure portal I will set Client-1 DNS settings to the DC private IP address

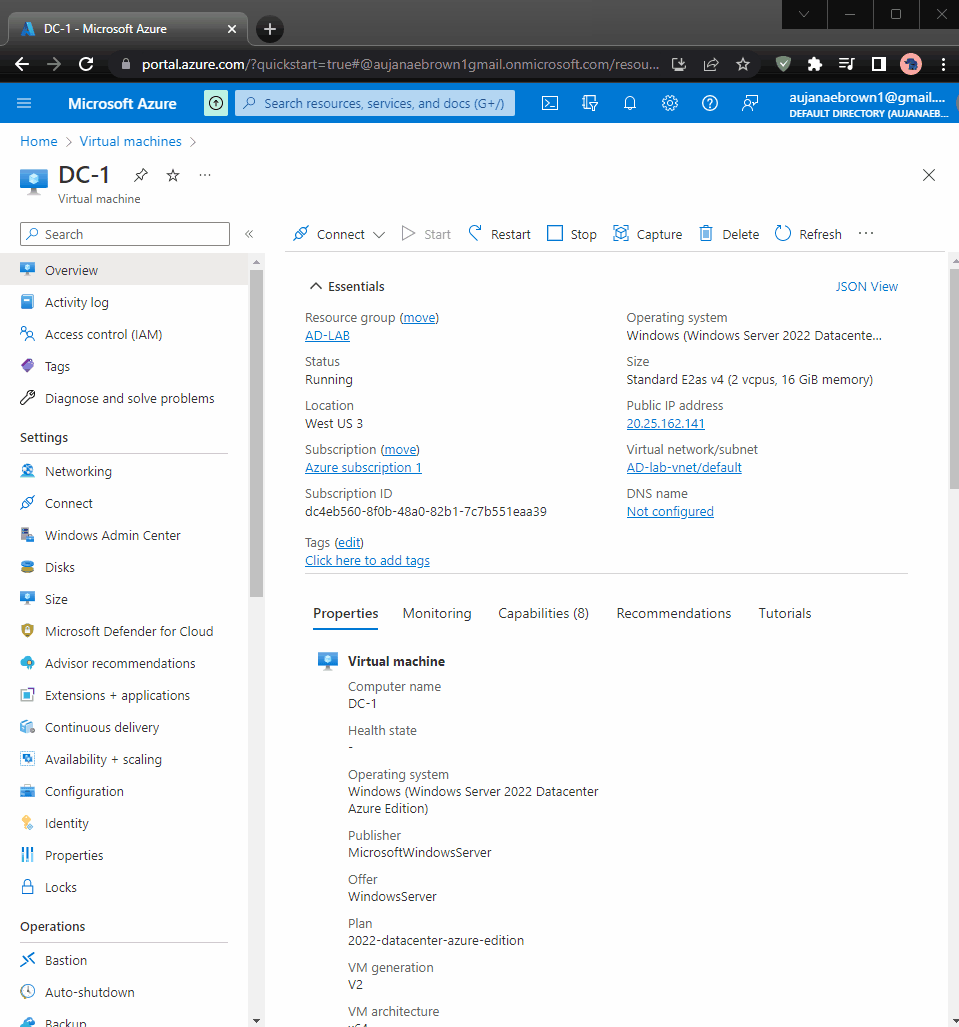

• I went to DC-1 networking to get its NIC private IP adress which was 10.0.0.4
• Note: I'm setting client 1 virtual network interface card. Im setting the DNS to DC-1 ip address is.
• Went to Client-1 networking -> DNS servers and then change the DNS server of Client-1 to DC-1 private ip address which is 10.0.0.4
• I then restarted client-1 in azure which flushed the DNS cache
• I login to Client-1 as the user labuser since its not join to the domain yet.

• Note: DNS settings for the virtual NIC for Client 1 is set and now I will join Client-1 to the domain

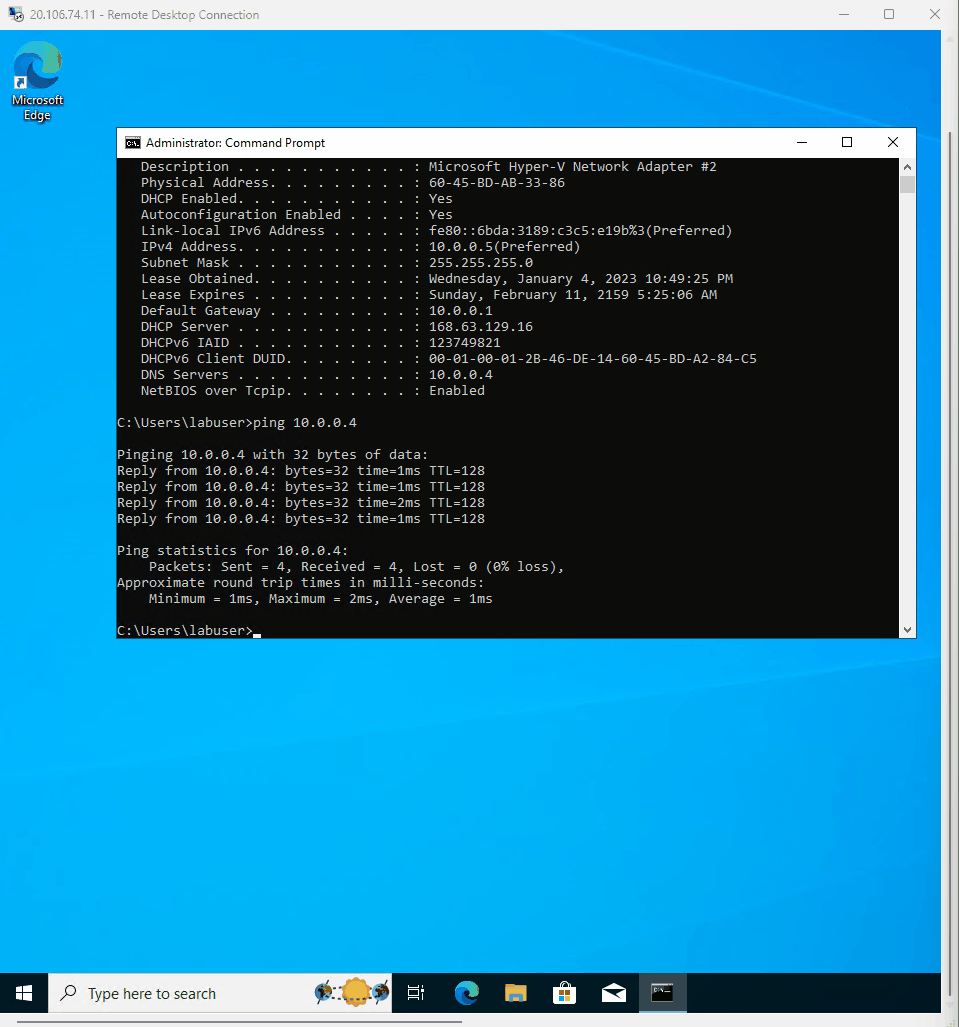

• I then went to CMD to observe the new DNS settings in Client-1

• Note: Join Client-1 to the domain now
• I then went to settings

• In settings I went to rename this PC -> change -> domain
• Then change the domain to mydomain.com
• Then a window pops up called computer name/ domain changes
• I then login with mydomain.com\ jessica_admin with the password I have for jessica
• A pop up window called computer name/ domain changes proves it was a sucess
• Client-1 then restarts
• Client-1 is now join to the domain
• Now we can login to our domain admin account with Client-1 VM. So even though jessica admin is not a user to client-1 we can still login because it is join to DC-1 domain

• I copy Client-1 public IP address and log back into remote desktop
• Log back in as mydomain.com\jessica_admin and the password to the account
• Note: Set it up so all domain users has access to remote desktop in Client-1 so anybody can log into any computer
• start menu -> system -> Select users that can remotely access this PC -> add -> and type domain users and check names then click ok.
• Now all domain users are allow to login into the computer

• Go to start then windows administrative tools -> active directory users and computers
• click on mydomain.com -> users -> domain users -> members note: to see all users so anyone in the group can login to client 1

• Note: Make a bunch of users and attemp to login in one of them
• In DC-1 VM open Windows PowerShell ISE as an adminstrator
• Create a new file then paste the scripts of this into it -> (https://github.com/joshmadakor1/AD_PS/blob/master/Generate-Names-Create-Users.ps1)

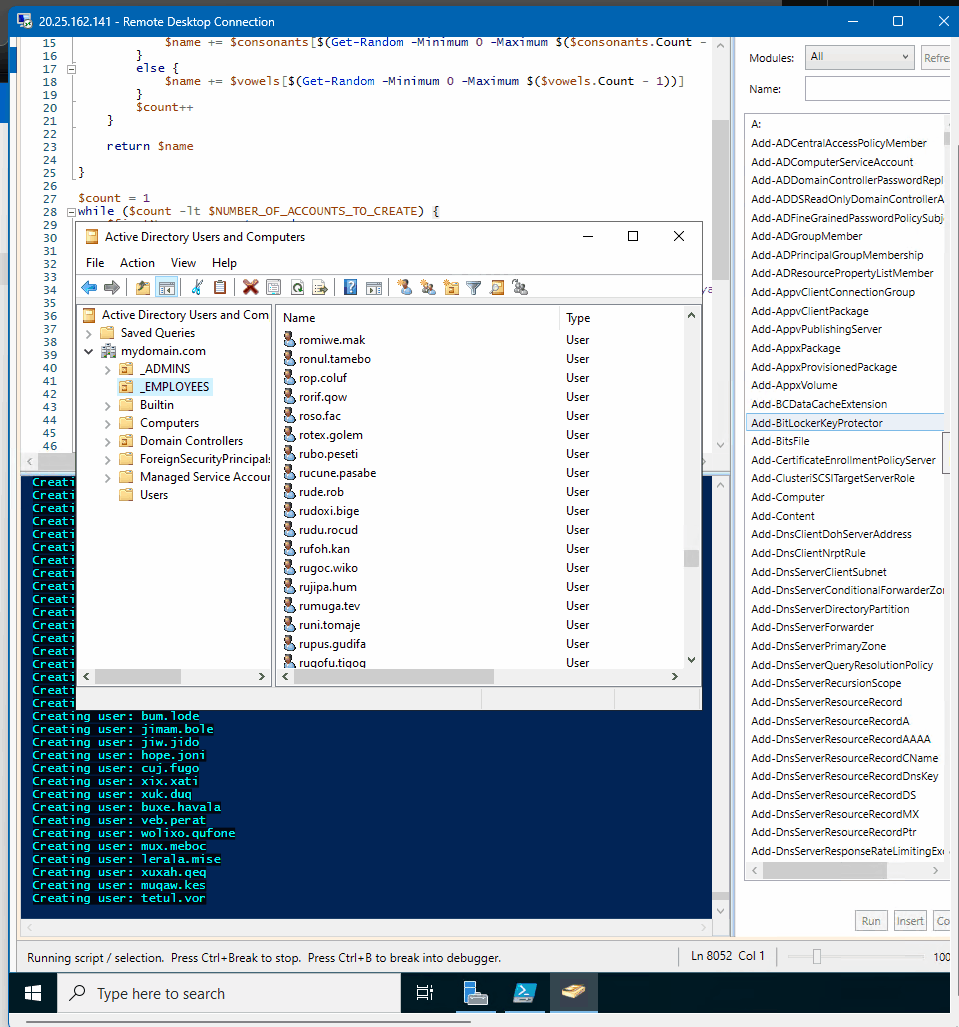

• Run the script and observe the accounts being cretated
• Note: The scipt will take 10,000 number of accounts and give them all the password which is Password1. The account is going to be created in _EMPLOYEES section
• Then proceed to active directory users and computers
• Go to the _Employees section and refresh the section
• You can now see all the generated names being made from the script before

• I picked a random generated user and copy the username of the random user that I picked
• I then log out of Client-1 and then relogin into Client-1 with its public IP address in remote desktop
• I login as mydomain.com\qil.cenali with the password in the script which was Password1
• I then went to CMD to confirm I am qil.cenali user and in teh right VM which is Client-1

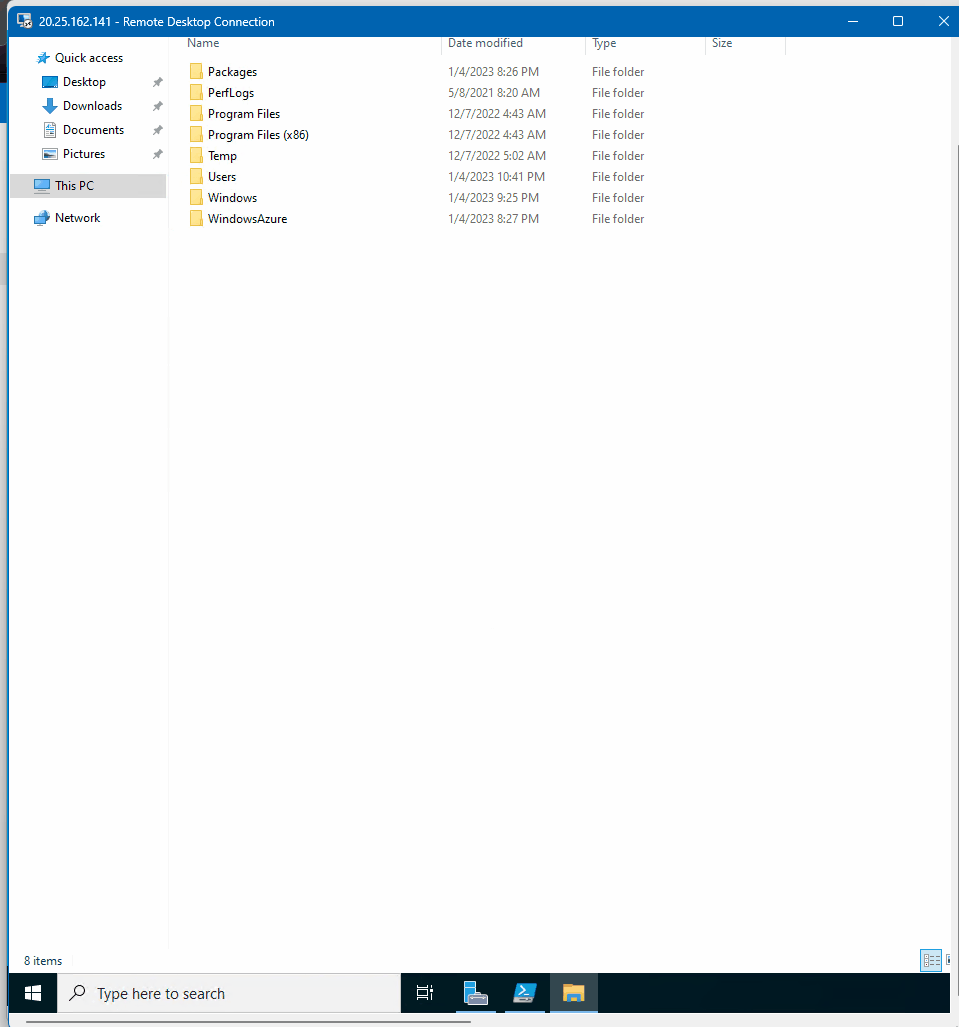

• I then proceeded to windows (C) and Users to see all the user I login as

• Note: This gif will show if a user got lock out of there account for loggging in with the wrong password
• I picked a random user to show
• I then even show you can block a user from logging in
