"Error: invalid response received" in ATSAMD11C14A #112

Sreedharbot · 2021-05-31T14:51:12Z

Hi,

Actually, This is my 1st time in working with ARM Cortex Chip.. Moreover, I want to make a Free_CMSIS_DAP on my own.
You can see my documentation.. By clicking Here where I refer how to build Free_CMSIS_DAP on my own and my failures while building it.

I use:

Programmer - Particle Debugger for uploading the ".bin file"
System - mac IOS (Big Sur)

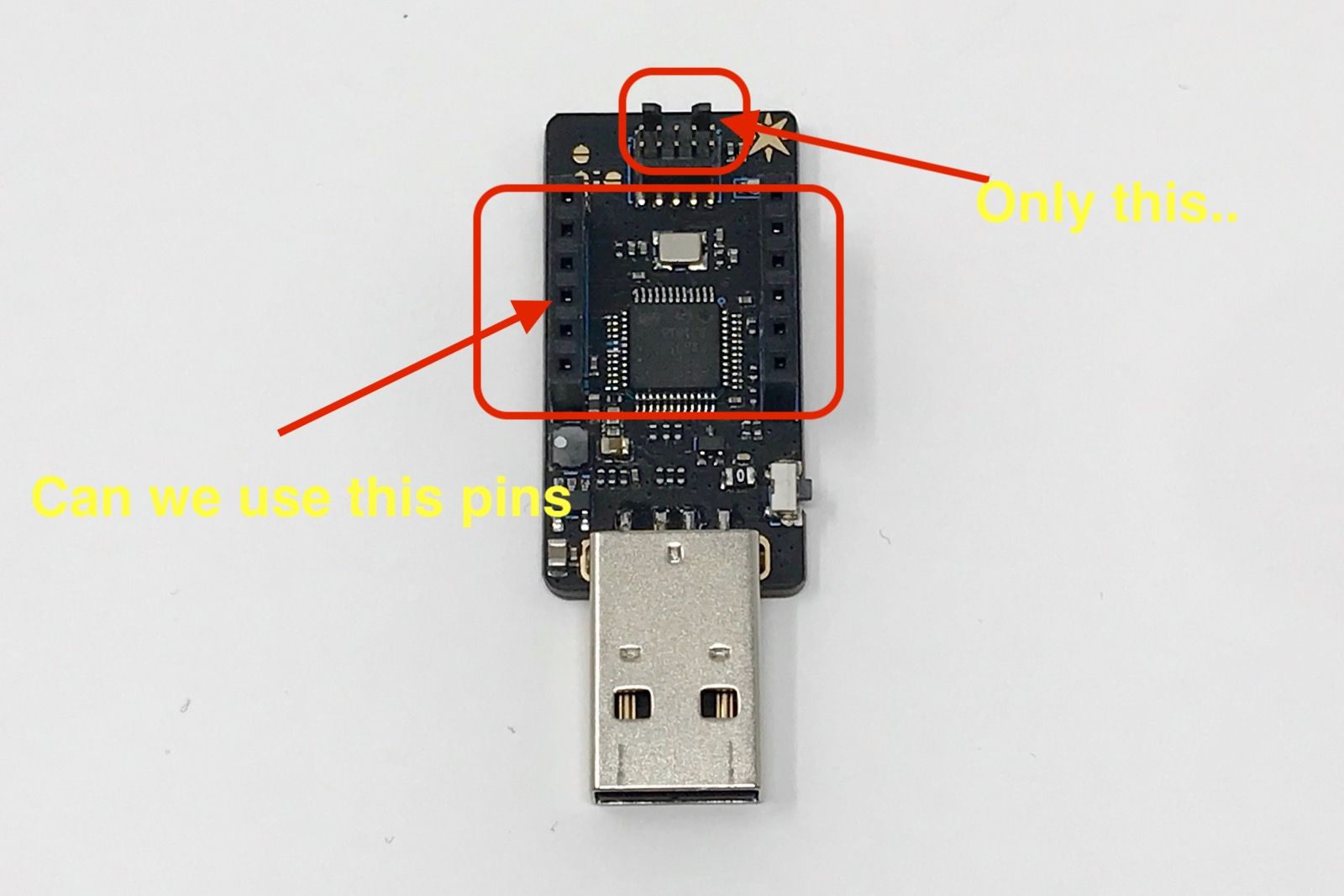

I also having doubt in using the pins.. so far i have seen many are using jtag 10 pins to program in particle debugger..but when i check continuity between the pins and jtag connector, all are connect expect the RST line..

I also made a video regarding this issue"Error: invalid response received". Here is the link .

Things I want to know is..

why i got this error indication while uploading the .bin file? I checked my connections all with Digital Multimeter.. all are connected properly.

I don't have small JTag connector, hence i used jumpers to connect them. I tried uploading the code from Jtag connector and also from the female header pins both indicated same error ? I also checked continuity of my board Free_CMSIS_DAP there is no interconnection.

Please help me out to rectify this issue..

Moreover, please could you share how the EDBG works with Micro-controller.. Is there any other way to debug.. this...

ataradov · 2021-05-31T16:43:45Z

EDBG support on MAC is incomplete, since I don't have any Apple hardware.

It has the report size hard coded:

static int report_size = 512; // TODO: read actual report size

You probably need to change that value to 64 for your device, since it is likely to be a USB FS device.

Sreedharbot · 2021-05-31T17:40:17Z

After Changing the

static int report_size = 64; // TODO: read actual report size
in dbg_mac.c
The error still occurs..

ataradov · 2021-05-31T17:46:26Z

Then you need to print out the values of the hid_buffer before hid_write() and after hid_read(). First byte must match. But more importantly you will know on what command it fails. Do that and provide the output.

int dbg_dap_cmd(uint8_t *data, int resp_size, int req_size)
{
  uint8_t cmd = data[0];
  int res;

  verbose("---\n");
  for (int i = 0; i < 16; i++)
    verbose("0x%02x ", data[i]);
  verbose("\n");

  memset(hid_buffer, 0xff, report_size + 1);

  hid_buffer[0] = 0x00; // Report ID
  memcpy(&hid_buffer[1], data, req_size);

  res = write(debugger_fd, hid_buffer, report_size + 1);
  if (res < 0)
    perror_exit("debugger write()");

  res = read(debugger_fd, hid_buffer, report_size + 1);
  if (res < 0)
    perror_exit("debugger read()");

  check(res, "empty response received");

  for (int i = 0; i < 16; i++)
    verbose("0x%02x ", hid_buffer[i]);
  verbose("\n");

  check(hid_buffer[0] == cmd, "invalid response received");

  res--;
  memcpy(data, &hid_buffer[1], (resp_size < res) ? resp_size : res);

  return res;
}

Sreedharbot · 2021-05-31T18:51:19Z

In the file dbg_mac.c.. there is "No hid_write() and hid_read()"..

In 2 ways I have applied the following code..

In this method, I copy pasted the following code in the end of the dbg_mac.c file. Like wise, saved the file and run edbg.

I obtained same result.... of "Error invalid response received"

In this method, I copy pasted the following code in the end of the dbg_mac.c file. Like wise as mentioned above. This time I have saved the file.. and run "make clean " and "make all".. in the edbg directory.

After executing make all.. I obtained a message like this...

Moreover, I was not able to find hid_write() and hid_read()..

ataradov · 2021-05-31T18:54:21Z

The code here is for Linux version. Leave the existing mac code as is, just copy the part that prints the data.

And when running make sure to pass the "-b" argument to enable verbose output.

Also, are you sure it is using the newly built version of the edbg? Typically you need to run it like ./edbg ..... to run the version in the current directory and not in the path.

Sreedharbot · 2021-06-01T03:27:46Z

Okay..
I have edited dbg_mac.c

int dbg_dap_cmd(uint8_t *data, int resp_size, int req_size)
{
  uint8_t cmd = data[0];
  int res;

   verbose("---\n");
  for (int i = 0; i < 16; i++)
    verbose("0x%02x ", data[i]);
  verbose("\n");


  memset(hid_buffer, 0xff, report_size + 1);

  hid_buffer[0] = 0x00; // Report ID
  memcpy(&hid_buffer[1], data, req_size);

  res = hid_write(handle, hid_buffer, report_size + 1);
  if (res < 0)
  {
    message("Error: %ls\n", hid_error(handle));
    perror_exit("debugger write()");
  }

  res = hid_read(handle, hid_buffer, report_size + 1);
  if (res < 0)
    perror_exit("debugger read()");

  check(res, "empty response received");

   for (int i = 0; i < 16; i++)
    verbose("0x%02x ", hid_buffer[i]);
    verbose("\n");

  check(hid_buffer[0] == cmd, "invalid response received");

  res--;
  memcpy(data, &hid_buffer[1], (resp_size < res) ? resp_size : res);

  return res;
}

I have just edited the file by adding the verbose.. in the top and both.. (Please correct me, if I am going it wrong ?)

then, I run "make clean " and "make all"..

This time as you said I run the edbg in the edbg directory..

the code, i have used is

./edbg -bpv -e -t samd11 -f sam_ba_Generic_D11C14A_SAMD11C14A.bin

this time, I got a strange output.. like this??..

sreedhar@Sreedhars-MacBook-Pro edbg % ./edbg -bpv -e -t samd11 -f sam_ba_Generic_D11C14A_SAMD11C14A.bin
---
0x00 0x01 0x00 0x00 0x00 0x00 0x00 0x00 0x00 0x00 0x00 0x00 0x00 0x00 0x00 0x00
0x00 0x00 0x00 0x00 0x00 0x00 0x00 0x00 0x00 0x00 0x00 0x00 0x00 0x00 0x00 0x00
---
0x00 0x02 0x00 0x00 0x00 0x00 0x00 0x00 0x00 0x00 0x00 0x00 0x00 0x00 0x00 0x00
0xff 0x00 0x00 0x00 0x00 0x00 0x00 0x00 0x00 0x00 0x00 0x00 0x00 0x00 0x00 0x00
---
0x01 0x00 0x00 0x90 0x01 0xef 0xe9 0xfe 0x7f 0x00 0x00 0x41 0x50 0xd1 0x05 0x01
0xff 0x00 0x00 0x00 0x00 0x00 0x00 0x00 0x00 0x00 0x00 0x00 0x00 0x00 0x00 0x00
---
0x03 0x90 0x01 0xef 0xe9 0xfe 0x7f 0x00 0x00 0x46 0x50 0xd1 0x05 0x01 0x00 0x00
0xff 0x00 0x00 0x00 0x00 0x00 0x00 0x00 0x00 0x00 0x00 0x00 0x00 0x00 0x00 0x00
Error: invalid response received

Can you tell me what this HEX code trying to say..? , how do you decode this ?.. and how to rectify this issue?....

ataradov · 2021-06-01T03:30:38Z

This looks like you have not actually corrected 512 -> 64. Do this change, recompile and try again.

If you did the change, then it looks like the debugger is just not responding to the information requests. This is the firmware issue in the debugger.

The first byte of the request and the response must match. But this could only happen if you send the exact number of bytes the device is expecting.

Sreedharbot · 2021-06-01T03:42:41Z

just forgot to do the change....

Right Now, I did the change from 512 to 64 and ran "make clean", "make all"

After executing "./edbg -bpv -e -t samd11 -f sam_ba_Generic_D11C14A_SAMD11C14A.bin"

I received

....
0x03 0x00 0x07 0x00 0x00 0x12 0x10 0x00 0x00 0x00 0x00 0x00 0x00 0x00 0x00 0x00
Error: invalid response during transfer (count = 0/2, status = 7)

I got this interesting error.. so, what mistake I have did.. now? I love this debugging!!...

ataradov · 2021-06-01T03:50:42Z

Now you don't have a target connected to the debugger. You can remove the hex print. The debugger now works.

Status = 7 meant that SWDIO line remained high, so there was no active response from the target device (D11 in this case)

ataradov · 2021-06-01T03:52:39Z

Wait, the target got detected. So something else is wrong.

The target did not respond while the flash was erasing. Try to remove the erase command (-e) from the command line and see if the programming succeeds.

Sreedharbot · 2021-06-01T04:12:10Z

I have removed the -e command...

sreedhar@Sreedhars-MacBook-Pro edbg % ./edbg -b -p -v  -t samd11 -f sam_ba_Generic_D11C14A_SAMD11C14A.bin

0x03 0x50 0xd2 0x85 0xe9 0xfe 0x7f 0x00 0x00 0x19 0x81 0x3a 0x06 0x01 0x00 0x00
0x03 0x00 0x07 0x01 0x00 0x00 0x00 0x00 0x00 0x00 0x00 0x00 0x00 0x00 0x00 0x00
Error: invalid response during transfer (count = 0/3, status = 7)

Now I am facing.. this error

Error: invalid response during transfer (count = 0/3, status = 7)

ataradov · 2021-06-01T04:15:40Z

Please don't add any more of thew hex stuff. It is no longer relevant.

Something is still wrong with the target device. Do you have a reset asserted by any chance?

Sreedharbot · 2021-06-01T04:21:58Z

I didn't had any

reset asserted by any chance

moreover.. I tried to run. program many times. and I got the result "Error: invalid response received" only..
and I didn't have any indication of reset assert..
I will try to run the code in a new chip and report you..

ataradov · 2021-06-01T04:26:23Z

I meant asserted by some external circuitry. Based on the previous logs, your SWD communication is working, edbg managed to read the device id and recognize the part.

But then programming fails. So double check your power supply to the target and electrical stuff like this.

And yes, a new chip test would be useful too.

Sreedharbot · 2021-06-01T05:22:00Z

Hey..good news it is working.. & thanks

Initially, I have powered from 5V usb then I have removed that connection and powered from particle debugger. and the output was success..

Hey, if you are interested to share, how you were able to debug the issue. Please share.. ?? I'm very interested to known the backend process.. of this..??

What is USB FS device? , why i needed to do the change the value from 512 to 64.. and How did you conclude that there is some electrical issue.. (did you read from HEX code or ???) .

Please answer to the above question it will be helpful for me for my documentation...

ataradov · 2021-06-01T05:30:35Z

Don't do bold text either. I can read fine.

I was able to tell because I ran into a similar issue some time ago with another person. Hex codes were useful in confirming the issue. You could see that debugger responded with 0xff for all but first command. 0xff is the error code. It means that it was interpreting extra byes (stuff over 64 bytes) as commands too. And that obviously would not work.

USB HID protocol that is used for CMSIS-DAP communication requires frames to be sent with fixed size. USB Full Speed devices support 64 bytes max, so this is the size that is commonly used. USB High Speed devices can go higher, so 512 or 1024 bytes are common.

Linux and Windows ports use OS-specific APIs to determine the size of the endpoint and automatically adjust. MAC port is not really maintained, since I don't use macs and don't have any apple hardware. So the size is just set to a fixed value.

Sreedharbot closed this as completed Jun 1, 2021

This issue was closed.
