Beginner: Sierpinski Tetrahedron

This short beginner tutorial shows how to create the Sierpinski Tetrahedron in IFSRenderer.

• Open IFSRenderer, start a new blank fractal (File/New) and open the Editor window.
• From the transforms list, click on Scale Center to add a new iterator with it. Click 3 more times to place iterators:

Initial node arrangement

• Let's rearrange the nodes a bit (by dragging the top part of nodes), and connect them up in both directions (by dragging between unconnected nodes):

Rearranged nodes

• We'll need the iterators to connect to themselves, just simply click the button with the circular icon on each node:

Final node structure

• The structure is complete, now let's set the transform parameters. You can select an iterator by clicking on it to see its parameters on the right column.
• Set the Scale parameter to 0.5 an all 4 iterators. (For exact values, it's easier to just click on the value and type the number instead of dragging the slider.)

Setting up parameters

• Set the Center parameters on them using these values: 1, 0, 0, 0, 1, 0, 0, 0, 1 and 1, 1, 1. The Scale Center transforms will keep pulling the points toward these center points which produces the sierpinski tetrahedron shape.
• And we're pretty much done! Navigate closer in the main window and explore the Sierpinski Tetrahedron - don't forget to use the mouse wheel to adjust the camera movement speed.

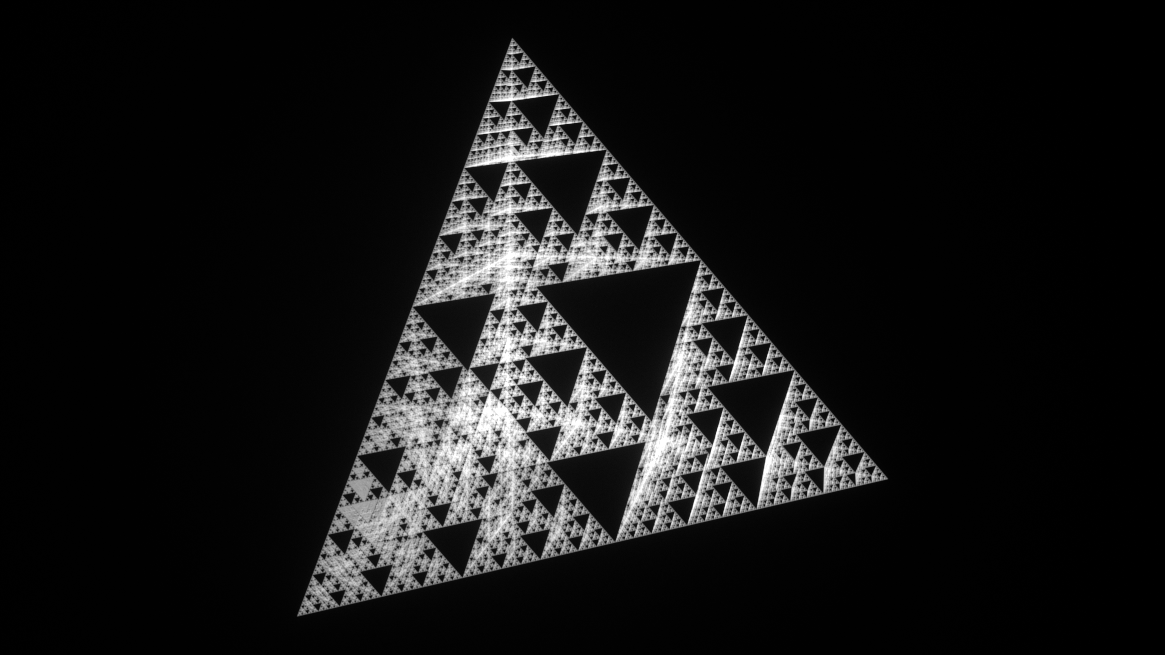

Exploring the Sierpinski Tetrahedron

• A few final tweaks using the gamma slider, the fog effect and camera parameters can make pretty renders:

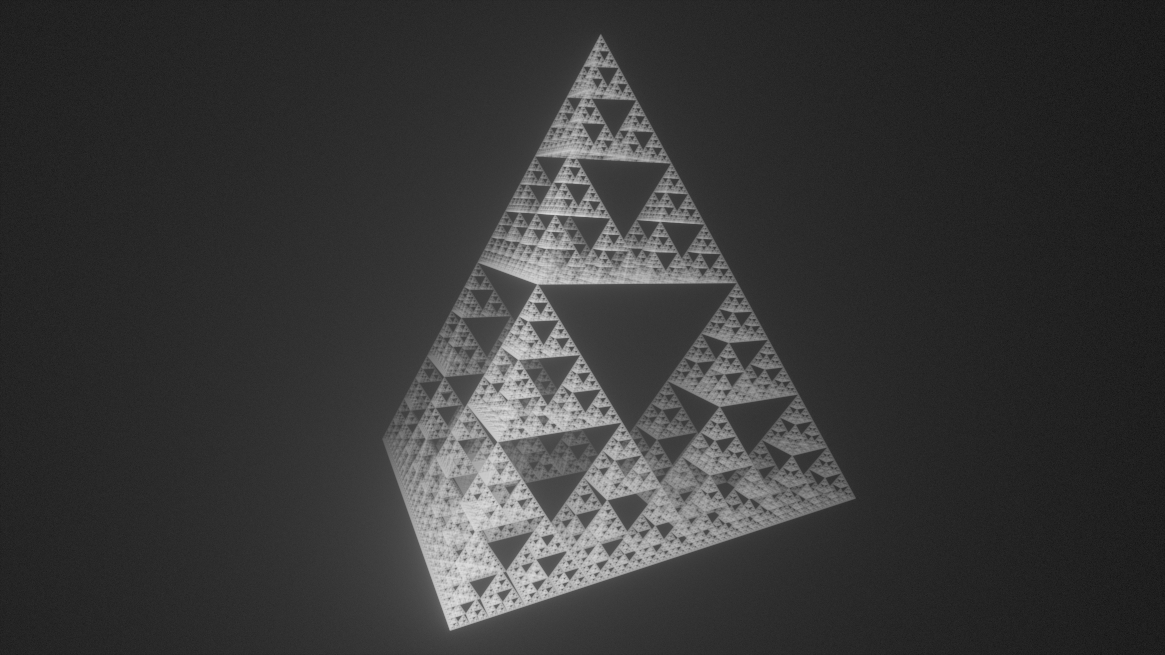

Final result

You've completed the tutorial, but not the artwork!

• This is a good base for further exploration: try adding new transforms, modify connections, see what each parameter does. Make the artwork colorful by giving a background color and adding a color palette (top of the editor window).
• Make a final render, as described in the Getting Started Guide.
• Post your issues or artwork on the Forum.
