Hexapod Simulator

A simulator for Hexapods.

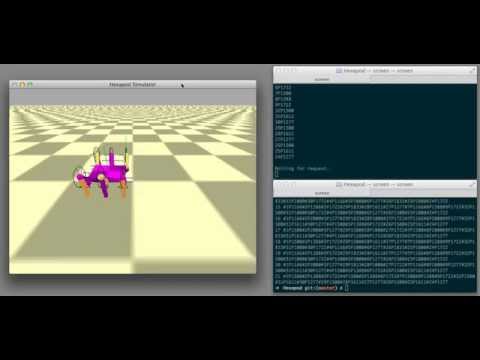

Demo video

How to build

./configure.sh
cd Hexapod
make

How to run

cd Hexapod
./Hexapod

How to control the servos

telnet localhost 5555
#{servoId}P{PWM}

{servoId} is from 1 to 9 and from 32 to 24, {PWM} is from 500 to 2500.

Sample

#1P1500#2P3000

You can config the servo mapping in Hexapod/config.txt.

How to run multiple commands

Save the commands in a file(e.g. testData.txt)

#1P1500#2P2000#3P1277#29P1500#28P1000#27P1722#7P1500#8P2000#9P1277#32P1833#31P1611#30P1277#4P1166#5P1388#6P1722#26P1833#25P1611#24P1277T400\r\n
#1P1500#2P1388#3P1722#29P1500#28P1611#27P1277#7P1500#8P1388#9P1722#32P1833#31P1000#30P1722#4P1166#5P2000#6P1277#26P1833#25P1000#24P1722T400\r\n
#1P1166#2P1388#3P1722#29P1833#28P1611#27P1277#7P1166#8P1388#9P1722#32P1500#31P1000#30P1722#4P1500#5P2000#6P1277#26P1500#25P1000#24P1722T400\r\n

Then run the following command

cd Hexapod
./run_command.rb testData.txt

Screenshot

Screenshot
