Debugger MemoryWidget: Add dual views #10578
Debugger MemoryWidget: Add dual views #10578
Conversation
1d7474a
to
e7d3291
Compare
If I added a hex64 view type the mismatch for Double vs two hex32 columns could be corrected by displaying one hex64 column instead. Hex64 wouldn't need a UI option. If it's easier to read two hex32's then I'll just leave it with a few special rules to deal with the mismatch. |
You need to rebase this now. Also, I'm not really happy with this approach. I think it would be way more useful if the bytes-per-row still worked as set, Some extra spacing between the two halves couldn't hurt either. |
…t column to be Hex32.
e7d3291
to
cc22f1a
Compare
First was rebase. Second is commit for larger size dual views. I'm not sure if you'll like it, so I left it as a second commit. It gets buggy if I have to stretch the table too far, I forget how to fix that atm. Extra spacing might require an empty column between them. |
There was a problem hiding this comment.
Choose a reason for hiding this comment
The reason will be displayed to describe this comment to others. Learn more.
A few nitpicks but otherwise this is fine. I'd still like to see a bit of a spacing between the two halves, and the ability to have the same hex view on both sides is kinda weird, though with the UI as-is it makes sense I suppose.
f605f06
to
83909c6
Compare
Trying to just use Hex64 when dual view + double is selected. Should I have it save all the display type settings between sessions? Also haven't worked on breakpoints yet. |
@@ -91,31 +92,34 @@ static int GetTypeSize(MemoryViewWidget::Type type) | |||
|
|||
static int GetCharacterCount(MemoryViewWidget::Type type) |
There was a problem hiding this comment.
Choose a reason for hiding this comment
The reason will be displayed to describe this comment to others. Learn more.
If you plan to include the space, what about GetCellSize
as a function name? Can't this function be marked as constexpr
. I also highly suggest that for each case, you write an example.
For instance:
case MemoryViewWidget::Type::Unsigned32: // UINT_MAX = 4294967295
return 11;
case MemoryViewWidget::Type::Float32: // FLT_MAX = 3.40282e+38
case MemoryViewWidget::Type::Signed32: // INT_MIN = -2147483648
return 12;
EDIT: Some constants that might be interesting to look at https://en.cppreference.com/w/cpp/types/climits
There was a problem hiding this comment.
Choose a reason for hiding this comment
The reason will be displayed to describe this comment to others. Learn more.
Yeah I don't think it will be used for anything else. I can add examples too.
There was a problem hiding this comment.
Choose a reason for hiding this comment
The reason will be displayed to describe this comment to others. Learn more.
Actually the cell size needs to be calculated from the font, so I think CharacterCount is most accurate.
83909c6
to
1c8979b
Compare
Tried a solution to row breakpoints. |
I can still get the row breakpoints to break with this. But again, I wouldn't worry about it, it can be fixed or removed in a separate PR. Your commits are also now a combined thing of multiple features in one commit, which is far worse than row breakpoints being screwy. |
I would also argue that the Dual View checkbox not doing anything in Hex view is worse than it displaying two Hex views, from a discoveryability perspective. |
1c8979b
to
a7111e3
Compare
My goal isn't to change the features of row breakpoints, but to keep them from breaking. I think some of the breaking happened in the previous PR though, so I can move the changes to a new PR if you want. Either way I think I got them fixed. |
There was a problem hiding this comment.
Choose a reason for hiding this comment
The reason will be displayed to describe this comment to others. Learn more.
Yeah I'm okay with this now.

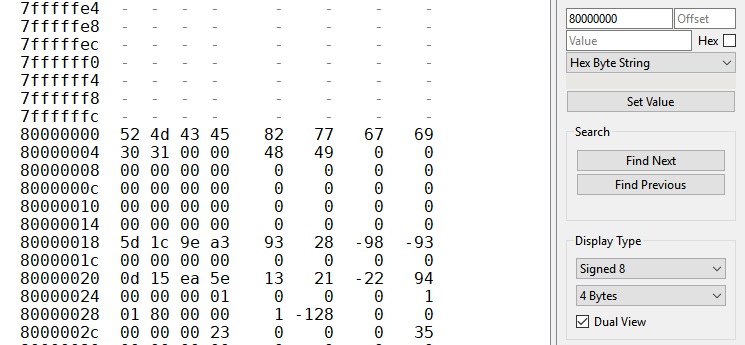

Relies on #10563. Restores the dual views ability that WX had, and improves on it.
Looking for input on how customizable it should be. Currently it's always 4 bytes per row and the left side is always hex. It auto chooses the size/columns based on what is on the right. The second display type box, for bytes per row, doesn't do anything in dual view, because it's always 4 bytes or 8 bytes for a double.
I think the left side always being hex is fine.
Currently Double has a small breakpoint display bug. I also just added the Hex8/Hex16 ability to the left side, so it got a little more complicated than just having Hex32. I'll maybe need to clean it up more.
