NetworkCaptureLogger: Add GameCube BBA support #10833
Conversation
@nolrinale |

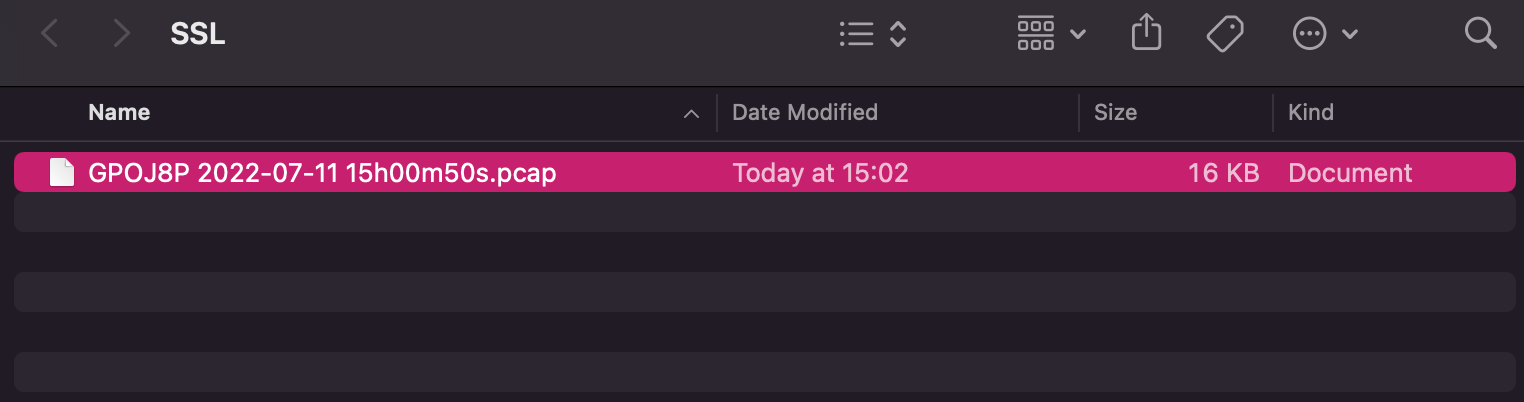

Correct, I saw no output of any kind in this new window you created just the pcap file being created in the background. Even running around the lobby, joining games, etc. The window remained completely empty all the time. |
These tables are only useful in Wii mode because the Wii has a socket and SSL table (which the UI updates only when the emulator is paused, IIRC). That's not the case in GameCube mode (afaict) which use a broadband adapter. The only thing this PR does is logging everything into a PCAP file, that's all (i.e. don't expect a view like Wireshark). That's why I'm asking if there are any missing packets in the PCAP file (i.e. UDP/TCP/ARP/... packets). If there are missing packets, I'll have to see which methods in Dolphin I need to hook to dump the missing packets. |
If that's the case I think it would be better you take a look at this pcap file it generated on Wireshark (I'm not knowledgeable with this software) |
The PCAP file seems complete to me, I can see the DNS request and the UDP/TCP packets. @schthack |
@sepalani The pcap file look good, i see the dhcp negociation, the ship select, block select and lobby/game packet are encrypted so you cant realy see the data, but the ports/ip match |
Sounds good to me then! |
This PR allows to dump BBA network traffic into a PCAP file.
It seems to produce a legit PCAP file when I entered LAN mode of Kirby Air Ride. I haven't tested it beyond this point.

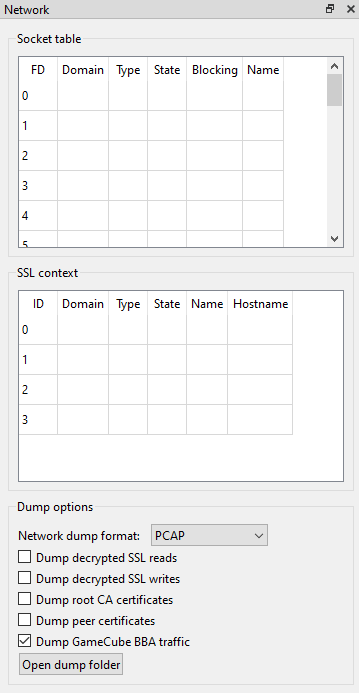

A screenshot of the option in the Network widget:
Ready to be reviewed & tested.
