Emulate Skylanders Portals within Dolphin #11331
Conversation
deReeperJosh
changed the title
|
Nice! Can you post some screenshots of the new UI? |
Sure thing! |
deReeperJosh
force-pushed
the
skylandersportal
branch
from
92d21ca
to
165bd29
Compare
|
Added a method definition required for Android, which caused the build to fail, have re-tested locally with Android Studio and build succeeded 🤠 |
deReeperJosh
force-pushed
the
skylandersportal
branch
from
e13801d
to
ab0ba0e
Compare
|
Youtube video uploaded just to demonstrate the key functionality, playing a build on my Macbook Pro w/ M1: |
|
It seems like you are almost exactly copying the rpcs3 portal when it comes to handling incoming requests. Although there is nothing inherently wrong with their implementation, it gets some details wrong. For now this implementation is solid. If this gets merged, I’ll create a touch-up pr fixing some of them. They are mostly cosmetic (lights) related |
Yeah a lot of this will replicate RPCS3, but the color requests were not responded to - what differences would you make? |
|
The L and J command are also Color related. The J command is responded to in your code but too early and I don’t think it is that big of a deal. Both L and J can set seperate sides of the portal since that was a feature of the traptanium portal. This could later be used if anyone wants to spruce up the skylanders portal window. You’re also handling A slightly incorrect |
|
Funnily enough, the correct handling of A is described in the comments |
I think it's probably best to get it all correct in one PR - how about we work together to get it working properly? |
|
Sounds good. Do you have discord or something? Also, some proof I’m really knowledgeable: https://github.com/mandar1jn/SkylandersEditor |
No need for proof! I've definitely used your tool before :) If it's anything to go by I based all of the responses off of the Trap Team portal, which responded to J/L commands the same way in Dolphin that I've emulated but I probably missed something. My discord is Grim_de#3727 |
|
Your responses are not wrong. Just the way you handle the command data |
|
I have sent you a friend request |
|
Hello, I am the creator of the Feature Request thing. I have totally no experience with coding but I am glad to see someone (or multiple people) work on this, good luck! |
|
|
I just stumbled upon this, a lot of the code is a straight copy/paste from rpcs3(the UI and the portal emulator internals), an acknowledgment in the description would have been nice, that is all. |
Yes of course! There is still lots I need to tidy up but I will definitely be adding acknowledgments for RPCS3 in the code, I briefly mentioned it in the first comment of the PR but can definitely do more |
Oh awesome - the number of skylanders allowed on the portal is a final variable so will just need to be changed from 4 -> 8 |
|
@deReeperJosh something that's inaccurate but I won't fix for fear of breaking things: from what I can see, you constantly send status responses even when the portal is disabled. Your code seems to rely on this behaviour so I won't fix it but you should |
|
I have submitted a pr to your fork that fixes the way Activate and all the color commands are handled (deReeperJosh#2) |
Awesome thank you! I'll approve and merge that now, was just about to do the same thing |
|
Also, it would be great if you added support for normal 1kb binary files. That way people can used real dumped figures |
Normal 1kb files will work but the file extension will just need to be .sky, I've used dumps myself with this build and they've worked well! I'm not sure if there is a standard file extension that people will have, but it would just be a matter of including that file extension in the Qt code |
I tried a regular 1kb dump I made but I got a file too small error |
Strange, the file opening is based on existing File IO code within Dolphin, shown here: |
deReeperJosh
force-pushed
the
skylandersportal
branch
from
52bdec7
to
4f0a19f
Compare
|
Changes made - anyone aware of what the messaging in the failed windows build means? https://dolphin.ci/#/builders/21/builds/9955 |
That build failure looks unrelated. Might be related to the recent merge of #11438? |
deReeperJosh
requested review from
AdmiralCurtiss and
JosJuice
and removed request for
AdmiralCurtiss and
JosJuice
|
Oops sorry for the review spam, too used to ADO and adding multiple reviewers at once there, just realising now that it removes and adds a new reviewer each time. Just looking to get any last feedback on this one 😁 |
deReeperJosh
force-pushed
the
skylandersportal
branch
from
1bf9fa9
to
f7eaad0
Compare
Capitalize Skylander in tr strings Lint and validation method fixes Proper Attach and Change Interface method Re-jig code to exit early and read easier
deReeperJosh
force-pushed
the
skylandersportal
branch
from
c5731eb
to
c76d2c1
Compare
|
Yeah looks good. @JMC47 Please give this another round of testing, and if it's fine you can merge it. |
|
Everything is still working in this build, was hotswapping Skylanders and whatnot in all four games that I have. I tested the creation mechanism too to create blank ones with no stats too. |
|
@deReeperJosh I believe congratulations are in order. We are now both part of the dolphin commit tree. |
|
@mandar1jn feels good to see contributor next to our names 😁 |
|
You should probably remove the senseis and creation crystals. there's no Imaginators port on wii. also, there's an unused skylander variant named "Gear Head VVind Up" that isn't in the list. ID 3011, Variant 0424. |
Thanks for the heads up, I'll remove these in a future release! |
|
Does anybody think there is a way to emulate the portal audio for Trap Team so I can hear Kaos' dialogue in level 18 and also the Portal Audio? |
There is. I just need to dive into how dolphin handles audio |
|
This is a dumb question, but is the portal emulator avaliable for download? |
|
It's part of the Dolphin download. |
|
@KermitPrplYT this is now possible in the latest dev edition of Dolphin, see #11644 |
|
@deReeperJosh Thanks! |
|
Thank you so much. This allowed me to re-live my childhood. You are a legend. Thank you. |
The Skylanders Wii games require external hardware in order to play, and while they are relatively easy to source not all the portals work with every game, and MacOS users have variable success due to the USB device being claimed by the kernel without providing root access to Dolphin.
Using the Trap Team version of the Portal that I own, I have been able to successfully track the requests and responses, and have been able to Emulate the physical portal within Dolphin, a feature requested here.

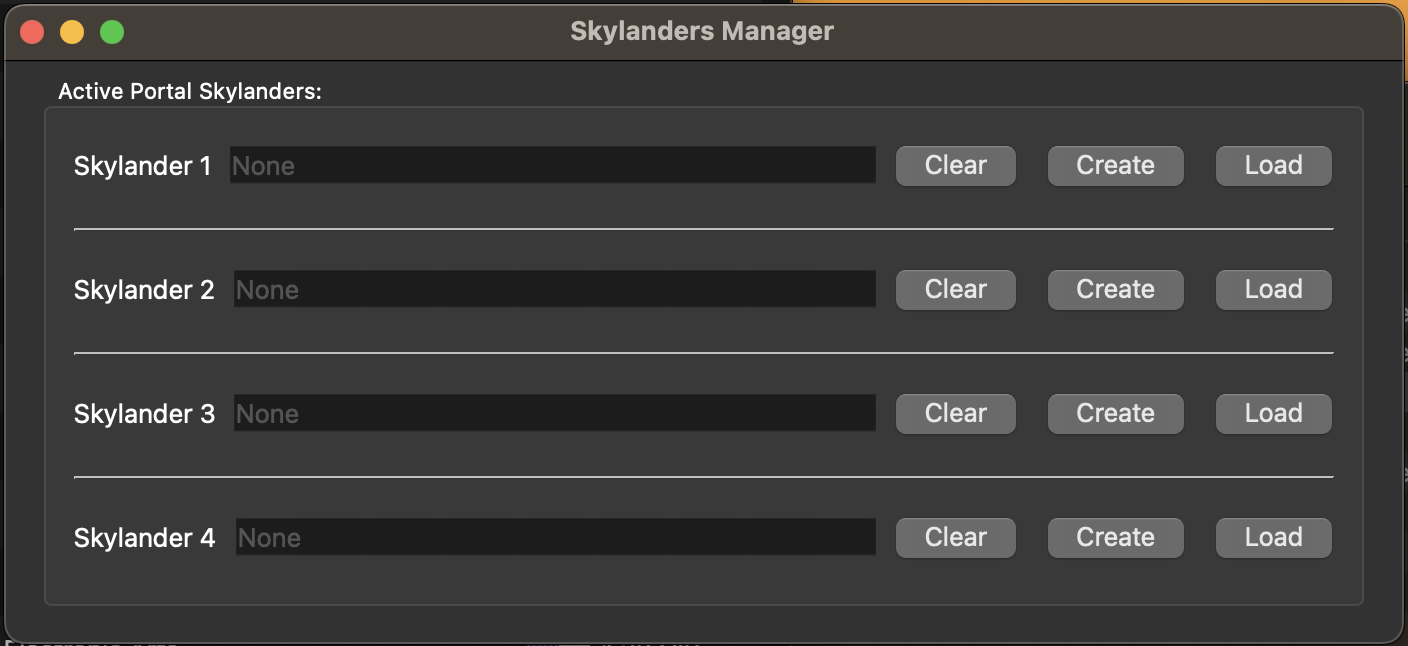

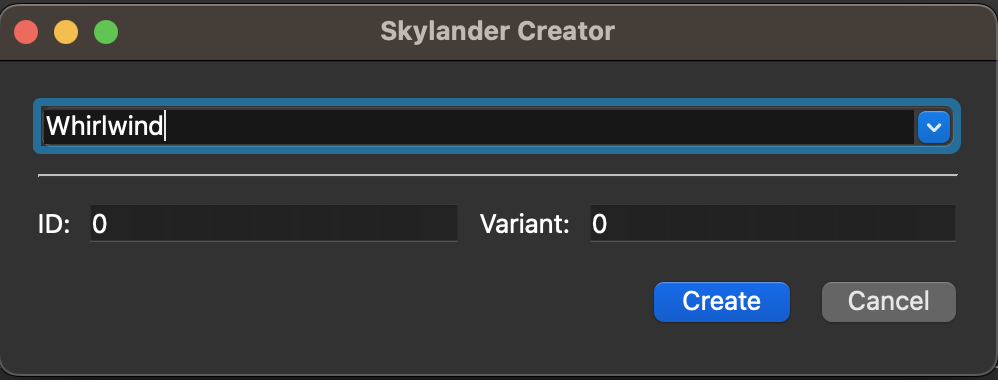

This requires a new method to Schedule responses to Control and Interrupt Messages, a new Class to extend as a device with descriptors pre-defined as a Skylander Trap Team wired portal, a new struct to define Fake Skylander toys, and a new tool within the UI to create, clear and load Fake Skylanders to the Emulated portal.
The structure of the UI including widgets and windows is basically just a copy+paste from RPCS3, and then modified to fit Dolphin's coding styling, as well as using Dolphin specific methods to handle File IO. As well as this, the structure of handling requests within Dolphin is a lot of copy+paste from RPCS3 as well, with some modifications to use Trap Team Portal specific responses and Dolphin utility methods. If this is an issue I am more than happy to modify the code and make it from scratch, but it was a lot easier without much C++ experience to get as much of a head start as possible, and I'm sure not much (besides the UI) will change anyway.
C++ certainly isn't my strongest language, and this will be my first ever contribution to any open source project, so there is bound to be many improvements to be made, any feedback will be much appreciated.
