README.md

yampex

Yet Another Matplotlib Extension, with simplified subplotting

yampex makes Matplotlib easier to use, especially with subplots and annotations. You simply construct a Plotter object with the number of subplot rows and columns you want, and do a context call on it to get a version of the object that's all set up to do your subplots. Like this:

import numpy as np
from yampex import Plotter

funcNames = ('sin', 'cos')
X = np.linspace(0, 4*np.pi, 200)
pt = Plotter(1, 2, width=7, height=5)
pt.set_xlabel("X"); pt.set_grid()
with pt as p:
    for funcName in funcNames:
        Y = getattr(np, funcName)(X)
        p.set_ylabel("{}(X)".format(funcName))
        p(X, Y)
pt.show()

The Plotter instance pt has various methods for setting plot modes. The example calls two of them before it makes the context call, thus affecting all subplots that are to be produced. It calls pt.set_xlabel("X") to make the x-axis label "X" and calls pt.set_grid() to include a grid, for all subplots.

Then the example code does a context call on the pt object to obtain a contextualized instance of it, p. Everything done to this contextualized instance applies to just one subplot rather than all subplots. So, when the example calls p.set_ylabel with a string-formatted argument, it sets the y-axis label of just one subplot at a time, based on the value of funcName.

The actual subplotting is done with a call to the p context object itself (not a method of it). The first argument is the x-axis vector X, and all arguments that follow are y-axis vectors plotted against the x-axis vector. In the example, there's just one y-axis vector, Y. You can supply additional vectors to be plotted against the first x-axis one and they will show up in different colors.

Once the p object has been called, the context switches to the next subplot. In the example, there are two subplots, one above the other. The second iteration of the for loop sets the second subplot's y-axis label to "cos" and plots a cosine.

result

Annotations

Another thing that yampex can do for you is to annotate your plots with intelligently-positioned labels. You don't have to worry about whether your annotation graphic will obscure part of the plot line, or sit on top of the plot borders looking ugly and weird. And adding the annotations is as simple as calling the add_annotation method of your plotter object. You make the call outside the with-as context if you want to add the annotation to all subplots, or in context to affect just one subplot.

Let's expand the example to add annotations to the sine and cosine curves.

import numpy as np
from yampex import Plotter

funcNames = ('sin', 'cos')
X = np.linspace(0, 4*np.pi, 200)
pt = Plotter(1, 2, width=7, height=5)
pt.set_title("Sin and Cosine")
pt.set_xlabel("X"); pt.set_grid()
pt.add_annotation(199, "Last")
with pt as p:
    for funcName in funcNames:
        Y = getattr(np, funcName)(X)
        p.set_ylabel("{}(X)".format(funcName))
        k = 0 if funcName == 'sin' else 75
        for text in ("Pos ZC", "Max", "Neg ZC", "Min"):
            p.add_annotation(k, text)
            k += 25
        p.set_axvline(k)
        p(X, Y)
pt.show()

First we add a global annotation to the overall Matplotlib-manager object pt that affects all subplots; the last point plotted is labeled "Last." Then we enter the context manager and, via the contextualized object p, add annotations to each subplot for a positive zero crossing. The annotations are a maximum, a negative zero crossing, and a minimum.

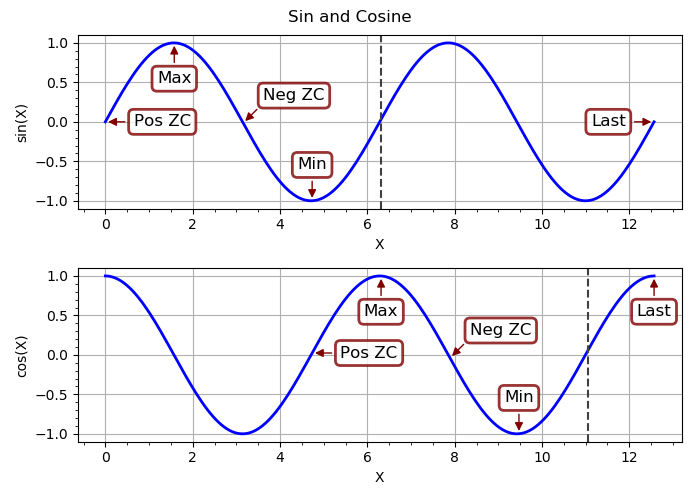

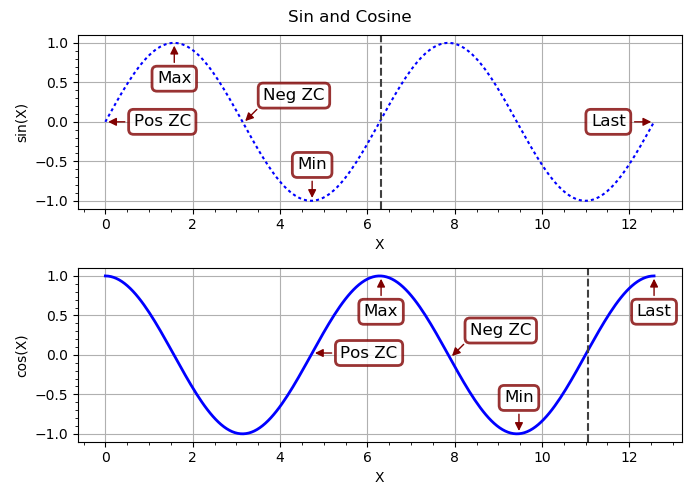

with annotations

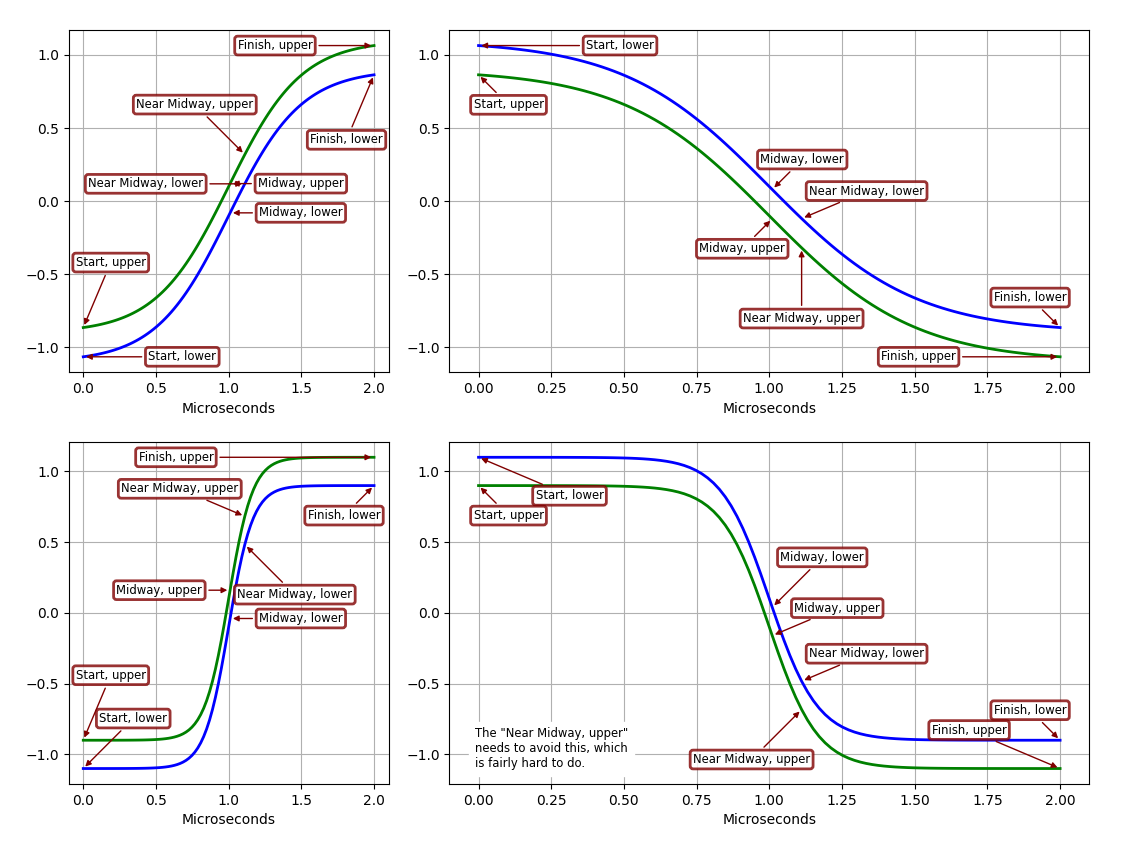

Note how the annotation boxes are positioned so that they don't cover up the plots or each other, or trespass on the borders. A surprisingly large amount of thought and computation went into making that happen. If you're interested, you can check out the gory details of the Annotator class and its Sizer, Rectangle, and Positioner helpers.

A couple of other things you might notice: There's a dashed vertical line at the zero crossing after the last annotation. That was added by calling p.set_axvline(k). Take a look at the methods of OptsBase to see all the options you can set. Another one that the example code has set (on a global scale, before entering the context manager) was the title for all subplots. You could just as easily set a different title for each subplot inside the context manager.
