OVERVIEW:

The "ChartProperties" ElectricCommander/ElectricFlow plugin provides procedures to quickly chart data stored in properties.

USAGE:

You must first install and promote the plugin (available in out/ChartProperties.jar). You can then embed calls to charting procedures from a step by clicking on "Plugin > Reporting > ChartProperties" from the "Procedure Details" page.

Here are the parameters for the "LineChartPropertySheet" step:

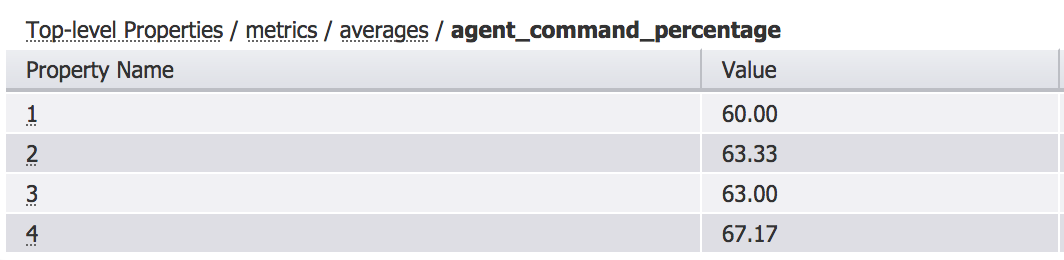

Here is a snapshot of the type of property sheet on which this procedure would operate:

When the step runs, an HTML report will be generated in the workspace. If it contains the word report and ends with an extension htm(l), a link will appear on the job details page. Here's the chart generated with the above data:

SOURCES:

The sources are available in the src directory. They were built using the Commander SDK v2.0. The documentation for the SDK is available at http://docs.electric-cloud.com.

AUTHOR:

Tanay Nagjee, Electric Cloud Solutions Engineer tanay@electric-cloud.com

DISCLAIMER:

This module is not officially supported by Electric Cloud.
