DCPU-16 Emulator v1.7

Download (Windows Installer)

See the downloads page:

https://github.com/fogleman/DCPU-16/downloads

Implemented Specifications

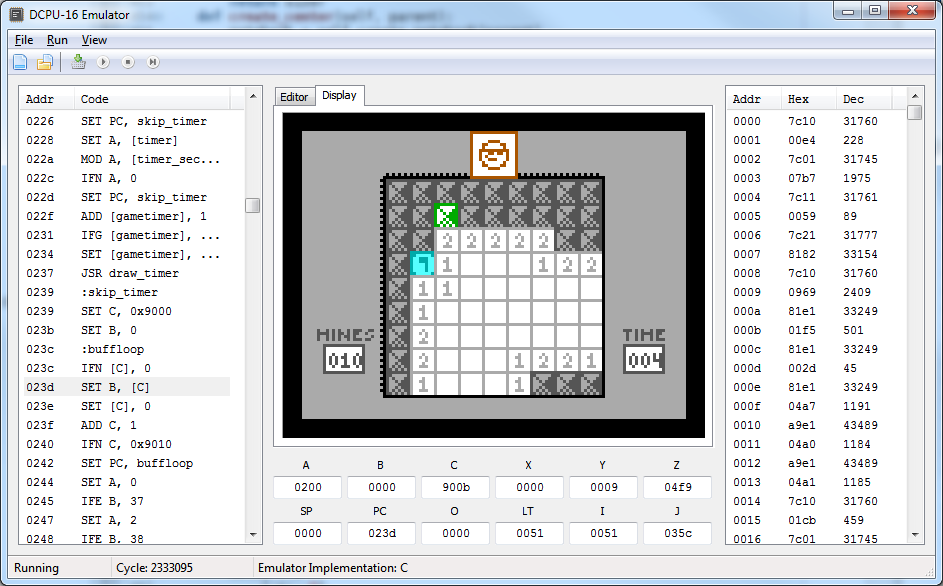

Screenshots

Assembler Features

; Macros (can be nested)
#macro BRK { NOP } ; ignore breakpoints

#macro push(x) {
  SET PUSH x
}

; String Literals
DAT "Here is some text.", 0 ; null-terminated string

; Reserve block of memory
RESERVE 0xff

; Character Literals
SET A 'a' ; A = 0x61
SET B 'A' ; B = 0x41

; Negative Numbers
SET A -1    ; A = 0xffff
SET B -0xff ; B = 0xff01

; Breakpoints
BRK

; Opcode Aliases
SET A POP
SET A [SP++] ; equivalent to POP

SET PUSH A
SET [--SP] A ; equivalent to PUSH

SET A PICK 1
SET A [SP + 1] ; equivalent to PICK 1

SET A PEEK
SET A [SP] ; equivalent to PEEK

; Local Labels
:prefix
  SET A 10
:.loop ; becomes prefix.loop
  SUB A 1
  IFE A 0
    SET PC .done
  SET PC .loop
:.done ; becomes prefix.done

; Fixed Labels
:screen @ 0x8000

Hardware Enumeration

The following code enumerates available hardware devices and populates the variables lem, keyboard and clock with their respective hardware identifiers.

#macro match_hardware(a, b, location) {
    IFE A a
    IFE B b
    SET [location] I
}

JSR enumerate_hardware

; now you can use the devices, e.g.
SET A 0
SET B 0x8000
HWI [lem]

BRK

:enumerate_hardware
HWN I
:.loop
IFE I 0
SET PC .done
SUB I 1
HWQ I
match_hardware(0xf615, 0x7349, lem)
match_hardware(0x7406, 0x30cf, keyboard)
match_hardware(0xb402, 0x12d0, clock)
SET PC .loop
:.done
SET PC POP

:lem
DAT -1
:keyboard
DAT -1
:clock
DAT -1

Benchmarks

Usage: python benchmark.py

Run benchmarks on the emulator to test performance.

MacBook Air (1.7 GHz Intel Core i5)

Benchmarking "C" emulator using "programs/life.dasm"...
Result: 88728989 cycles per second

The C implementation could emulate over 800 DCPU-16 processors at their 100 kHz clock rate.

Pretty Print

Usage: python assembler.py programs/example.dasm > pretty_output.dasm

Assemble and output in pretty format. Shows machine code in comments. Comments from the input file are not retained.

    SET A, 48                   ; 7c01 0030
    SET [0x1000], 32            ; 7de1 1000 0020
    SUB A, [0x1000]             ; 7803 1000
    IFN A, 16                   ; c00d
        SET PC, crash           ; 7dc1 001a
    SET I, 10                   ; a861
    SET A, 0x2000               ; 7c01 2000
:loop
    SET [I + 0x2000], [A]       ; 2161 2000
    SUB I, 1                    ; 8463
    IFN I, 0                    ; 806d
        SET PC, loop            ; 7dc1 000d
    SET X, 4                    ; 9031
    JSR testsub                 ; 7c10 0018
    SET PC, crash               ; 7dc1 001a
:testsub
    SHL X, 4                    ; 9037
    SET PC, POP                 ; 61c1
:crash
    SET PC, crash               ; 7dc1 001a

Dependencies
