503NR/BlackHole during istiod rollouts

[Stono]

Bug description
We are in the process of restarting all workloads one by one to move them to a 1.6 sidecar, following a control plane update. All applications are identical in terms of their istio, deployment and pod config, just running different image.

We noticed that when one app was patched, the 1.5 pods shutting down started getting 503NR (No route to host) to all services it talks to. These metrics were recorded from reporter=source, so the source proxy (the 1.5 proxy on the terminating pods).

We have 3 istiod instances, here are the logs from each:

{"level":"info","time":"2020-10-20T18:38:58.573853Z","scope":"ads","msg":"XDS:EDSInc Pushing:2020-10-20T18:11:26Z/248 Services:map[admin.private-advert-service.svc.cluster.local:{}] ConnectedEndpoints:133"}
{"level":"info","time":"2020-10-20T18:38:58.703232Z","scope":"ads","msg":"XDS:EDSInc Pushing:2020-10-20T18:11:26Z/248 Services:map[admin.private-advert-service.svc.cluster.local:{} admin.private-online-ads-admin.svc.cluster.local:{}] ConnectedEndpoints:133"}
{"level":"info","time":"2020-10-20T18:39:07.261877Z","scope":"ads","msg":"ADS:CDS: REQ sidecar~10.198.40.238~private-advert-service-6cdd8b76cc-rcvr5.private-advert-service~private-advert-service.svc.cluster.local-458 version:"}
{"level":"info","time":"2020-10-20T18:39:07.262842Z","scope":"ads","msg":"CDS: PUSH for node:private-advert-service-6cdd8b76cc-rcvr5.private-advert-service clusters:30 services:825 version:2020-10-20T18:11:26Z/248"}
{"level":"info","time":"2020-10-20T18:39:07.449983Z","scope":"ads","msg":"ADS:CDS: REQ sidecar~10.198.36.23~private-advert-service-679b6f7c74-qcqcl.private-advert-service~private-advert-service.svc.cluster.local-459 version:"}
{"level":"info","time":"2020-10-20T18:39:07.451000Z","scope":"ads","msg":"CDS: PUSH for node:private-advert-service-679b6f7c74-qcqcl.private-advert-service clusters:30 services:825 version:2020-10-20T18:11:26Z/248"}
{"level":"info","time":"2020-10-20T18:39:07.592162Z","scope":"ads","msg":"EDS: PUSH for node:private-advert-service-6cdd8b76cc-rcvr5.private-advert-service clusters:6 endpoints:19 empty:0"}
{"level":"warn","time":"2020-10-20T18:39:07.592193Z","scope":"ads","msg":"ADS:CDS: ACK ERROR sidecar~10.198.40.238~private-advert-service-6cdd8b76cc-rcvr5.private-advert-service~private-advert-service.svc.cluster.local-458 Internal:Error adding/updating cluster(s) outbound|53||kube-dns.kube-system.svc.cluster.local: Invalid path: /etc/certs/root-cert.pem, outbound|80||app.vehicle-metric-service.svc.cluster.local: Invalid path: /etc/certs/root-cert.pem, outbound|80||app.private-advert-service.svc.cluster.local: Invalid path: /etc/certs/root-cert.pem, outbound|80||app.stripe-payment-proxy.svc.cluster.local: Invalid path: /etc/certs/root-cert.pem, outbound|9080||admin.private-advert-service.svc.cluster.local: Invalid path: /etc/certs/root-cert.pem, outbound|9080||admin.abtest-allocator.svc.cluster.local: Invalid path: /etc/certs/root-cert.pem, outbound|80||app.abtest-allocator.svc.cluster.local: Invalid path: /etc/certs/root-cert.pem, outbound|9080||admin.stripe-payment-proxy.svc.cluster.local: Invalid path: /etc/certs/root-cert.pem, outbound|9080||admin.search-one-read.svc.cluster.local: Invalid path: /etc/certs/root-cert.pem, outbound|80||app.search-one-read.svc.cluster.local: Invalid path: /etc/certs/root-cert.pem, outbound|9080||admin.stock-management-api.svc.cluster.local: Invalid path: /etc/certs/root-cert.pem, outbound|80||app.stock-management-api.svc.cluster.local: Invalid path: /etc/certs/root-cert.pem, outbound|80||app.security-service.svc.cluster.local: Invalid path: /etc/certs/root-cert.pem, outbound|9080||admin.customer-performance-service.svc.cluster.local: Invalid path: /etc/certs/root-cert.pem, outbound|80||app.customer-performance-service.svc.cluster.local: Invalid path: /etc/certs/root-cert.pem, outbound|9080||admin.unified-registration-system.svc.cluster.local: Invalid path: /etc/certs/root-cert.pem, outbound|80||app.unified-registration-system.svc.cluster.local: Invalid path: /etc/certs/root-cert.pem, outbound|80||app.vehicle-data-service.svc.cluster.local: Invalid path: /etc/certs/root-cert.pem, outbound|9080||admin.vehicle-data-service.svc.cluster.local: Invalid path: /etc/certs/root-cert.pem"}
{"level":"info","time":"2020-10-20T18:39:07.594882Z","scope":"ads","msg":"LDS: PUSH for node:private-advert-service-6cdd8b76cc-rcvr5.private-advert-service listeners:13"}
{"level":"info","time":"2020-10-20T18:39:07.620491Z","scope":"ads","msg":"RDS: PUSH for node:private-advert-service-6cdd8b76cc-rcvr5.private-advert-service routes:5"}
{"level":"warn","time":"2020-10-20T18:39:07.620526Z","scope":"ads","msg":"ADS:LDS: ACK ERROR sidecar~10.198.40.238~private-advert-service-6cdd8b76cc-rcvr5.private-advert-service~private-advert-service.svc.cluster.local-458 Internal:Error adding/updating listener(s) 10.198.40.238_8088: Invalid path: /etc/certs/root-cert.pem\n10.198.40.238_9080: Invalid path: /etc/certs/root-cert.pem\nvirtualInbound: Invalid path: /etc/certs/root-cert.pem\n"}
{"level":"info","time":"2020-10-20T18:39:08.601774Z","scope":"ads","msg":"EDS: PUSH for node:private-advert-service-679b6f7c74-qcqcl.private-advert-service clusters:25 endpoints:59 empty:0"}
{"level":"info","time":"2020-10-20T18:39:08.811433Z","scope":"ads","msg":"LDS: PUSH for node:private-advert-service-679b6f7c74-qcqcl.private-advert-service listeners:13"}
{"level":"info","time":"2020-10-20T18:39:08.866546Z","scope":"ads","msg":"RDS: PUSH for node:private-advert-service-679b6f7c74-qcqcl.private-advert-service routes:5"}
{"level":"info","time":"2020-10-20T18:39:53.961439Z","scope":"ads","msg":"XDS:EDSInc Pushing:2020-10-20T18:11:26Z/248 Services:map[admin.private-advert-service.svc.cluster.local:{} app.private-advert-service.svc.cluster.local:{}] ConnectedEndpoints:136"}
{"level":"info","time":"2020-10-20T18:40:03.044181Z","scope":"ads","msg":"XDS:EDSInc Pushing:2020-10-20T18:11:26Z/248 Services:map[admin.private-advert-service.svc.cluster.local:{} app.private-advert-service.svc.cluster.local:{}] ConnectedEndpoints:136"}
{"level":"info","time":"2020-10-20T18:40:04.616757Z","scope":"ads","msg":"XDS:EDSInc Pushing:2020-10-20T18:11:26Z/248 Services:map[admin.private-advert-service.svc.cluster.local:{} app.private-advert-service.svc.cluster.local:{}] ConnectedEndpoints:136"}
{"level":"info","time":"2020-10-20T18:40:14.989001Z","scope":"ads","msg":"XDS:EDSInc Pushing:2020-10-20T18:11:26Z/248 Services:map[admin.private-advert-service.svc.cluster.local:{}] ConnectedEndpoints:137"}
{"level":"info","time":"2020-10-20T18:40:27.046541Z","scope":"ads","msg":"ADS: \"10.198.40.238:46170\" sidecar~10.198.40.238~private-advert-service-6cdd8b76cc-rcvr5.private-advert-service~private-advert-service.svc.cluster.local-458 terminated rpc error: code = Canceled desc = context canceled"}
{"level":"info","time":"2020-10-20T18:40:27.711068Z","scope":"ads","msg":"XDS:EDSInc Pushing:2020-10-20T18:11:26Z/248 Services:map[admin.private-advert-service.svc.cluster.local:{}] ConnectedEndpoints:137"}
{"level":"info","time":"2020-10-20T18:40:28.759121Z","scope":"ads","msg":"XDS:EDSInc Pushing:2020-10-20T18:11:26Z/248 Services:map[admin.private-advert-service.svc.cluster.local:{}] ConnectedEndpoints:137"}
{"level":"info","time":"2020-10-20T18:40:31.504353Z","scope":"ads","msg":"XDS:EDSInc Pushing:2020-10-20T18:11:26Z/248 Services:map[admin.private-advert-service.svc.cluster.local:{} app.private-advert-service.svc.cluster.local:{}] ConnectedEndpoints:137"}
{"level":"info","time":"2020-10-20T18:40:34.994675Z","scope":"ads","msg":"XDS:EDSInc Pushing:2020-10-20T18:11:26Z/248 Services:map[admin.private-advert-service.svc.cluster.local:{}] ConnectedEndpoints:137"}
{"level":"info","time":"2020-10-20T18:40:56.833502Z","scope":"ads","msg":"XDS:EDSInc Pushing:2020-10-20T18:11:26Z/248 Services:map[admin.private-advert-service.svc.cluster.local:{}] ConnectedEndpoints:137"}
{"level":"info","time":"2020-10-20T18:40:57.879189Z","scope":"ads","msg":"XDS:EDSInc Pushing:2020-10-20T18:11:26Z/248 Services:map[admin.private-advert-service.svc.cluster.local:{}] ConnectedEndpoints:137"}

{"level":"info","time":"2020-10-20T18:38:58.574420Z","scope":"ads","msg":"XDS:EDSInc Pushing:2020-10-20T18:11:26Z/249 Services:map[admin.private-advert-service.svc.cluster.local:{}] ConnectedEndpoints:146"}
{"level":"info","time":"2020-10-20T18:38:58.703023Z","scope":"ads","msg":"XDS:EDSInc Pushing:2020-10-20T18:11:26Z/249 Services:map[admin.private-advert-service.svc.cluster.local:{} admin.private-online-ads-admin.svc.cluster.local:{}] ConnectedEndpoints:146"}
{"level":"info","time":"2020-10-20T18:39:04.983477Z","scope":"ads","msg":"ADS:CDS: REQ sidecar~10.198.40.90~private-advert-service-679b6f7c74-cc57n.private-advert-service~private-advert-service.svc.cluster.local-460 version:"}
{"level":"info","time":"2020-10-20T18:39:04.984612Z","scope":"ads","msg":"CDS: PUSH for node:private-advert-service-679b6f7c74-cc57n.private-advert-service clusters:30 services:825 version:2020-10-20T18:11:26Z/249"}
{"level":"info","time":"2020-10-20T18:39:06.151788Z","scope":"ads","msg":"EDS: PUSH for node:private-advert-service-679b6f7c74-cc57n.private-advert-service clusters:25 endpoints:59 empty:0"}
{"level":"info","time":"2020-10-20T18:39:06.354340Z","scope":"ads","msg":"LDS: PUSH for node:private-advert-service-679b6f7c74-cc57n.private-advert-service listeners:13"}
{"level":"info","time":"2020-10-20T18:39:06.412639Z","scope":"ads","msg":"RDS: PUSH for node:private-advert-service-679b6f7c74-cc57n.private-advert-service routes:5"}
{"level":"info","time":"2020-10-20T18:39:24.148017Z","scope":"ads","msg":"ADS:CDS: REQ sidecar~10.198.18.98~private-advert-service-6cdd8b76cc-6424j.private-advert-service~private-advert-service.svc.cluster.local-461 version:"}
{"level":"info","time":"2020-10-20T18:39:24.149259Z","scope":"ads","msg":"CDS: PUSH for node:private-advert-service-6cdd8b76cc-6424j.private-advert-service clusters:30 services:825 version:2020-10-20T18:11:26Z/249"}
{"level":"info","time":"2020-10-20T18:39:24.465521Z","scope":"ads","msg":"EDS: PUSH for node:private-advert-service-6cdd8b76cc-6424j.private-advert-service clusters:6 endpoints:19 empty:0"}
{"level":"warn","time":"2020-10-20T18:39:24.465567Z","scope":"ads","msg":"ADS:CDS: ACK ERROR sidecar~10.198.18.98~private-advert-service-6cdd8b76cc-6424j.private-advert-service~private-advert-service.svc.cluster.local-461 Internal:Error adding/updating cluster(s) outbound|53||kube-dns.kube-system.svc.cluster.local: Invalid path: /etc/certs/root-cert.pem, outbound|80||app.vehicle-metric-service.svc.cluster.local: Invalid path: /etc/certs/root-cert.pem, outbound|80||app.private-advert-service.svc.cluster.local: Invalid path: /etc/certs/root-cert.pem, outbound|80||app.stripe-payment-proxy.svc.cluster.local: Invalid path: /etc/certs/root-cert.pem, outbound|9080||admin.private-advert-service.svc.cluster.local: Invalid path: /etc/certs/root-cert.pem, outbound|9080||admin.abtest-allocator.svc.cluster.local: Invalid path: /etc/certs/root-cert.pem, outbound|80||app.abtest-allocator.svc.cluster.local: Invalid path: /etc/certs/root-cert.pem, outbound|9080||admin.stripe-payment-proxy.svc.cluster.local: Invalid path: /etc/certs/root-cert.pem, outbound|9080||admin.search-one-read.svc.cluster.local: Invalid path: /etc/certs/root-cert.pem, outbound|80||app.search-one-read.svc.cluster.local: Invalid path: /etc/certs/root-cert.pem, outbound|9080||admin.stock-management-api.svc.cluster.local: Invalid path: /etc/certs/root-cert.pem, outbound|80||app.stock-management-api.svc.cluster.local: Invalid path: /etc/certs/root-cert.pem, outbound|80||app.security-service.svc.cluster.local: Invalid path: /etc/certs/root-cert.pem, outbound|9080||admin.customer-performance-service.svc.cluster.local: Invalid path: /etc/certs/root-cert.pem, outbound|80||app.customer-performance-service.svc.cluster.local: Invalid path: /etc/certs/root-cert.pem, outbound|9080||admin.unified-registration-system.svc.cluster.local: Invalid path: /etc/certs/root-cert.pem, outbound|80||app.unified-registration-system.svc.cluster.local: Invalid path: /etc/certs/root-cert.pem, outbound|80||app.vehicle-data-service.svc.cluster.local: Invalid path: /etc/certs/root-cert.pem, outbound|9080||admin.vehicle-data-service.svc.cluster.local: Invalid path: /etc/certs/root-cert.pem"}
{"level":"info","time":"2020-10-20T18:39:24.468403Z","scope":"ads","msg":"LDS: PUSH for node:private-advert-service-6cdd8b76cc-6424j.private-advert-service listeners:13"}
{"level":"info","time":"2020-10-20T18:39:24.493365Z","scope":"ads","msg":"RDS: PUSH for node:private-advert-service-6cdd8b76cc-6424j.private-advert-service routes:5"}
{"level":"warn","time":"2020-10-20T18:39:24.493415Z","scope":"ads","msg":"ADS:LDS: ACK ERROR sidecar~10.198.18.98~private-advert-service-6cdd8b76cc-6424j.private-advert-service~private-advert-service.svc.cluster.local-461 Internal:Error adding/updating listener(s) 10.198.18.98_8088: Invalid path: /etc/certs/root-cert.pem\n10.198.18.98_9080: Invalid path: /etc/certs/root-cert.pem\nvirtualInbound: Invalid path: /etc/certs/root-cert.pem\n"}
{"level":"info","time":"2020-10-20T18:39:53.961199Z","scope":"ads","msg":"XDS:EDSInc Pushing:2020-10-20T18:11:26Z/249 Services:map[admin.private-advert-service.svc.cluster.local:{} app.private-advert-service.svc.cluster.local:{}] ConnectedEndpoints:147"}
{"level":"info","time":"2020-10-20T18:40:03.044364Z","scope":"ads","msg":"XDS:EDSInc Pushing:2020-10-20T18:11:26Z/249 Services:map[admin.private-advert-service.svc.cluster.local:{} app.private-advert-service.svc.cluster.local:{}] ConnectedEndpoints:147"}
{"level":"info","time":"2020-10-20T18:40:04.617457Z","scope":"ads","msg":"XDS:EDSInc Pushing:2020-10-20T18:11:26Z/249 Services:map[admin.private-advert-service.svc.cluster.local:{} app.private-advert-service.svc.cluster.local:{}] ConnectedEndpoints:147"}
{"level":"info","time":"2020-10-20T18:40:14.989028Z","scope":"ads","msg":"XDS:EDSInc Pushing:2020-10-20T18:11:26Z/249 Services:map[admin.private-advert-service.svc.cluster.local:{}] ConnectedEndpoints:147"}
{"level":"info","time":"2020-10-20T18:40:27.710887Z","scope":"ads","msg":"XDS:EDSInc Pushing:2020-10-20T18:11:26Z/249 Services:map[admin.private-advert-service.svc.cluster.local:{}] ConnectedEndpoints:147"}
{"level":"info","time":"2020-10-20T18:40:28.759122Z","scope":"ads","msg":"XDS:EDSInc Pushing:2020-10-20T18:11:26Z/249 Services:map[admin.private-advert-service.svc.cluster.local:{}] ConnectedEndpoints:147"}
{"level":"info","time":"2020-10-20T18:40:31.504097Z","scope":"ads","msg":"XDS:EDSInc Pushing:2020-10-20T18:11:26Z/249 Services:map[admin.private-advert-service.svc.cluster.local:{} app.private-advert-service.svc.cluster.local:{}] ConnectedEndpoints:147"}
{"level":"info","time":"2020-10-20T18:40:34.996649Z","scope":"ads","msg":"XDS:EDSInc Pushing:2020-10-20T18:11:26Z/249 Services:map[admin.private-advert-service.svc.cluster.local:{}] ConnectedEndpoints:147"}
{"level":"info","time":"2020-10-20T18:40:56.079555Z","scope":"ads","msg":"ADS: \"10.198.18.98:49238\" sidecar~10.198.18.98~private-advert-service-6cdd8b76cc-6424j.private-advert-service~private-advert-service.svc.cluster.local-461 terminated rpc error: code = Canceled desc = context canceled"}
{"level":"info","time":"2020-10-20T18:40:56.834310Z","scope":"ads","msg":"XDS:EDSInc Pushing:2020-10-20T18:11:26Z/249 Services:map[admin.private-advert-service.svc.cluster.local:{}] ConnectedEndpoints:147"}
{"level":"info","time":"2020-10-20T18:40:57.878854Z","scope":"ads","msg":"XDS:EDSInc Pushing:2020-10-20T18:11:26Z/249 Services:map[admin.private-advert-service.svc.cluster.local:{}] ConnectedEndpoints:147"}

{"level":"info","time":"2020-10-20T18:38:58.575231Z","scope":"ads","msg":"XDS:EDSInc Pushing:2020-10-20T18:11:26Z/248 Services:map[admin.private-advert-service.svc.cluster.local:{}] ConnectedEndpoints:182"}
{"level":"info","time":"2020-10-20T18:38:58.703383Z","scope":"ads","msg":"XDS:EDSInc Pushing:2020-10-20T18:11:26Z/248 Services:map[admin.private-advert-service.svc.cluster.local:{} admin.private-online-ads-admin.svc.cluster.local:{}] ConnectedEndpoints:182"}
{"level":"info","time":"2020-10-20T18:39:53.962827Z","scope":"ads","msg":"XDS:EDSInc Pushing:2020-10-20T18:11:26Z/248 Services:map[admin.private-advert-service.svc.cluster.local:{} app.private-advert-service.svc.cluster.local:{}] ConnectedEndpoints:182"}
{"level":"info","time":"2020-10-20T18:40:03.045637Z","scope":"ads","msg":"XDS:EDSInc Pushing:2020-10-20T18:11:26Z/248 Services:map[admin.private-advert-service.svc.cluster.local:{} app.private-advert-service.svc.cluster.local:{}] ConnectedEndpoints:182"}
{"level":"info","time":"2020-10-20T18:40:04.618209Z","scope":"ads","msg":"XDS:EDSInc Pushing:2020-10-20T18:11:26Z/248 Services:map[admin.private-advert-service.svc.cluster.local:{} app.private-advert-service.svc.cluster.local:{}] ConnectedEndpoints:182"}
{"level":"info","time":"2020-10-20T18:40:07.635733Z","scope":"ads","msg":"ADS: \"10.198.40.238:49616\" sidecar~10.198.40.238~private-advert-service-6cdd8b76cc-rcvr5.private-advert-service~private-advert-service.svc.cluster.local-82 terminated with stream closed"}
{"level":"warn","time":"2020-10-20T18:40:07.636222Z","scope":"ads","msg":"EDS: Send failure sidecar~10.198.40.238~private-advert-service-6cdd8b76cc-rcvr5.private-advert-service~private-advert-service.svc.cluster.local-82: rpc error: code = Unavailable desc = transport is closing"}
{"level":"info","time":"2020-10-20T18:40:14.990589Z","scope":"ads","msg":"XDS:EDSInc Pushing:2020-10-20T18:11:26Z/248 Services:map[admin.private-advert-service.svc.cluster.local:{}] ConnectedEndpoints:181"}
{"level":"info","time":"2020-10-20T18:40:24.507327Z","scope":"ads","msg":"ADS: \"10.198.18.98:45782\" sidecar~10.198.18.98~private-advert-service-6cdd8b76cc-6424j.private-advert-service~private-advert-service.svc.cluster.local-151 terminated with stream closed"}
{"level":"warn","time":"2020-10-20T18:40:24.507756Z","scope":"ads","msg":"EDS: Send failure sidecar~10.198.18.98~private-advert-service-6cdd8b76cc-6424j.private-advert-service~private-advert-service.svc.cluster.local-151: rpc error: code = Unavailable desc = transport is closing"}
{"level":"info","time":"2020-10-20T18:40:27.711878Z","scope":"ads","msg":"XDS:EDSInc Pushing:2020-10-20T18:11:26Z/248 Services:map[admin.private-advert-service.svc.cluster.local:{}] ConnectedEndpoints:179"}
{"level":"info","time":"2020-10-20T18:40:28.759746Z","scope":"ads","msg":"XDS:EDSInc Pushing:2020-10-20T18:11:26Z/248 Services:map[admin.private-advert-service.svc.cluster.local:{}] ConnectedEndpoints:179"}
{"level":"info","time":"2020-10-20T18:40:31.503729Z","scope":"ads","msg":"XDS:EDSInc Pushing:2020-10-20T18:11:26Z/248 Services:map[admin.private-advert-service.svc.cluster.local:{} app.private-advert-service.svc.cluster.local:{}] ConnectedEndpoints:179"}
{"level":"info","time":"2020-10-20T18:40:34.995838Z","scope":"ads","msg":"XDS:EDSInc Pushing:2020-10-20T18:11:26Z/248 Services:map[admin.private-advert-service.svc.cluster.local:{}] ConnectedEndpoints:179"}
{"level":"info","time":"2020-10-20T18:40:56.834051Z","scope":"ads","msg":"XDS:EDSInc Pushing:2020-10-20T18:11:26Z/248 Services:map[admin.private-advert-service.svc.cluster.local:{}] ConnectedEndpoints:179"}
{"level":"info","time":"2020-10-20T18:40:57.880219Z","scope":"ads","msg":"XDS:EDSInc Pushing:2020-10-20T18:11:26Z/248 Services:map[admin.private-advert-service.svc.cluster.local:{}] ConnectedEndpoints:179"}

There are two services pointing to the same pods:

❯ k -n private-advert-service get svc
NAME    TYPE        CLUSTER-IP      EXTERNAL-IP   PORT(S)    AGE
admin   ClusterIP   10.192.43.156   <none>        9080/TCP   616d
app     ClusterIP   10.192.44.2     <none>        80/TCP     2y53d

Unfortunately I don't have the proxy logs persisted.

I have been unable to reproduce this by going back and forth again, so it feels like a non-deterministic ordering or race condition of some sort.

[ ] Docs
[ ] Installation
[x] Networking
[ ] Performance and Scalability
[ ] Extensions and Telemetry
[ ] Security
[ ] Test and Release
[ ] User Experience
[ ] Developer Infrastructure

Expected behavior
No 503NR's during upgrade of data plane

Steps to reproduce the bug

Version (include the output of istioctl version --remote and kubectl version --short and helm version if you used Helm)
1.6.12

How was Istio installed?
Helm

Environment where bug was observed (cloud vendor, OS, etc)

[Stono]

It's worth noting that our process removes the old certificate after the workload has rolled out:

{"timestamp":"2020-10-20T18:38:56.074Z","level":"info","module":"istio-rollout-sidecars","message":"handling namespace private-advert-service"}
{"timestamp":"2020-10-20T18:38:56.139Z","level":"warn","module":"istio-rollout-sidecars","message":"workload requires updating","istioVersion":"eu.gcr.io/at-artefacts/istio/proxyv2:b0ac5af0d118960afc2be74e2fb5391a5de68de7","targetIstioVersion":"eu.gcr.io/at-artefacts/istio/proxyv2:a67042ea4018b0a0c417c0b28aaa9b62","namespace":"private-advert-service","name":"private-advert-service"}
{"timestamp":"2020-10-20T18:38:56.214Z","level":"info","module":"client","message":"rollout triggered","namespace":"private-advert-service","name":"private-advert-service","currentGeneration":339,"targetGeneration":340}
{"timestamp":"2020-10-20T18:38:56.226Z","level":"info","module":"client","message":"rollout complete","namespace":"private-advert-service","name":"private-advert-service","kind":"Deployment"}
{"timestamp":"2020-10-20T18:38:56.279Z","level":"info","module":"istio-rollout-sidecars","message":"deleting 1.5 secret","namespace":"private-advert-service","name":"istio.default"}

But perhaps there's a bit of a race condition because the old workload could still theoretically be terminating. My understanding of kubernetes was that deleting a mounted certificate after the pod has started doesn't remove it - it'd only stop a new pod scheduling if the secret wasn't available to mount.

[Stono]

ahhhh!

{"timestamp":"2020-10-20T18:38:56.214Z","level":"info","module":"client","message":"rollout triggered","namespace":"private-advert-service","name":"private-advert-service","currentGeneration":339,"targetGeneration":340}
{"timestamp":"2020-10-20T18:38:56.226Z","level":"info","module":"client","message":"rollout complete","namespace":"private-advert-service","name":"private-advert-service","kind":"Deployment"}

Look at the time stamps, it looks like a bug in the script caused this deployment to not actually wait, thus deleting certs for an in-use workload.

[Stono]

@howardjohn could you please reopen this because we just saw it again going from 1.6.12 to 1.6.13, this time it wasn't caused by me so there's definitely something odd going on during istiod deployments.

Struggling to consistently reproduce at the moment however.

[Stono]

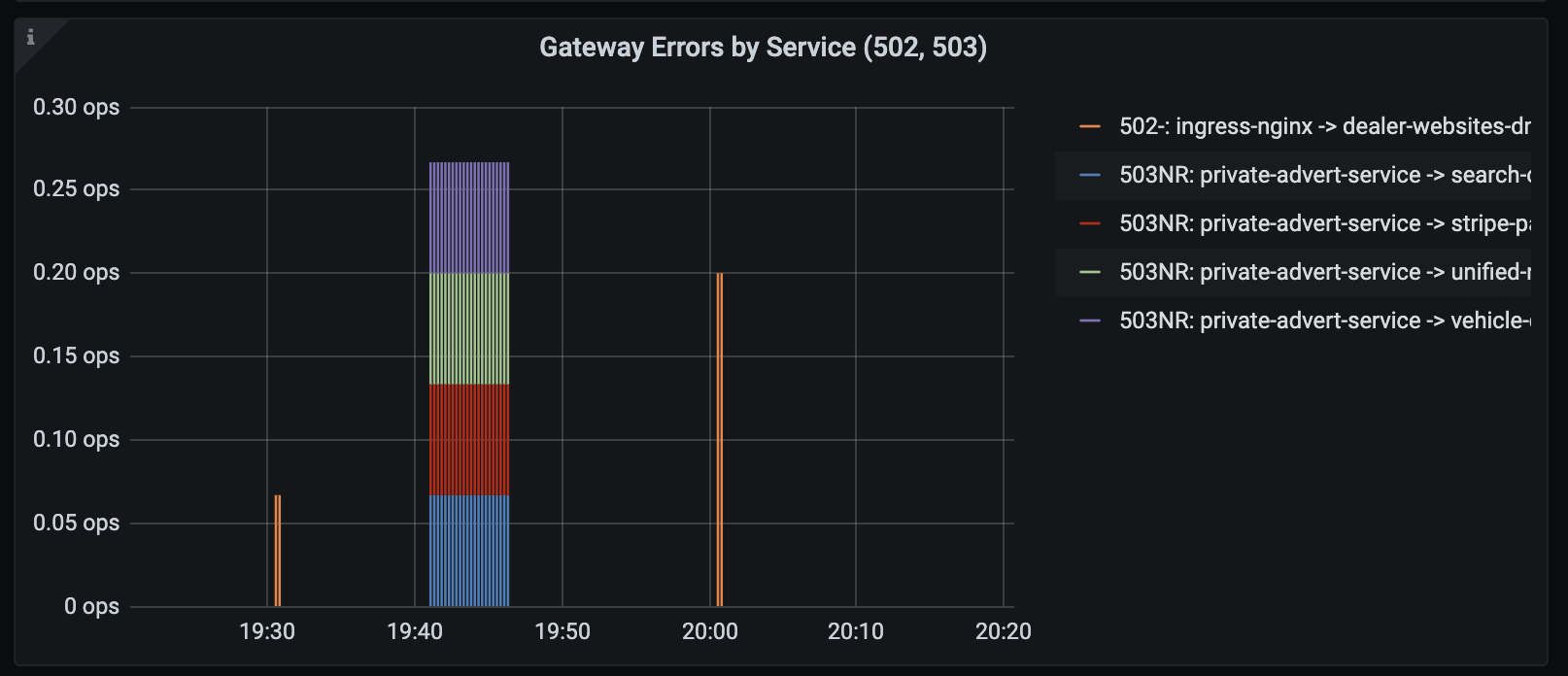

This just happened again much more significantly when we rolled istiod:

[Stono]

@howardjohn I've narrowed this down to PILOT_ENABLE_LEGACY_INBOUND_LISTENERS. When adding or removing that flag, there's a moment where all the sidecars are broken.

The two events above were caused by the removal of PILOT_ENABLE_LEGACY_INBOUND_LISTENERS flowing through the environments now we're rolled out to 1.6 and it is no longer required.

Whilst i'm not hugely concerned (as we won't be bringing that flag back) - It'd be great if someone could confirm the problem we're seeing is only caused by that flag, and can't manifest as a result of other code paths? Potentially #26861?

[Stono]

Definitely other situations causing this too, this was going from 1.6.13 -> 1.7.4:

[howardjohn]

I (not too surprisingly) was not able to reproduce this. Do you see this on any environment that we can play around in? Either direct access or we can set up a call perhaps

[howardjohn]

bringing slack conversation here:

Suspect there are possible multiple issues. focusing on UF,URX first. Observed on 1.6 <-> 1.7 rollback/forward.

Diff on config:

1719c1682
<           "@type": "type.googleapis.com/envoy.api.v2.auth.UpstreamTlsContext",
---
>           "@type": "type.googleapis.com/envoy.extensions.transport_sockets.tls.v3.UpstreamTlsContext",
1738,1739c1701
<               },
<               "initial_fetch_timeout": "0s"
---
>               }
1757,1758c1719
<               },
<               "initial_fetch_timeout": "0s"
---
>               }

Logs:
client disconnected, failure reason: TLS error: Secret is not supplied by SDS

[howardjohn]

I build a custom image with v2 TLS context and its zero downtime. So seems extremely likely due to ^. Looking into what the "proper" fix is
