Phase-3-Project: Simple student database application

Objectives of this Project

1. Create a Full-Stack application that includes React Js frontend and Sinatra backend.
2. It must be able to perform CRUD through GUI (Graphical User Interface)
3. The backend should include at least 2 models.

About this project

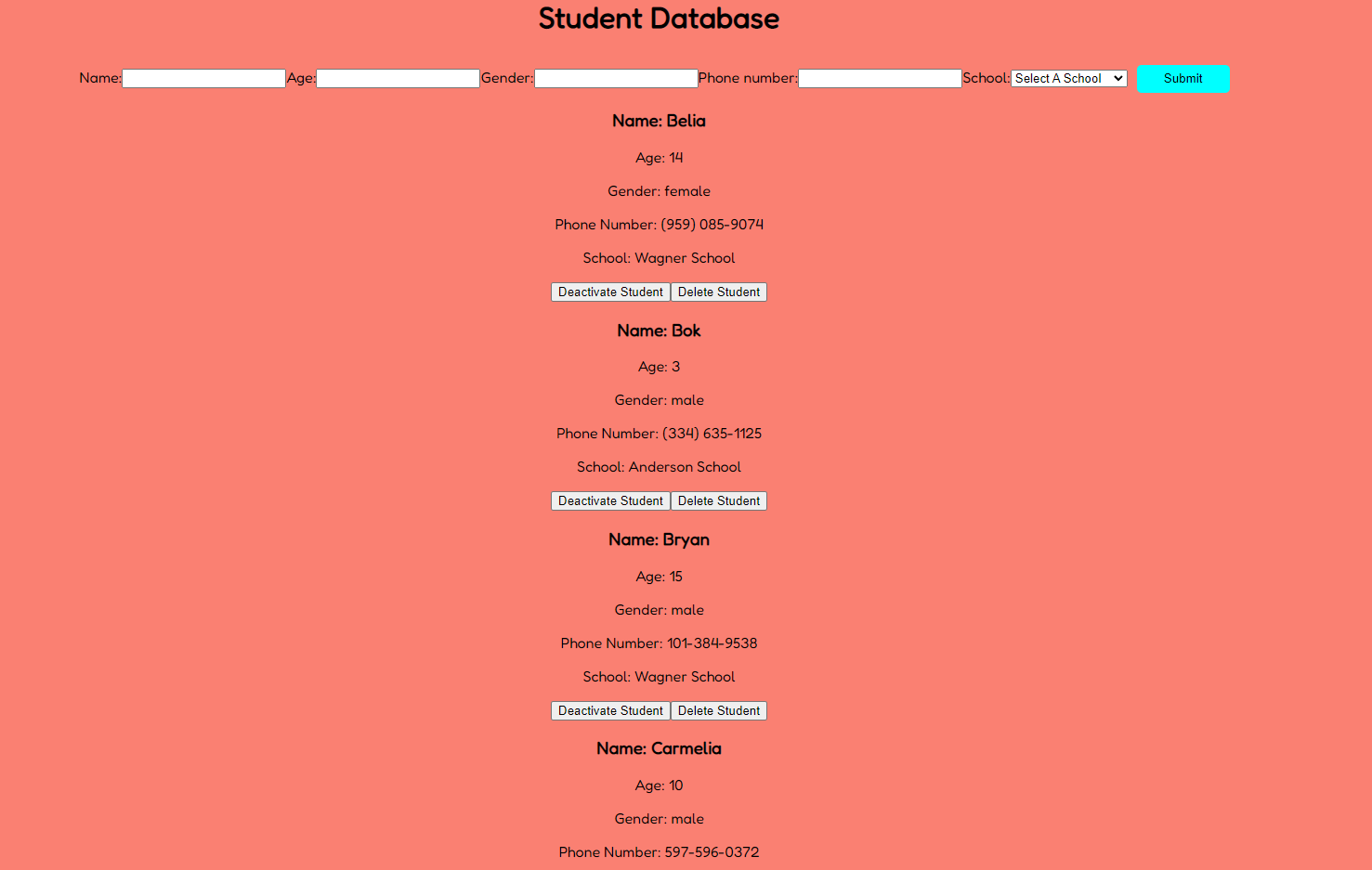

For this project, I have decided to create a simple student database app using React frontend and Ruby Sinatra backend. I figured that it would be useful for me later on since I work at a middle school as a part-time IT tech. Here's my simple looking graphical user interface created with React framework.

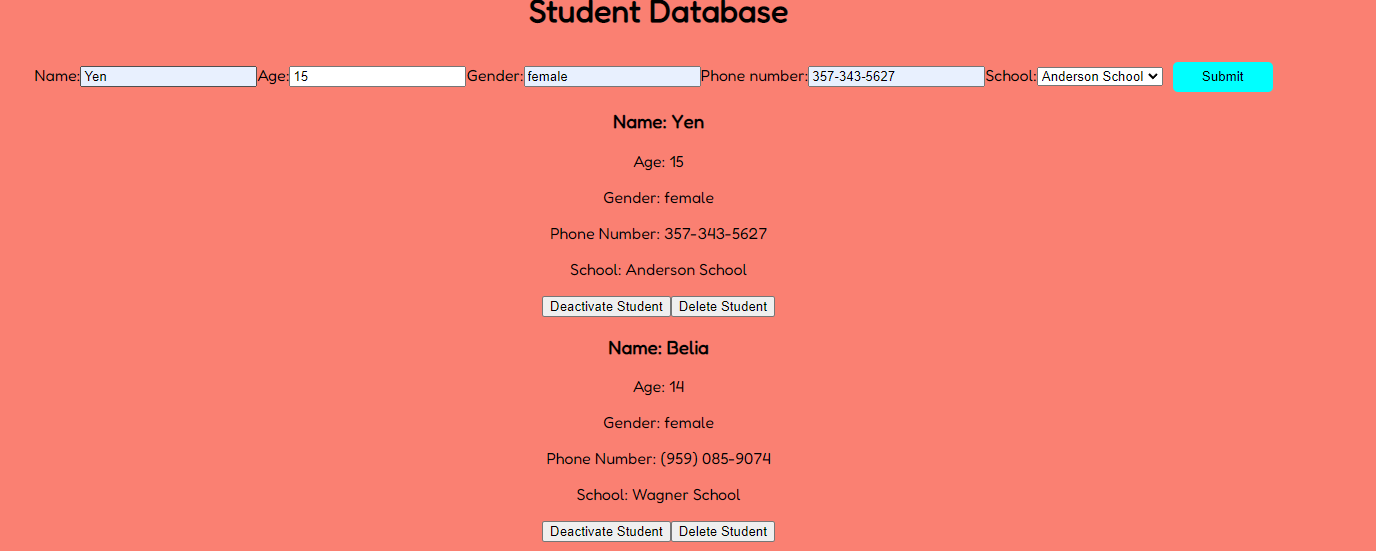

The top of the application contains a form component where users can type and submit new student data to my sinatra backend database. I used active record gem to create connections between different class models: students, schools.

class Student < ActiveRecord::Base
    belongs_to :school
    has_many :appointments
    has_many :teachers, through: :appointments


    def print
        puts "Name: #{self.name}"
        puts "Age: #{self.age}"
        puts "Gender: #{self.gender}"
        puts "Phone number #{self.phone}"
    end
end

class School < ActiveRecord::Base
    has_many :students, dependent: :destroy
end

Since schools have many students, I created a one to many relationships between two of the models.

How does it work?

Just like how developers makes an API calls to perform CRUD actions, I simply created an API with a database that can be called from my react frontend using simple fetch request.

If I submit/Patch/Delete data from my frontend, it will then proceed to make a POST/Patch/Delete request to local host server 9292 because this is the default local host server for Sinatra. Here's a post request that I made:

const postStudent = (student) => {
    fetch('http://localhost:9292/students',{
      method:'POST',
      headers:{
        'Content-Type':'application/json',
      },
      body: JSON.stringify(student)
    })
    .then(res => res.json())
    .then(newStudent => {
      setStudents([newStudent,...students])
    })
  }

Then it will save on to my database.

I used react hook to constantly refresh frontend whenever there's change in the data. If I make a change to my database through my frontend, then the page will refresh with new changes to the database.

useEffect(()=> {
    fetch('http://localhost:9292/students')
    .then(res => res.json())
    .then(setStudents)

    fetch('http://localhost:9292/schools')
    .then(res => res.json())
    .then(setSchools)
  },[])

NOTE

Please start the backend server first before starting the React. Also, make sure you have node.js, Rake installed.

To start the backend server, simply move to school_backend directory and type into your console:

bundle exec rake server

To start the React frontend, move to the favgamelist directory and type into your console:

npm start
