User documentation

A gorgeous responsive theme for Hugo blog framework

Tranquilpeak

Tranquilpeak theme is compatible with Hugo v0.20.

This documentation will help you to install hugo-tranquilpeak-theme and configure it to use all features which it provides.

If you want to report a bug or ask a question, create an issue.

Summary

General

Features

General features:

  • Fully responsive
  • Optimized for tablets & mobiles
  • Configurable menu of the sidebar
  • Pages to filter tags, categories and archives
  • Background cover image
  • Beautiful about page
  • Support Open Graph protocol
  • Easily customizable (fonts, colors, layout elements, code coloration, etc..)
  • Support internationalization (i18)

Posts features:

  • Thumbnail image
  • Cover image
  • Responsive videos & images
  • Sharing options
  • Navigation menu
  • GitHub theme for code highlighting (customizable)
  • Image gallery

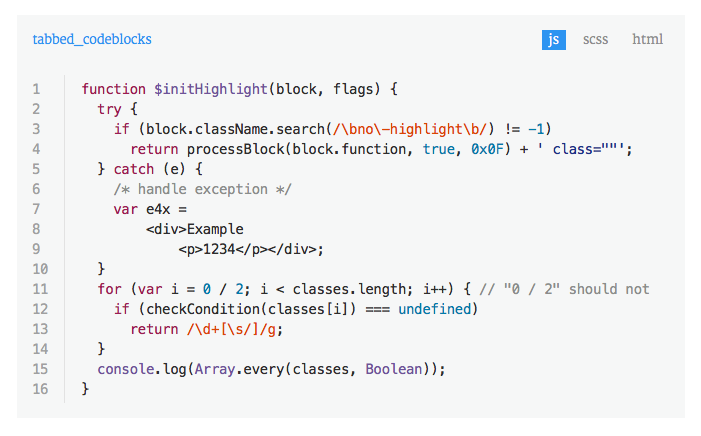

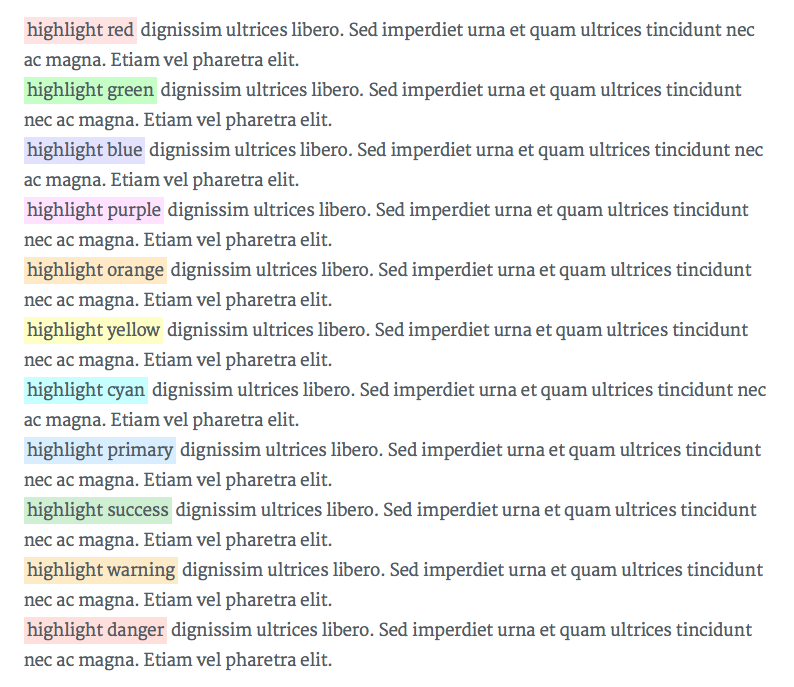

  • Tags for images (FancyBox), wide images, tabbed code blocks, highlighted text, alerts
  • Table of contents

Integrated services:

  • Disqus
  • Google analytics
  • Gravatar
  • Facebook Insights

Missing features from original Hexo version

ATTENTION following features will not be possible due to Hugo limitations

  • Archives pages by years /archives/2015
  • Archives pages by month /archives/2015/01

Requirements

  1. Hugo : v0.20

Installation

  1. Simply clone the repository git clone https://github.com/kakawait/hugo-tranquilpeak-theme.git on themes folder
  2. Rename the folder in hugo-tranquilpeak-theme (if necessary) and place it in themes folder of your Hugo blog
mkdir themes
cd themes
git clone https://github.com/kakawait/hugo-tranquilpeak-theme.git

Tranquilpeak configuration

If it's your first time using Hugo, please check Hugo official documentation

Language configuration

Simply edit following value in config.{toml,yaml,json}:

defaultContentLanguage = "en-us"

by one of the following code (code is between ()):

  • Chinese (zh-cn)
  • Chinese Traditional (zh-tw)
  • English (en-us)
  • Deutsch (de-de)
  • French (fr-fr)
  • Japanase (ja)
  • Portuguese (pt-br)
  • Russian (ru)
  • Spanish (es)
  • Vietnamese (vi)

If your language is not available, follow this guidelines (E.g : add swedish language (sv-se)) :

  1. Set defaultContentLanguage to sv-se in Hugo configuration file config.{toml,yaml,json}
  2. Create sv-se.yaml file in theme/tranquilpeak/i18n/ folder
  3. Copy the content of theme/tranquilpeak/i18n/en-us.yaml and paste it to sv-se.yml file
  4. Replace all strings in english by their translation in swedish

Menu translation

Menus are defined using Hugo menus https://gohugo.io/extras/menus/

You can translate menu entries by setting identifier that matches a translation key. By using this way, name will not be use at all.

Setting up default theme to Tranquilpeak

Modify the theme in config.{toml,yml,json} by changing theme variable to tranquilpeak

Define date format

By default date will be printed like following: mmmm d, yyyy, example: "January 2, 2006"

You can customize it by setting

[params]
  dateFormat = "2 January 2006"

Will produce: "2 January 2006"

ATTENTION: date format should respect go Time package syntax, please refer to https://golang.org/pkg/time/

Moreover, if you are using fully named month (short named month like "jan", "feb", etc is not supported), month will be translated.

Example:

defaultContentLanguage = "fr-fr"

"21 July 2006" will be output "21 Juillet 2006".

Define global keywords

You can define keywords for search engines. These keywords will be added on all pages.

[params]
  keywords = ["development", "next-gen"]

Theme configuration

Backup your configuration:

cp config.{toml,yml,json} config.{toml,yml,json}.backup

Copy example configuration

cp themes/tranquilpeak/exampleSite/config.toml .

Complete config.toml with your information. Read above sections to have more information.

Sidebar

The sidebar is powerful and easily configurable. You can add groups of links and links much as you want.

[[menu.main]]
  weight = 0
  identifier = "home"
  name = "Home"
  pre = "<i class=\"sidebar-button-icon fa fa-lg fa-home\"></i>"
  url = "/"
[[menu.main]]
  weight = 1
  identifier = "categories"
  name = "Categories"
  pre = "<i class=\"sidebar-button-icon fa fa-lg fa-bookmark\"></i>"
  url = "/categories"
[[menu.main]]
  weight = 2
  identifier = "tags"
  name = "Tags"
  pre = "<i class=\"sidebar-button-icon fa fa-lg fa-tags\"></i>"
  url = "/tags"
[[menu.main]]
  weight = 3
  identifier = "archives"
  name = "Archives"
  pre = "<i class=\"sidebar-button-icon fa fa-lg fa-archive\"></i>"
  url = "/archives"
[[menu.main]]
  weight = 4
  identifier = "search"
  name = "Search"
  pre = "<i class=\"sidebar-button-icon fa fa-lg fa-search\"></i>"
  url = "/#search"
  class = "st-search-show-outputs"
[[menu.main]]
  weight = 4
  identifier = "about"
  name = "About"
  pre = "<i class=\"sidebar-button-icon fa fa-lg fa-question\"></i>"
  url = "/#about"

[[menu.links]]
  weight = 0
  identifier = "github"
  name = "GitHub"
  pre = "<i class=\"sidebar-button-icon fa fa-lg fa-github\"></i>"
  url = "https://github.com/kakawait"
[[menu.links]]
  weight = 1
  identifier = "stackoverflow"
  name = "Stack Overflow"
  pre = "<i class=\"sidebar-button-icon fa fa-lg fa-stack-overflow\"></i>"
  url = "https://stackoverflow.com/users/636472/kakawait"

[[menu.misc]]
  weight = 0
  identifier = "rss"
  name = "RSS"
  pre = "<i class=\"sidebar-button-icon fa fa-lg fa-rss\"></i>"
  url = "/index.xml"
Variable Description Type
weight menu is ordered by weight int
identifier unique identifier for entry string
name title to be display string
pre icon to be display a left of the name template.HTML
url menu entry url string
class CSS Class added to the a link tag string

identifier can be use for translation see Menu translation.

Header

The right link of the header is customizable. You can add a link (as an icon) at the right of the header instead of the author's gravatar image or author's picture. By default, author's gravatar or author's picture is displayed.

E.g to display a shortcut to open algolia search window :

[params.header.rightLink]
  class = "open-algolia-search"
  icon = "search"
  url = "/#search"
Variable Description
url URL of the link. If the URL is internal, domain name is not necessary
icon Name of the font awesome icon class without the fa- (Go to font-awesome icons to find class name of icon)
class CSS Class added to the link

Author

[author]
  name = "Thibaud Leprêtre"
  bio = "Super bio with markdown support **COOL**"
  job = "Java backend developer"
  location = "France"
  # Your Gravatar email. Overwrite `author.picture` everywhere in the blog
  gravatarEmail = "thibaud.lepretre@gmail.com"
  # Your profile picture
  # Overwritten by your gravatar image if `author.gravatarEmail` is filled
  picture = "https://cdn1.iconfinder.com/data/icons/ninja-things-1/1772/ninja-simple-512.png"
  # Your Twitter username without the @. E.g : tranquilpeak
  twitter = "thibaudlepretre"
  # Your google plus profile id. E.g : +ThibaudLepretre or 114625208755123718311
  googlePlus = "+ThibaudLepretre"
Variable Description
name Your name
gravatarEmail This address will be used to get your gravatar image if you activate gravatar option
bio Your biography (Markdown and HTML supported)
job Your job
location Your location
picture Your profile picture. Overwritten by your gravatar image if gravatar email is filled
twitter Your Twitter username without the @. E.g : thibaudlepretre
googlePlus Your google plus profile id. E.g : +ThibaudLepretre or 114625208755123718311

Customization

ATTENTION not all customizations are documented here, you may checkout sample config.toml.

[params]
  sidebarBehavior = 1
  thumbnailImage = true
  thumbnailImagePosition = "right"
  autoThumbnailImage = true
  coverImage = "cover.jpg"
  favicon = /favicon.png
  imageGallery = true
  hierarchicalCategories = true
  syntaxHighlighter = 'highlight.js'
Variable Description
sidebarBehavior Define the behavior of the header and sidebar :
  • 1: Display extra large sidebar on extra large screen, large sidebar on large screen, medium sidebar on medium screen and header bar on small screen and extra large sidebar is swiped on extra large screen and large sidebar on all lower screens when open button is clicked (default)
  • 2: Display large sidebar on extra large & large screen, medium sidebar on medium screen and header bar on small screen and large sidebar is swiped when open button is clicked
  • 3: Display medium sidebar on large and medium screen and header bar on small screen and medium sidebar is swiped when open button is clicked
  • 4: Display header bar on all screens, extra large sidebar is swiped on extra large screen and large sidebar is swiped on all lower screens
  • 5: Display header bar on all screens and large sidebar is swiped on large screen
  • 6: isplay header bar on all screens and medium sidebar is swiped
clearReading Hide sidebar on all article page to let article take full width to improve reading, and enjoy wide images and cover images. Useless if sidebarBehavior is equal to 3 or 4. (true: enable, false: disable). Default behavior : params.clearReading value in theme configuration file.
thumbnailImage Display thumbnail image of each post on index pages
thumbnailImagePosition Display thumbnail image at the right of title in index pages (right, left or bottom). Set this value to right if you have old posts to keep the old style on them and define thumbnailImagePosition on a post to overwrite this setting. (Default: right)
autoThumbnailImage Automatically select the cover image or the first photo from the gallery of a post if there is no thumbnail image as the thumbnail image. Set this value to true if you have old posts that use the cover image or the first photo as the thumbnail image and set autoThumbnailImage to false on a post to overwrite this setting. (Default : true)
coverImage Your blog cover picture. I STRONGLY recommend you to use a CDN to speed up loading of pages. There is many free CDN like Cloudinary or you can also use indirectly by using services like Google Photos.
favicon Your favicon path (Default: /favicon.png)
imageGallery Display an image gallery at the end of a post which have photos variables. (false: disabled, true: enabled)
hierarchicalCategories Define categories will create hierarchy between parents: categories = ["foo", "bar"] will consider "bar" a sub-category of "foo". If false it will flat categories.
customCSS (DEPRECATED see Add custom JS or CSS using configuration) Define files with css that override or extend the theme css: customCSS = ["css/mystyles.css"].
customJS (DEPRECATED see Add custom JS or CSS using configuration) Define files with js that override or extend the theme js: customJS = ["js/myscripts.js"].
syntaxHighlighter Define which syntax highlighter you want to use (if not set syntax highlighting is disable) between highlight.js and prism.js

E.g :
A category page look like this with hierarchicalCategories = true :
hierarchicalCategories true

The same page with hierarchicalCategories = false:
hierarchicalCategories false

Add custom JS or CSS using configuration

If you need to add some additionnal javascript or css files to your blog without forking or overriding theme itself you could use following configuration:

[params]
  [[params.customJS]]
    src = "https://cdnjs.cloudflare.com/ajax/libs/highlight.js/9.8.0/languages/go.min.js"
    integrity = "sha256-LVuWfOU0rWFMCJNl1xb3K2HSWfxtK4IPbqEerP1P83M="
    crossorigin = "anonymous"
    async = true
    defer = true

  [[params.customJS]]
    src = "https://cdnjs.cloudflare.com/ajax/libs/highlight.js/9.8.0/languages/dockerfile.min.js"
    integrity = "sha256-putofyQv7OB569xAldpyBnHJ0Uc+7VGp5Us05IgDGss="
    crossorigin = "anonymous"
    async = true
    defer = true

  [[params.customJS]]
    src = "js/myscript.js"

  [[params.customCSS]]
    href = "css/mystyle.css"

ATTENTION there is no limitation on key structures and each keys will be converted as tag attributes.

Futhermore, even if previous syntax is still supported (customJS = ["js/myscripts.js"]), you can't mix both new and old syntax.

Integrated services

disqusShortname =
googleAnalytics =
[author]
  gravatarEmail =
[params]
  fbAdminIds =
  fbAppId =
Variable Description
disqusShortname Your Disqus shortname.
gravatarEmail Your gravatar email. Overwrite author.picture everywhere in the blog
googleAnalytics Your Google analystics web property ID : UA-XXXXX-X
fbAdminIds Your Facebook user ids used to connect your blog with your facebook user accounts (Facebook Insights). Use array syntax. E.g : [9830047, 1003342]. Visit Facebook docs for more information.
fbAppId Your Facebook app id used to connect your blog with your facebook app account (Facebook Insights). E.g : 9841307. Visit Facebook docs for more information.

Sharing options

[params]
  [[params.sharingOptions]]
    name = "Facebook"
    icon = "fa-facebook-official"
    url = "https://www.facebook.com/sharer/sharer.php?u=%s"

  [[params.sharingOptions]]
    name = "Twitter"
    icon = "fa-twitter"
    url = "https://twitter.com/intent/tweet?text=%s"

  [[params.sharingOptions]]
    name = "Google+"
    icon = "fa-google-plus"
    url = "https://plus.google.com/share?url=%s"

You can comment and uncomment to enable or disable sharing options. If your own sharing options, simply add new sharing options on your configuration. E.g with foo_bar social network:

[params]
  [[params.sharingOptions]]
    name = "Foo bar"
    icon = "fa-foo-bar"
    url = "https://www.foo-bar.com/sharer/sharer.php?u=%s"
Variable Description
name Name of your sharing site.
icon Name of the fontawesome icon class (Go to font-awesome icons to find class name of icon)
url URL of the link. use %s to specify where to put the permalink.

Enable pages

Tranquilpeak provides you 2 pages to display all posts title and date by tags, by categories, by date and an about page. To enable one of this pages simply add following taxonomies:

[taxonomies]
  tag = "tags"
  category = "categories"

Integrated services configuration

Google Analytics

Exclude hostname (localhost) while writing articles

While you are writing articles, you need to check the result a lot of times before deploying your site. If you have enable Google analytics service, Google will include all requests done, even when hostname is localhost and this can greatly skew the results. To overcome this, you have to add a filter on Google Analytics website.

Follow these steps, to add new filter :

  1. Sign in to your Google Analytics account
  2. Select the Admin tab and navigate to the property in which you want to create the filter (Account > Property > View)
  3. In View column, click on Filters button
  4. Click on + NEW FILTER button
  5. Enter a name for the filter
  6. Select Custom filter, Filter Field : Hostname, Filter Pattern : (.*?localhost.*?)
  7. Click on Save button

Quick & easy modifications

Prerequisites

Since you are going to edit the theme, you have to install all the necessary to build it after changes : Installation

Run command in theme folder : hexo-blog/themes/tranquilpeak

Change global style

If you want to change font families, font size, sidebar color, things like that, take a look at source/scss/utils/_variables.scss file. This file contains global variables used in this theme. Build the theme after changes to see changes.

Change code coloration (Highlight.js theme)

Tranquilpeak integrate its own highlight.js theme inspired by GitHub. Of course, you can replace it with an other theme found on highlight.js repository. Since Hexo use different CSS class names, all theme are not ready out of the box, but it is very easy to make them compatible.

Follow these steps :

  1. Get your theme here : Highlight.js theme or create yours
  2. Follow guidelines in src/scss/themes/hljs-custom.scss file
  3. Build the theme with npm run prod or grunt buildProd. Learn more about Grunt tasks : Grunt tasks

Writing posts

To write articles, you have to use Markdown language. Here you can find the main basics of Markdown syntax.
Please note, there are many different versions of Markdown and some of them are not supported by Hugo.

I STRONGLY recommend you to use a CDN to speed up loading of pages. There is many free CDN like Cloudinary or you can also use indirectly by using services like Google Photos.

Front-matter settings

Tranquilpeak introduces new variables to give you a lot of possibilities.

Example :

disqusIdentifier: fdsF34ff34
keywords:
- javascript
- hexo
clearReading: true
thumbnailImage: image-1.png
thumbnailImagePosition: bottom
autoThumbnailImage: yes
metaAlignment: center
coverImage: image-2.png
coverCaption: "A beautiful sunrise"
coverMeta: out
coverSize: full
coverImage: image-2.png
gallery:
    - image-3.jpg "New York"
    - image-4.png "Paris"
    - http://i.imgur.com/o9r19kD.jpg "Dubai"
    - https://example.com/orignal.jpg https://example.com/thumbnail.jpg "Sidney"
comments: false
showTags: true
showPagination: true
showSocial: true
showDate: true
Variable Description
disqusIdentifier Define a unique string which is used to look up a page's thread in the Disqus system.
keywords Define keywords for search engines. you can also define global keywords in Hugo configuration file.
clearReading Hide sidebar on all article page to let article take full width to improve reading, and enjoy wide images and cover images. Useless if params.sidebarBehavior is equal to 3 or 4. (true: enable, false: disable). Default behavior : params.clearReading value in theme configuration file.
autoThumbnailImage Automatically select the cover image or the first photo from the gallery of a post if there is no thumbnail image as the thumbnail image. autoThumbnailImage overwrite the setting autoThumbnailImage in the theme configuration file
thumbnailImage Image displayed in index view.
thumbnailImagePosition Display thumbnail image at the right of title in index pages (right, left or bottom). thumbnailImagePosition overwrite the setting thumbnailImagePosition in the theme configuration file
metaAlignment Meta (title, date and categories) alignment (right, left or center). Default behavior : left
coverImage Image displayed in full size at the top of your post in post view. If thumbnail image is not configured, cover image is also used as thumbnail image. Check the beautiful demo here : Cover image demo
coverSize partial: cover image take a part of the screen height (60%), full: cover image take the entire screen height.
coverCaption Add a caption under the cover image : Cover caption demo
coverMeta in: display post meta (title, date and categories) on cover image, out: display meta (title, date and categories) under cover image as usual. Default behavior : in
gallery Images displayed in an image gallery (with fancybox) at the end of the post. If thumbnail image is not configured and cover image too, the first photo is used as thumbnail image. format: original url [thumbnail url] [caption], E.g : https://example.com/original.jpg https://example.com/thumbnail.jpg "New York"
comments true: Show the comment of the post.
showDate true: Show the date when true (default)
showTags true: show tags of this page.
showPagination true: show pagination.
showSocial true: show social button such as share on Twitter, Facebook...
showMeta true: Show post meta (date, categories).
showActions true: Show post actions (navigation, share links).

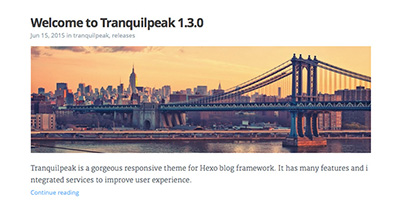

Example: A post on index page will look like this with :thumbnailImagePosition set to bottom:
thumbnail-image-position-bottom

The same with : thumbnailImagePosition set to right:
thumbnail-image-position-right

The same with : thumbnailImagePosition set to left:
thumbnail-image-position-left

Define post excerpt

Use:

  • <!--more--> to define post excerpt and keep the post excerpt in the post content

Display table of contents

As post excerpt feature enable with <!--more--> comment, you can display the table of contents of a post with <!-- toc -->. Place this comment where you want to display the table of content.

Here is what looks like the table of contents generated:
thumbnail-image-position-left

Tags

Tranquilpeak introduce new tags to display alert messages, images in full width and create beautiful galleries.

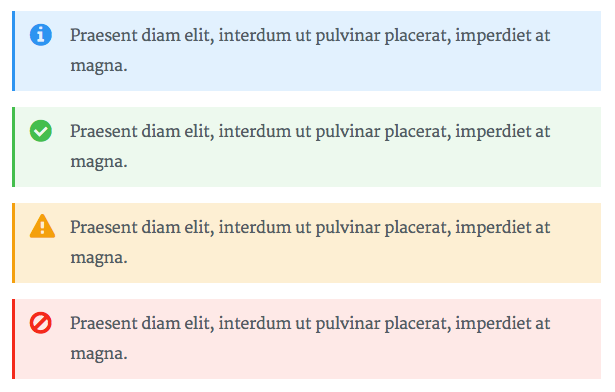

Alert

alert-tag

Alert tag is useful to highlight a content like a tips or a warning. Check it live here : Alert tag demo

Syntax:

{{< alert [classes] >}}
content
{{< /alert >}}

E.g:

{{< alert danger no-icon >}}
Here is a danger alert without icon
{{< /alert >}}
Argument Description
Classes
  • info
  • success
  • warning
  • danger
  • no-icon

Highlight Text

highlight_text-tag

Highlight text tag is useful to highlight an interesting part in a text. Check it live here : Highlight text tag demo

Syntax:

{{< hl-text [classes] >}}
content
{{< /hl-text >}}

E.g:

{{< hl-text danger >}}
your highlighted text
{{< /hl-text >}}
Argument Description
Classes classes :
  • red
  • green
  • blue
  • purple
  • orange
  • yellow
  • cyan
  • primary
  • success
  • warning
  • danger

It's important to put the paragraph that contains highlight text tag inside <p>...</p> otherwise the following content may not be rendered.


Image tag is useful to add images and create beautiful galleries. Check what are the possibilities here : Image tag demo

Syntax:

{{< image classes="[classes]" src="[/path/to/image]" thumbnail="[/path/to/thumbnail]" group="[group-name]" thumbnail-width="[width of thumbnail]" thumbnail-height="[height of thumbnail]" title="[title text]" >}}

E.g:

{{< image classes="fancybox right clear" src="image2.png" thumbnail="http://google.fr/images/image125.png" group="group:travel" thumbnail-width="150px" thumbnail-height="300px" title="A beautiful sunrise" >}}
Argument Description
classes (optional) You can add css classes to stylize the image. Separate class with whitespace. Tranquilpeak integrate many css class to create nice effects :
  • fancybox : Generate a fancybox image.
  • nocaption : Caption of the image will not be displayed.
  • left : Image will float at the left.
  • right : Image will float at the right.
  • center : Image will be at center.
  • fig-20 : Image will take 20% of the width of post width and automatically float at left.
  • fig-25 : Image will take 25% of the width of post width and automatically float at left.
  • fig-33 : Image will take 33% of the width of post width and automatically float at left.
  • fig-50 : Image will take 50% of the width of post width and automatically float at left.
  • fig-75 : Image will take 75% of the width of post width and automatically float at left.
  • fig-100 : Image will take 100% of the width of post width.
  • clear : Add a div with clear:both; style attached after the image to retrieve the normal flow of the post.
group (optional) Name of a group, used to create a gallery. Only for image with fancybox css class
src Path to the original image.
thumbnail (optional) Path to the thumbnail image. If empty, the orignal image will be displayed.
thumbnail-width (optional) Width to the thumbnail image. If the thumbnail image is empty, width will be attached to thumbnail image created from original image. E.g : 150px or 85%.
thumbnail-height (optional) Height to the thumbnail image. If the thumbnail image is empty, height will be attached to thumbnail image created from original image. E.g : 300px or 20%.
title (optional) Title of image displayed in a caption under image. Alt HTML attribute will use this title. E.g : "A beautiful sunrise".

Tabbed code block

Tabbed code blocks are useful to group multiple code blocks related. For example, the source code of a web component (html, css and js). Or compare a source code in different languages.

tabbed_codeblock-tag

Check it live : tabbed code block demo

Syntax:

{{< tabbed-codeblock [name] [link] >}}
    <!-- tab [lang] -->
        source code
    <!-- endtab -->
{{< /tabbed-codeblock >}}

E.g:

{{< tabbed-codeblock example http://example.com >}}
    <!-- tab js -->
        var test = 'test';
    <!-- endtab -->
    <!-- tab css -->
        .btn {
            color: red;
        }
    <!-- endtab -->
{{< /tabbed-codeblock >}}
Argument Description
Name (optional) Name of the code block, or of the file
Link (optional) Link to a demo, or a file
Lang (optional) Programming language use for the current tab

Wide image

Wide image tag is useful to display wide images in full width. It take the entire window width. Check the the result : Wide image tag demo

Syntax:

{{< wide-image src="[/path/to/image]" title="[title text]" >}}

E.g:

{{< wide-image src="http://google.fr/images/image125.png" title="A beautiful sunrise" >}}
Argument Description
src Path to the original image.
title (optional) Title of image displayed in a caption under image. Alt HTML attribute will use this title. E.g : "A beautiful sunrise".

Writing pages

Sometimes you need to create a page that is not a regular blog post, where you want to hide the date, social sharing buttons, tags, categories and pagination. This is the case for the blog pages About or Contact for instance which do not need to be timestamped (nor tagged or categorized) nor provide pagination and are not intended to be shared on social networks.

In order to create such a page you can proceed like so:

hugo new page/contact.md

This creates the file contact.md in the directory content/page pre-populated with the following front matter.

---
title: "New Page"
categories:
- category
- subcategory
tags:
- tag1
- tag2
keywords:
- tech
comments:       false
showMeta:       false
showActions:    false
#thumbnailImage: //example.com/image.jpg
---

The rest is basically the same as for a regular post.

Running

Run hugo server and start writing! :)
