Bug 1797149: fix inconsistencies in topology node styling #4117

christianvogt · 2020-01-30T02:56:03Z

Fixes:
Fixes https://issues.redhat.com/browse/ODC-2903

Analysis / Root cause:
There is a lot of similar code across the various react components representing the nodes and groups in topology. Unfortunately this is error prone as we've added new states and new react components and some of them simply aren't done in a consistent manner.

Solution Description:
Went through each topology node and group and updated the styles for consistent naming and css rule specificity.

Requires a future run through with @openshift/team-devconsole-ux to ensure colors are all correct. At least now the styles are consistent across nodes.

Screen shots / Gifs for design review:
selected:

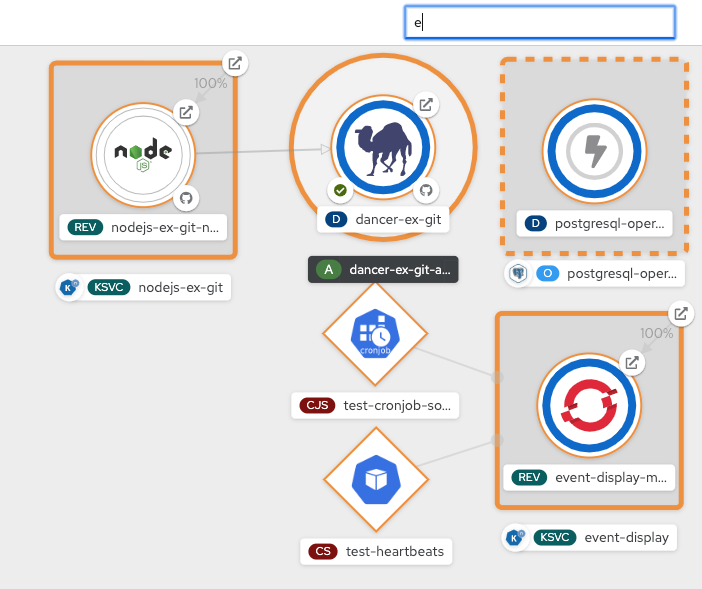

find:

Browser conformance:

Chrome
Firefox
Safari
Edge

jeff-phillips-18 · 2020-01-30T15:56:04Z

frontend/packages/dev-console/src/components/topology/components/nodes/KnativeService.tsx

@@ -10,7 +8,7 @@ import {
 } from '@console/topology';
 import { modelFor, referenceFor } from '@console/internal/module/k8s';
 import { useAccessReview } from '@console/internal/components/utils';
-import { getTopologyFilters, TopologyFilters } from '../../filters/filter-utils';
+import { TopologyFilters } from '../../filters/filter-utils';


This can be removed along with the optional filters prop

openshift-ci-robot · 2020-02-01T02:59:53Z

@christianvogt: This pull request references Bugzilla bug 1797149, which is valid. The bug has been moved to the POST state. The bug has been updated to refer to the pull request using the external bug tracker.

In response to this:

Bug 1797149: fix inconsistencies in topology node styling

Instructions for interacting with me using PR comments are available here. If you have questions or suggestions related to my behavior, please file an issue against the kubernetes/test-infra repository.

openshift-ci-robot · 2020-02-01T05:09:57Z

@christianvogt: This pull request references Bugzilla bug 1797149, which is valid.

In response to this:

Bug 1797149: fix inconsistencies in topology node styling

Instructions for interacting with me using PR comments are available here. If you have questions or suggestions related to my behavior, please file an issue against the kubernetes/test-infra repository.

openshift-ci-robot · 2020-02-01T05:12:28Z

@christianvogt: This pull request references Bugzilla bug 1797149, which is valid.

In response to this:

Bug 1797149: fix inconsistencies in topology node styling

Instructions for interacting with me using PR comments are available here. If you have questions or suggestions related to my behavior, please file an issue against the kubernetes/test-infra repository.

jeff-phillips-18 · 2020-02-03T12:37:46Z

frontend/packages/dev-console/src/components/topology/components/nodes/KnativeService.scss

+  &__bg {
+    fill: #d1d1d1;
+    fill-opacity: 0.5;
+    stroke: #bbbbbb;


We use #d1d1d1 and #bbbbb in the three groups' styles. Could we add these as variables in the topology-utils.scss ?

jeff-phillips-18 · 2020-02-03T12:40:25Z

frontend/packages/dev-console/src/components/topology/components/nodes/Application.scss

-      cursor: grab;
-    }
-
+    fill: var(--pf-global--Color--300);
    & text {
      fill: #fff;


while we're in here

Suggested change

fill: #fff;

fill: var(--pf-global--Color--light-100);

jeff-phillips-18 · 2020-02-03T12:47:42Z

frontend/packages/dev-console/src/components/topology/components/groups/HelmReleaseGroup.tsx

-              'is-filtered': filtered,
-              'is-dragging': dragging,
-            })}
+            className="odc-base-node__label"
            x={x + width / 2}
            y={y + height + 20}


Other groupings use 30 here. Maybe a constant or default value in SvgBoxedText? (paddingX, paddingY, and truncate as well?)

Let's improve this as part of a PR to to fix the label padding.

serenamarie125

@christianvogt did you end up doing the 24px between components/groupings and their label?

christianvogt · 2020-02-03T17:26:02Z

@serenamarie125 that's not part of this PR. I focused on node state styles. I think we're better off doing a followup PR for any further styling issues as this PR is already large enough.

jeff-phillips-18 · 2020-02-03T19:11:57Z

/retest

jeff-phillips-18 · 2020-02-03T19:27:21Z

frontend/packages/dev-console/src/components/topology/components/edges/EventSourceLink.scss

@@ -1,8 +1,7 @@
 .odc-base-edge.odc-event-source-link {
  --edge--stroke: #bbbbbb;


Maybe $edge-stroke-color

jeff-phillips-18 · 2020-02-03T19:27:44Z

frontend/packages/dev-console/src/components/topology/components/edges/TrafficLink.scss

@@ -1,8 +1,6 @@
 .odc-base-edge.odc-traffic-link {
  --edge--stroke-width: 0;
  --edge--stroke: #bbbbbb;


christianvogt · 2020-02-03T20:57:21Z

@jeff-phillips-18 added a new variable default-edge-stroke-color and adjusted the css rules around edge. Also consolidated the rules around edge __link as discussed on slack.

jeff-phillips-18 · 2020-02-03T21:13:58Z

/lgtm

openshift-ci-robot · 2020-02-03T21:14:29Z

[APPROVALNOTIFIER] This PR is APPROVED

This pull-request has been approved by: christianvogt, jeff-phillips-18

The full list of commands accepted by this bot can be found here.

The pull request process is described here

Needs approval from an approver in each of these files:

~~frontend/packages/dev-console/OWNERS~~ [christianvogt]

Approvers can indicate their approval by writing /approve in a comment
Approvers can cancel approval by writing /approve cancel in a comment

jeff-phillips-18 · 2020-02-03T22:38:45Z

/retest

openshift-ci-robot · 2020-02-04T02:20:15Z

@christianvogt: All pull requests linked via external trackers have merged. Bugzilla bug 1797149 has been moved to the MODIFIED state.

In response to this:

Bug 1797149: fix inconsistencies in topology node styling

Instructions for interacting with me using PR comments are available here. If you have questions or suggestions related to my behavior, please file an issue against the kubernetes/test-infra repository.
