Firewall Inspect feature shows N/A for most of the rules

[JasMan78]

Important notices
Before you add a new report, we ask you kindly to acknowledge the following:

[x] I have read the contributing guide lines at https://github.com/opnsense/core/blob/master/CONTRIBUTING.md

[x] I have searched the existing issues and I'm convinced that mine is new.

Describe the bug
Firewall statistics (Inspect) shows N/A for Evaluations, States, Packets and Bytes for most of the rules. Only the NAT rules show current statistics

To Reproduce
Steps to reproduce the behavior:

1. Go to 'Firewall > Rules > INTERFACE'
2. Click on 'Inspect'

Expected behavior
The new 'Inspect' feature should show statistics for each of the firewall rules (as I understand).

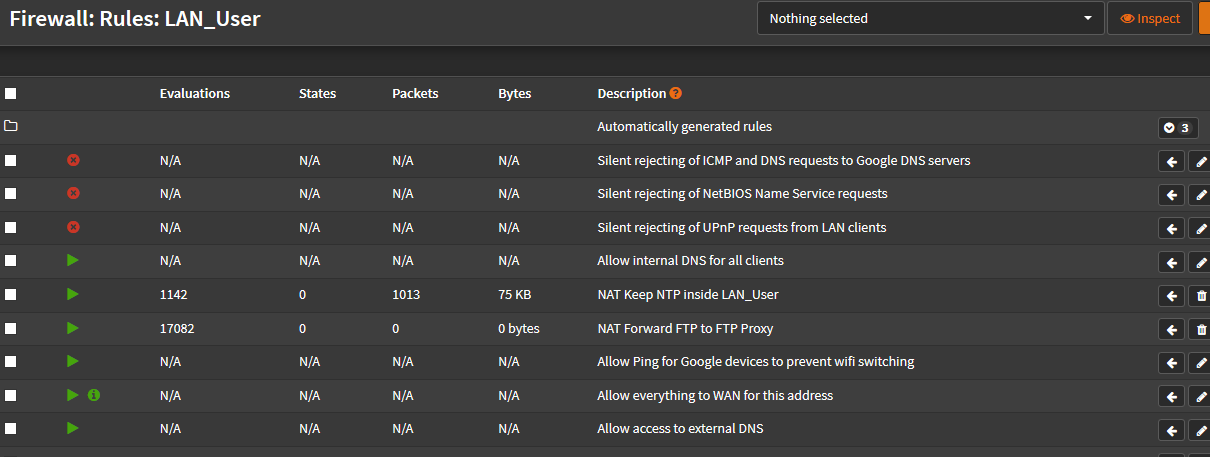

Screenshots

Relevant log files
Don't know which log file could help to identify the issue.

Additional context
I've already asked some forum members if they knew the issue or how to solve it. But nobody else seems to have this issue.

Environment
OPNsense 19.7.1 (amd64)
Intel(R) Celeron(R) CPU J1900 @ 1.99GHz (4 cores)
OnBoard Realtek
2 x Realtek GbE OnBoard LAN chips (10/100/1000 Mbit)

[AdSchellevis]

I haven't seen the issue either, some things you could try:

Reload ruleset to make sure there are no parsing issues:

pfctl -f /tmp/rules.debug

(shouldn't generate output)

Check the output of the following command (which is the same as our stats use):

/sbin/pfctl -sr -v

The labels (e.g. 57e45e98f405ff38156d7ccef945da92) should match in /tmp/rules.debug where you can find the description (or the other way around).

[fichtner]

it could be rules optimised out so no stats can be gathered in the first place

[JasMan78]

The reload of the ruleset didn't helped.

The output of the second command shows me values for all my rules.

pass in quick on hn1_vlan10 inet proto tcp from <Email_Clients> to ! <Private_Networks> port = imaps flags S/SA keep state label "43043f5837bb8a73d9aa4d6b4cef689f"
  [ Evaluations: 4         Packets: 140       Bytes: 51905       States: 0     ]
  [ Inserted: uid 0 pid 85819 State Creations: 1     ]

The WebGUI still shows N/A

[JasMan78]

Yeeeehaaa, I've found the issue. :)
I associated each rule to a category like "LAN > Internet" or "WAN > DMZ".
The inspect feature don't like the ">" sign. After I'd removed it, the values were shown.

[fichtner]

HTML encode -> hash mismatch maybe?

[AdSchellevis]

OPNsense\Firewall\Util::calcRuleHash() on escaped content seems to be the culprit indeed, will fix in close in the next commit.
