Mix

The Mix modules are a range of Eurorack synth modules created by Rebel Technology. They can be used stand-alone or in combination to build custom mixers and routers, both for audio and control voltages. Featuring an Analogue Bus, the modules can be daisy chained to create larger, more complex systems with endless routing possiblities.

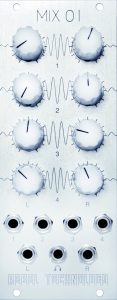

Mix 01

Mix 01 is an extensible 4 in / 2 out matrix mixer with dedicated stereo headphone output.

• Schematic
• Bill of Materials
• Product Page: http://rebeltech.org/products/mix-01

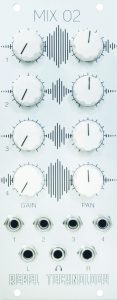

Mix 02

Mix 02 is a 4 in, 2 out panning mixer with dedicated stereo headphone output.

• Schematic
• Bill of Materials
• Product Page: http://rebeltech.org/products/mix-02

Mix 03

Mix 03 is a 4 input mono mixer for audio and CV signals.

• Schematic
• Bill of Materials
• Product Page: http://rebeltech.org/products/mix-03

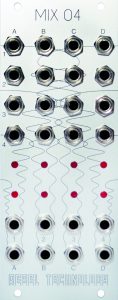

Mix 04

Mix 04 is a 4 input / 4 output matrix VCA with 16 individual Voltage Controlled Amplifiers.

• Schematic p1, p2, p3
• Bill of Materials
• Product Page: http://rebeltech.org/products/mix-04

License and Copyright

The Rebel Technology Mix modules are Open Hardware, published under the Gnu GPL. Copyright 2017 Rebel Technology.
