Flutter Flare Demo

Hello All

In Flutter Live 2018 few important announcement's are

• Flare
• Square
• PlatformViews (To know how to use click here).
• HummingBird

Here in this article you will learn about Flare and How to use it in.

Lets Start

Step 1 :

Import flare dependency into your flutter project

flare_flutter: ^1.0.4

Step 2:

Create a flare project Here or use an existing one Here

In this article i am using a minion from here

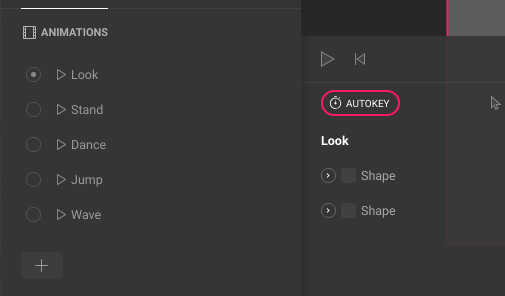

Inside flare editor we will a list of animations avialable with the minion design

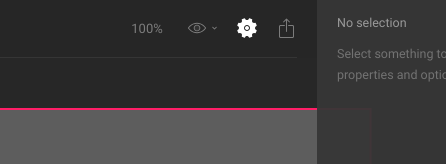

Now click on export on the top Right > Export

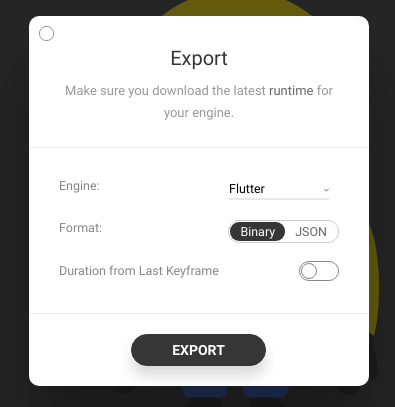

Now select Flutter, Select Binary Click on Export

Now Copy the download file and paste it in project_dir/images/ folder

Step 3

Import flare inside your dart file

import 'package:flare_flutter/flare_actor.dart';

Step 4

Inside pubspec.yaml file enable access to copied flare files

assets:
  - images/

Step 5

Now lets create a FlareActor and pass the .flr file to it

FlareActor(
  "images/minion.flr",
  alignment: Alignment.center,
  fit: BoxFit.contain,
  animation: "Look",
)

In the above code animation takes a String i.e., the name of the animation as shown in the Step 2

Step 6

Inside our dart file lets make bottons and add animtions to each one

String _animation = "idle";

void doAnimate(String anim) {
  setState(() {
    _animation = anim;
  });
}

@override
Widget build(BuildContext context) {
  return Scaffold(
    appBar: AppBar(
      title: Text(widget.title),
    ),
    body: Column(
      children: <Widget>[
        //flare actor
        Expanded(
          child: FlareActor(
            "images/minion.flr",
            alignment: Alignment.center,
            fit: BoxFit.contain,
            animation: _animation,
          ),
        ),
        //animations
        Row(
          mainAxisAlignment: MainAxisAlignment.spaceEvenly,
          children: <Widget>[
            RaisedButton(
              child: Text("Look"),
              onPressed: () {
                doAnimate("Look");
              },
            ),
            RaisedButton(
              child: Text("Dance"),
              onPressed: () {
                doAnimate("Dance");
              },
            ),
            RaisedButton(
              child: Text("Stand"),
              onPressed: () {
                doAnimate("Stand");
              },
            )
          ],
        ),
        Row(
          mainAxisAlignment: MainAxisAlignment.spaceEvenly,
          children: <Widget>[
            RaisedButton(
              child: Text("Jump"),
              onPressed: () {
                doAnimate("Jump");
              },
            ),
            RaisedButton(
              child: Text("Wave"),
              onPressed: () {
                doAnimate("Wave");
              },
            )
          ],
        )
      ],
    ),
  );
}

In the above code we declare a varibale _animation and assign it a value idle as inital state and when we click on a button we change the _animation to a sutiable animation

Our animation function

void doAnimate(String anim) {
  setState(() {
    _animation = anim;
  });
}

Demo


Step 7 (Optional) - Additional

Inorder to get full control of the animation we need to use FlareController

we need to make our statefull widget to implement FlareController and our FlareActor will become like this.

FlareActor(
  "images/minion.flr",
  alignment: Alignment.center,
  fit: BoxFit.contain,
  animation: _animation,
)

and we need to override few methods from the FlareController

@override
bool advance(FlutterActorArtboard artboard, double elapsed) {
  // TODO: implement advance
  return null;
}
@override
void initialize(FlutterActorArtboard artboard) {
  // TODO: implement initialize
}
@override
void setViewTransform(Mat2D viewTransform) {
  // TODO: implement setViewTransform
}
