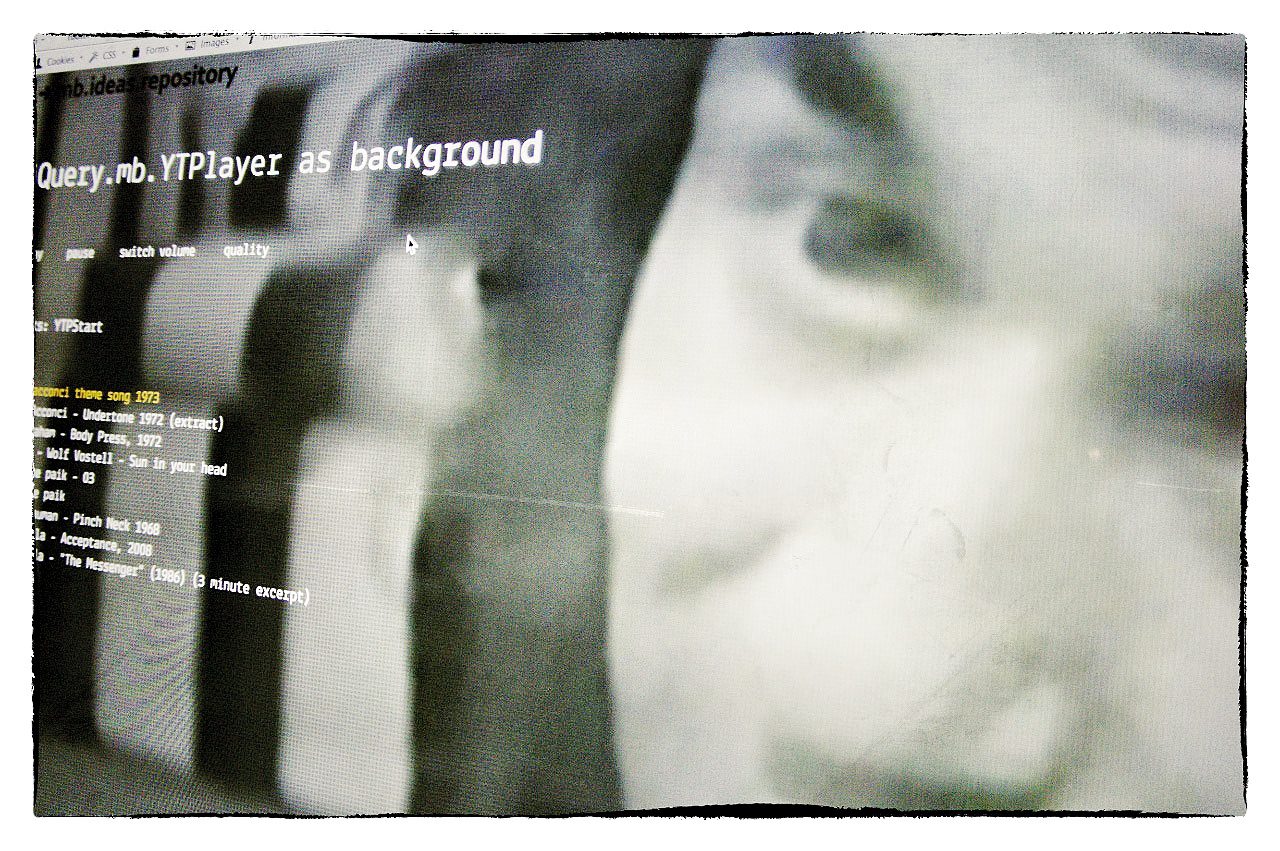

jquery.mb.YTPlayer

This is a jQuery component that let you play a Youtube® movie in a chromeless player.
You can even use a movie as background of your HTML page.

go to Demo page
go to the Download page

Available also as WordPress® component:
go to the WordPress® component page

Important notice!

  • The plug in works only if used under a web server. It doesn’t work if you run the HTML page as file (file://…).
    If you want to run it locally on your computer you need a web server installed (for ex: MAMP for Mac, XAMP for Windows, LAMP for linux) and reach the file from http://localhost… or whatever you mapped in the Host file as localhost.
  • This player doesn’t work as background for devices due to the restriction policy adopted by all on managing multimedia files via javascript. It fallsback to the default Youtube player if used as player (not applied to the body).

head inclusions:


<link href="css/YTPlayer.css" media="all" rel="stylesheet" type="text/css">

<script src="http://ajax.googleapis.com/ajax/libs/jquery/3.0.0/jquery.min.js"></script>
<script src="inc/jquery.mb.YTPlayer.js"></script>

JS call:


    $(function(){
      jQuery("#[playerID]").YTPlayer();
    });

HTML constructor:

<div id="bgndVideo" class="player" data-property="{videoURL:'http://youtu.be/BsekcY04xvQ',containment:'body',autoPlay:true, mute:true, startAt:0, opacity:1}">My video</div>

data-property:

data-property is an attribute of the TAG where you can pass the options of the player as an Object. Any of the below parameter can also be passed as option within the initialize function. The one defined as attribute of the TAG wins.

  • mute: true (boolean) mute the audio;
  • showControls: true (boolean) show or hide the player controls;
  • ratio: ‘4/3’, ‘16/9’ or ‘auto’ (string) to set the aspect ratio of the movie; if ‘auto’ the aspect ratio will be retreived form the getDataFromFeed method.
  • quality: ‘default’ or “small”, “medium”, “large”, “hd720”, “hd1080”, “highres”.
  • opacity: 0 to 1 (number) define the opacity of the video.
  • containment: (string) the CSS selector of the DOM element where you want the video background; if not specified it takes the “body”; if set to “self” the player will be instanced on that element.
  • optimizeDisplay: true (boolean) will fit the video size into the window size optimizing the view.
  • loop: false (boolean) or a number rapresenting how many times the video should loops once ended.
  • vol: 1 to 100 (number) set the volume level of the video.
  • startAt: 20 (number) Set the seconds the video should start at.
  • stopAt: 20 (number) Set the seconds the video should stop at. If 0 is ignored.
  • autoPlay: true (boolean) or false play the video once ready.
  • showYTLogo: true (boolean) Show or hide the YT logo and the link to the original video URL.
  • addRaster: false (boolean) Show or hide a raster image over the video.
  • mask: ‘path/to/mask’ or object {0:‘path/to/mask1’, 20:‘path/to/mask2’, …} or false. From version 3.0. Add a mask to the player or a map of masks for each time specified.
  • realfullscreen: true (boolean) activate the new HTML5 full screen behavior.
  • stopMovieOnBlur: true (boolean) activate the pause behavior when the window loose focus.
  • gaTrack: true (boolean) activate the Google Analytics event tracker for that player.
  • align: ‘ceter,center’ (string) From version 3.0.3. Define how the video will behave once the window is resized; possible value are: ‘top,bottom,left,right,center’; it accept a pair of value comma separated (ex: ‘top,right’ or ‘bottom,left’).

Using jquery.mb.YTPlayer:

To initialize a YTPlayer as simple player:


<div id="P1" class="player"
     data-property="{videoURL:'http://youtu.be/l_tHTmd5pgk',containment:'self',startAt:50,mute:false,autoPlay:false,loop:false,opacity:.8}">
</div>

To initialize a YTPlayer as background:


<div id="bgndVideo" class="player"
     data-property="{videoURL:'http://youtu.be/BsekcY04xvQ',containment:'body',autoPlay:true, mute:true, startAt:0, opacity:1}">
</div>

To initialize a YTPlayer as element background (from v. 1.2.1):


<div id="P1" class="player"
     data-property="{videoURL:'http://youtu.be/l_tHTmd5pgk',containment:'#ElementID',startAt:0,mute:false,autoPlay:false,loop:false,opacity:1}">
</div>

What you can pass to the “videoURL” paramenter:

To retrive the video from YouTube you can use any of the following string:

  • The URL of the page containing the video
    videoURL: ‘https://www.youtube.com/watch?v=V2rifmjZuKQ’.
  • The short URL available fron the YouTube share panel
    videoURL: ‘http://youtu.be/V2rifmjZuKQ’.
  • The video ID
    videoURL: ‘V2rifmjZuKQ’.

Play a list of videos (from v. 2.5.0)

$.fn.YTPlaylist(videos, shuffle, callback)

  • Define an array of objects containing the properties for each video:
var videos = [
            {videoURL:"VuaJAgx0x_4",containment:'body',autoPlay:true, mute:false, startAt:0,opacity:1, loop:false, ratio:"4/3", addRaster:true},
            {videoURL: "3ovA7zeviRo",containment:'body',autoPlay:true, mute:true, startAt:0,opacity:1, loop:false, ratio:"4/3", addRaster:false},
            {videoURL: "u9k1FaMIYTs",containment:'body',autoPlay:true, mute:false, startAt:0,opacity:1, loop:false, ratio:"4/3", addRaster:true}
        ];
  • Initialize the player using the “$.fn.YTPlaylist(videos, shuffle, callback)” method:

   jQuery("#[playerID]").YTPlaylist(videos, true);

This method accepts 3 parameters:

  1. videos: (array) the array of objects describing each video.
  2. shuffle: (boolean) setting this to true you can have a random sequence of videos.
  3. callback: (function) A callback function fired on each video change. it accept the actual “video” as parameter. The “video” element passed to the function contains all the information retrieved using the Youtube API and stored in the videoData (video.videoData).
    Example:

    jQuery("#myPlayerID").YTPlaylist(videos, false, function(video){
       jQuery("#videoID").html(video.videoData.id);
       jQuery("#videoTitle").html(video.videoData.title);
       jQuery("#videoDesc").html(video.videoData.description);
    });


Check the examples here

External methods

$.fn.YTPChangeMovie(opt)
This method let you change the video of the specified player.
It accept an Object as parameter containing all the data-property (see above) you need for the video; the only required is the videoURL parameter that can contain either the complete URL or the short URL provided by Youtube or the video ID.
For example:

<button onclick="jQuery('#[playerID]').YTPChangeMovie({videoURL:'http://youtu.be/3ovA7zeviRo',ratio:'4/3'})"> Dan Graham - Body Press, 1972 </button>

$.fn.YTPPlay()
Let you play the video.
For example:

<button onclick="jQuery('#[playerID]').YTPPlay()">play</button>

$.fn.YTPPause()
Let you pause the video.
For example:

<button onclick="jQuery('#[playerID]').YTPPause()">pause</button>

$.fn.YTPStop()
Let you stop the video.
For example:

<button onclick="jQuery('#[playerID]').YTPStop()">stop</button>

$.fn.YTPFullscreen()
Let you switch video from background to front.
For example:

<button onclick="jQuery('#[playerID]').YTPFullscreen()">bring to front / send to back</button>

$.fn.YTPSetVolume(val)
Let you change the video volume.
For example:

<button onclick="jQuery('#[playerID]').YTPSetVolume(20)">change volume</button>

$.fn.YTPMute()
Let you mute the audio.
For example:

<button onclick="jQuery('#[playerID]').YTPMute()">mute</button>

$.fn.YTPUnmute()
Let you unmute the audio.
For example:

<button onclick="jQuery('#[playerID]').YTPUnmute()">unmute</button>

$.fn.YTPToggleVolume()
Let you switch from mute to unmute.
For example:

<button onclick="jQuery('#[playerID]').YTPToggleVolume()">unmute/unmute</button>

$.fn.YTPGetPlayer()
Let you retrive the original player returned by the YouTube API. You can then apply all the methods available on the API itself.
For example:

<button onclick="alert(jQuery('#[playerID]').YTPGetPlayer().getPlayerState())">get state</button>

$.fn.YTPGetVideoData()
Returns the info data of the current video as JSON.
This method works only if the API key has been passed as option.

For example:

<button onclick="console.log(jQuery('#[playerID]').YTPGetVideoData())">video info</button>

$.fn.YTPPlayNext()
Available only if you are playing a video list; goes to the next video in the play list.
For example:

<button onclick="jQuery('#[playerID]').YTPPlayNext()">play next</button>

$.fn.YTPPlayPrev()
Available only if you are playing a video list; goes to the previous video in the play list.
For example:

<button onclick="jQuery('#[playerID]').YTPPlayPrev()">play previous</button>

$.fn.YTPPlayIndex(idx)
Available only if you are playing a video list; goes to a specific video in the play list based on the index.
For example:

<button onclick="jQuery('#[playerID]').YTPPlayIndex(2)">play the second video in the list</button>

$.fn.YTPSetAlign()
Define how the video will behave once the window is resized; possible value are: ‘top,bottom,left,right,center’; it accept a pair of value comma separated (ex: ‘top,right’ or ‘bottom,left’)
For example:

<button onclick="jQuery('#[playerID]').YTPSetAlign('top,right')">Top/Right</button>

$.fn.YTPGetAlign()
Return the alignment of the actual video.
For example:

<button onclick="alert(jQuery('#[playerID]').YTPGetAlign())">Get Align</button>

Check the examples here

Filters:

From version 2.8.5 you can apply css filters to the video (Except for IE that will not render CSS filters).

The available filters are:

  • grayscale : 1-100,
  • hue_rotate: 1-360,
  • invert : 1-100,
  • opacity : 1-100,
  • saturate : 1-400,
  • sepia : 1-100,
  • brightness: 1-400,
  • contrast : 1-400,
  • blur : 1-100

Below you can find the list of available methods to manage filters; all those methods can be called after the YTPlayer has been initialized.

$.fn.YTPApplyFilter(filter, value)
Apply a css filter to the player; accept the name of the filter and the value.
For example:

<button onclick="jQuery('#[playerID]').YTPApplyFilter('sepia', 50)">apply sepia effect</button>

$.fn.YTPApplyFilters(filters)
Apply multiple css filter to the player; accept an object rapresenting the list of filters to be applied as key: value.
For example:


var filters = {
  sepia: 50,
  hue_rotate : 220
}
jQuery('#[playerID]').YTPApplyFilters(filters)

$.fn.YTPtoggleFilter(filter, value)
Toggles the filter from the passed value to 0 and viceversa; accept the name of the filter and the value.
For example:

<button onclick="jQuery('#bgndVideo').YTPtoggleFilter('sepia', 50)">toggle sepia effect</button>

$.fn.YTPToggleFilters(callback)
Toggles all the filters; accept a callback function.
For example:

<button onclick="jQuery('#[playerID]').YTPToggleFilters(function(val){alert('filters are enabled: ' + val)})">toggle all filters</button>

$.fn.YTPRemoveFilter(filter, callback)
Removes the specified filter; accept the name of the filter and a callback function.
For example:

<button onclick="jQuery('#[playerID]').YTPRemoveFilter('sepia', function(filter){alert(filter)})">remove sepia effect</button>

$.fn.YTPDisableFilters()
Disables all the appied filters.
For example:

<button onclick="jQuery('#[playerID]').YTPDisableFilters()">disable all filters</button>

$.fn.YTPEnableFilters()
Enables all the appied filters.
For example:

<button onclick="jQuery('#[playerID]').YTPEnableFilters()">enable all filters</button>

Check the examples here

Mask:

From version 3.0 you can apply a mask to the video. A mask is a png file that will overlay the video.

Below you can find the list of available methods to manage mask; all those methods can be called after the YTPlayer has been initialized.

$.fn.YTPAddMask(“path/to/mask”)
Add a mask to the target video player. If you call the YTPAddMask method while a mask has been already applied the previous mask will be replaced.
For example:

<button onclick="jQuery('#[playerID]').YTPAddMask('assets/mask-1.png')">Add Mask</button>

$.fn.YTPRemoveMask()
Remove the previously applied mask from the target video player.
For example:

<button onclick="jQuery('#[playerID]').YTPRemoveMask()">Remove Mask</button>

$.fn.YTPToggleMask()
toggle actual mask on and off.
For example:

<button onclick="jQuery('#[playerID]').YTPToggleMask()">Toggle Mask</button>

You can also use those method within the “YTPTime” event trigger to display a specific mask at a specific time during the video play.
For example:


       var myPlayer = jQuery('#[playerID]').YTPlayer();
       myPlayer.on("YTPTime", function (e) {
            var currentTime = e.time;
            switch (currentTime) {
                case 1:
                    myPlayer.YTPAddMask('assets/mask-2.png');
                    break;
                case 10:
                    myPlayer.YTPAddMask('assets/mask-1.png');
                    break;
                case 15:
                    myPlayer.YTPRemoveMask();
                    break;
                case 20:
                    myPlayer.YTPAddMask('assets/mask-4.png' );
                    break;
            }
        });

You can also define the mask via the options:


       //Single mask
       var myPlayer = jQuery("#[playerID]").YTPlayer({mask:'assets/mask-1.png'});

Or:


       //Multiple masks time:mask
       var myPlayer = jQuery("#[playerID]").YTPlayer({
            mask:{
                0:'assets/mask-1.png',  // at the beginning
                5:'assets/mask-4.png',
                25:'assets/mask-1.png',
                30: false,
                50:'assets/mask-4.png'
            }
        });

Check the examples here

Events

The player triggers a specific event for each state:

  • YTPUnstarted: Before the video start playing (time is passed on the event object)
  • YTPBuffering: When video is buffering (time is passed on the event object)
  • YTPReady: When the video is ready to start playing
  • YTPStart: When the video start playing (time is passed on the event object)
  • YTPPlay: Each time the video change from paused to play.
  • YTPPause: When the video pause (time is passed on the event object)
  • YTPEnd: When video end; you can retrieve the time on the event object.
  • YTPFullScreenStart: When video goes full screen modality
  • YTPFullScreenEnd: When video exit full screen modality
  • YTPMuted: When video is muted
  • YTPUnmuted: When video is unmuted
  • YTPTime: Fired every seconds (time is passed on the event object: e.time)
  • YTPData: Fired on feed data retrieved (prop are passed on the event object: e.prop)

You can use these events to fire functions on a specific event as follow:


jQuery('#[playerID]').on("YTPEnd",function(e){
   var currentTime = e.time;
   //your code goes here
});

jQuery('#[playerID]').on("YTPTime",function(e){
   var currentTime = e.time;
   if(currentTime == 20) //if the player is at the 20th second
      //do something
});

YTPData event

This event let you get informations on the video you are playing. To activate this option you need a Youtube API key that you can pass to the component as an option just before initializing it:


jQuery.mbYTPlayer.apiKey = "xxxxxx_xxxxxxxxxxxxxxxxxxxx";
var myVideo = jQuery('#[playerID]').YTPlayer();
myVideo.on("YTPData", function(e){
    console.debug("******************************");
    console.debug(e.prop.title);
    console.debug(e.prop.description.replace(/\n/g, "<br/>"));
    console.debug("******************************");
});

You can also refer to the data directly from the YTPlayer instance once the data are available:


jQuery.mbYTPlayer.apiKey = "xxxxxx_xxxxxxxxxxxxxxxxxxxx";
var myPlayer = jQuery(".player").YTPlayer();
jQuery("#myButton").on("click", function(){
   if(myPlayer && myPlayer.YTPGetVideoData()){
      jQuery("#myInfobox").html(myPlayer.YTPGetVideoData().description);
   }
})

Below the available video properties:

video.videoData properties:

  • videoData.id
  • videoData.channelTitle
  • videoData.title
  • videoData.description
  • videoData.thumb_max
  • videoData.thumb_high
  • videoData.thumb_medium

how to obtain a Youtube API key

Google Analytics

If you are tracking your site with Google Analytics each player included into a page will generate a ga_event to get statistics for that video under the “Behavior > Events” Google Analytics tab.

Remove ADs

If you doesn’t want ADs on your background video and you are the owner of it you can disable advertisings on your Youtube channel as explained here.
