ENH: override sf for rdist distribution

[OmarManzoor]

Reference issue

Towards gh-17832

What does this implement/fix?

• Override and add the sf method for rdist distribution
• Add some tests

Additional information

CC: @mdhaber Could you kindly have a look to see if this change makes sense? If it looks feasible then we can add the reference distribution to set up the tests.

[OmarManzoor]

from scipy import stats
import numpy as np
from time import perf_counter
import matplotlib.pyplot as plt
rng = np.random.default_rng()
from mpmath import mp
mp.dps = 200

def rdist_sf_mpmath(x, c):
    x = mp.mpf(x)
    c = mp.mpf(c)
    return float(mp.one - mp.betainc(c/2, c/2, 0, (x+1)/2, regularized=True))

def rdist_sf(x, c):
    return stats.beta._sf((x+1)/2, c/2, c/2)

c = 541.0
x = np.logspace(-5, 10)
plt.loglog(x, stats.rdist.sf(x, c), label="rdist sf main", ls="dashed")
plt.loglog(x, rdist_sf(x, c), label="rdist sf pr", ls="dashdot")
plt.legend()
plt.show()

[mdhaber]

It makes sense. Go ahead and revise the tests, and we can probably merge. (Would you also show the plot for arguments 1-x where x = np.logspace(-16, -0.5), and show the curve for the mpmath implementation, too? That would show the important region more clearly.)

Alternatively, we could omit the custom test here. The generic tests confirms that this override is consistent with the rest of the distribution, and this is a very straightforward implementation of _sf. If we had an existing implementation with numerical difficulties that we were upgrading, I would see a need for a custom test to check that the problem had been resolved. But this is not fixing a problem specific to the distribution - it's the same cancellation error experienced by all 1 - cdf implementations - so it could be argued that no specific test is needed. (Instead, we should have some sort of generic test for all _sf overrides, which need not be added here.)

[OmarManzoor]

@mdhaber

Here is the plot for

c = 541.0
x = np.logspace(-15, -0.5)
x = 1 - x
mpmath_values = np.array([rdist_sf_mpmath(_x, c) for _x in x], np.float64)
plt.loglog(x, stats.rdist.sf(x, c), label="rdist sf main", ls="dashed")
plt.loglog(x, rdist_sf(x, c), label="rdist sf pr", ls="dashdot")
plt.loglog(x, mpmath_values, label="rdist mpmath", ls="dotted")
plt.legend()
plt.show()

[mdhaber]

This is what i was going for.

from scipy import stats
import numpy as np
from time import perf_counter
import matplotlib.pyplot as plt
rng = np.random.default_rng()
from mpmath import mp
mp.dps = 1000

def rdist_sf_mpmath(x, c):
    x = mp.mpf(x)
    c = mp.mpf(c)
    return float(mp.one - mp.betainc(c/2, c/2, 0, (x+1)/2, regularized=True))

def rdist_sf(x, c):
    return stats.beta._sf((x+1)/2, c/2, c/2)

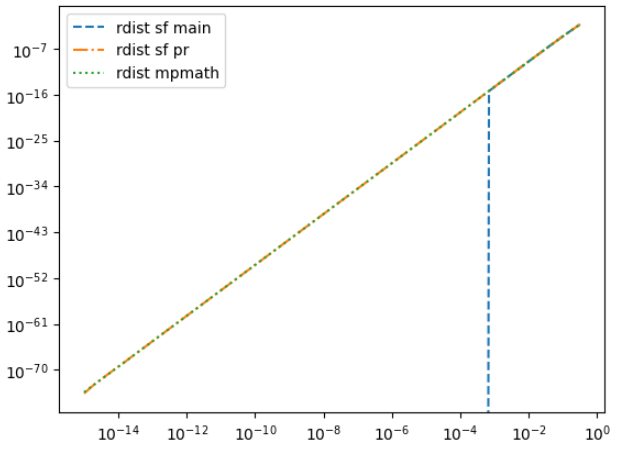

c = 10
x = np.logspace(-15, -0.5)
mpmath_values = np.array([rdist_sf_mpmath(1-_x, c) for _x in x], dtype=np.float64)
plt.loglog(x, stats.rdist.sf(1-x, c), label="rdist sf main", ls="dashed")
plt.loglog(x, rdist_sf(1-x, c), label="rdist sf pr", ls="dashdot")
plt.loglog(x, mpmath_values, label="rdist mpmath", ls="dotted")
plt.legend()
plt.show()

This shows that for moderate values of c, there is a meaningful improvement because the default implementation, sf = 1 - cdf, turns values of the survival function less than ~1e-16 into zero, whereas the implementation that computes the SF directly does not.

[OmarManzoor]

This is what i was going for.

from scipy import stats
import numpy as np
from time import perf_counter
import matplotlib.pyplot as plt
rng = np.random.default_rng()
from mpmath import mp
mp.dps = 1000

def rdist_sf_mpmath(x, c):
    x = mp.mpf(x)
    c = mp.mpf(c)
    return float(mp.one - mp.betainc(c/2, c/2, 0, (x+1)/2, regularized=True))

def rdist_sf(x, c):
    return stats.beta._sf((x+1)/2, c/2, c/2)

c = 10
x = np.logspace(-15, -0.5)
mpmath_values = np.array([rdist_sf_mpmath(1-_x, c) for _x in x], dtype=np.float64)
plt.loglog(x, stats.rdist.sf(1-x, c), label="rdist sf main", ls="dashed")
plt.loglog(x, rdist_sf(1-x, c), label="rdist sf pr", ls="dashdot")
plt.loglog(x, mpmath_values, label="rdist mpmath", ls="dotted")
plt.legend()
plt.show()

This shows that for moderate values of c, there is a meaningful improvement because the default implementation, sf = 1 - cdf, turns values of the survival function less than ~1e-16 into zero, whereas the implementation that computes the SF directly does not.

Nice! I understand, thank you for the explanation. Should I remove the tests that I added for this?

[mdhaber]

I went ahead and checked the tests as they are. I think the first two would pass in main, so they aren't really needed, but having the second two can't hurt, even if they are mostly a test of the accuracy of beta.sf. I refactored

float(mp.one - mp.betainc(c/2, c/2, (x+1)/2, mp.one, regularized=True))

to

float(mp.betainc(c/2, c/2, (x+1)/2, mp.one, regularized=True))

because we might as well calculate the SF directly if we can.
In the future, please use ReferenceDistribution, but I'll go ahead and merge as-is now.
