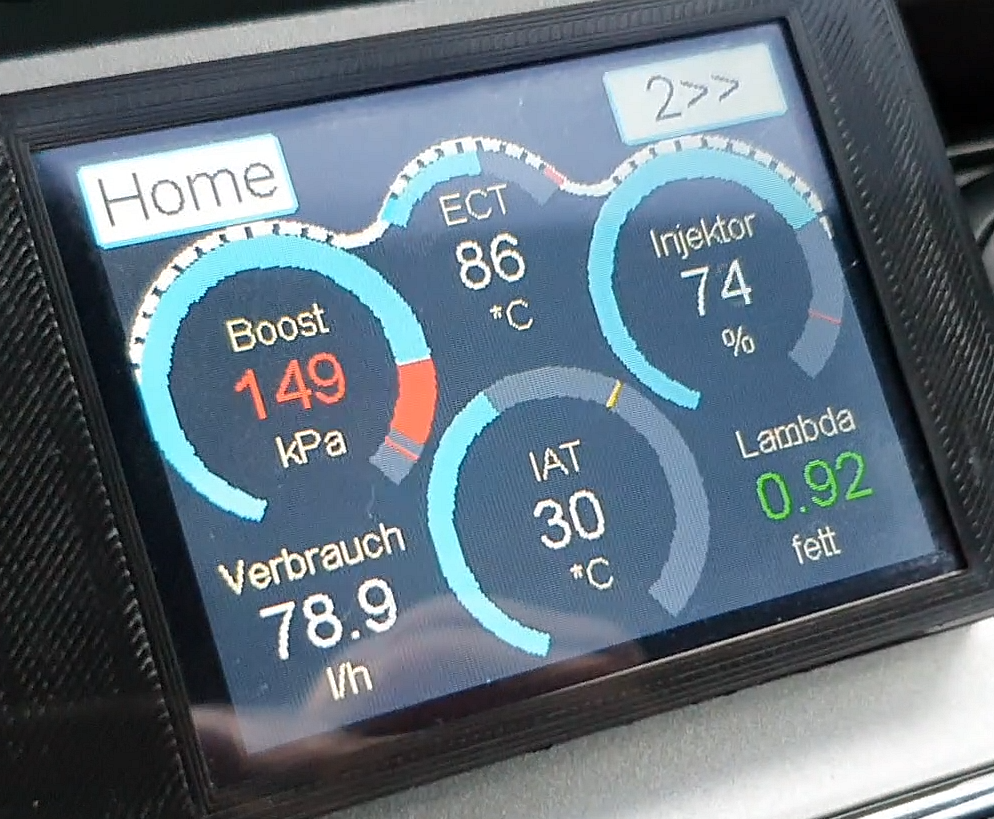

Display motor data, display maximum values, read out and delete error codes, analog display
Check the NEW VERSION https://github.com/sepp89117/Opel_Astra_H_opc_CAN-GaugeV2
Author: Sebastian Balzer (GER)
Version: 1.0 (19.01.2020)
Hardware: Teensy 4.0, Waveshare CAN Board SN65HVD230, ILI9341 320x240 TFT with XPT2046 Touch, LM2596 DC/DC Converter - set 5.0 Volt out
Car: Opel Astra H opc
Interface: HSCAN 500 kBaud (Pin 6 and 14 on OBD connector)
TODO
- Replace all String with char*
- Acoustic alarm when limit values are exceeded
- Create an opcButton class with is-touched function
- Switch off/on ESP by pressing the opc logo in the top right corner
- Test read out several trouble codes
As a hobby programmer, I developed this tool using CAN sniffing. It gives me a lot of joy in my vehicle. A video of the project on YouTube: https://www.youtube.com/watch?v=h3EL3UFl1sk
You are welcome to improve the code
