README.md

weather-sdr-decode

Decoders for wireless weather sensor data received with RTL SDR.

Prerequisites

  • rtl-sdr
  • Python 2.7, on slow machines PyPy is recommended
  • Wireless weather sensor

decode_elv_wde1.py

This program decodes weather data produces by wiresless sensors from ELV.

It should work with the following sensors:

  • Temperature sensor S 300 IA
  • Temperature/Hygro sensor S 300 TH und ASH 2200
  • Temperature/Hygro/Wind/Rain ("Kombi") sensor KS 200/300

I've tested it with:

  • Temperature/Hygro sensor S 300 TH
  • Kombi sensor KS 300-2 (Picture below)

Picture of KS 300

Typical usage:

rtl_fm -M -f 868.35M -s 30k | ./decode_elv_wde1.py -

Help:

./decode_elv_wde1.py -h

References

decode_mebus.py

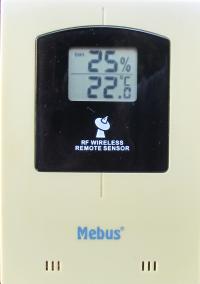

This program decodes weather data produces by wiresless sensors from Mebus like this one:

Picture of Mebus outdoor sensor

Typical usage:

rtl_fm -M -f 433.84M -s 30k | ./decode_mebus.py -

Help:

./decode_mebus.py -h

References

  • RTL SDR
  • The weather sensors are manufactured by Albert Mebus GmbH, Haan, Germany

Performance

To decode in real time on machines with a slower CPU like the Raspberry Pi, the usage of PyPy as Python interpreter is recommended. The script decode_elv_wde1.py runs four times faster with PyPy. To set it as standard interpreter, change the first line of the script into

#!/usr/bin/env pypy

License

Copyright 2014 Martin Kompf

This program is free software: you can redistribute it and/or modify it under the terms of the GNU General Public License as published by the Free Software Foundation, either version 3 of the License, or (at your option) any later version.

This program is distributed in the hope that it will be useful, but WITHOUT ANY WARRANTY; without even the implied warranty of MERCHANTABILITY or FITNESS FOR A PARTICULAR PURPOSE. See the GNU General Public License for more details.

You should have received a copy of the GNU General Public License along with this program. If not, see http://www.gnu.org/licenses/.
