SparkFun Servo Trigger

SparkFun Servo Trigger

SparkFun Servo Trigger (WIG-13118)

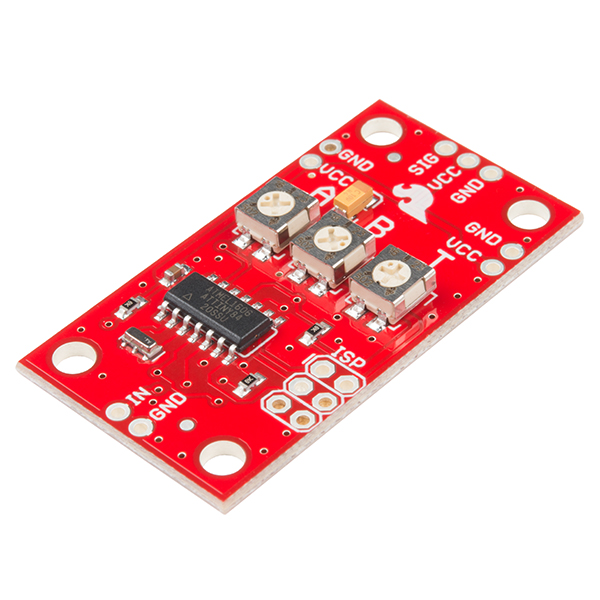

The SparkFun Servo Trigger is a small robotics board that simplifies the control of hobby RC servo motors. When an external switch or logic signal changes state, the Servo Trigger is able to tell an attached servo motor to move from position A to position B. To use the Servo Trigger, you simply connect a hobby servo and a switch, then use the on-board potentiometers to adjust the start/stop positions and the transition time.

Repository Contents

  • /Docs - Programming notes
  • /Firmware - Example firmware for running the Servo Trigger
  • /Hardware - All Eagle design files (.brd, .sch)
  • /Production - Test bed files and production panel files

License Information

The hardware is released under Creative Commons ShareAlike 4.0 International. The code is beerware; if you see me (or any other SparkFun employee) at the local, and you've found our code helpful, please buy us a round!

Distributed as-is; no warranty is given.
