implemented Shape class that can construct closed 2D Figure and methods area, centroid, second_moment_of_area #14434
base: master
Are you sure you want to change the base?
Changes from all commits
f4e1d7a
cb53c1e
93ae956
05eeb4a
805d83e
a746a25
e6b9894
de9e1ca
ef7e736
368dfb0
83ce99e
File filter
Filter by extension
Conversations
Jump to
Diff view
Diff view
There are no files selected for viewing
Original file line number | Diff line number | Diff line change |
---|---|---|
@@ -0,0 +1,318 @@ | ||
""" 2D geometrical entity constructed by boolean operations | ||
of various geometric elements. | ||
|
||
""" | ||
|
||
from __future__ import division, print_function | ||
from sympy.core import S, pi, sympify | ||
from sympy.core.compatibility import ordered | ||
from sympy.core.symbol import _symbol | ||
from sympy.core.numbers import Rational, oo | ||
from sympy import symbols, simplify, solve | ||
from sympy.geometry.entity import GeometryEntity, GeometrySet | ||
from sympy.geometry.point import Point, Point2D | ||
from sympy.geometry.line import Line, Line2D, Ray2D, Segment2D, LinearEntity3D | ||
from sympy.geometry.ellipse import Ellipse, Circle | ||
from sympy.geometry.parabola import Parabola | ||
from sympy.functions.elementary.trigonometric import asin | ||
|
||
from sympy import Abs, sqrt | ||
|
||
class Shape(GeometrySet): | ||
""" | ||
Parameters | ||
There was a problem hiding this comment. Choose a reason for hiding this commentThe reason will be displayed to describe this comment to others. Learn more. Please add a description to the top of the docstring describing what the class is. There was a problem hiding this comment. Choose a reason for hiding this commentThe reason will be displayed to describe this comment to others. Learn more. ok. I will add |
||
========== | ||
|
||
conic : Ellipse, Circle, Parabola | ||
line : Line | ||
|
||
Attributes | ||
========== | ||
|
||
area | ||
centroid | ||
second moment of area | ||
product moment of area | ||
|
||
Raises | ||
====== | ||
|
||
TypeError | ||
Wrong type of argument were put | ||
When The generated shape is not a closed figure | ||
NotImplementedError | ||
When `line` is neither horizontal nor vertical. | ||
|
||
Notes | ||
===== | ||
|
||

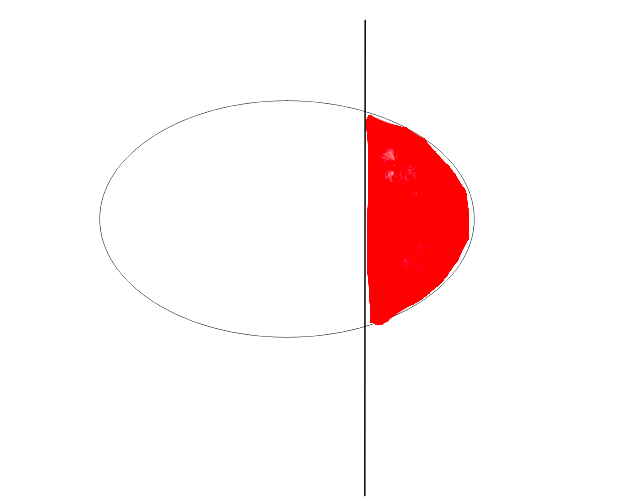

If the conic figure is Circle or Ellipse and if the line is vertical, | ||
then the shape will be segment that belongs to right side of the line. | ||

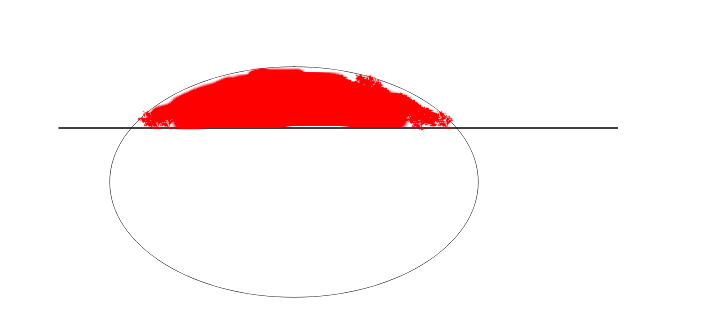

And if the line is horizontal, then the shape will be above the line. | ||
There was a problem hiding this comment. Choose a reason for hiding this commentThe reason will be displayed to describe this comment to others. Learn more. I'm not really clear what this class is supposed to represent, but this seems confusing to me. Is there a better way to construct such shapes? There was a problem hiding this comment. Choose a reason for hiding this commentThe reason will be displayed to describe this comment to others. Learn more. There was a problem hiding this comment. Choose a reason for hiding this commentThe reason will be displayed to describe this comment to others. Learn more. we can form similar type of close shape using straight line and (parabola, ellipse, circle) There was a problem hiding this comment. Choose a reason for hiding this commentThe reason will be displayed to describe this comment to others. Learn more.
These might better be termed "segments" of conics (and I would prefer that to "shape" which is a much more general thing). They could perhaps be constructed by giving a line, width, and height and then another parameter that would determine (when width != height) whether the segment is for a parabola or an ellipse. But using the conic itself doesn't seem too bad. |
||
|
||
Examples | ||
======== | ||
|
||
>>> from sympy import Point, Line, Parabola, Ellipse, Circle, Shape | ||
>>> e = Ellipse((0, 0), 4, 2) | ||
>>> p = Parabola((2, 0), Line((-2, 0), (-2, 2))) | ||
>>> c = Circle((0, 0), 4) | ||
>>> l = Line((2, 0), (2, 2)) | ||
>>> Shape(e, l) | ||
Shape(Ellipse(Point2D(0, 0), 4, 2), Line2D(Point2D(2, 0), Point2D(2, 2))) | ||
>>> Shape(p, l) | ||
Shape(Parabola(Point2D(2, 0), Line2D(Point2D(-2, 0), Point2D(-2, 2))), Line2D(Point2D(2, 0), Point2D(2, 2))) | ||
>>> Shape(c, l) | ||
Shape(Circle(Point2D(0, 0), 4), Line2D(Point2D(2, 0), Point2D(2, 2))) | ||
|
||
""" | ||
|
||
def __new__(cls, conic, line): | ||
if (isinstance(conic, Circle) == 0 and isinstance(conic, Parabola) == 0 and isinstance(conic, Ellipse) == 0): | ||
There was a problem hiding this comment. Choose a reason for hiding this commentThe reason will be displayed to describe this comment to others. Learn more. You can use |
||
raise TypeError('Wrong type of argument were put') | ||
|
||
if (line.slope != 0 and line.slope != S.Infinity): | ||
There was a problem hiding this comment. Choose a reason for hiding this commentThe reason will be displayed to describe this comment to others. Learn more.
|
||
raise NotImplementedError('The line must be a horizontal' | ||
' or vertical line') | ||
|
||
intersection = conic.intersection(line) | ||
|
||
if(len(intersection) < 2): | ||
if(isinstance(conic, Parabola)): | ||
raise TypeError('The shape is not a closed figure') | ||
else: | ||
raise TypeError('The conic-section is not cut by the line') | ||
|
||
return GeometryEntity.__new__(cls, conic, line) | ||
|
||
@property | ||
def name(self): | ||
if isinstance(self.conic, Circle): | ||
return 'Circle' | ||
if isinstance(self.conic, Parabola): | ||
return 'Parabola' | ||
if isinstance(self.conic, Ellipse): | ||
return 'Ellipse' | ||
|
||
@property | ||
def conic(self): | ||
return self.args[0] | ||
|
||
@property | ||
def line(self): | ||
return self.args[1] | ||
|
||
@property | ||
def area(self): | ||
"""The area of the generated shape. | ||
|
||
See Also | ||
======== | ||
|
||
sympy.geometry.ellipse.Ellipse.area, sympy.geometry.ellipse.Circle.area | ||
|
||
Examples | ||
======== | ||
|
||
>>> from sympy import Point, Line, Parabola, Ellipse, Circle, Shape | ||
>>> e = Ellipse((0, 0), 4, 2) | ||
>>> p = Parabola((1, 0), Line((-3, 0), (-3, 2))) | ||
>>> c = Circle((0, 0), 4) | ||
>>> l = Line((0, 0), (0, 2)) | ||
>>> Shape(e, l).area | ||
4*pi | ||
>>> Shape(p, l).area | ||
8*sqrt(2)/3 | ||
>>> Shape(c, l).area | ||
8*pi | ||
|
||
""" | ||
if(self.name == 'Parabola'): | ||
f_l = self.conic.focal_length | ||
|
||
if(self.line.slope == 0): | ||
l = Abs(self.line.p1[1] - self.conic.vertex[1]) | ||
return ((8*sqrt(f_l)*sqrt(l)**3))/3 | ||
|
||
if(self.line.slope == S.Infinity): | ||
l = Abs(self.line.p1[0] - self.conic.vertex[0]) | ||
return ((8*sqrt(f_l)*sqrt(l)**3))/3 | ||
else: | ||
a = self.conic.hradius | ||
b = self.conic.vradius | ||
|
||
if(self.line.slope == 0): | ||
l = (self.line.p1[1] - self.conic.center[1]) | ||
return a*b*((S.Pi/2) - ((l/b)*sqrt(1 - (l/b)**2) + asin(l/b))) | ||
|
||
if(self.line.slope == S.Infinity): | ||
l = (self.line.p1[0] - self.conic.center[0]) | ||
return a*b*((S.Pi/2) - ((l/a)*sqrt(1 - (l/a)**2) + asin(l/a))) | ||
|
||
@property | ||
def centroid(self): | ||
"""The centroid of generated shape. | ||
|
||
Returns | ||
======= | ||
|
||
centroid : Point | ||
|
||
See Also | ||
======== | ||
|
||
sympy.geometry.point.Point, sympy.geometry.util.centroid | ||
|
||
Examples | ||
======== | ||
|
||
>>> from sympy import Point, Line, Parabola, Ellipse, Circle, Shape | ||
>>> e = Ellipse((0, 0), 4, 2) | ||
>>> p = Parabola((1, 0), Line((-3, 0), (-3, 2))) | ||
>>> c = Circle((0, 0), 4) | ||
>>> l = Line((0, 0), (0, 2)) | ||
>>> Shape(e, l).centroid | ||
Point2D(16/(3*pi), 0) | ||
>>> Shape(p, l).centroid | ||
Point2D(-2/5, 0) | ||
>>> Shape(c, l).centroid | ||
Point2D(16/(3*pi), 0) | ||
|
||
""" | ||
if(self.name == 'Parabola'): | ||
if(self.conic.directrix.slope == 0): | ||
return Point(self.conic.vertex[0], (2*self.conic.vertex[1] + 3*self.line.p1[1])/5) | ||
|
||
if(self.conic.directrix.slope == S.Infinity): | ||
return Point((2*self.conic.vertex[0] + 3*self.line.p1[0])/5, self.conic.vertex[1]) | ||
|
||
else: | ||
a = self.conic.hradius | ||
b = self.conic.vradius | ||
if(self.line.slope == 0): | ||
l = (self.line.p1[1] - self.conic.center[1]) | ||
y = (2*a*(b**2)/3)*((sqrt(1 - (l/b)**2))**3) | ||
return Point(self.conic.center[0], y/self.area) | ||
|
||
if(self.line.slope == S.Infinity): | ||
l = (self.line.p1[0] - self.conic.center[0]) | ||
x = (2*b*(a**2)/3)*((sqrt(1 - (l/a)**2))**3) | ||
return Point( x/self.area, self.conic.center[1]) | ||
|
||
def second_moment_of_area(self, point=None): | ||
"""Returns the second moment and product moment of area of generated shape. | ||
|
||
Parameters | ||
========== | ||
|
||
point : Point, two-tuple of sympifiable objects, or None(default=None) | ||
point is the point about which second moment of area is to be found. | ||
If "point=None" it will be calculated about the axis passing through the | ||
centroid of the generated shape. | ||
|
||
Returns | ||
======= | ||
|
||
I_xx, I_yy, I_xy : number or sympy expression | ||
I_xx, I_yy are second moment of area of generated shape. | ||
I_xy is product moment of area of generated shape. | ||
|
||
Examples | ||
======== | ||
|
||
>>> from sympy import Point, Line, Parabola, Ellipse, Circle, Shape | ||
>>> e = Ellipse((0, 0), 4, 2) | ||
>>> p = Parabola((1, 0), Line((-3, 0), (-3, 2))) | ||
>>> c = Circle((0, 0), 4) | ||
>>> l = Line((0, 0), (0, 2)) | ||
>>> Shape(e, l).second_moment_of_area() | ||
(4*pi, -1024/(9*pi) + 16*pi, 0) | ||
>>> Shape(p, l).second_moment_of_area() | ||
(64*sqrt(2)/15, 32*sqrt(2)/175, 0) | ||
>>> Shape(c, l).second_moment_of_area() | ||
(32*pi, -2048/(9*pi) + 32*pi, 0) | ||
|
||
""" | ||
if(self.name == 'Parabola'): | ||
There was a problem hiding this comment. Choose a reason for hiding this commentThe reason will be displayed to describe this comment to others. Learn more. Don't use parentheses with |
||
a = self.conic.focal_length | ||
I_xy_v = 0; | ||
c = self.centroid | ||
Ar = self.area | ||
if(self.conic.directrix.slope == 0): | ||
I_xx_v = 32*sqrt((a**3))*sqrt(Abs((self.conic.vertex[1] - self.line.p1[1])**5))/15 | ||
I_yy_v = 8*sqrt(a*(Abs((self.conic.vertex[1] - self.line.p1[1]))**7))/7 | ||
|
||
I_xx_c = I_yy_v + Ar*((c[1] - self.conic.vertex[1])**2) | ||
I_yy_c = I_xx_v | ||
I_xy_c = I_xy_v | ||
if point is None: | ||
return I_xx_c, I_yy_c, I_xy_c | ||
|
||
I_xx = I_xx_c + Ar*((c[1] - point[1])**2) | ||
I_yy = I_yy_c + Ar*((c[0] - point[0])**2) | ||
I_xy = I_xy_c + Ar*((point[0]-c[0])*(point[1]-c[1])) | ||
|
||
return I_xx, I_yy, I_xy | ||
|
||
if(self.conic.directrix.slope == S.Infinity): | ||
I_xx_v = 32*sqrt((a**3))*sqrt((Abs((self.conic.vertex[0] - self.line.p1[0]))**5))/15 | ||
I_yy_v = 8*sqrt(a*(Abs((self.conic.vertex[0] - self.line.p1[0]))**7))/7 | ||
|
||
I_xx_c = I_xx_v | ||
I_yy_c = I_yy_v - Ar*((c[0] - self.conic.vertex[0])**2) | ||
I_xy_c = I_xy_v | ||
if point is None: | ||
return I_xx_c, I_yy_c, I_xy_c | ||
|
||
I_xx = I_xx_c + Ar*((c[1] - point[1])**2) | ||
I_yy = I_yy_c + Ar*((c[0] - point[0])**2) | ||
I_xy = I_xy_c + Ar*((point[0]-c[0])*(point[1]-c[1])) | ||
|
||
return I_xx, I_yy, I_xy | ||
|
||
else: | ||
a = self.conic.hradius | ||
b = self.conic.vradius | ||
I_xy_v = 0 | ||
c = self.centroid | ||
Ar = self.area | ||
if(self.line.slope == 0): | ||
l = (self.line.p1[1] - self.conic.center[1]) | ||
|
||
z = (l/b)*sqrt(1 - (l/b)**2)*(1 - 2*(l/b)**2) | ||
|
||
I_yy_v = b*(a**3)*(asin(sqrt(1 - (l/b)**2) + z))/4 - 2*l*(a*(sqrt(1 - (l/b)**2)))**3/3 | ||
I_xx_v = a*(b**3)*((S.Pi/2) - asin(l/b) + z)/4 | ||
|
||
I_xx_c = I_yy_v + Ar*((c[1] - self.conic.center[1])**2) | ||
I_yy_c = I_xx_v | ||
I_xy_c = I_xy_v | ||
if point is None: | ||
return I_xx_c, I_yy_c, I_xy_c | ||
|
||
I_xx = I_xx_c + Ar*((c[1] - point[1])**2) | ||
I_yy = I_yy_c + Ar*((c[0] - point[0])**2) | ||
I_xy = I_xy_c + Ar*((point[0]-c[0])*(point[1]-c[1])) | ||
|
||
return I_xx, I_yy, I_xy | ||
|
||
if(self.line.slope == S.Infinity): | ||
l = (self.line.p1[0] - self.conic.center[0]) | ||
|
||
z = (l/a)*sqrt(1 - (l/a)**2)*(1 - 2*(l/a)**2) | ||
|
||
I_yy_v = b*(a**3)*((S.Pi/2) - asin(l/a) + z)/4 | ||
I_xx_v = a*(b**3)*(asin(sqrt(1 - (l/a)**2)) + z)/4 - 2*l*(b*(sqrt(1 - (l/a)**2)))**3/3 | ||
|
||
I_xx_c = I_xx_v | ||
I_yy_c = I_yy_v - Ar*((c[0] - self.conic.center[0])**2) | ||
I_xy_c = I_xy_v | ||
|
||
if point is None: | ||
return I_xx_c, I_yy_c, I_xy_c | ||
|
||
I_xx = I_xx_c + Ar*((c[1] - point[1])**2) | ||
I_yy = I_yy_c + Ar*((c[0] - point[0])**2) | ||
I_xy = I_xy_c + Ar*((point[0]-c[0])*(point[1]-c[1])) | ||
|
||
return I_xx, I_yy, I_xy |
There was a problem hiding this comment.
Choose a reason for hiding this comment
The reason will be displayed to describe this comment to others. Learn more.
Fixes #14461
