overlapping boxes with geom_boxplot(varwidth=TRUE) #2143

Closed
mcol opened this issue May 25, 2017 · 3 comments
Closed

overlapping boxes with geom_boxplot(varwidth=TRUE) #2143

mcol opened this issue May 25, 2017 · 3 comments

Comments

@mcol
Copy link
Contributor

@mcol mcol commented May 25, 2017

When I try to produce boxplots with colours depending on a categorical variable, these appear overlapping if varwidth is set to TRUE (which is what I'd like to use).

Here's an example:

ggplot(data=iris, aes(Species, Sepal.Length)) +
   geom_boxplot(aes(colour=Sepal.Width < 3.2), varwidth=TRUE)

This raises the following warning: "position_dodge requires non-overlapping x intervals"

However, the boxes don't overlap (and no warning is raised) if varwidth is not specified.

ggplot(data=iris, aes(Species, Sepal.Length)) +
   geom_boxplot(aes(colour=Sepal.Width < 3.2))
@hadley
Copy link
Member

@hadley hadley commented Jun 1, 2017

Can you please produce a reprex using the reprex package?

@hadley hadley added the reprex label Jun 1, 2017
@mcol
Copy link
Contributor Author

@mcol mcol commented Jun 2, 2017

require(ggplot2)
#> Loading required package: ggplot2

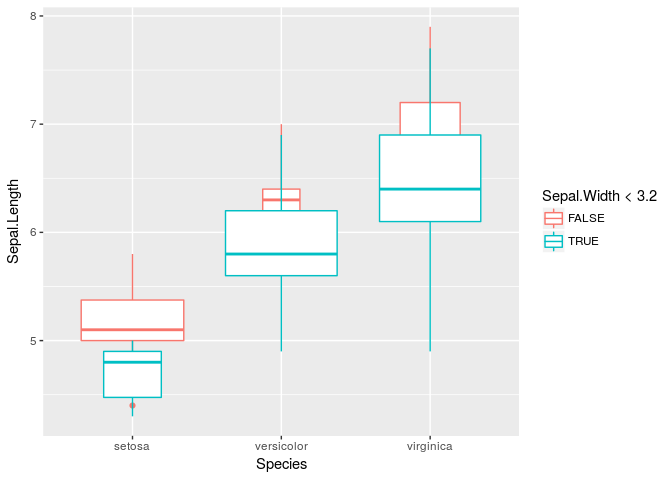

ggplot(data = iris, aes(Species, Sepal.Length)) + geom_boxplot(aes(colour = Sepal.Width <
  3.2), varwidth = TRUE)
#> Warning: position_dodge requires non-overlapping x intervals

@karawoo
Copy link
Member

@karawoo karawoo commented Jun 30, 2017

The main problem is here — within each species the variable-width boxes have different xmin values, so pos_dodge() gets called on each box separately when it should be getting called on each pair of boxes.

I think this line will also be a problem because only the width of the first box will be used. pos_dodge() probably needs to be changed to handle multiple widths.

@lock lock bot locked as resolved and limited conversation to collaborators Jun 18, 2018
