Create example for SSD detection. (#997)
* Create example for SSD detection. * Create script to convert PyTorch model to TinyDNN. * Fix some bugs. * Add README.
- Loading branch information
Showing
4 changed files
with
549 additions
and
1 deletion.
There are no files selected for viewing
This file contains bidirectional Unicode text that may be interpreted or compiled differently than what appears below. To review, open the file in an editor that reveals hidden Unicode characters.
Learn more about bidirectional Unicode characters
This file contains bidirectional Unicode text that may be interpreted or compiled differently than what appears below. To review, open the file in an editor that reveals hidden Unicode characters.
Learn more about bidirectional Unicode characters
Original file line number | Diff line number | Diff line change |
---|---|---|
@@ -0,0 +1,47 @@ | ||
# Single Shot MultiBox Detector (SSD) | ||
|
||
A TinyDNN implementation of [Single Shot MultiBox Detector](http://arxiv.org/abs/1512.02325) from the 2016 paper by Wei Liu, Dragomir Anguelov, Dumitru Erhan, Christian Szegedy, Scott Reed, Cheng-Yang, and Alexander C. Berg. The official and original Caffe code can be found [here](https://github.com/weiliu89/caffe/tree/ssd). | ||
|
||
## Prerequisites for this example | ||
|
||
- Download PyTorch pretrained models from [here](https://s3.amazonaws.com/amdegroot-models/ssd300_mAP_77.43_v2.pth) | ||
- Convert PyTorch models to TinyDNN with following commands | ||
|
||
``` | ||
mkdir models | ||
python convert_models.py /path/to/model models | ||
``` | ||
|
||
## Use SSD in Object Detection | ||
|
||
``` | ||
./example_ssd_test /folder/to/models/ /path/to/image | ||
``` | ||
|
||
You will get output similar to following: | ||
|
||
``` | ||
Bounding box coordinates: | ||
x_min = 19.6578, x_max = 66.2639, y_min = 240.801, y_max = 270.333, class = 1, score = 0.989524 | ||
x_min = -3.73388, x_max = 302.883, y_min = 43.5821, y_max = 202.043, class = 1, score = 0.900133 | ||
x_min = 17.771, x_max = 54.9812, y_min = 237.505, y_max = 259.987, class = 1, score = 0.660543 | ||
``` | ||
|
||
If you see the following message: | ||
|
||
``` | ||
Failed to load weights from models/01.weights | ||
Failed to load weights from models/02.weights | ||
... | ||
Failed to load weights from models/18.weights | ||
``` | ||
|
||
Please make sure the path of weight files. | ||
|
||
## Detection Results | ||
|
||

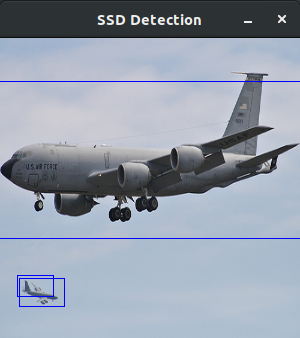

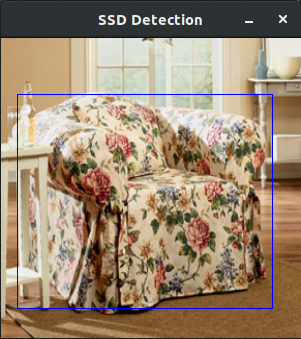

Here's an example of object detection results produced by SSD. | ||
|
||
![Airplane](https://user-images.githubusercontent.com/1730504/47263759-67bc1900-d53a-11e8-91cd-4bb4648668b7.png) | ||
|
||
![Sofa](https://user-images.githubusercontent.com/1730504/47264055-d9976100-d540-11e8-98a5-0af7871374fd.png) |
This file contains bidirectional Unicode text that may be interpreted or compiled differently than what appears below. To review, open the file in an editor that reveals hidden Unicode characters.
Learn more about bidirectional Unicode characters
Original file line number | Diff line number | Diff line change |
---|---|---|
@@ -0,0 +1,77 @@ | ||
#!/usr/bin/python3 | ||
# -*- coding: utf-8 -*- | ||
|
||
import os | ||
import sys | ||
import torch | ||
|
||
|
||
nets = { | ||
1: ["vgg.0", "vgg.2", "vgg.5", "vgg.7", "vgg.10", "vgg.12", "vgg.14", "vgg.17", "vgg.19", "vgg.21"], | ||
2: ["vgg.24", "vgg.26", "vgg.28", "vgg.31", "vgg.33"], | ||
3: ["extras.0", "extras.1"], | ||
4: ["extras.2", "extras.3"], | ||
5: ["extras.4", "extras.5"], | ||
6: ["extras.6", "extras.7"], | ||
7: ["loc.0"], | ||
8: ["loc.1"], | ||
9: ["loc.2"], | ||
10: ["loc.3"], | ||
11: ["loc.4"], | ||
12: ["loc.5"], | ||
13: ["conf.0"], | ||
14: ["conf.1"], | ||
15: ["conf.2"], | ||
16: ["conf.3"], | ||
17: ["conf.4"], | ||
18: ["conf.5"], | ||
} | ||
|
||
|
||
def dump_layer_weights(f, weight, bias): | ||
for i in range(weight.shape[0]): | ||
for j in range(weight.shape[1]): | ||
for k in range(weight.shape[2]): | ||
for m in range(weight.shape[3]): | ||
f.write('%.24f ' % weight[i][j][k][m]) | ||
_ = f.write('\n') | ||
for i in range(bias.shape[0]): | ||
f.write('%.24f ' % bias[i]) | ||
_ = f.write('\n') | ||
|
||
|
||
|
||
def dump_net_weights(model_path, output_folder): | ||
ckpt = torch.load(model_path) | ||
|
||
for net_id in nets: | ||
layers = nets[net_id] | ||
output_file_path = os.path.join(output_folder, '%02d.weights' % net_id) | ||
|
||
print('Saving weights to %s' % output_file_path) | ||
with open(output_file_path, 'w') as f: | ||
for layer in layers: | ||
weight = ckpt['%s.weight' % layer] | ||
bias = ckpt['%s.bias' % layer] | ||
dump_layer_weights(f, weight, bias) | ||
|
||
|
||
def main(): | ||
if not len(sys.argv) == 3: | ||
print('python convert_models.py model_path output_folder') | ||
sys.exit(1) | ||
|
||
model_path = sys.argv[1] | ||
output_folder = sys.argv[2] | ||
if not os.path.exists(model_path) or os.path.isdir(model_path): | ||
print('[ERROR] Model file not exists!') | ||
sys.exit(2) | ||
if not os.path.exists(output_folder) or not os.path.isdir(output_folder): | ||
print('[ERROR] Output folder not exists!') | ||
sys.exit(2) | ||
|
||
dump_net_weights(model_path, output_folder) | ||
|
||
|
||
if __name__ == '__main__': | ||
main() |
