Git Commit Integration

Exploring features described in https://github.com/pivotaltracker/git-commit-ux/blob/master/README.md

Features

Supporting Features

• Signup/signin with GitHub Oauth2, with authorizations to create a webhook for a repo and read diff/patch commit data for the repo (https://developer.github.com/guides/getting-started/#oauth)
• Enter a Github Repo URL which will automatically have a Github webhook created which will be listened to for pushes to that repository (https://developer.github.com/v3/repos/hooks/#create-a-hook)
• Configure an External Link which has a pattern to extract an external ID from a git commit message and a replacement pattern to construct an external URI from the ID
• Associate one or more External Links with a Repo
• Display pushes for a specific repo
• Display commits for a specific push
• Display all commits for a repo
• Display branches for a repo (i.e. head refs)
  • initially just for pushed refs, eventually all can be pulled via: curl -s https://api.github.com/repos/:owner/:repo/git/refs/heads)
• populate patch-id onto all created Commits
• Display all commits which are currently or were previously on a given branch (ref)

Killer Features

• Display all commits which are associated with a given external link, grouped by which branches they exist on
• Display all commits which are associated with a given external ID
• Display differently (strikethrough) all commits which no longer currently exist on a branch
  • Obtained by listing all commits (https://developer.github.com/v3/repos/commits/) for each existing branch (i.e. head ref)
• Display differently (Grouping or Collapsing based on patch-id) all different commits which have different SHAs but are actually the same commit based on the patch-id

Setup

Installing/fixing postgres on OSX

brew update

brew install postgresql
# or
brew upgrade postgresql

brew info postgresql # follow instructions to run on boot

# DANGEROUS!
rm -rf /usr/local/var/postgres

initdb /usr/local/var/postgres -E utf8

Setting up Github app and google oauth2

• (examples below are for dev env, use appropriate URL if running on PWS)
• Make a github dev application: https://github.com/settings/applications
  • application name: git-commit-integration-dev
  • Homepage URL: http://localhost:3000
  • Application Description: dev
  • Authorization Callback URL: http://localhost:3000/users/auth/github/callback
• copy .env.local.example to .env.local
• Copy the app's client id and client secret into .env.local

Installing ngrok

Install ngrok to tunnel github webhooks to localhost (it will be run via foreman Procfile.local)

brew install ngrok

Make sure it runs, and grab the NGROK_HOST to put in your .env.local (it shouldn't change often)

ngrok 3000
# grab the host (just host, not protocol or path), put in env.local
# Ctrl C to kill it (it'll get run automatically by Foreman)

Create dev env databases

bundle
bin/rake db:create:all

Running specs

bin/rake

Running dev env server

# everything goes to stdout (12-factor app)
bin/foreman start -f Procfile.local | tee /tmp/gci.log

# filter out app logs in another window:
tail -f /tmp/gci.log | grep '\[gci\]'

• (Optional) go to localhost:4040 to verify your NGROK_HOST hasn't changed
• Go to http://localhost:3000
• Sign in with Github
• Click to authorize app
• Make a repo (pick one to which you have admin access to create webhooks)
• Click (re)create Webhook on the repo (must be an admin on the repo to create hooks)
• Verify the webhook looks right in github settings
• Make a push to the repo (from a dummy branch if you don't want to clutter master): EXTERNAL_ID=89109694; echo "foo - $(date)." >> foo && git add foo && git commit -m "[#${EXTERNAL_ID}] foo - $(date)" && git push
• Verify the push record gets created in the app (via webhook going through ngrok). Check github/ngrok if it fails.

Running PWS prod env

• Set up cf command line (go cli): http://docs.run.pivotal.io/starting/#install-login - Tools link
• cf login - http://docs.run.pivotal.io/devguide/installcf/whats-new-v6.html#login
• Make a github prod application: https://github.com/settings/applications
• create a space on PWS, get cf command line, log in
• cf push
• Set GITHUB_KEY and GITHUB_SECRET env vars on PWS console

Using App

• See Homepage in running app for instructions

Debugging/Hacking

Using Github API from rails console

See https://github.com/peter-murach/github

Basic setup:

bin/rails c
repo = Repo.first # or find...

To get a repo object directly:

repo_api_object = repo.github_api_object

To access repo object subresources (continuing from basic setup above):

require 'github_api_factory'
include GithubApiFactory
github_user, github_repo = repo.user_and_repo
github = create_github_api_from_oauth_token(repo)
github.repos.branches(github_user, github_repo).body.map{|branch| branch.name} # branches
github.repos.commits.all(github_user, github_repo) # all commits on default branch (master)
github.repos.commits.all(github_user, github_repo).first # first commit on default branch
github.repos.commits.all(github_user, github_repo, sha: 'some sha').first.commit.message  # get all commits then message of first
github.repos.commits.find(github_user, github_repo, 'f6afe0c8f3a1f28120a1778d257be11ee24c33d2').sha # find a commit then get its sha
github.repos.commits.find(github_user, github_repo, repo.commits.first.sha).author.login # find a commit then get its author's login
github.repos.commits.find(github_user, github_repo, repo.commits.first.sha).commit.message  # find a commit then get its message
github.git.references.list(github_user, github_repo) # list all refs for a repo
github.git.references.get(github_user, github_repo, 'heads/dummybranch') # get a single ref
github.git.references.get(github_user, github_repo, 'heads/dummybranch').object.sha # get the latest sha (commit) on a ref
github.repos.commits.list(github_user, github_repo, sha: repo.commits.first.sha) # list all commits on a ref or branch starting at sha

See https://developer.github.com/v3/repos/commits/ for commits structure

Models

User

Created via Github Oauth authentication.

Attributes:

• email: User's github email
• github_app_token: Token from authorizing app to access github

Associations:

• has_many :repos

Repo

Attributes:

• url: URL of Github repo
• github_identifier: Internal ID of repo in github API
• hook: JSON for github webhook listening for push events: https://developer.github.com/v3/repos/hooks/#create-a-hook

Associations:

• has_many :pushes
• has_many :commits, through: :pushes
• has_many :commits
• has_many :refs (auto-updated on every push)
• has_many :external_links, through: :repo_external_link
• belongs_to :user
• has_many :deploy_repos

GithubUser

Attributes:

• username: github username
• email: github email

Associations:

• has_many :authored_commits, :class_name => 'Commit', :foreign_key => 'author_github_user_id'
• has_many :committed_commits, :class_name => 'Commit', :foreign_key => 'committer_github_user_id'

Push

Attributes:

• payload: Github push event raw payload json object: https://developer.github.com/v3/activity/events/types/#pushevent
• head_commit: SHA (id) of HEAD commit from push

Associations:

• has_many :commits, through: :push_commits
• belongs_to :ref (points to the full Git ref that was pushed. Example: "refs/heads/master")
• belongs_to :repo

Commit

Attributes:

• data: Github commit object json
• sha: SHA of commit
• patch_identifier: patch-id of commit
  • http://git-scm.com/docs/git-patch-id
  • http://git-scm.com/book/en/v2/Git-Branching-Rebasing#Rebase-When-You-Rebase
  • curl -H "Accept: application/vnd.github.v3.patch" -s https://api.github.com/repos/:user/:repo/commits/:sha | git patch-id --stable
• message: Message of the commit (which may contain an external ID pattern from which an external ID can be extracted by an ExternalLink)
• author_github_user_id: id of author github_user
• author_date: date when this commit was originally made (http://stackoverflow.com/questions/11856983/why-git-authordate-is-different-from-commitdate)
• committer_github_user_id: id of committer github_user
• committer_date: date when this commit was last modified

Associations:

• has_many :pushes, through: :push_commits
• has_many :refs, through: :ref_commits
• delegate :repo, :to => :push
• belongs_to :author_github_user, :class_name => 'GithubUser', :foreign_key => 'author_github_user_id'
• belongs_to :committer_github_user, :class_name => 'GithubUser', :foreign_key => 'committer_github_user_id'
• has_many :parent_commits
• has_many :deploy_commits, :primary_key => 'sha', :foreign_key => 'sha'

ParentCommit

These are parent commits of a commit. These may or may not correspond to an existing Commit which was created as part of a push webhook event payload.

Attributes:

• commit_id: id of child Commit
• sha: SHA of this parent commit

Associations:

• belongs_to :commit

Ref

The full Git ref. Just head refs, i.e. branches, to start with. May add tags later.

Attributes:

• reference: The name of the fully qualified reference (i.e. refs/heads/master)

Associations:

• has_many :pushes
• has_many :commits, through: :ref_commits
• belongs_to :repo

RefCommits

Association table between refs and commits. exists flag is automatically updated after each push, by listing all currently-existing commits on the ref, and marking previous ones as existing or not.

Attributes:

• exists: boolean, indicating whether commit currently exists in ref.

Associations:

• belongs_to :ref
• belongs_to :commit

PushCommits

Association table between pushes and commits.

Associations:

• belongs_to :push
• belongs_to :commit

ExternalLink

Attributes:

• description: Description of external system and link type, e.g. "Pivotal Tracker Story"
• extract_pattern: Regex to extract an ID from a commit. E.g. \[#(\d+)\] or {#(\d+)}
• uri_template: template for URI, e.g.: https://www.pivotaltracker.com/story/show/:id or http://external-system.example.com/objects/:id or http://external-system.example.com/objects/:id?param=1
• replace_pattern: Regex to replace commit ID into uri_template, e.g.: :id$ or :id

Associations:

• has_many :commits, through: :external_link_commit
• has_many :repos, through: :external_link_repo

Regex ID extraction examples:

2.1.5 :009 > /\[#(\d+)\]/.match('[#123] {#456}')[1]
 => "123"
2.1.5 :010 > /{#(\d+)}/.match('[#123] {#456}')[1]
 => "456"

Regex ID replacement examples:

2.1.5 :022 > 'https://www.pivotaltracker.com/story/show/:id'.gsub(/:id$/,'123')
 => "http://external-system.example.com/objects/123"
2.1.5 :022 > 'http://external-system.example.com/objects/:id'.gsub(/:id$/,'123')
 => "http://external-system.example.com/objects/123"
2.1.5 :023 > 'http://external-system.example.com/objects/:id\?param=1'.gsub(/:id/,'123')
 => "http://external-system.example.com/objects/123?param=1"

ExternalLinkRepo

Join table associating external links with repos

Associations:

• belongs_to :external_link
• belongs_to :repo

ExternalLinkCommit

Join table associating external links with commits

Attributes:

• external_id: External ID extracted from Commit based on ExternalLink
• external_uri: External URI generated from Commit based on ExternalLink

Associations:

• belongs_to :external_link
• belongs_to :commit

Deploy

Represents a Deploy, AKA environment ("deploy" is a Twelve-Factor App term) which has a single Commit deployed to it at any given time, and exposes that Commit's SHA at a specified URI via a non-authenticated GET request, in a way that can be extracted via a specified regex.

Attributes:

• name: Name of the deploy. E.g. 'production', 'staging', 'demo', 'Pivotal Tracker'
• uri: Non-authenticated URI at which the currently-deployed SHA will be exposed. E.g. http://pivotaltracker.com/env_info or http://localhost:3000/fake_sha?sha=ABCDE
• extract_pattern: Regex to extract the currently-deployed SHA from the uri. E.g. <span id="sha">([0123456789abcdef]+)<\/span> or <p>Git SHA: ([0123456789abcdef]+)\n<\/p>

Regex ID extraction examples:

2.1.6 :007 > /<span id="sha">([0123456789abcdef]+)<\/span>/.match('<span id="sha">624de1c8149beec34beb2a481f0306b1cc41b61a</span>')[1]
 => "624de1c8149beec34beb2a481f0306b1cc41b61a"

2.1.6 :006 > /<p>Git SHA: ([0123456789abcdef]+)\n<\/p>/.match("<p>Git SHA: 1a3a071a623a709395362e46bea6db6e0bdc56f2\n</p>")[1]
 => "1a3a071a623a709395362e46bea6db6e0bdc56f2"

Associations:

• has_many :commits, through: :deploy_commit
• has_many :deploy_commits
• has_many :repos, through: :deploy_repos
• has_many :deploy_repos

DeployCommit

Join table associating deploys with commits. There can be multiple DeployCommits for a single Deploy, because multiple repos may be deployed to the same "deploy" as part of a single web app. E.g., the "backend" and "frontend" repos are both part of a single web app served at a single URL as a single deploy.

Note that the association to Commit is through the Commit's SHA attribute as the foriegn key, not the ID. This allows the DeployCommit to be created even if its commit does not yet exist.

Attributes:

• sha: SHA extracted from Commit based on extract_pattern in Deploy
• updated_at: Timestamp at which sha was last created/updated from the Deploy.

Associations:

• belongs_to :deploy
• belongs_to :commit, :primary_key => 'sha', :foreign_key => 'sha'

DeployRepo

Join table associating deploys with repos. Currently manually created, may be auto-detected via association through deploy commit in the future

Associations:

• belongs_to :deploy
• belongs_to :repo

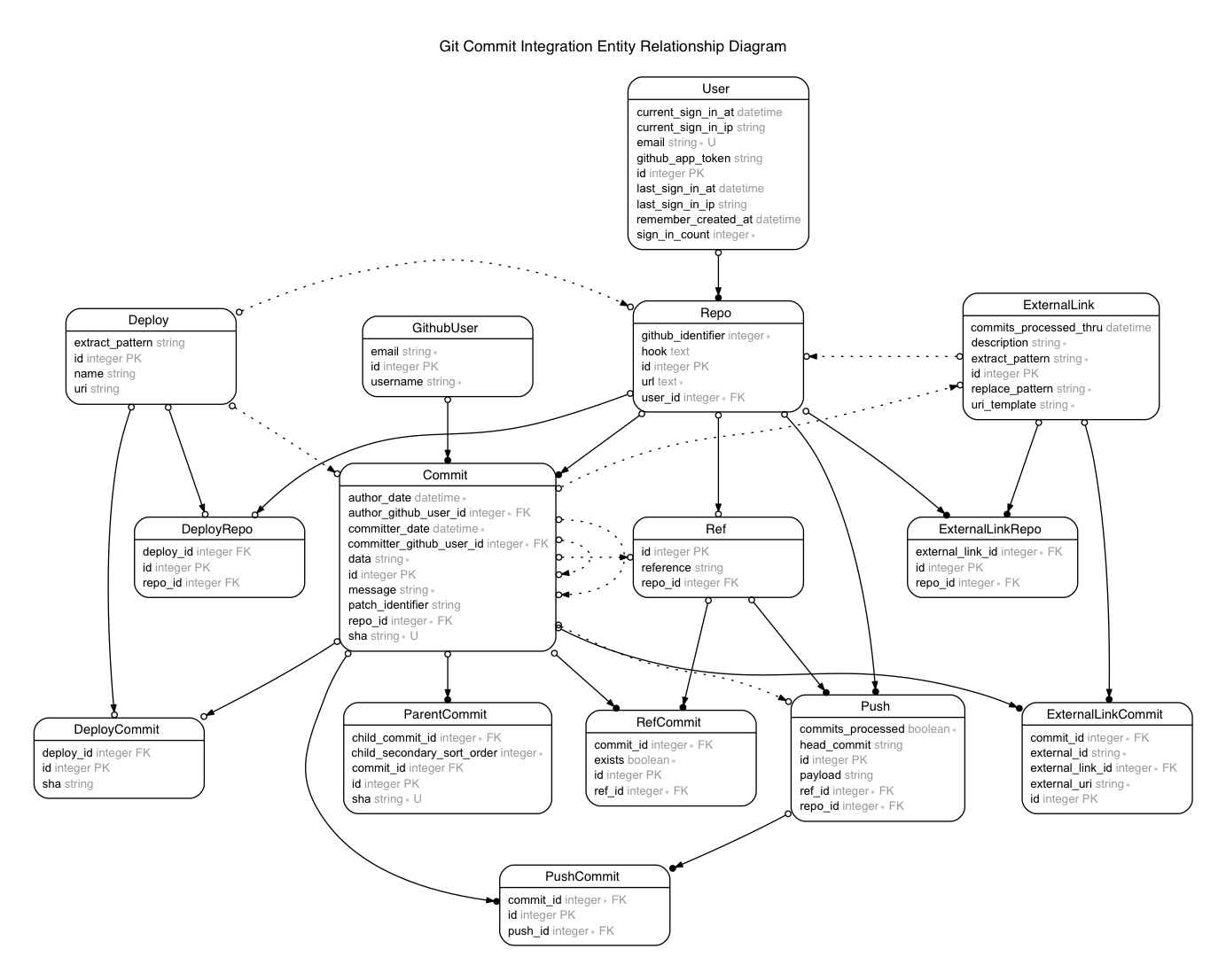

Entity Relationship Diagram

PDF Version of Entity Relationship Diagram

Implementation Details

• Pushes will be created real-time by listening for webhooks
• A background job will run for each push, and create/update Refs, Commits, RefCommits, and update all RefCommit exists flags accordingly.
• A background job will "backfill" and auto-update Commit and Ref data based on current state of database and Github repo
• A background job will automatically associate commits with external links based on commit data and properties of external links.
• A background job will automatically update information about currently-deployed SHAs based on data in Deploy
