collection of LV2 plugins for audio-level metering
C C++ Makefile Shell
Latest commit b0ed0a9 Dec 30, 2016 @x42 update man page for v0.9.3

README.md

meters.lv2 - Audio Level Meters

meters.lv2 is a collection of audio-level meters with GUI in LV2 plugin format.

It includes needle style meters (mono and stereo variants)

  • IEC 60268-10 Type I / DIN
  • IEC 60268-10 Type I / Nordic
  • IEC 60268-10 Type IIa / BBC
  • IEC 60268-10 Type IIb / EBU
  • IEC 60268-17 / VU

Stereo & Mono variants of bar-graph meters:

  • 30 Band 1/3 octave spectrum analyzer IEC 61260
  • Digital True-Peak Meter (4x Oversampling), Type II rise-time, 13.3dB/s falloff.
  • True-Peak (4x Oversampling) + RMS (600ms integration time) combined with numeric readout
  • K-12, K-14, K-20 / RMS type K-Meters according to the K-system introduced by Bob Katz
  • DR14 (pleasurizemusic.com, specs by tischmeyer/algorithmix)

and the following stereo plugins:

  • EBU R128 Meter with Histogram and History
  • Stereo Phase Correlation Meter (Needle Display)
  • BBC Mid/Side M-6 (Needle Display)
  • Goniometer (Stereo Phase Scope)

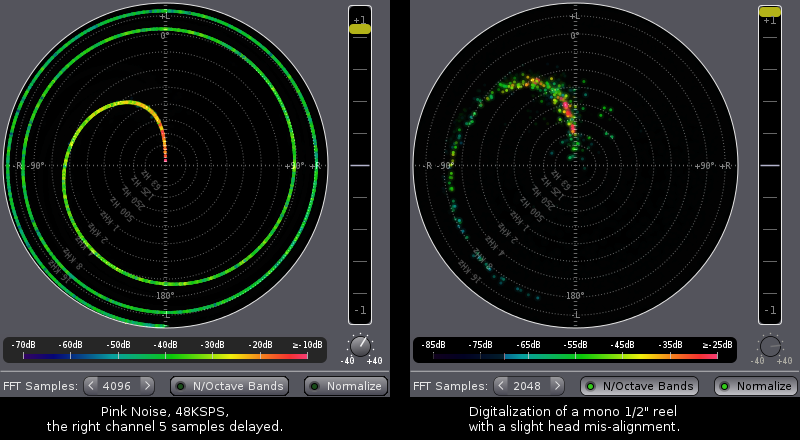

  • Phase/Frequency Wheel

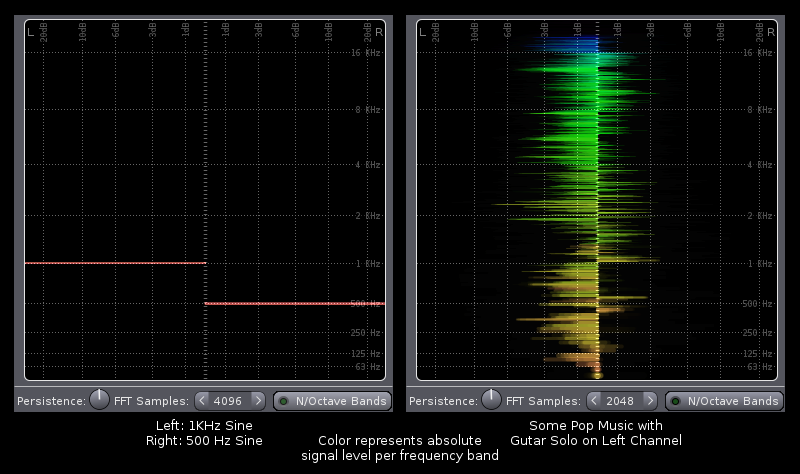

  • Stereo/Frequency Monitor

as well as a mono:

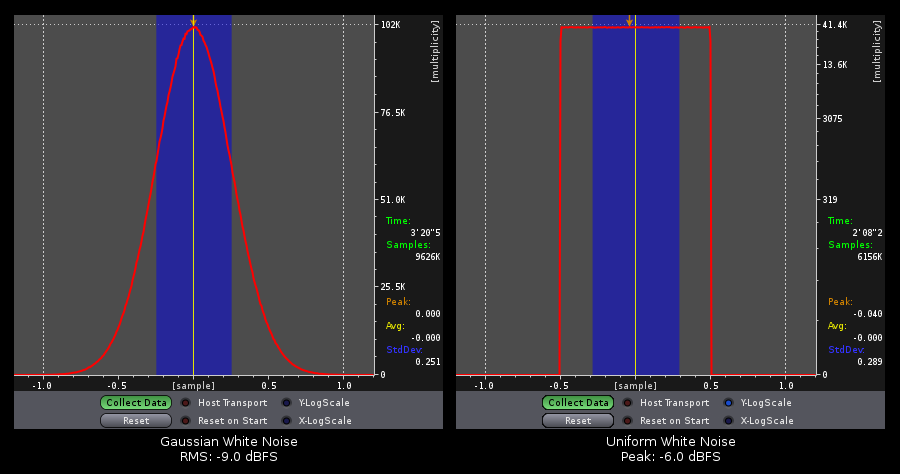

  • Signal Distribution Histogram
  • Bitmeter

Usage

Should be pretty much self-explanatory. A few notes:

  • click + drag on the calibration-screw allows to modify the reference level of the needle meters
  • shift + click on the calibration-screw resets to default
  • ctrl + click on meters with scalable GUI resets the window-size to 100%
  • clicking anywhere on the bar-graph meters resets the peak-hold

Install

Compiling these plugin requires the LV2 SDK, gnu-make, a c-compiler, libpango, libcairo and openGL (sometimes called: glu, glx, mesa).

  git clone git://github.com/x42/meters.lv2.git
  cd meters.lv2
  make submodules
  make
  sudo make install PREFIX=/usr

Note to packagers: The Makefile honors PREFIX and DESTDIR variables as well as CFLAGS, LDFLAGS and OPTIMIZATIONS (additions to CFLAGS), also see the first 10 lines of the Makefile. You really want to package the superset of x42-plugins.

Note on build-dependencies

These plugins count on rather recent (Jan 2013) fixes^Wfeatures of some libraries (but may work with older versions too):

In particular multi-threading in cairo, pixman and pango. Versions of those libraries earlier than libcairo < 1.12.10, libpixman < 0.30.2 and libpango < 1.32.6 are not thread-safe. As with all concurrency issues, things may or may not work and if you only open one meter GUI at a time it's usually fine.

Also note that the plugins use the LV2 idle-interface (lv2 >= 1.4.2) The plugin-host (eg. ardour or qtractor) needs to be compiled with this or a later version of the LV2 SDK to support the features.

The plugin-host must also support http://lv2plug.in/ns/ext/resize-port/

Screenshots

screenshot screenshot screenshot screenshot screenshot screenshot screenshot screenshot
