A very Dangerous Dave

This is an unusual blogpost about a bug (vulnerability?) that has been bothering me for years.
When I was a kid I used to play tons of old DOS games. Commander Keen? With pleasure! SkyRoads? I remember most stages by heart. AlleyCat? Oh yes!
Well, one of the most remembered games from that era is Dangerous Dave.
You see, Dangerous Dave was a platformer - it had 10 levels, each one had a goal of getting to a trophy and passing through a door.
Some of these levels had Warp Zones which are "secret levels", and you get to them by going out-of-bounds.
Being an inquisitive young boy, I tried to find all warp zones, and I accidently found an unexpected one in level 6, which caused an unexpected behavior.

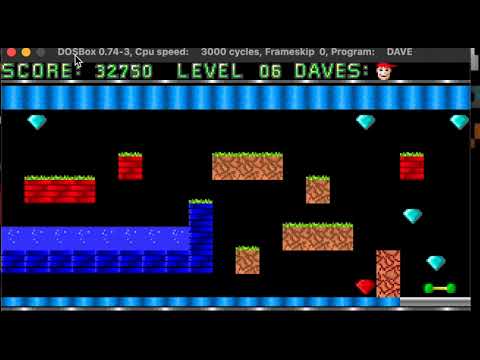

You can click the link to watch a video recording of that:

The end result looks like a complete mess:

The idea of level 6 was to go right, take the trophy, head back and touch the door, however, the door is treated as empty space if you still do not have the trophy.
I believe this was an obvious out-of-bounds-read, but as a kid I never investigated it further.
MANY years went by, until I finally found some spare time to try and understand what happens there.
That led me to an interesting rabbit hole that I'd like to share today!

LZEXE

The game comes packed in one file only - DAVE.EXE (sha1 = b0e70846c31d651b53c2f5490f516d8fd4844ed7), its size is merely 76597 bytes!
I was hoping to see many strings, but didn't see any. Opening it in IDA revealed it might be packed... I noticed it resolves some interrupt handlers from the interrupt handler table and even hooks the "divide by zero" handler (I talked about the subject in the past).
It was later clear to me the code was compressed, and while I could have worked my way through it, I decided to search online.
That led me to a thriving modding community - shikadi.net (if you don't know what a "Shikadi" is, you should play more Commander Keen). They had very complete records of the file format(s) and even a link to one Ghidra project file with some important notes. I can honestly say it saved me tons of work, and that's an important lesson too - it's cheaper to search online rather than embark on heavy reverse-engineering on your own.
One of the first things I discovered was the file is LZW-compressed, and luckily the community has a tool to decompress the executable:

UNLZEXE.EXE DAVE.EXE

This makes the file 172848 bytes long - more than double in size!

File format and tilemap

The next part was to examine the file format and the level information.
As before, the modding community left very complete notes with offsets in the file of where certain things are, including tilesets, level information and so on.
While I was mostly interested in the level information, I wanted to examine the tile data - level data references tile numbers.
Luckily, a modder called MaiZure had a project that was kind of easy to compile and run to extract the tile information - thank you so much for that!
While the tools MaiZure built are great, I ended up building my own parser in Python, which adds a few missing pieces.

With greater confidence, I approached the format of the levels, which was the most interesting to me.

Level formats

The level format is described well in the modding wiki. There are 10 levels - each one is 100x10 tiles. Additionally, there is one special level with only tile information, which represents the tiles that appear in the opening screen (it's 10x7 tiles).
The normal levels appear in an array of 1280 bytes per element, each containing:

1. Path data (256 bytes) - data about paths that monsters can take. While interesting, not relevant to our scope.
2. Tiles (1000 bytes) - the 100x10 level information, each byte references a tile.
3. Padding (24 bytes) - unused.

There is another place where the initial state for each level is saved (again in a 10-element array), which includes the starting X position, starting Y position and the initial motion (which can be stationary or falling).

It's interesting to see that levels contain the warp zones tiles in them, they are not special levels at all!
The metadata for warp zones is saved in a different offset in the file, alongside two constants that are shared for all warp zones:

1. The starting Y position for warp zones is constant. That makes sense since all warp zones display an animation of Dave falling in a some sort of "tube".
2. The motion flags for warp zones is constant. That motion flag has realistically two options: falling and stationary. Since Dave is falling in all warp zones, it's a global variable.
3. Starting X coordinate for each warp level is saved in an array of 10 elements.
4. Horizontal shift for each level is saved in an array of 10 elements.

The horizontal shift works with the starting X coordinate to position Dave at the right position in the warp zone.
It's interesting to note that there are only 4 warp zones - in levels 5, 8, 9 and 10. All other levels have all those other values as 0.
At that point I wanted to take a better look and coded my own parser, which I uploaded to this repository. It expects the unpacked DAVE.EXE and parses it. I believe I found some slight errors in the modding community descriptions (for example, the warp zone X coordinate is in tiles and the horizontal shift is in pixels), but I was able to work around them.

./dave_parse.py

...

Level 8 (start at (2, 8) stationary):

X-------------|-----------------|#  ################################################################
X             |  *            J |          $  $      W    W            *         T                ##
X            Q|      --         |                                                           OOO  ###
X #    #------|G  --    -     - #########        ###   W    W       =         =             OOO ####
X             |            -            ####oo####XXXXXXXXXX\W                               |   $##
X    #   #    |                   *        ####XXX/     \XXXX\W ======       =======         |    ##
X       _     |*    XXX  -    -  XXX*                    MX&JXW         *                    |    ##
X  #    X     X   XX/              XX * *                 X  XXXX     #     #        $   #   |    ##
X>___ ____   ___ _XX                XXXXX* * *    W     JXXX                                 |   ###
XXXXXoXXXXoooXXXoXXXWWWWWWWWWWWWWW  WXXXXXXXXXXXXXXXXXXXXXXXXX####WWWWW#####WWWWW######WWWWW########


Loaded 11 levels.
Choose a level to view (zero-based) or 'Q' to quit: q
Quitting.

(yes, that thing on the right is a tree)

Transitioning to warp levels

Figuring out the variable that maintains the current level number was pretty easy. I was looking at the strings and found the following:

         congratulations!
you made it through all the peril-
ous areas in clyde's hideout!
very good work! did you find
the 4 warp zones? they are located
on levels 5,8,9 and 10. just jump
off the top of the screen at the
extreme left or right edge of the
world and voila! you're there!

Looking at references for those strings in IDA was easy too after some minor prettifying:

PresentFreeText("         congratulations!");
PresentFreeText("you made it through all the peril-");
PresentFreeText("ous areas in clyde's hideout!");
PresentFreeText("very good work! did you find");
PresentFreeText("the 4 warp zones? they are located");
PresentFreeText("on levels 5,8,9 and 10. just jump");
PresentFreeText("off the top of the screen at the");
PresentFreeText("extreme left or right edge of the");
PresentFreeText("world and voila! you're there!");

Of course, this is a further testament that level 6 should not have a warp zone...
But most importantly, it gave me the function that runs when a level is completed. Quickly I found this:

    sub_1749B();
    word_56F4 = word_56F4 + 1;
    sub_10BFB();
    if (word_573C == 1) {
      word_573C = 0;
      word_56F4 = word_6152;
    }
    if ((int)word_56F4 < 10) {
      sub_10BFB();
      sub_14C69();
      sub_17631();
      sub_18CDA();
      sub_14B9C();
      sub_13235();
    }

• The comparison to 10 and its increament clearly indicated that word_56F4 is the current level number.
• Following the code flow a bit, word_573C seems to maintain whether we're in a warp zone or not!
• Note that if we just finished a warp zone (word_573C == 1) then the current level is restored - word_56F4 = word_6152. This means word_6152 saves the level Dave should warp back into. That makes sense because after level 5, for instance, Dave warps to the warp zone at level 2, so level 5 is going to be saved in that memory address.

At this point I decided to validate all these learnings. While it was my first time of using the DosBox debugger, I must say it was very intuitive and surprisigly efficient!

From that point reverse-engineering became easier - I had to look for assignments to word_6152 (the level backup). That should happen when moving to warp zones, and luckily there was only one such writing reference:

g_curr_warp_zone_mapping = g_current_level;
var2 = *(word *)(g_current_level * 2 + 0x192);
var3 = *(word *)(g_current_level * 2 + 0x1a6);
g_current_level = *(int *)(g_current_level * 2 + 0x16a) - 1;
sub_14C69();
g_start_y = 0x10;

• Here we can see how the current level is backed-up for coming back from the warp zone.
• The current level number is mapped from 0x16A + (2*current_level)-1.
• Perhaps not surprisingly, g_start_y = 0x10 is the constant they mention at the modding community for the warp zone starting Y position. When I originally read the description, I assumed this was in a data segment, but it's just a constant baked into the code (probably originally in a #define).

The calculation for loading the current level is loaded from address 0x2583a (plus twice the current level, minus one). Indeed we can see this easily:

import struct
struct.unpack('<10H', open('DAVE.EXE', 'rb').read()[0x2583a:0x2583a+20])

This yields (0, 0, 0, 0, 2, 0, 0, 6, 7, 1) - we can clearly see the warp zones at 1-based indexes 5, 8, 9 and 10. Success!

Level 6

When level 5, for example, is loaded, 2 is returned, and the tiles from that level are processed, which are really element 1 in the 0-based levels array.
Thanks to the modding community, we already know the tiles start at offset 0x26E0A (with each element being 0x500 bytes long).
Well, let's imagine what happens to level 6... The returned number is 0, which will be index -1, which is really 0xFFFF... Interestingly, that sub_14C69 seems to be exactly the level loader:

Starty = *(word *)(g_current_level * 2 + 0x136);
...
src = word3687C + g_current_level * 0x500;

Well, that multipication by 0x500 is a clear indication that the base address (loaded from word3687C) should be the base of the levels.
Indeed by debugging I see it maps back to the file offset 0x26E0A. So, marking 0x26E0A as g_levels and with each element taking 0x500 bytes, we simply get:

src = g_levels[g_current_level];

Well, if g_current_level is 0xFFFF then multiplying it by 0x500 gives 0xFB00 because of the 16-bit wrap-around:

hex((0xFFFF * 0x500) & 0xFFFF)

Therefore, the warp-level tiles for level 6 are loaded from address 0x2932B, and indeed:

import binascii
print(binascii.hexlify(open('DAVE.EXE', 'rb').read()[0x2932B:0x2932B+0x20], ' '))

This yields 00 00 00 2b 23 2c 00 00 02 05 05 01 00 05 00 00 00 00 05 1e 1e 1e 1f 1e 1e 1d 14 00 00 1f 1e 00 which corresponds to the buggy tiles we see.

By the way, I've added the buggy level representation to the parser I coded, here's how it looks like:

Buggy warp level:

##XXX/     \XXXX\W ======       =======         |    ##X       _     |*    XXX  -    -  XXX*
            MX&JXW         *                    |    ##X  #    X     X   XX/              XX * *
             X  XXXX     #     #        $   #   |    ##X>___ ____   ___ _XX                XXXXX* *
*    W     JXXX                                 |   ###XXXXXoXXXXoooXXXoXXXWWWWWWWWWWWWWW  WXXXXXXXX
XXXXXXXXXXXXXXXXX####WWWWW#####WWWWW######WWWWW########?M_ ? ?T? ??? Xg]??M| W WXW?W#W?W#W?W#W????=?
??#???#??? ?? 3???????? ????? ???? ??????????  ?????????????????????????????????????????????????????
?????????????? ?????????????????????????????????????????????????????????? ????????????? L?O ? ?_!?
   WWW|||----g     ??????????????LT|-----V------------------V---------------------
   $        |                      |*        *       M                 Q       $$       $        -
            |                      |                         *    *        $   --

See all the ? symbols? Those are out-of-bounds tiles (which explains the weird buggy-looking tiles at the bottom of that level).

Further mysteries

After the blogpost was published, I got some follow-up questions:

• Apparently, if you go out-of-bounds on the right side of the screen in level 6, you get to the warp zone from level 8. Why does that happen?
• If you get a score greater than 99,999, pressing ESC to go to the menu increases your life every time you pick something up. Neat!

Well, the first one is easy - since the warp zone from level 8 is "baked" into level 6, the out-of-bounds simply loads the right side of the level, so you never truly stepped into a warp zone. The game does not even consider it out-of-bounds!

The 2nd question requires further explanation. Armed with all the knowledge I had, I found an initialization function at offset 0x535a from the file. Some parts of it made it quite clear (with some simple variable renaming):

g_lives = 3;
g_score_lo = 0;
g_score_hi = 0;
g_next_goal_lo = 0;
g_next_goal_hi = 0;
g_is_game_over = 0;
g_current_level = 0;
g_some_level_reference = 0;
g_maybe_levels_left = 10;
g_is_warp_zone = 0;

Debugging with the the DosBox debugger helped clarify everything and helped me a lot with the renaming.
The score is composed of an entire 32-bit value (implemented as two halves - each 16 bit).
Now that I know where the number of lives is saved, reverse-engineering is pretty quick - I suspected there is no memory corruption issue this time but just a logic bug, perhaps.
The decompiler shows something that looks quite interesting:

if ((g_score_hi - g_next_goal_hi != (uint)(g_score_lo < g_next_goal_lo)) || (0x4e20 < g_score_lo - g_next_goal_lo)) {
         // ...
         g_next_goal_lo = g_score_lo;
         if ((int)g_lives < 3) {
                  UpdateSprite(g_lives * 0x10 + 0x100,0,*(int *)(g_some_base * g_some_offset * 2 + 0x216));
                  g_lives = g_lives + 1;
                  PlaySound(0xc);
         }
    }
}

// ...
if ((g_score_hi != 0) && ((1 < g_score_hi || (0x869f < g_score_lo)))) {
    g_score_lo = 0x869f;
    g_score_hi = 1;
  }

Some insights:

1. The score is split to two 16-bit values as I mentioned - g_score_hi and g_score_lo. Same thing for the next goal for more lives.
2. The condition to try to increase the number of lives is that either the difference between low parts of the next goal and the current score are bigger than 0x4e20 (which is 20000 decimal) or this condition: g_score_hi - g_next_goal_hi != (uint)(g_score_lo < g_next_goal_lo.
3. The maximum number of lives is 3 as can be seen by the check that increases the number of lives.
4. The end shows how the total score cannot exceed 0x1869f, which is 99999 decimal.

Well, from debugging I can tell that after a score of 99999, the next goal is 100000, which means:

• g_next_goal_hi is 1.
• g_next_goal_lo is 0x86a0.
• g_score_lo is 0x869f.
• g_score_hi is 1.

This means the condition I highlighted is fulfilled, always:

1. g_score_hi - g_next_goal_hi is evaluated to 0.
2. (uint)(g_score_lo < g_next_goal_lo) is evaluated to 1.

Why does that happen when coming back from the menu? Well, it appears there are several conditions for triggering that function.
Most of the time that function is triggered by a collision with an object (which makes sense - think of a collision with a diamond) but also by returning from the menu, apparently, probably to redraw the score.

Summary

Of course that after all of that I had to add some funny changes, my parser is also capable of editing levels and text:

This has been an unusual weekend project for me, I am very grateful for the shikadi.net modding community.
Even though this kind of reverse-engineering is less and less common in real world scenario, I still think it's interesting.
I appreciate old DOS games and how they cleverly implemented games in so little disk storage space and memory space - I see that as a lost art!

Thank you,

Jonathan Bar Or
