MongoDB/PostgreSQL JSON benchmark tool (and slides) for Percona EU 2017

License

Notifications You must be signed in to change notification settings

domodwyer/mpjbt

Repository files navigation

Note

This was put together in 2017! That's a long time ago, things have definitely changed since :)

MongoDB / PostgreSQL JSONB Benchmarking Tool

MPJBT was wrote to gather data for our Percona Live EU 2017 talk - you can see our slides here.

We found some interesting things.

What's here?

  • mpjbt - benchmark tool source code (see releases for pre-built binaries)
  • scripts/run-tests.sh - bash script to run all workloads and push to a git remote
  • scripts/run-suite.sh - bash script to run run-tests.sh with a variety of different parameters
  • scripts/vfs.d - dtrace script to measure VFS call latency (./vfs.d <execname>, for example ./vfs.d mongod)

The bash scripts were developed to let us run long unattended tests over night - you'll probably have to tweak them for your use.

Features

  • Pluggable drivers - supports PostgreSQL and MongoDB now, but should be easy to add others
  • Randomised records
  • Pads records out to test larger documents (1kb, 1mb, etc)
  • Supports high numbers of concurrent workers
    • Care has been taken to avoid locks/contention outside of the drivers
  • Two different random distributions supported
    • Uniform - good at cache busting
    • Zipfian - good at hitting the cache
  • Support for configuring the behaviour of the underlying driver
    • Request different write concerns, set timeouts, etc

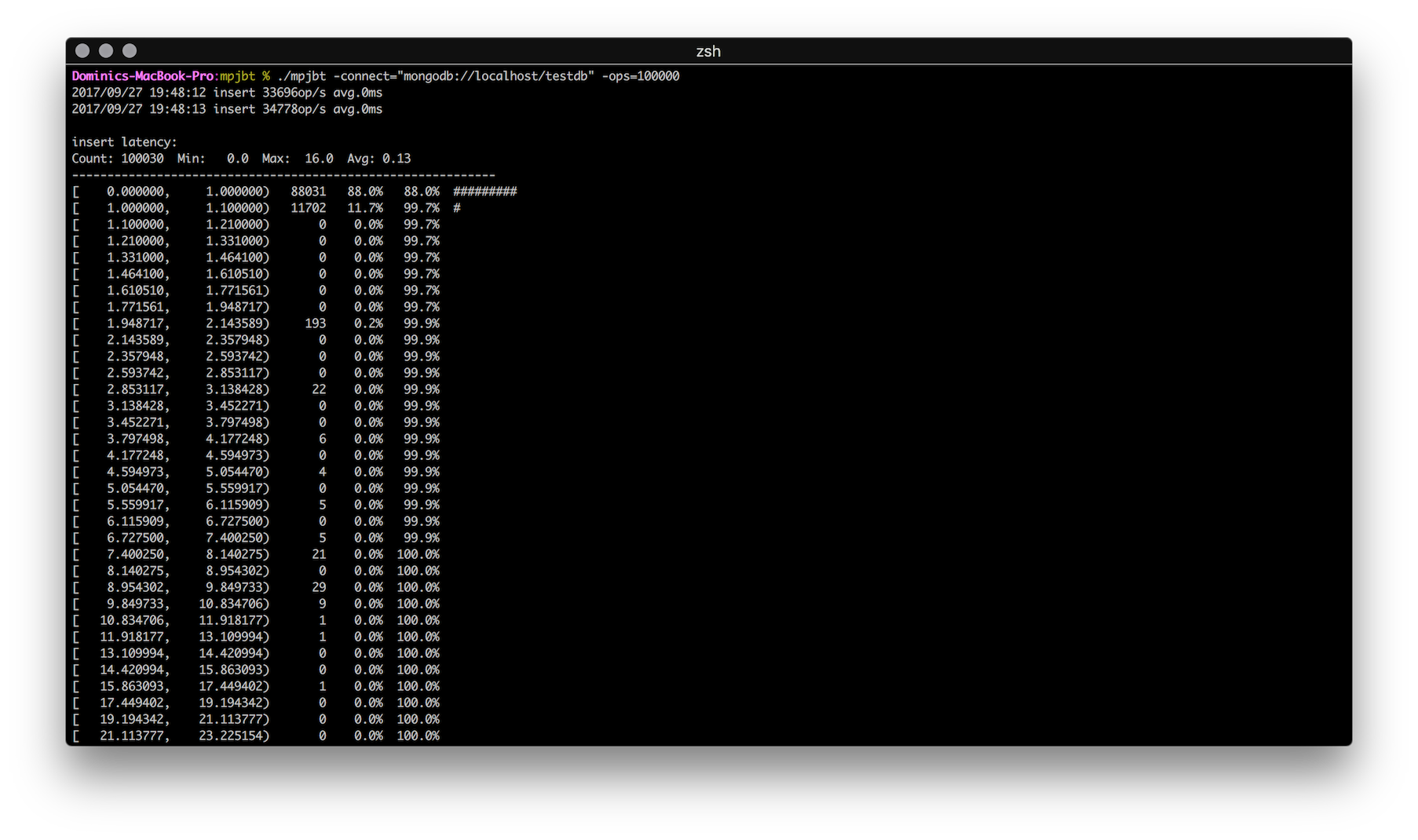

  • Builds a histogram for request durations - don't just use the average throughput!
    • Breaks results down for each operation
    • Dump histogram data as a CSV

Workloads

  • insert: insert records with a monotonically increasing ID
  • insert-update: same as "insert' but immediately updates the record
  • insert-select: same as insert, but immediately reads the record
  • insert5-select95: insert a record 5% of the time, and read the most recent record the other 95%
  • select-uniform: read a totally random record
  • select-zipfian: read a random record heavily weighted towards the most recent
  • select-update-uniform: same as select-uniform, but the record is immediately updated
  • select-update-zipfian: same as select-zipfian, but the record is immediately updated
  • update-zipfian: update a record, weighted towards the highest IDs
  • update-uniform: update a random record
  • read-range: perform a range query on the age field (age > 45 AND age < 75)

Notes

  • We've seen a significant speed improvement using binary_parameters=yes when connecting to Postgres
  • Take into account the drivers used (pq and GlobalSign's fork of mgo) will have differing performance
  • This was built fairly quickly so we could grab data - be kind!
  • Feel free to open PR's - I'll actively maintain this after the conference if it's useful to someone
  • If you do open a PR, please maintain the lockless behaviour (outside of the drivers obviously)
  • Multiple operation workloads are run sequentially per worker - this could be changed in the future (or just run two copies)
  • I really hate releasing something without unit tests - I just ran out of time!
  • Also I admit, we're not the best at coming up with names
