1.5.14 Release Notes
- Layout and Depiction
- Simpler API
- Alignment
- Rxn Auto Align
- Molecular Formula
- Round Robin Algorithm
- SMILES
- SmiFlavor
- CXSMILES
- Pattern Matching
- Reaction queries and matching
- SMARTS Fragment Extraction
IAtomContainer mol = ...;
IAtomContainer rxn = ...;
StructureDiagramGenerator sdg = new StructureDiagramGenerator();
sdg.generateCoordinates(mol); // mol layout
sdg.generateCoordinates(rxn); // rxn layoutPreviously...
IAtomContainer mol = ...;
StructureDiagramGenerator sdg = new StructureDiagramGenerator();
sdg.setMolecule(mol); // implicit clone of molecule
sdg.generateCoordinates();
mol = sdg.getMolecule();
for (IAtomContainer comp : ReactionManipulator.getAllAtomContainers(rxn)){
sdg.setMolecule(comp, false); // if the molecule is clone it's a pain to set it back to the reaction!
sdg.generateCoordinates();
}The SDG can can be told to keep certain atoms or bonds fixed in position. The fixing of atoms controls whether their coordinates changes, whilst fixing bonds disables the stretching to avoid overlaps etc. The API is low level but powerful.
Basic usage:
IAtomContainer mol = ...;
Set<IAtom> afix = new HashSet<>();
Set<IBond> bfix = new HashSet<>();
mol.getAtom(0).setPoint2d(new Point2d(0, 1));
mol.getAtom(1).setPoint2d(new Point2d(0, 2));
afix.add(mol.getAtom(0));
afix.add(mol.getAtom(1));
StructureDiagramGenerator sdg = new StructureDiagramGenerator();
sdg.setMolecule(mol, false, afix, bfix); // note clone disabled!

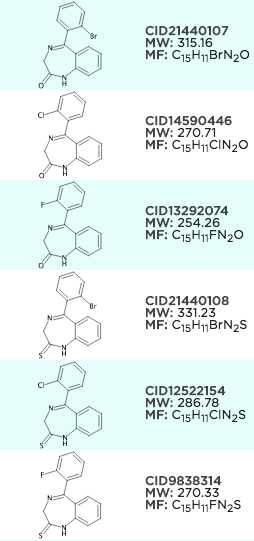

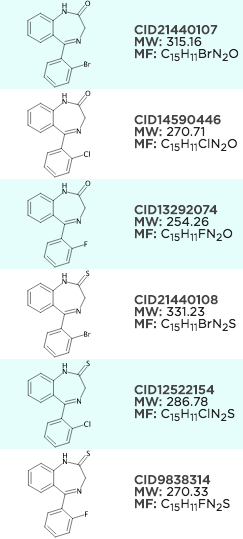

sdg.generateCoordinates();Example aligning MCS search results, it's a little bit hard to see as the ring aligns to a template on the left and looks good already, but notice on the right how the halogens align.
Since we're retro fitting some old code to do this, there may be a few quirks but these can normally be rectified with an provided example.
When a reaction has an atom mapping, it's possible to automatically align the coordinates on the left and right reasonably cheaply. This option has therefore be added to the structure diagram generator.
Default:
Aligned:
To enable/disable alignment use:
StructureDiagramGenerator sdg;
sdg.setAlignMappedReaction(false);Included semi-empirical generation that extends a provided dictionary.
Neither SnCl2 or HOOH is in the provided dictionary:

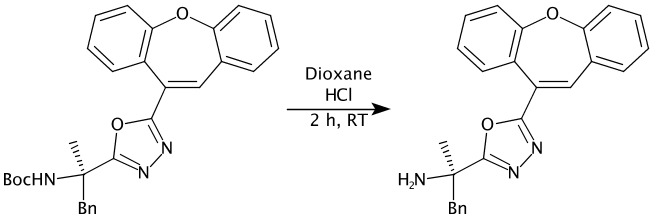

Boc is in dictionary but is collapsed back to NHBoc:
See pull request 210 for more details.
Isotopes ifac = Isotopes.getInstance();
MolecularFormulaRange range = new MolecularFormulaRange();
range.addIsotope(ifac.getMajorIsotope("C"), 8, 20);
range.addIsotope(ifac.getMajorIsotope("H"), 0, 20);
range.addIsotope(ifac.getMajorIsotope("O"), 0, 1);
range.addIsotope(ifac.getMajorIsotope("N"), 0, 1);
MolecularFormulaGenerator tool = new MolecularFormulaGenerator(SilentChemObjectBuilder.getInstance(),
133.0, 133.1, range);
IMolecularFormulaSet mfSet = tool.getAllFormulas();
for (IMolecularFormula mf : mfSet.molecularFormulas()) {
System.out.println(MolecularFormulaManipulator.getString(mf) + " " +
MolecularFormulaManipulator.getTotalExactMass(mf));
}The recent SMILES API has previously used the terms generic, unique, isomeric, absolute to control the flavor of SMILES generated. The meanings of theses terms aren't always obvious, for example, 'unique' does not include stereochemistry, and different between toolkits, 'absolute' and 'isomeric' and have their meanings swapped in OEChem compared to Daylight (which CDK matched here).
SmilesGenerator smigen = SmilesGenerator.unique();This will still work but the new way of configuring SMILES is with binary flags specified in SmiFlavor. These flags give
fine control over what is written in the output SMILES, for example I can enable stereo chemistry to varying levels:
SmilesGenerator smigen = new SmilesGenerator(SmiFlavor.Stereo); // all stereo on
SmilesGenerator smigen = new SmilesGenerator(SmiFlavor.StereoTetrahedral); // only tetrahedral stereo on
// turn on Stereochemistry and AtomicMass, non-canonical
SmilesGenerator smigen = new SmilesGenerator(SmiFlavor.Stereo | SmiFlavor.AtomicMass);ChemAxon Extended SMILES can now also be written, one of the many extensions it provides is to store coordinates. As above, the SmiFlavor controls which parts of the CXSMILES is written. CXSMILES is written by default - normall
String smi = "CC* |$;;R1$,(0,0,;1,0,;2,0,;)|"
SmilesParser smipar = new SmilesParser(SilentChemObjectBuilder.getInstance());
IAtomContainer mol = smipar.parse(smi);
new SmilesGenerator(SmiFlavor.Default).create(mol);
// CC* |$;;R1$|
new SmilesGenerator(SmiFlavor.CxSmilesWithCoords).create(mol);
// CC* |$;;R1$,(0,0,;1,0,;2,0,;)|The Pattern API has been extended allowing to match reactions and accept reaction SMARTS. This includes matching
the semantics of the atom-atom mapping matching.

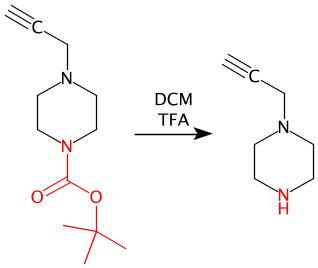

Pattern ptrn = SmartsPattern.create("[N:1]C(=O)OC(C)(C)C>>[NH:1]"); // a Boc deprotection
String rsmi = "CC(C)(C)OC(=O)[N:5]1[CH2:4][CH2:3][N:2]([CH2:7][CH2:6]1)[CH2:1][C:8]#[CH:9]>C(Cl)Cl.C(=O)(C(F)(F)F)O>[CH:9]#[C:8][CH2:1][N:2]1[CH2:3][CH2:4][NH:5][CH2:6][CH2:7]1";
SmilesParser smipar = new SmilesParser(SilentChemObjectBuilder.getInstance());
IReaction rxn = smipar.parseReactionSmiles(rsmi);
if (ptrn.matches(rxn))
{
// hit
}
Matching of not reaction queries also works.

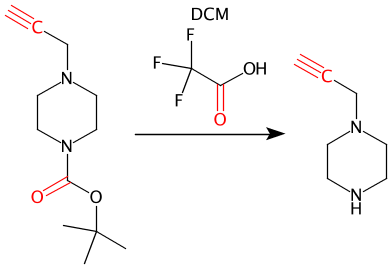

Pattern ptrn = SmartsPattern.create("*!-*"); // non-sigma bond
String rsmi = "CC(C)(C)OC(=O)[N:5]1[CH2:4][CH2:3][N:2]([CH2:7][CH2:6]1)[CH2:1][C:8]#[CH:9]>C(Cl)Cl.C(=O)(C(F)(F)F)O>[CH:9]#[C:8][CH2:1][N:2]1[CH2:3][CH2:4][NH:5][CH2:6][CH2:7]1";
SmilesParser smipar = new SmilesParser(SilentChemObjectBuilder.getInstance());
IReaction rxn = smipar.parseReactionSmiles(rsmi);
if (ptrn.matches(rxn))
{
// hit
}
A SmartsFragmentExtractor has been added that allow the generation of SMARTS that matches a provided set of atoms (atom index):
IChemObjectBuilder bldr = SilentChemObjectBuilder.getInstance();
SmilesParser smipar = new SmilesParser(bldr);
IAtomContainer mol = smipar.parseSmiles("[nH]1ccc2c1cccc2");
SmartsFragmentExtractor subsmarts = new SmartsFragmentExtractor(mol);
String smarts = mol.generate(new int[]{0,1,3,4});
// smarts=[nH1v3X3+0][cH1v4X3+0][cH1v4X3+0][cH0v4X3+0] 152 John Mayfield
56 Egon Willighagen 0000-0001-7542-0286
13 Nikolay Kochev
5 Kai Dührkop
3 Tomáš Pluskal
2 Nina Jeliazkova
1 Hsiao Yi
1 Rajarshi Guha- Bumping version for release.
